Ignition System: Location

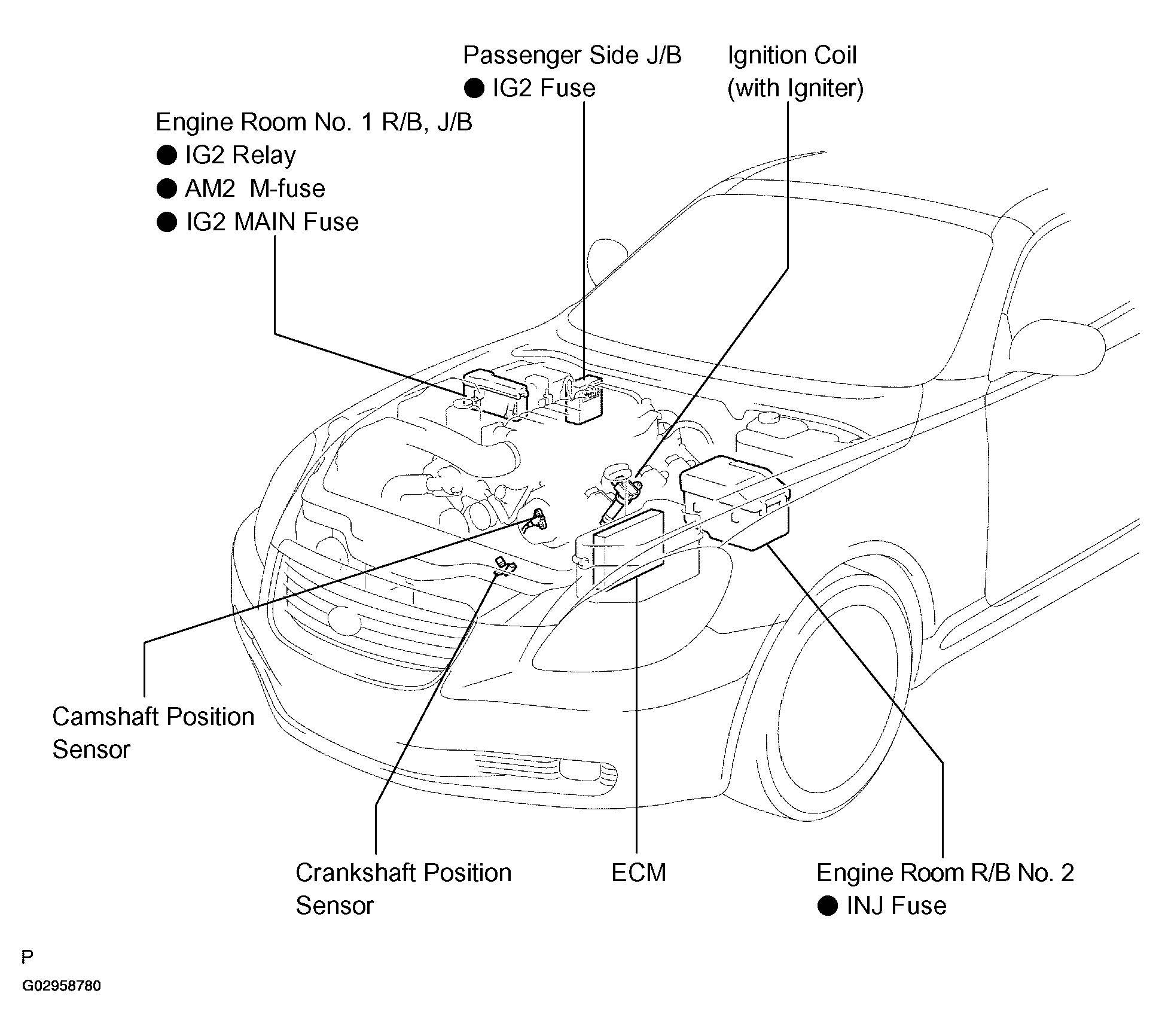

Fig 1: Identifying Location Of Ignition System Components & Replacements
G02958780Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
