Vehicle Identification And Serial Numbers

VEHICLE IDENTIFICATION NUMBER
1. The vehicle identification number is stamped on the vehicle identification number plate and certification label, as shown in Fig 1.
  1. Vehicle Identification Number Plate
  2. Certification Label

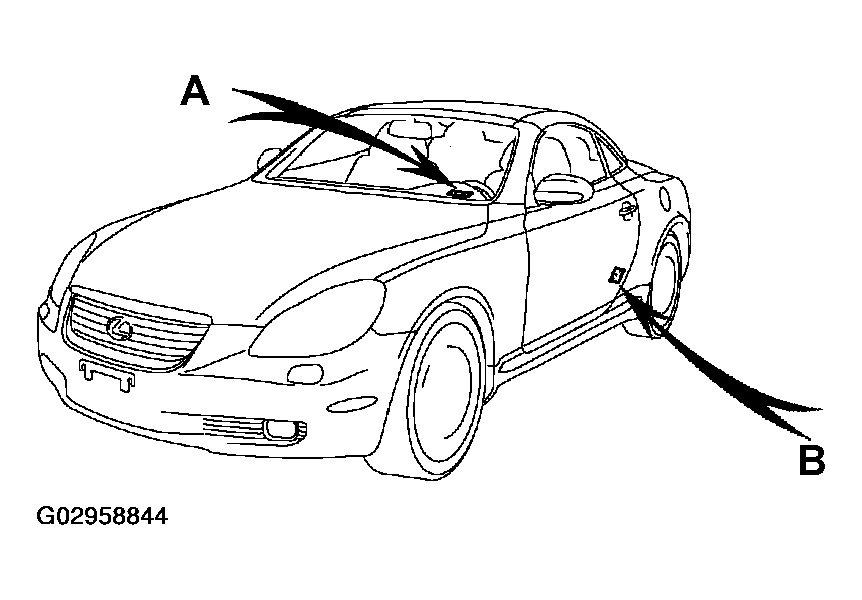

    Fig 1: Identifying Vehicle Identification Number Positions
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ENGINE SERIAL NUMBER AND TRANSMISSION SERIAL NUMBER
1. The engine serial number is stamped on the cylinder block of the engine and the transmission serial number is stamped on the housing as shown in Fig 2 and Fig 3.
  1. Engine Serial Number
  2. Transmission Serial Number

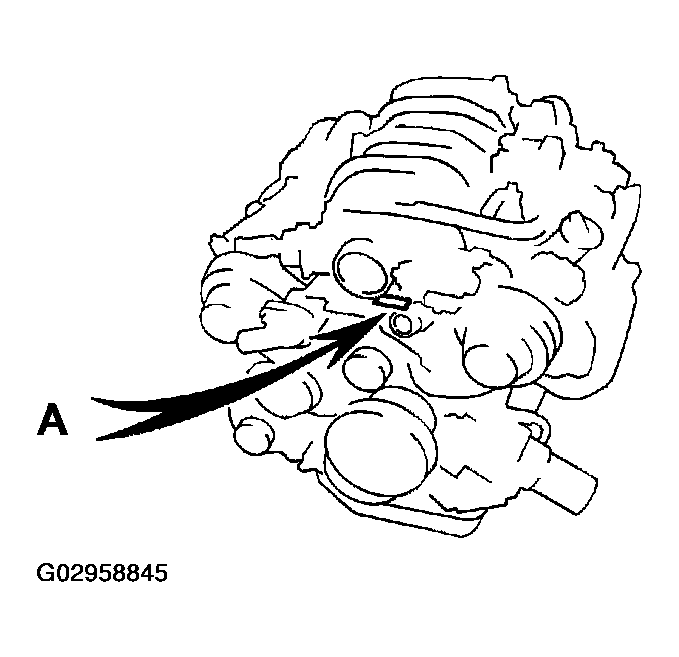

    Fig 2: Identifying Engine Serial Number
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

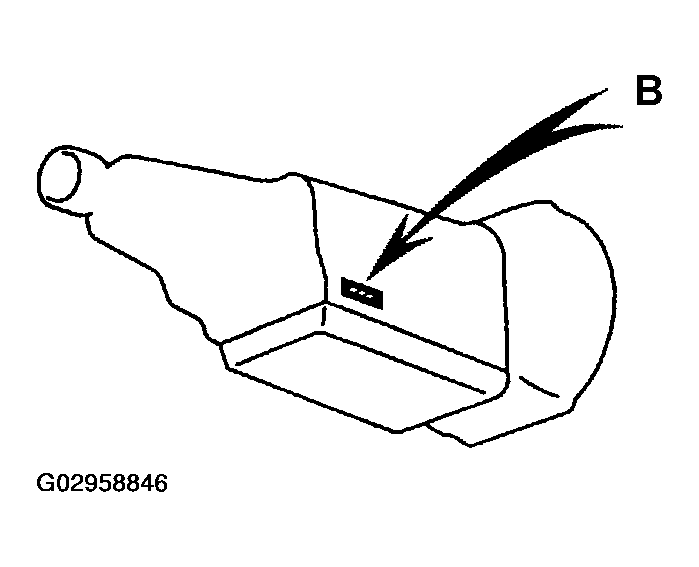

    Fig 3: Identifying Transmission Serial Number
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
