Customize Parameters
HINT:
The following items can be customized.
NOTE:
- Be sure to record the current settings before customizing.
- When the customer requests a change in a function, first make sure that the function(s) can be customized.
- When troubleshooting a function, first make sure that the function is set to the default setting.
Multiplex tilt & telescopic ECU assy:
MULTIPLEX TILT & TELESCOPIC ECU ASSY
| Display (Item) | Default | Contents | Setting |
|---|---|---|---|
| AUTO TILT AWAY (Auto Away / Return Function) | ON | ON / OFF of auto away / return function | ON / OFF |
A/C amplifier assy:
A/C AMPLIFIER ASSY
| Display (Item) | Default | Contents | Setting |
|---|---|---|---|
| SET TEMP SHIFT (Shift Set Temperature) | NORMAL | Function to control with shifted temperature against display temperature. | +2C/+1C/NORMAL -1C/-2C |
| AIR INLET MODE (Air Inlet Mode) | AUTO | When turning A/C ON when you desire to cool compartment down quickly, this function changes mode automatically to RECIRCULATED mode. | MANUAL/AUTO |
| COMPRESSOR MODE (Compressor Mode) | AUTO | Function to turn A/C ON automatically by pressing AUTO button when the blower is ON and the A/C is OFF. | MANUAL/AUTO |
| COMPRS/DEF OPER (Compressor/DEF Operation) | LINK | Function to turn A/C ON automatically linking with FRONT DEF button when A/C is OFF. | NORMAL/LINK |
| AIR INLET OPER (Air Inlet (PSW/LOCK) operation) | LINK | Function to change mode automatically to OUTSIDE AIR mode from RECIRCULATED mode linking with A/C button in case of A/C breakdown, etc. | NORMAL/LINK |
| GAS SENS SHIFT (Emission Gas Sensor Shift) | NORMAL | Function to change sensitivity of exhaust gas sensor. | MU MORE/MORE/LI MORE/NORMAL/ LI LESS/ LESS/MU LESS |
| FOOT AOUT OPER (Foot Air Out Operation) | ON | Function to turn air flow from lap-jet ON automatically when retractable hard top is housed | OFF/ON |
| FOOT/DEF MODE (FOOT/DEF Auto Mode) | ON | Function to turn air flow from FOOT/DEF ON automatically when AUTO MODE is ON | OFF/ON |
Power window control system:
POWER WINDOW CONTROL SYSTEM
| Display (Item) | Default | Contents | Setting |
|---|---|---|---|
| UP/DOOR KEY | ON | Function that raises all power windows when, with ignition switch OFF, key is used to hold driver door key cylinder to lock position for more than 1.5 seconds | ON/OFF |
| DOWN/DOOR KEY | ON | Function that lowers all power windows when, with ignition switch OFF, key is used to hold driver door key cylinder to unlock position for more than 1.5 seconds | ON/OFF |
Combination meter assy:
COMBINATION METER ASSY
| Display (Item) | Default | Contents | Setting |
|---|---|---|---|
| KEY REMIND VOL (Key reminder buzzer volume) | LARGE | Changes volume of key reminder buzzer | LARGE/MEDUM/SMALL |
| KEY REMIND SOUND (Key reminder buzzer sound) | NORMAL | Changes frequency of key reminder buzzer | FAST/NORMAL/SLOW |
| UNITS BY REGION | ML/G US | Changes display unit of drive monitor | ML/G US/ ML/G UK/KM/L |
Theft warning ECU:
THEFT WARNING ECU
| Display (Item) | Default | Contents | Setting |
|---|---|---|---|
| UNLK/KEY TWICE (Unlock w/ 2 times D key operation) | ON | Function that unlocks only driver side door when driver side door key cylinder is turned to unlock once and unlocks all the doors when it is turned to unlock twice. In OFF setting, turning it once unlocks all doors. | ON/OFF |
| UNLOCK/PARK (Unlock w/ IG ON, shift P, speed 0 km/h (0 mph)) | OFF | Function that unlocks doors when lever is shifted to P position from any position other than P while the ignition switch is ON. | ON/OFF |
| AUTO LOCK (ONCE) (Auto Lock (ONCE)) | OFF | Function that locks the doors once when the vehicle speed reaches a certain level. | ON/OFF |
| AUTO LOCK/SHIFT (Auto Lock/shift not P) | ON | Function that locks doors when lever is shifted from P position to any position other than P | ON/OFF |
Wireless door lock control system:
WIRELESS DOOR LOCK CONTROL SYSTEM
| Display (Item) | Default | Contents | Setting |
|---|---|---|---|
| WIRELESS OPER (Wireless door lock control function) | ON | Function that turns wireless door lock function ON/OFF. | ON/OFF |
| WIRELESS BUZZ VOL (Wireless door lock buzzer volume control function) | ON | Function that turns wireless door lock buzzer volume MAX, MID 1 to 3, or MIN. | MAX/MID1/MID2/MID3/MIN |
| HAZARD ANS BACK (Hazards answer-back for wireless door lock operation) | ON | When LOCK switch on transmitter is pressed, this function illuminates all hazard warning lamps once. When UNLOCK switch is pressed, all hazard warning lamps illuminate twice. | ON/OFF |
| DOWN/WIRELESS (Wireless window open control function) | ON | When UNLOCK switch on transmitter is held for 2.5 seconds, this function opens all door windows and sliding roof. | ON/OFF |
| OPEN DOOR WARN (Door ajar warning function) | ON | If door is not completely closed and transmitter LOCK switch is pressed, this function sounds a buzzer for 10 seconds. | ON/OFF |
| AUTO LOCK DELAY (Auto lock time function) | 30 s | This function controls amount of time from unlocking doors to activation of automatic locking function. | 30 s/60 s |
| TRUNK LID OPER (Wireless luggage compartment door open function) | 0.8 PR | This function changes transmitter operation method for opening luggage compartment door. | 1 time/2 times/0.8s PR/OFF |
| UNLOCK/2OPER (Wireless unlock operated twice function) | D_door | When UNLOCK switch is pressed once, this function unlocks only designated door. When unlock switch is pressed again within 3 seconds, all doors unlock. If setting is on ALL, pressing UNLOCK switch once unlocks all doors. | ALL/D_door |
| ALARM FUNCTION (Remote panic function) | ON | Function that operates theft deterrent system when transmitter LOCK (PANIC) switch is held for 3 seconds. | ON/OFF |
Meter ECU:
METER ECU
| Display (Item) | Default | Contents | Setting |
|---|---|---|---|
| KEY REMND VOLUM | LARGE | Changes key reminder buzzer's volume | LARGE/MEDIUM/SMALL |

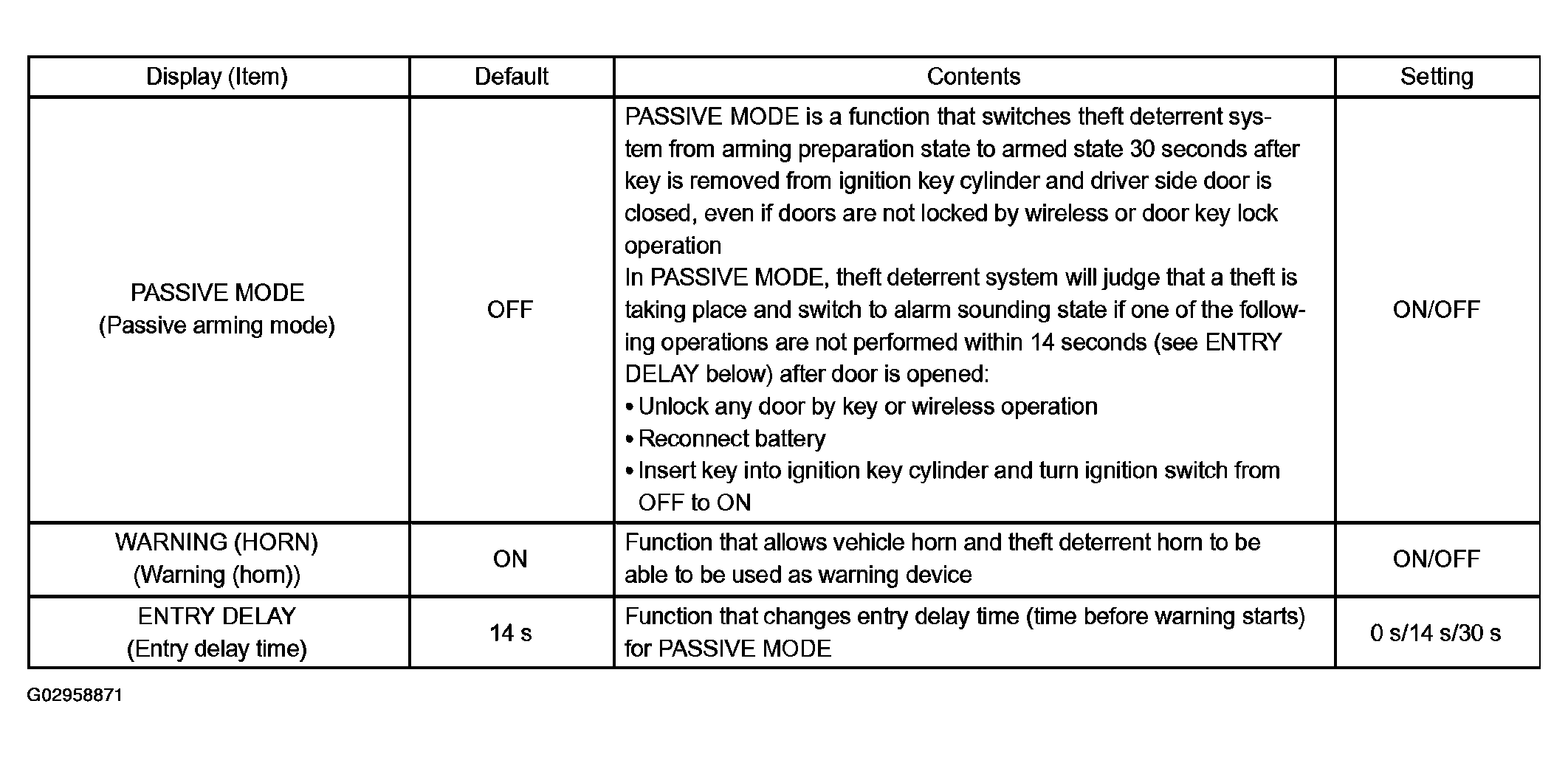

Theft deterrent system:
