Automatic Transmission ASSY: Components

Fig 1: Identifying Automatic Transmission Assy Components (1 Of 2)
G02954492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

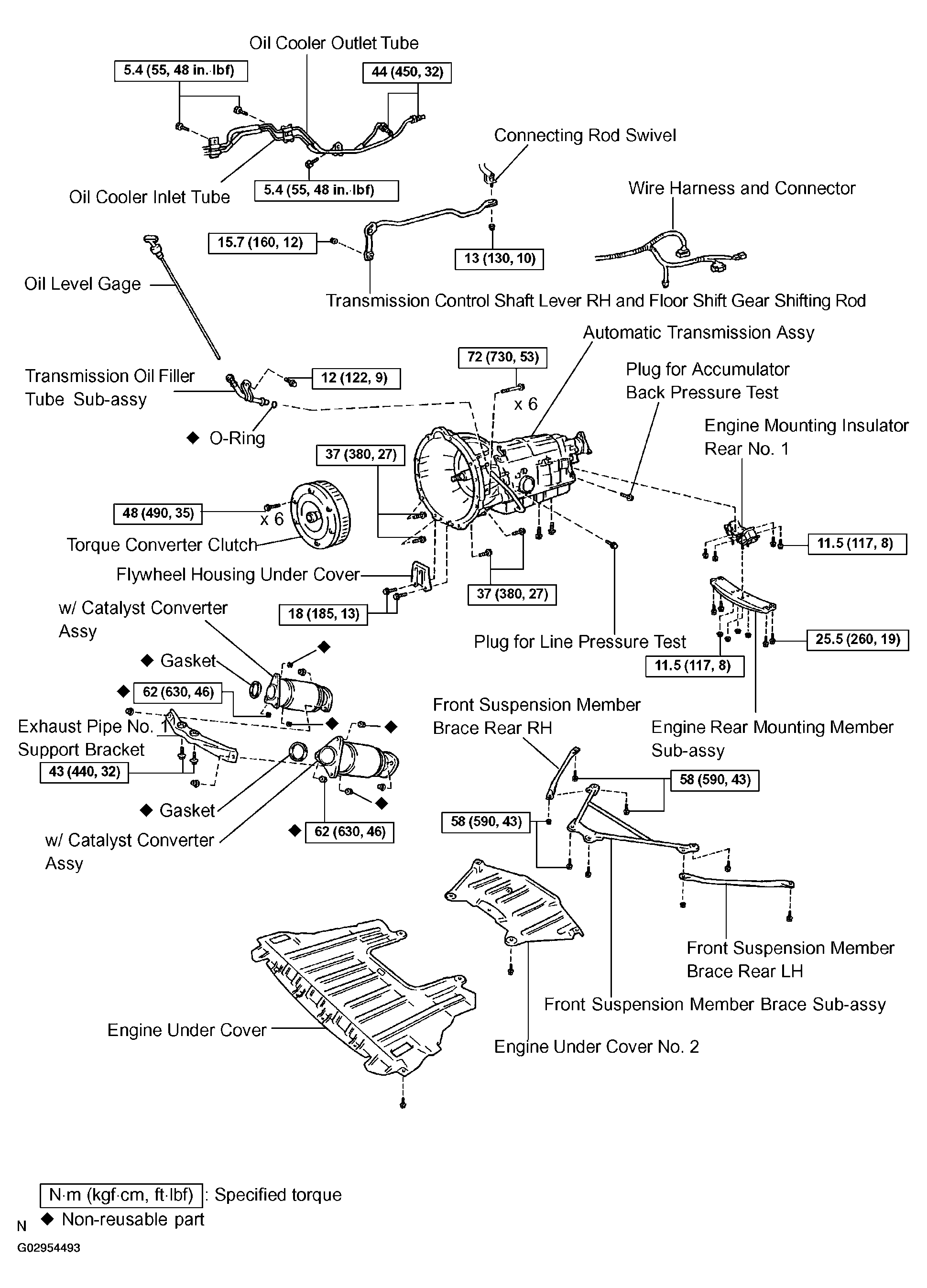

Fig 2: Identifying Automatic Transmission Assy Components (2 Of 2)
G02954493Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
