Floor Shift ASSY: Overhaul

HINT:

A bolt without a torque specification is shown in the standard bolt table (See SPECIFIED TORQUE FOR STANDARD BOLTS ).

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat pretensioner activation.
  2. REMOVE CONSOLE UPPER PANEL GARNISH REAR
  3. REMOVE CONSOLE PANEL SUB-ASSY UPPER
  4. REMOVE FRONT FLOOR BRACE CENTER (See  OVERHAUL  )
  5. REMOVE RR SUSPENSION MEMBER BRACE REAR LOWER LH (See  OVERHAUL  )
  6. REMOVE RR SUSPENSION MEMBER BRACE REAR LOWER RH (See  OVERHAUL  )
  7. DISCONNECT HEATED OXYGEN SENSOR (See  OVERHAUL  )
  8. REMOVE EXHAUST PIPE ASSY (See  OVERHAUL  )
  9. REMOVE FRONT FLOOR HEAT INSULATOR NO.1 (See  OVERHAUL  )
  10. REMOVE PARKING BRAKE CABLE HEAT INSULATOR (See  OVERHAUL  )
  11. REMOVE FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSY
    1. Move the shift lever to N.
    2. Remove the nut and disconnect the shifting rod from the connecting rod swivel.
      Fig 1: Disconnecting Shifting Rod From Connecting Rod Swivel & Removing Nut
      G02954589Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE FLOOR SHIFT ASSY
    1. Disconnect the 4 connectors.
    2. Remove the 4 bolts and floor shift.

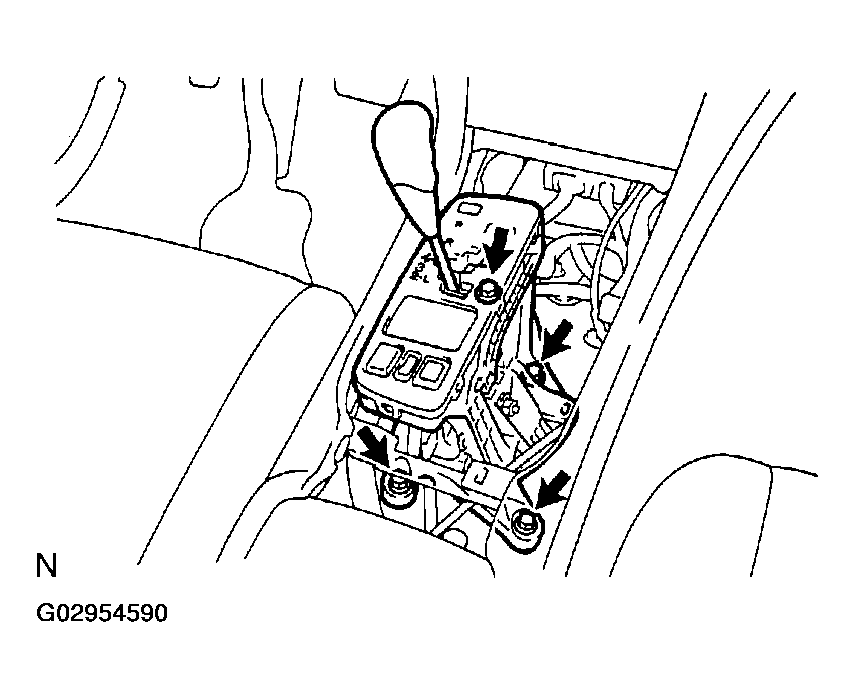

      Fig 2: Removing Floor Shift With Bolts
      G02954590Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE SHIFT LEVER KNOB SUB-ASSY
    1. Twist the knob counterclockwise and pull it upward to remove it.
      Fig 3: Identifying Shift Lever Knob
      G02954591Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE SHIFT POSITION INDICATOR
    1. Using a screwdriver, detach the 6 claws and remove the shift position indicator.

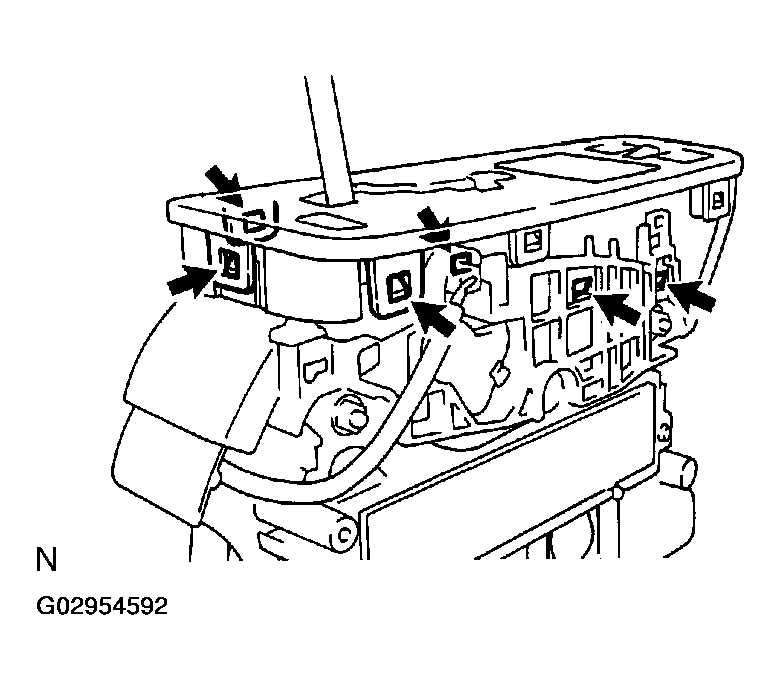

      Fig 4: Removing Shift Position Indicator With Claws
      G02954592Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE VEHICLE STABILITY CONTROL SWITCH
    1. Using a screwdriver, remove the VSC OFF switch from the shift position indicator.
      Fig 5: Removing VSC OFF Switch From Shift Position Indicator
      G02954593Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE PATTERN SELECT SWITCH ASSY NO.1
    1. Using a screwdriver, remove the pattern select switch from the shift position indicator.
      Fig 6: Removing Pattern Select Switch From Shift Position Indicator
      G02954594Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE SHIFT LEVER CAP
    1. Using a screwdriver, remove the shift lever cap from the shift position indicator.
      Fig 7: Removing Shift Lever Cap From Shift Position Indicator Using Screwdriver
      G02954595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE INDICATOR LAMP WIRE SUB-ASSY
    1. Disconnect the indicator lamp wire.

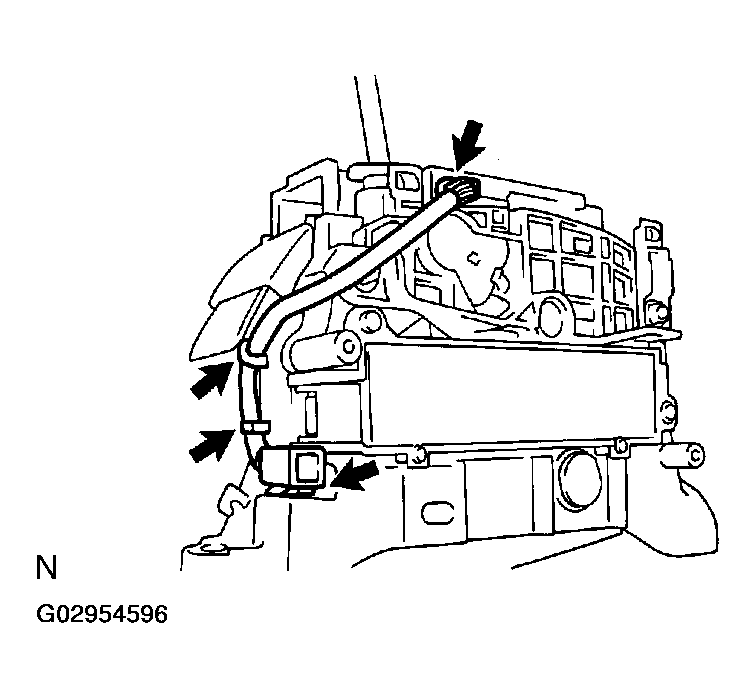

      Fig 8: Disconnecting Indicator Lamp Wire
      G02954596Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bulb from the indicator lamp wire.
    3. Using a small screwdriver, release the locking lug of indicator lamp wire terminals 1, 2 and 3. Then pull out the terminals from the rear.
      Fig 9: Releasing Locking Lug Of Indicator Lamp Wire Terminals 1, 2 & 3 Using Small Screwdriver
      G02954597Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE SHIFT LOCK CONTROL ECU SUB-ASSY
    1. Remove the 2 screws and ECU.

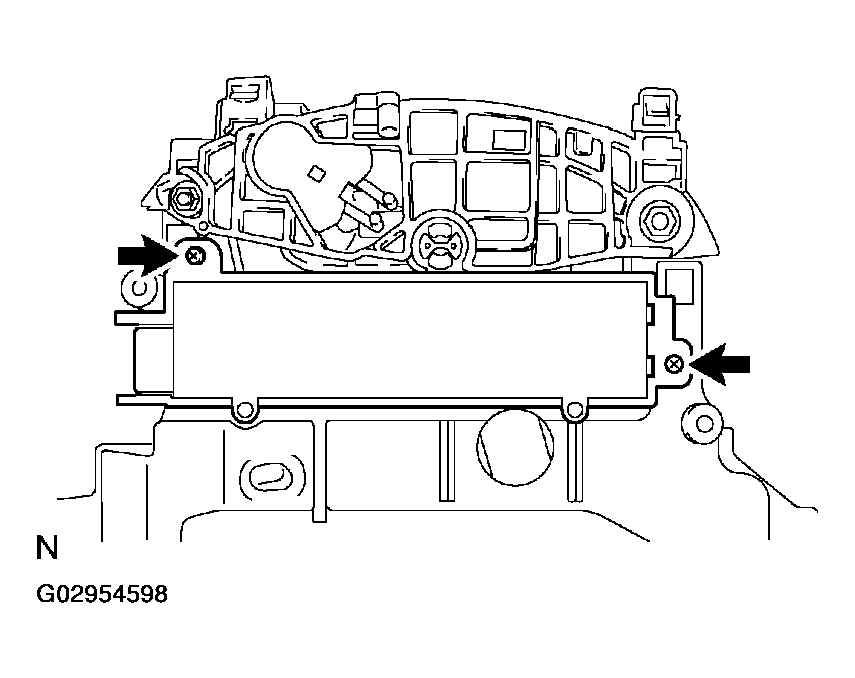

      Fig 10: Removing Shift Lock Control ECU With Screws
      G02954598Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. INSTALL SHIFT LOCK CONTROL ECU SUB-ASSY
    1. Install the ECU with the 2 screws.
    NOTE: Align the 2 grooves as shown in Fig 11.

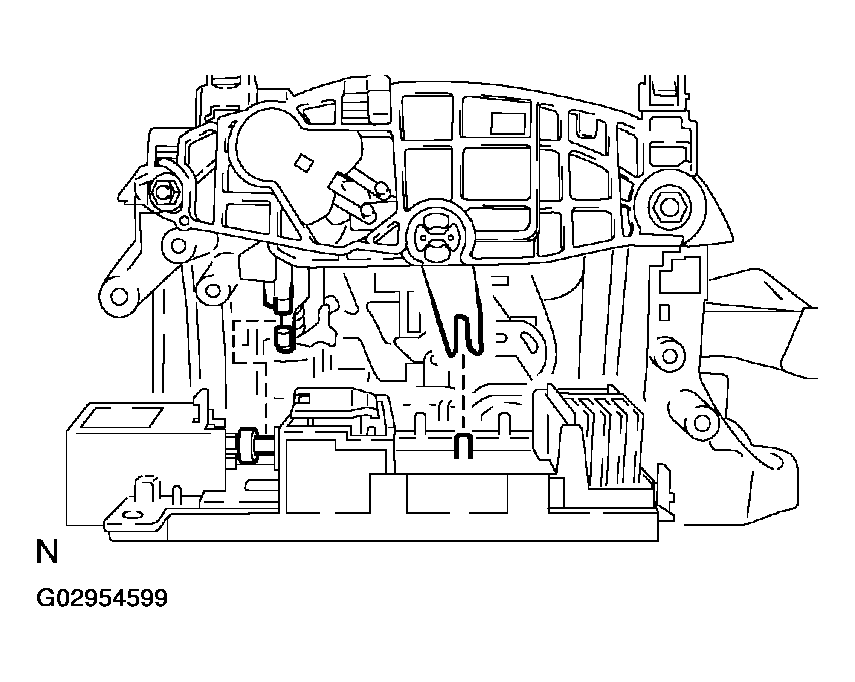

    Fig 11: Installing Shift Lock Control ECU With Screws
    G02954599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. INSTALL INDICATOR LAMP WIRE SUB-ASSY
    1. Connect the 2 wire harnesses of the indicator lamp wire to the connector.
    2. Install the bulb to the indicator lamp wire.
    3. Install the indicator lamp wire as shown in Fig 12.

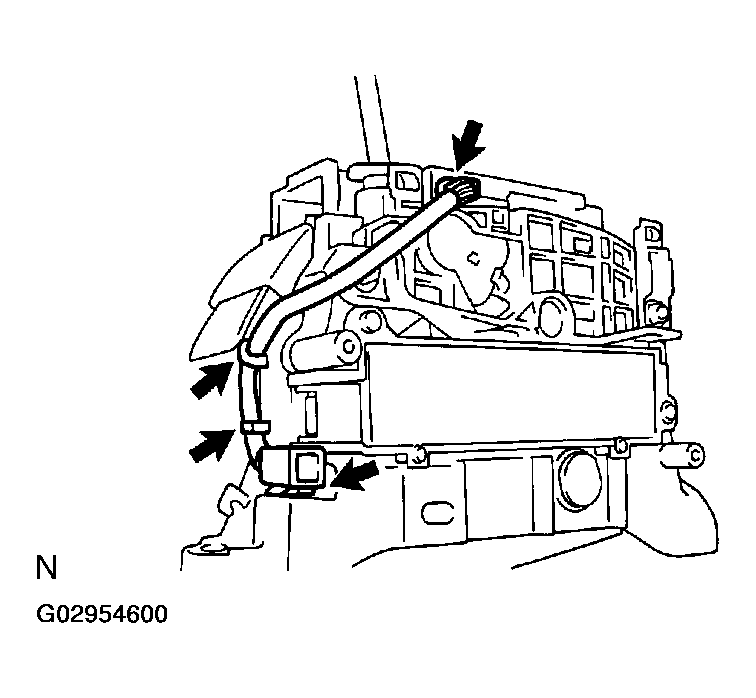

      Fig 12: Installing Indicator Lamp Wire
      G02954600Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. INSTALL SHIFT LEVER CAP
    1. Install the shift lever cap to the shift position indicator.
  23. INSTALL SWITCH ASSY, PATTERN SELECT
    1. Install the pattern select switch to the shift position indicator.
      Fig 13: Installing Pattern Select Switch To Shift Position Indicator
      G02954601Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. INSTALL VEHICLE STABILITY CONTROL SWITCH
    1. Install the VSC OFF switch to the shift position indicator.

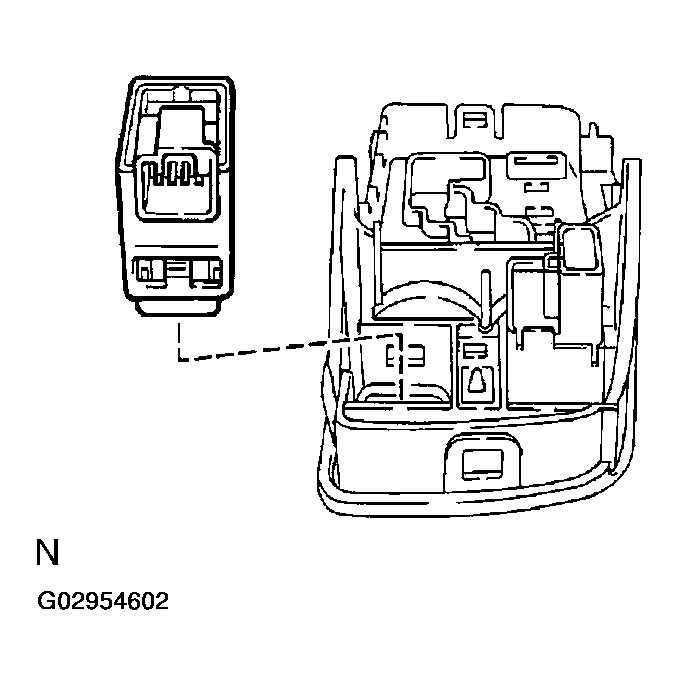

      Fig 14: Installing VSC Off Switch To Shift Position Indicator
      G02954602Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. INSTALL SHIFT POSITION INDICATOR
    1. Install the shift position indicator to the shift lever guide housing.

    HINT:

    Firmly fit the claws.

    Fig 15: Installing Shift Position Indicator To Shift Lever Guide Housing
    G02954603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. INSTALL SHIFT LEVER KNOB SUB-ASSY
    1. Install the knob and twist it clockwise to lock it in place.
      Fig 16: Installing Shift Lever Knob
      G02954604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. INSTALL FLOOR SHIFT ASSY
    1. Install the floor shift with the 4 bolts.

      Torque: 8.3 N.m (85 kgf.cm, 74 in.lbf)

    2. Connect the 4 connectors.
      Fig 17: Installing Floor Shift With Bolts
      G02954605Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. CONNECT FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSY
    1. Temporarily connect the shifting rod to the connecting rod swivel with the nut.
      Fig 18: Connecting Shifting Rod To Connecting Rod Swivel With Nut
      G02954606Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  30. PERFORM INITIALIZATION (See  INITIALIZATION  )
    NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
  31. ADJUST SHIFT LEVER POSITION (See  ADJUSTMENT   )
  32. INSTALL EXHAUST PIPE ASSY (See  OVERHAUL  )
  33. CONNECT HEATED OXYGEN SENSOR (See  OVERHAUL  )
  34. INSTALL RR SUSPENSION MEMBER BRACE REAR LOWER RH (See  OVERHAUL  )
  35. INSTALL RR SUSPENSION MEMBER BRACE REAR LOWER LH (See  OVERHAUL  )
  36. INSTALL FRONT FLOOR BRACE CENTER (See  OVERHAUL  )
  37. INSPECT SHIFT LEVER POSITION (See  ADJUSTMENT   )
  38. CHECK FOR EXHAUST GAS LEAKS
