Shift Lock System: Inspection

1. Connect the battery's positive (+) terminal to terminal 4 (KLS+) and the battery's negative (-) terminal to terminal 3 (KLS-). Then apply 12 V.

   Check that sound is emitted from the solenoid.

If sounds are not emitted, replace the solenoid.

HINT:

If sounds are not emitted from the solenoid, the solenoid is not operating.

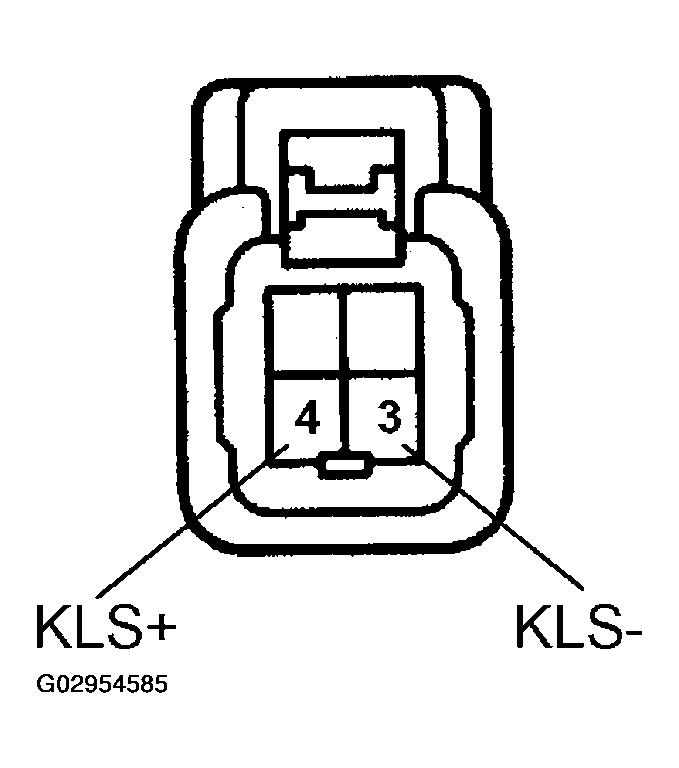

Fig 1: Identifying Key Interlock Solenoid Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
