Shift Lock System: Location

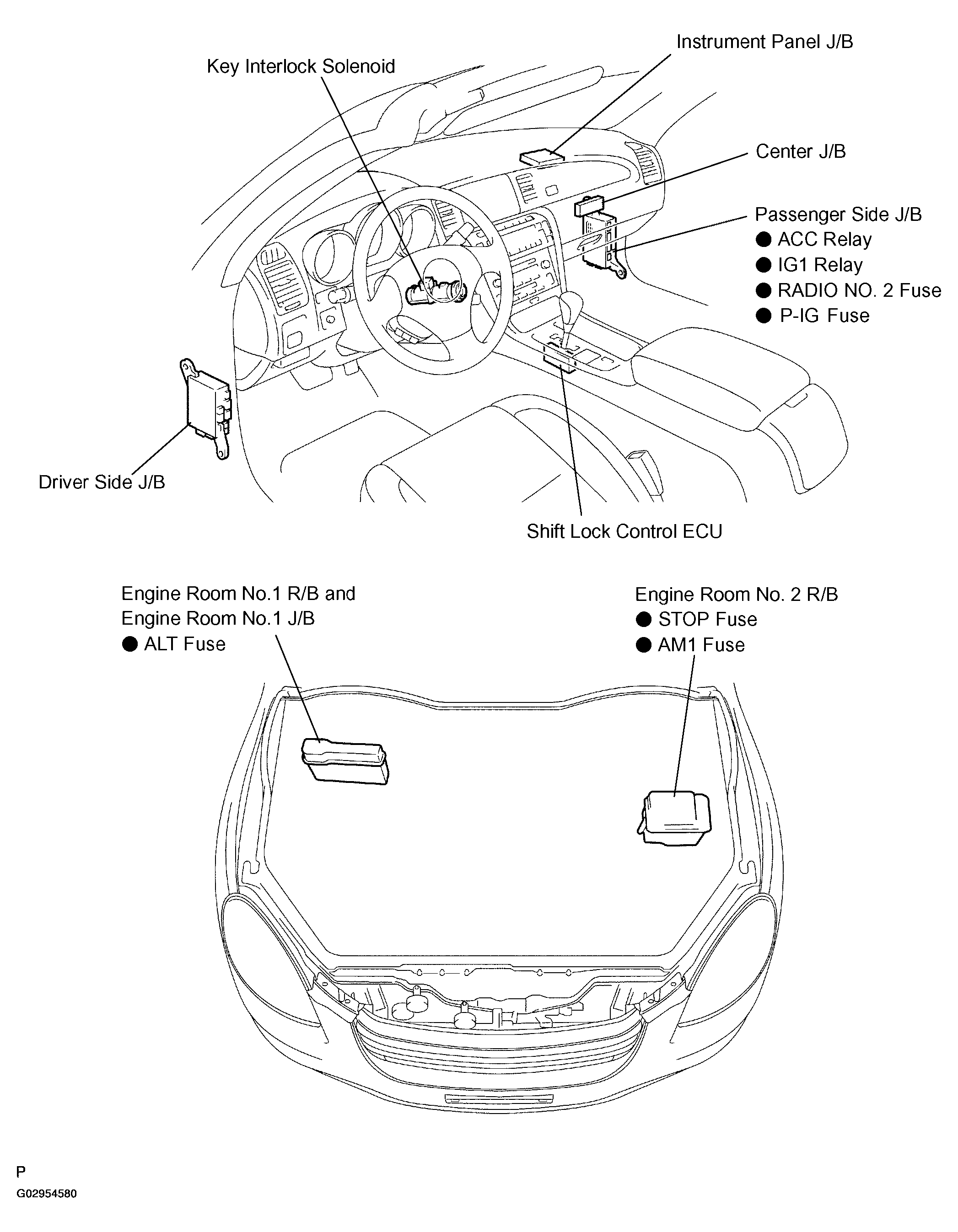

Fig 1: Identifying Location Of Shift Lock System Components
G02954580Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
