On-Vehicle Inspection

1. Move the shift lever to P.
2. Turn the ignition switch OFF.
3. Check that the shift lever cannot be moved to any position other than P.
4. Turn the ignition switch ON, depress the brake pedal and check that the shift lever can be moved to the other positions.

1. When operating the shift lever with the shift lock release button pressed, check that the lever can be moved to any position other than P.

If the results are not as specified, check the shift lever.

1. Turn the ignition switch ON.
2. Depress the brake pedal and move the shift lever to any position other than P.
3. Check that the ignition switch cannot be turned OFF.
4. Move the shift lever to P, turn the ignition switch OFF and check that the key can be removed.

If the results are not as specified, inspect the shift lock control unit.

1. Measure the voltage of the connector.

   HINT:

   Do not disconnect the shift lock control ECU connector.

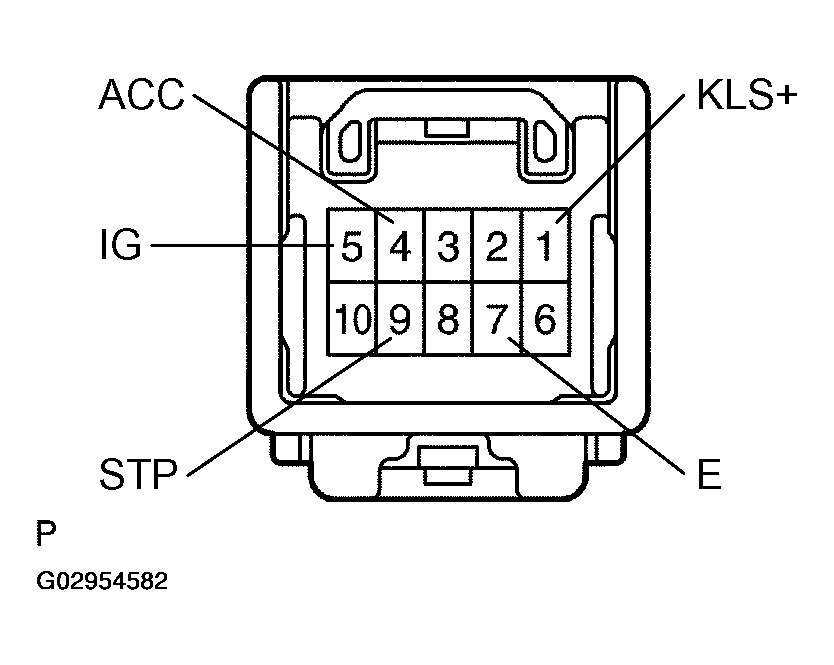

   Fig 1: Identifying Shift Lock Control ECU Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard:

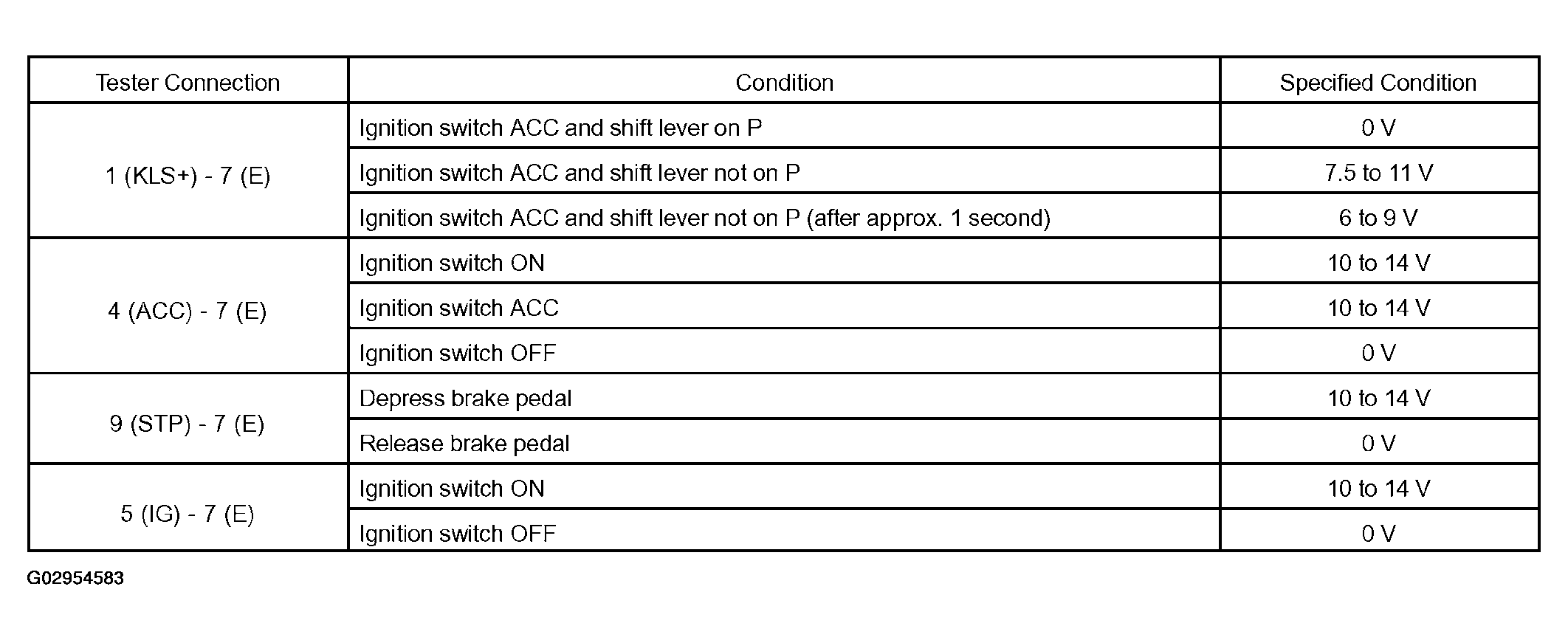

   Fig 2: Tester Connection Specified Condition Table

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance of the connector.

HINT:

Do not disconnect the shift lock control ECU connector.

Standard:

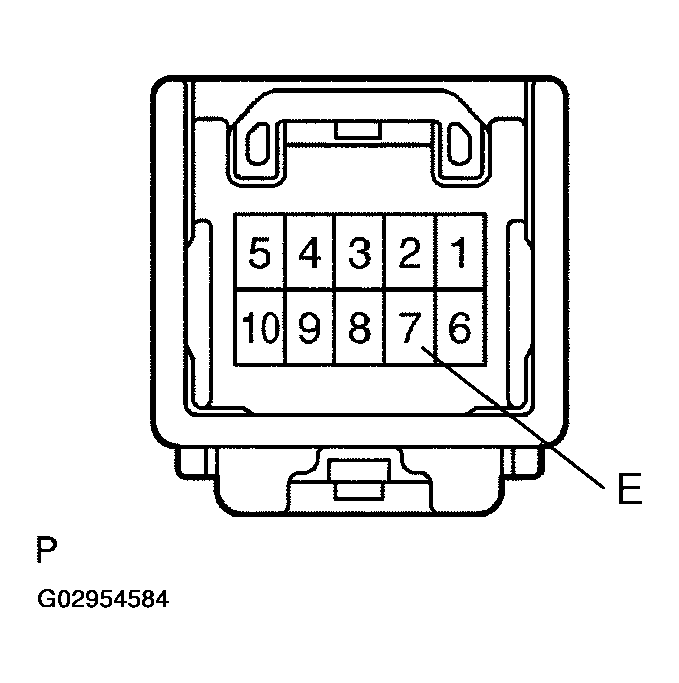

Fig 3: Identifying Shift Lock Control ECU Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the result is not as specified, replace the shift lock control ECU sub-assy.
