Speed Sensor: Replacement

REMOVE O/D DIRECT CLUTCH SPEED SENSOR
1. Disconnect the sensor connector.
2. Remove the bolt and sensor.
3. Remove the O-ring from the sensor.

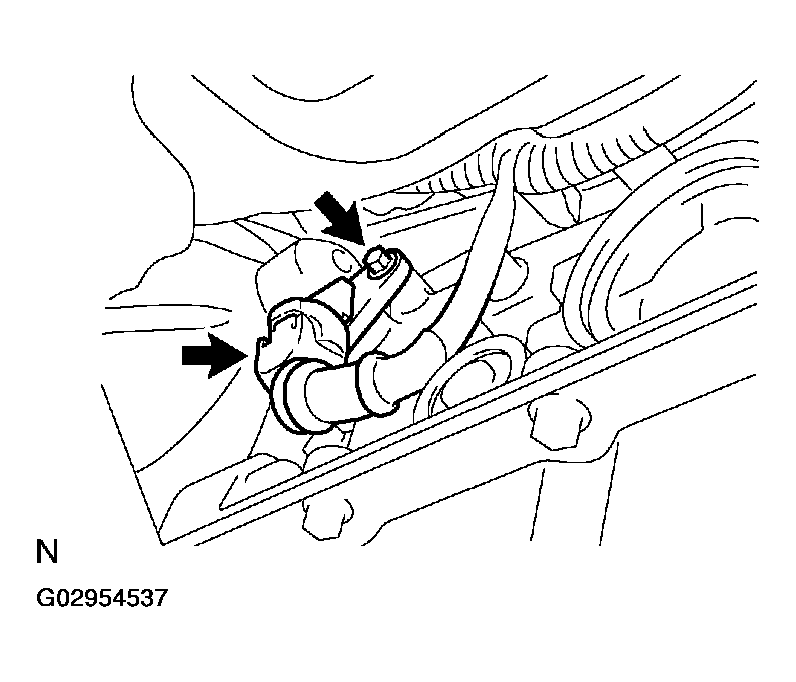

  Fig 1: Removing O/D Direct Clutch Speed Sensor With Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE VEHICLE SPEED SENSOR
1. Disconnect the sensor connector.
2. Remove the bolt and sensor.
3. Remove the O-ring from the sensor.

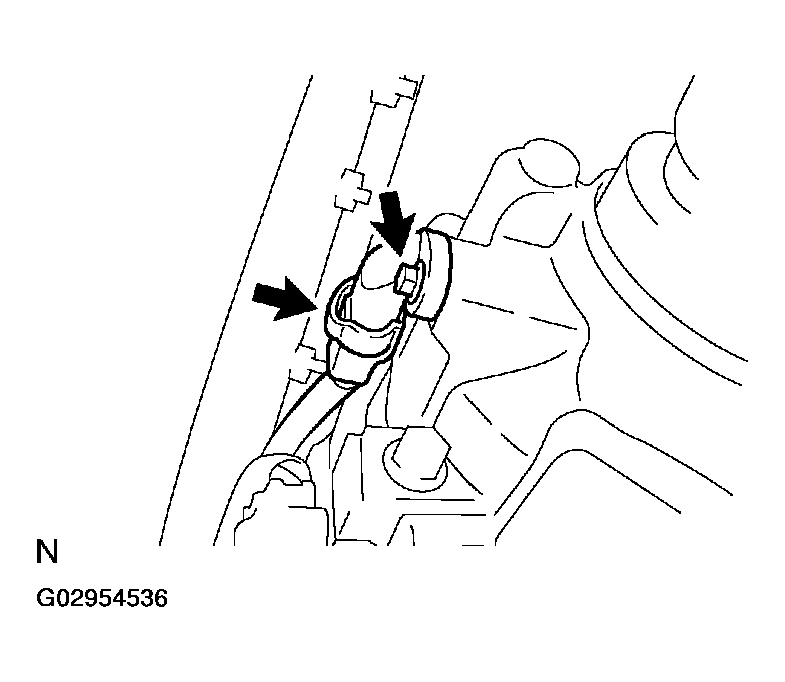

  Fig 2: Removing Vehicle Speed Sensor With Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL VEHICLE SPEED SENSOR
1. Coat a new O-ring with ATF and install it to the sensor.
2. Install the sensor with the bolt.
  Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
3. Connect the sensor connector.

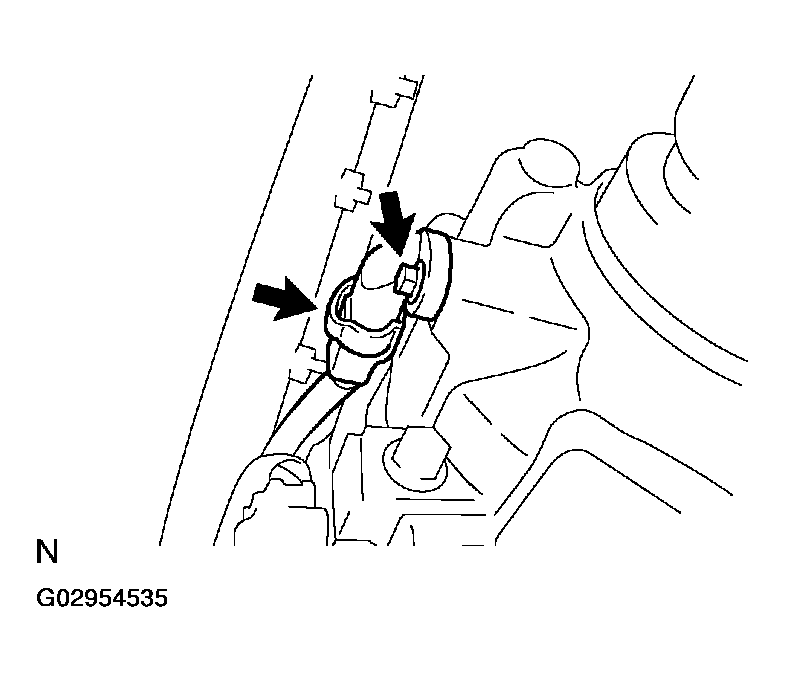

  Fig 3: Installing Vehicle Speed Sensor With Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL O/D DIRECT CLUTCH SPEED SENSOR
1. Coat a new O-ring with ATF and install it to the sensor.
2. Install the sensor with the bolt.
  Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
3. Connect the sensor connector.

  Fig 4: Installing O/D Direct Clutch Speed Sensor With Bolt
