Back Window Glass: Components

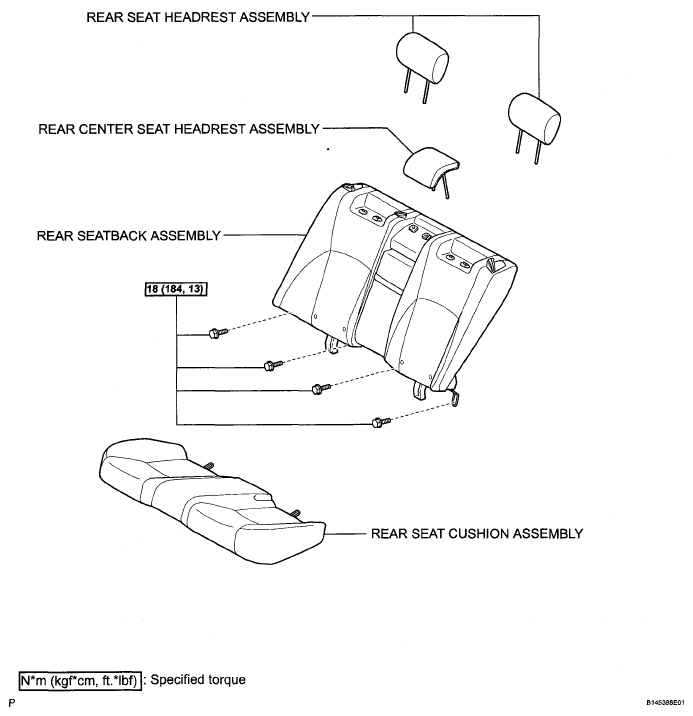

Fig 1: Back Window Glass Replacement Components With Torque Specifications (1 Of 5)
G05251828Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

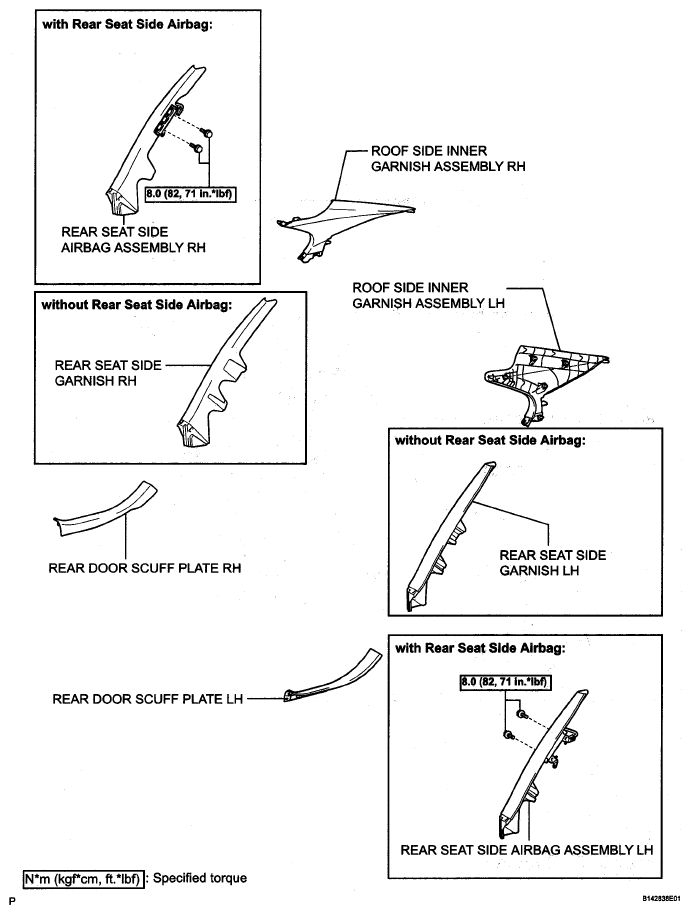

Fig 2: Back Window Glass Replacement Components With Torque Specifications (2 Of 5)
G05252010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

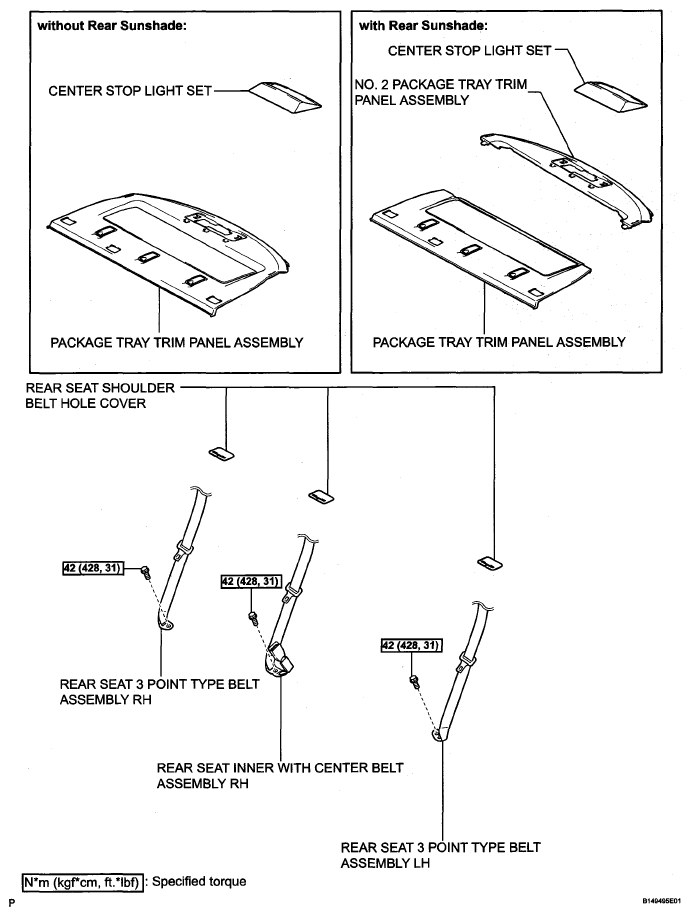

Fig 3: Back Window Glass Replacement Components With Torque Specifications (3 Of 5)
G05253637Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Identifying Back Window Glass Components (4 Of 5)
G05253638Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

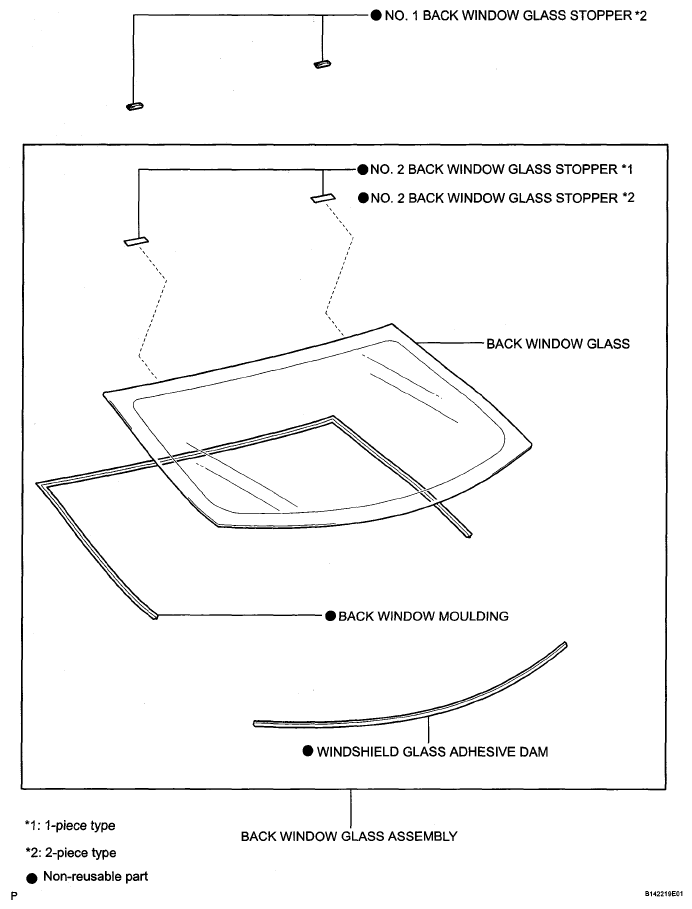

Fig 5: Identifying Back Window Glass Components (5 Of 5)
G05253639Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
