Terminals Of Ecu
- CHECK A/C AMPLIFIER ASSEMBLY
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

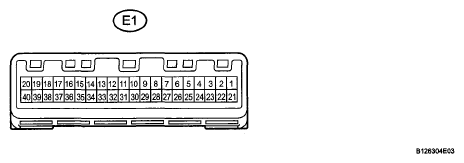

- Measure the voltage and resistance of each terminal of the connectors.
Standard voltage
TERMINAL DESCRIPTION SPECIFIED CONDITION CHARTSymbols (Terminal No.) Wiring Color Terminal Description Condition Specified Condition RDFG (E1-38) - GND (E1-14) G-W-B Rear Defogger Signal Engine switch on (IG), Rear defogger switch OFF 10 to 14 V Standard resistance
TERMINAL DESCRIPTION SPECIFIED CONDITION CHARTSymbols (Terminal No.) Wiring Color Terminal Description Condition Specified Condition GND (E1-14) - Body ground W-B - Body ground Ground Always Below 1 Ω
- Measure the voltage and resistance of each terminal of the connectors.
