Windshield Glass: Components

Fig 1: Windshield Glass Replacement Components With Torque Specifications (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

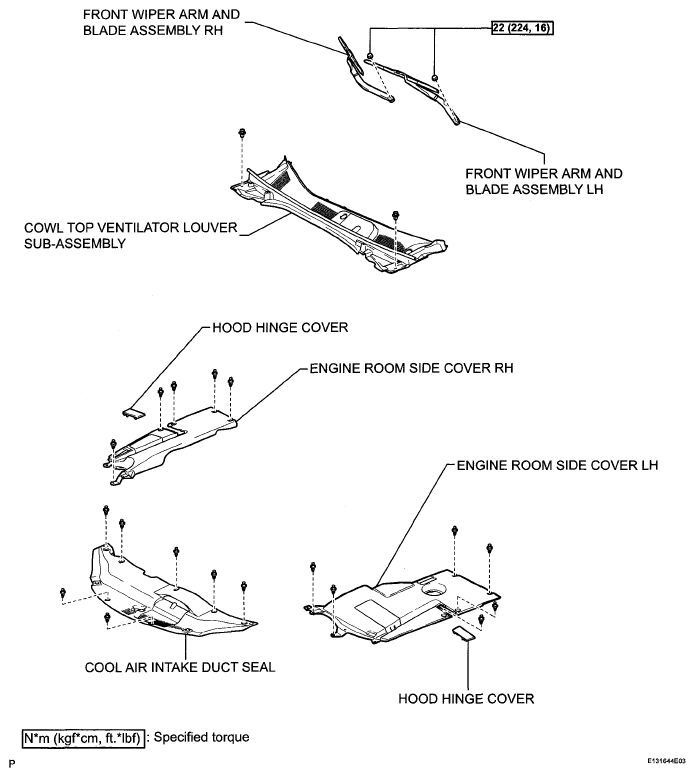

Fig 2: Windshield Glass Replacement Components With Torque Specifications (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

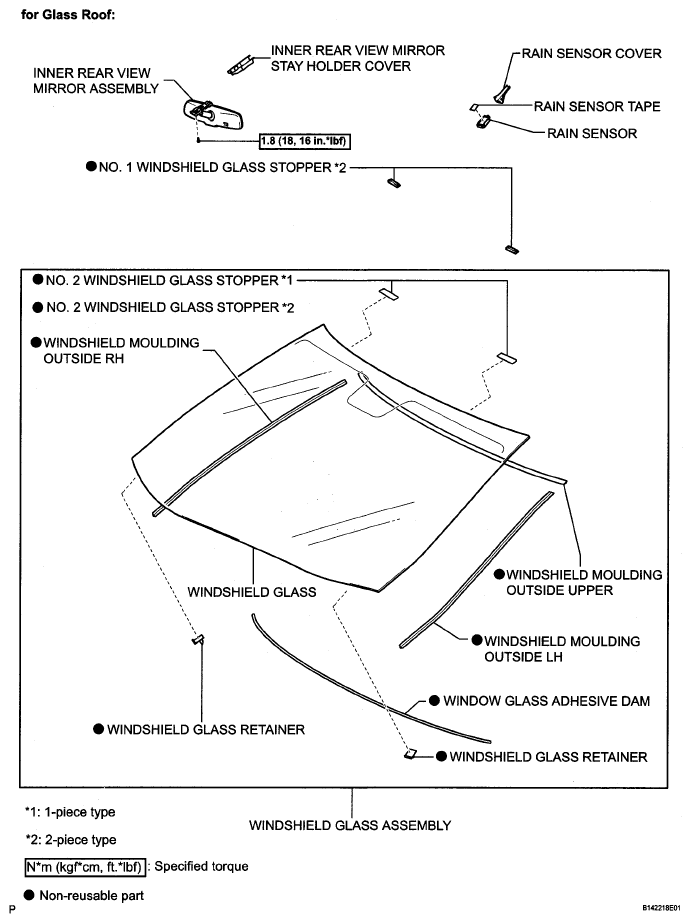

Fig 3: Identifying Windshield Glass Components (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

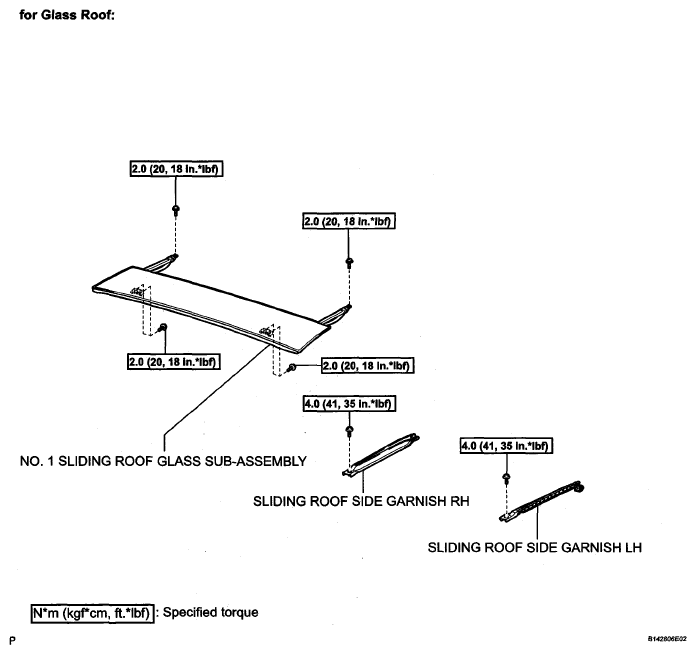

Fig 4: Windshield Glass Replacement Components With Torque Specifications (4 Of 5)

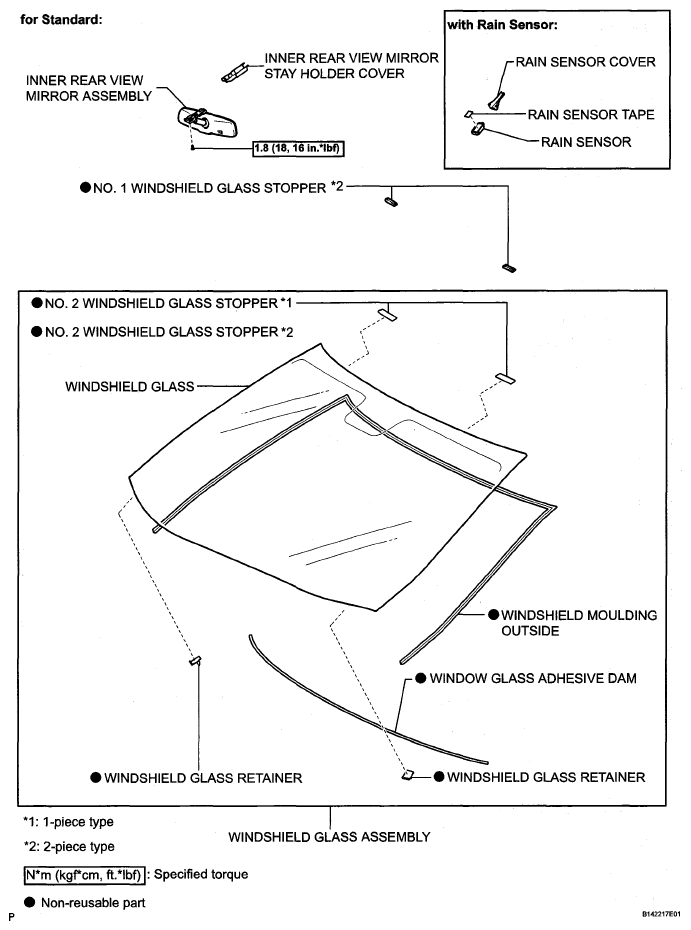

Fig 5: Windshield Glass Replacement Components With Torque Specifications (5 Of 5)
