Brake Actuator: Components

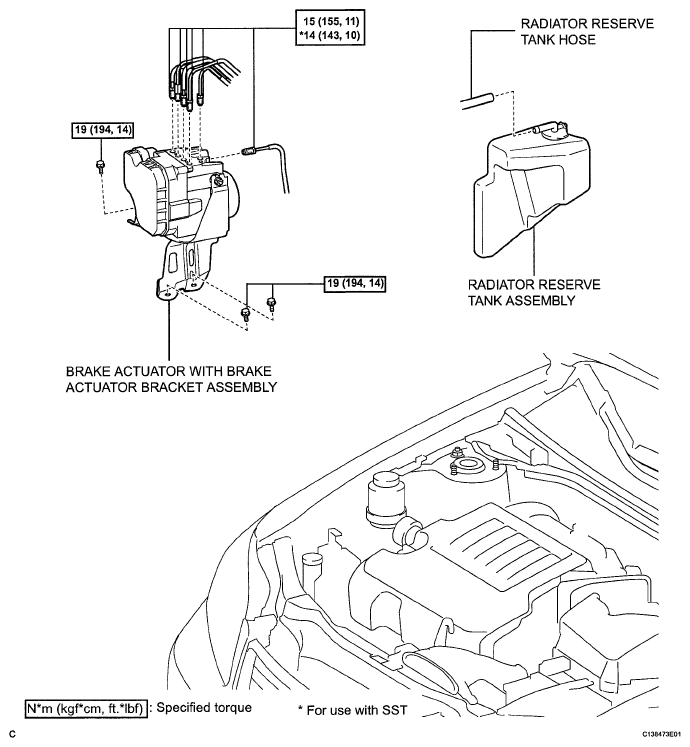

Fig 1: Brake Actuator Replacement Components With Torque Specifications (1 Of 2)
G05250471Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Brake Actuator Replacement Components With Torque Specifications (2 Of 2)
G05250472Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
