Front Speed Sensor: Installation

1. Install the front speed sensor with the bolt.

   Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

   NOTE: Prevent foreign matter from attaching to the sensor tip.

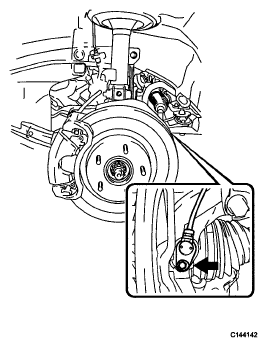

   Fig 1: Locating Front Speed Sensor Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the front speed sensor with the 2 bolts and engage the 2 claws.

   Torque: Bolt A

   5.0 N*m (51 kgf*cm, 44 in.*lbf)

   Bolt B

   19 N*m (194 kgf*cm, 14 ft.*lbf)

   NOTE:

   • Do not twist the wire harness for the front speed sensor when installing the speed sensor.
   • The bolt B tightens the brake flexible hose and front speed sensor together. Make sure that the flexible hose is positioned over the front speed sensor.
   • Install the stopper firmly to the hole in the body.

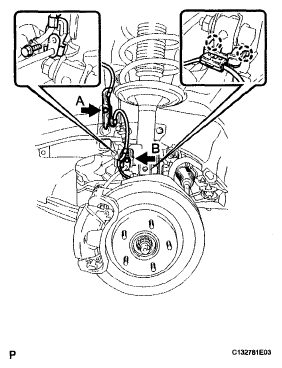

     Fig 2: Identifying Bolts And Claws Of Speed Sensor

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the front speed sensor connector and engage the clamp.
   Fig 3: Locating Front Speed Sensor Connector And Clamp

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)

HINT:

(See TEST MODE PROCEDURE  )
