Skid Control Sensor: Components

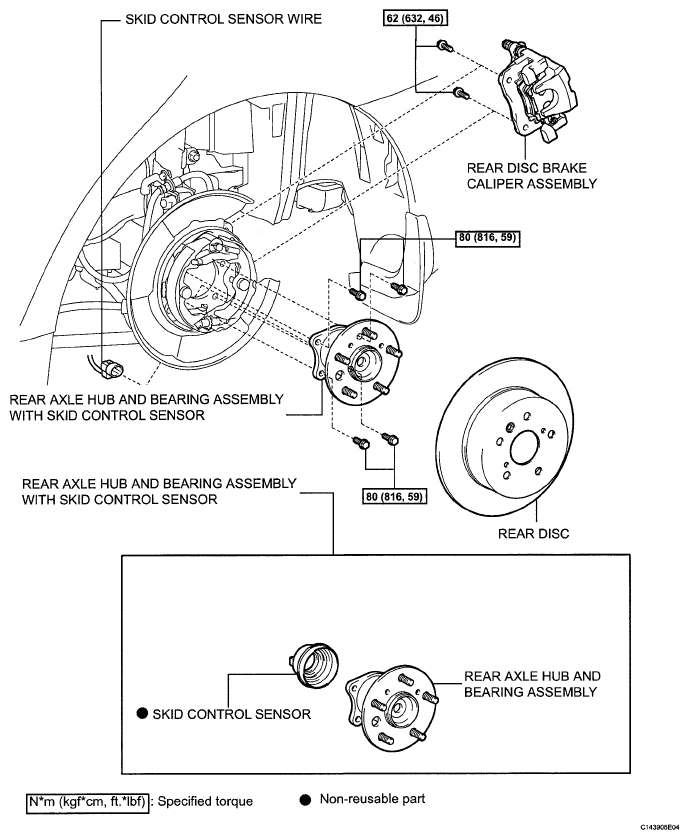

Fig 1: Skid Control Sensor Replacement Components With Torque Specifications
G05250496Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
