Skid Control Sensor: Removal

HINT:

• Use the same procedure for the RH side and LH side.
• The procedures listed below are for the LH side.

1. REMOVE REAR WHEEL
2. DISCONNECT SKID CONTROL SENSOR WIRE
   1. Disconnect the connector from the skid control sensor.
      NOTE: Be careful not to damage the skid control speed sensor.
      Fig 1: Locating Skid Control Sensor Connector

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. REMOVE REAR DISC BRAKE CALIPER ASSEMBLY  (See REMOVAL )
4. REMOVE REAR DISC  (See DISASSEMBLY )
5. REMOVE REAR AXLE HUB AND BEARING ASSEMBLY WITH SKID CONTROL SENSOR  (See REMOVAL )
6. REMOVE SKID CONTROL SENSOR
   1. Mount the rear axle hub and bearing assembly in a vise using aluminum plates.
      NOTE: Replace the rear axle hub and bearing assembly if it is dropped or receives a strong shock.
   2. Using a pin punch and hammer, drive out the 2 pins and remove the 2 attachments from SST.

      SST 09520-00031 (09521-00010, 09520-00040), 09521-00020

   3. Using SST and 2 bolts (Diameter: 12 mm, pitch: 1.5 mm), remove the skid control sensor from the rear axle hub and bearing assembly.

      SST 09520-00031 (09521-00010, 09520-00040), 09521-00020, 09950-00020

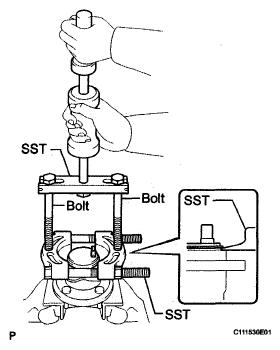

      Fig 2: Removing Skid Control Sensor Using SST

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      • Keep the skid control sensor away from magnets.
      • Pull the skid control sensor off straight, taking care not to make contact with the skid control sensor rotor.
      • If the skid control speed sensor rotor is damaged or deformed, replace the rear axle hub and bearing assembly.
      • Do not scratch the contact surface between rear axle hub and bearing assembly and the skid control sensor.
      • Do not attach foreign matter to the skid control speed sensor rotor and tip.
