DTC Check / Clear

  1. DTC CHECK/CLEAR (INTELLIGENT TESTER)
    1. Check the DTC.
      1. Connect the intelligent tester to the DLC3.
      2. Turn the engine switch on (IG).
      3. Read the DTCs following the prompts on the tester screen.
    2. Clear the DTC.
      1. Connect the intelligent tester to the DLC3.
      2. Turn the engine switch on (IG).
      3. Operate the intelligent tester to clear the codes.

        HINT:

        Refer to the intelligent tester operator's manual for further details.

        Fig 1: Connecting Intelligent Tester To DLC3
        G05250268Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. DTC CHECK/CLEAR (SST CHECK WIRE)
    1. Check the DTC.
      1. Using SST, connect terminals TC and CG of the DLC3.

        SST 09843-18040

      2. Turn the engine switch on (IG).
      3. Observe the blinking pattern of the ABS warning light and read the multi information display in order to identify the DTC.
        Fig 2: Identifying DLC3 Connector Terminal
        G04977907Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        HINT:

        If no code appears, inspect the TC and CG terminal circuit, and ABS and VSC warning light circuits.

        TROUBLESHOOTING CHART

        Trouble Area See procedure
        TC and CG terminal circuit TC AND CG TERMINAL CIRCUIT
        ABS warning light circuit ABS WARNING LIGHT REMAINS ON  or ABS WARNING LIGHT DOES NOT COME ON
        VSC warning light circuit VSC WARNING LIGHT REMAINS ON  or VSC WARNING LIGHT DOES NOT COME ON

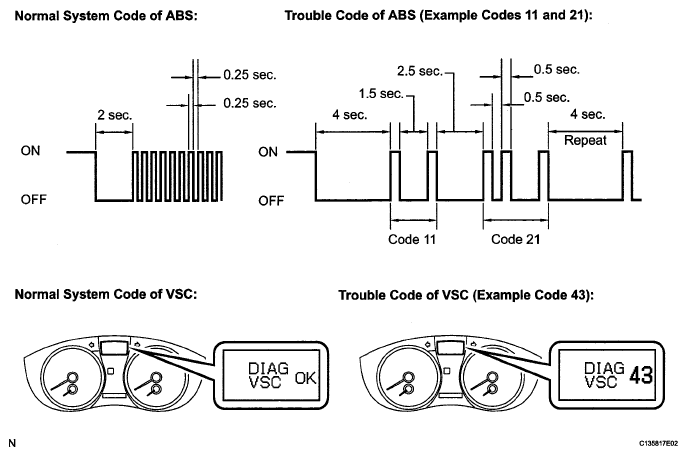

      4. As an example, the illustration below shows the blinking patterns of the normal system code and trouble codes 11 and 21 for ABS, and display of the normal system code and trouble code 43 for the VSC on the multi information display.
        Fig 3: Blinking Patterns Of Normal System Code And Trouble Codes 11 And 21 For ABS
        G05250380Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      5. The codes are explained in the code table (See DIAGNOSTIC TROUBLE CODE CHART  ).
      6. After completing the check, disconnect terminals TC and CG of the DLC3, and turn off the display. If 2 or more DTCs are detected at the same time, the DTCs will be displayed in ascending order.
    2. Clear the DTC.
      1. Using SST, connect terminals TC and CG of the DLC3.

        SST 09843-18040

      2. Turn the engine switch on (IG).
        Fig 4: Identifying DLC3 Connector Terminal
        G04977907Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Clear the DTCs stored in the ECU by depressing the brake pedal 8 times or more within 5 seconds.
      4. Check that the multi information display indicates the normal system code.
      5. Remove the SST from the terminals of the DLC3.

        HINT:

        Clearing the DTCs cannot be performed by disconnecting the battery terminal or the ECU-IG NO. 2 fuse.

        Fig 5: Depressing Brake Pedal
        G04832173Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. END OF DTC CHECK/CLEAR
    1. Turn the engine switch on (IG).
    2. Check that the ABS warning light goes off within approximately 3 seconds.
