Test Mode Procedure

  1. WARNING LIGHT AND INDICATOR LIGHT INITIAL CHECK
    1. Release the parking brake.
      NOTE: Before releasing the parking brake, move the shift lever to the P position for safety.

      HINT:

      When the parking brake is applied or the level of the brake fluid is low, the BRAKE warning light comes on.

    2. When the engine switch is turned on (IG), check that the ABS warning, BRAKE warning, SLIP indicator, and master caution indicator lights come on for approximately 3 seconds.

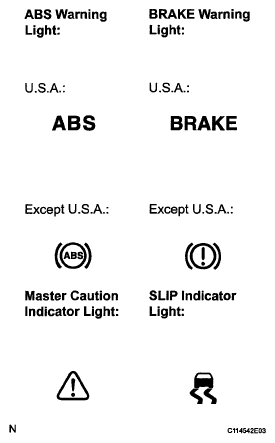

      Fig 1: Identifying ABS Warning Light And Master Indicator Light
      G05250354Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Make sure that the message on the multi information display changes from "CHECK" to "COMPLETED" for 2 seconds.

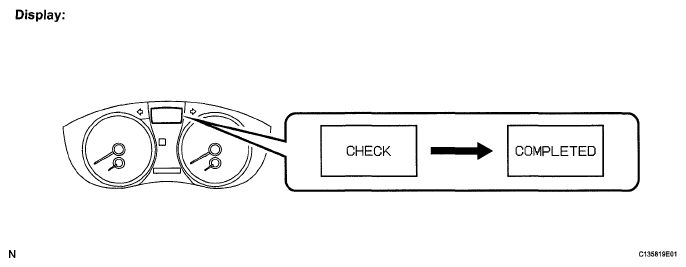

      Fig 2: Information Display - CHECK To COMPLETED
      G05250355Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      If the ECU stores a DTC, the ABS warning, BRAKE warning and SLIP indicator lights will come on. If the vehicle is equipped with a multi information display, and the vehicle stores a DTC, the master caution indicator light will illuminate, and the multi information display will indicate a malfunction. In this case, the ABS warning, BRAKE warning, and SLIP indicator lights will also come on.

      If the indicator remains on or does not come on, proceed to troubleshooting for the light circuits listed below.

      TROUBLESHOOTING CHART

      Trouble Area See procedure
      ABS warning light circuit ABS WARNING LIGHT REMAINS ON  or ABS WARNING LIGHT DOES NOT COME ON
      BRAKE warning light circuit BRAKE WARNING LIGHT REMAINS ON  or BRAKE WARNING LIGHT DOES NOT COME ON
      VSC warning light circuit VSC WARNING LIGHT REMAINS ON  or VSC WARNING LIGHT DOES NOT COME ON
      SLIP indicator light circuit SLIP INDICATOR LIGHT REMAINS ON  or SLIP INDICATOR LIGHT DOES NOT COME ON
  2. SENSOR CHECK USING TEST MODE (SIGNAL CHECK) (INTELLIGENT TESTER)
    NOTE: After replacement of the brake actuator assembly and/or yaw rate and acceleration sensor, perform zero point calibration of the yaw rate and acceleration sensor.

    HINT:

    • If the engine switch is turned from on (IG) to on (ACC) or off during Test Mode (signal check), DTCs of the signal check function will be erased.
    • During Test Mode (signal check), the skid control ECU records all DTCs of the signal check function. By performing the Test Mode (signal check), the codes are erased if a normal condition is confirmed. The remaining codes are the codes where an abnormality was found.
    1. Procedure to enter Test Mode.
      1. Turn the engine switch off.
      2. Connect the intelligent tester to the DLC3.
      3. Check that the steering wheel is centered and move the shift lever to the P position.
      4. Turn the engine switch on (IG).
        Fig 3: Connecting Intelligent Tester To DLC3
        G05250268Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      5. Set the intelligent tester to Test Mode (select "SIGNAL CHECK").

        HINT:

        Refer to the intelligent tester operator's manual for further details.

        Fig 4: Intelligent Tester Display - Signal Check
        G04977893Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      6. Check that the ABS warning light blinks and "VSC TEST MODE" is displayed on the multi information display (Test Mode).

        HINT:

        • The SLIP indicator light remains on during Test Mode because TRAC is prohibited.
        • If the ABS and VSC warning (multi information display) lights do not blink, inspect the TS and CG terminal circuit, and ABS and VSC warning light circuits.
          TROUBLESHOOTING CHART

          Trouble Area See procedure
          TS and CG terminal circuit TS AND CG TERMINAL CIRCUIT
          ABS warning light circuit ABS WARNING LIGHT DOES NOT COME ON
          VSC warning light circuit VSC WARNING LIGHT DOES NOT COME ON
          Fig 5: ABS Warning Light Blinking Pattern
          G05250358Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      7. Check the ABS sensor.

        HINT:

        Check that the ABS warning light is blinking in Test Mode and perform the check.

        Fig 6: ABS Warning Light Blinking Pattern In Test Mode
        G04977997Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. ACCELERATION SENSOR CHECK (INTELLIGENT TESTER)
    1. Keep the vehicle stationary on a level surface for 1 second or more.

      HINT:

      Acceleration sensor check can be performed with the master cylinder pressure sensor check below.

  4. MASTER CYLINDER PRESSURE SENSOR CHECK (INTELLIGENT TESTER)
    1. Leave the vehicle in a stationary condition and release the brake pedal for 1 second or more, and quickly and continuously depress the brake pedal with a force of 98 N (10 kgf, 22 lbf) or more for 1 second.
    2. Check that the ABS warning light stays on for 3 seconds.

      HINT:

      • Ensure that the ABS warning light comes on.
      • While the ABS warning light stays on, continue to depress the brake pedal with a force of 98 N (10 kgf, 22 lbf) or more.
      • The ABS warning light comes on for 3 seconds every time brake pedal operation above is performed.
      • If the check of the master cylinder pressure sensor is not completed, depressing the brake pedal causes further decrease in the negative pressure, making the sensor check difficult to be completed.
      • If the negative pressure is insufficient, the master cylinder pressure sensor check may not be completed. In this case, run the engine at idle to obtain sufficient negative pressure.
      • If the brake pedal is strongly depressed when the negative pressure is insufficient, the BRAKE warning light may come on in accordance with the booster pressure control. In this case, run the engine at idle to obtain sufficient negative pressure.
  5. SPEED SENSOR CHECK (INTELLIGENT TESTER)
    1. Check the speed sensor signal.
      1. Drive the vehicle straight ahead.

        Accelerate the vehicle to a speed of 45 km/h (28 mph) or more for several seconds and check that the ABS warning light goes off.

        HINT:

        The sensor check may not be completed if wheel spin occurs.

    2. Stop the vehicle.
      NOTE:
      • Before performing the speed sensor check, complete the acceleration sensor and master cylinder pressure sensor checks.
      • The speed sensor check may not be completed if the speed sensor check is started while turning the steering wheel or spinning the wheels.
      • After the ABS warning light goes off and if the vehicle speed exceeds 80 km/h (50 mph), a signal check code will be stored again. Accelerate or stop the vehicle before the speed reaches 80 km/h (50 mph).
      • If the signal check has not been completed, the ABS warning light blinks while driving and the ABS system does not operate.

      HINT:

      When the sensor check has been completed, the ABS warning light goes off while driving and blinks in the Test Mode pattern while stationary.

    3. Check the VSC sensor.

      Check that the "VSC TEST MODE" is displayed on the multi information display, and perform the check.

      Fig 7: Display In VSC TEST MODE
      G05250349Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. YAW RATE SENSOR CHECK (INTELLIGENT TESTER)
    1. Check the output of the yaw rate sensor.
      1. Keep the vehicle in a stationary condition on a level surface for 1 second or more.
      2. Move the shift lever from P to the D position and drive the vehicle at a speed of approximately 5 km/h (3 mph), and turn the steering wheel either to the left or right 90° or more until the vehicle makes a 180° turn.
      3. Stop the vehicle and move the shift lever to the P position. Check that the skid control buzzer sounds for 3 seconds.
        Fig 8: Identifying Start And End Position Of Vehicle
        G05010931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        HINT:

        • If the skid control buzzer sounds, the sensor check is completed normally.
        • If the skid control buzzer does not sound, check the skid control buzzer circuit (See SKID CONTROL BUZZER CIRCUIT  ), then perform the sensor check again.
        • If the skid control buzzer still does not sound, there is a malfunction in the yaw rate sensor, so check the DTC.
        • Make a 180° turn. At the end of the turn, the direction of the vehicle should be within 180° +-5° of its start position.
        • Do not spin the wheels.
        • Do not turn the engine switch off while turning.
        • Do not move the shift lever to the P position while turning, but changing in the vehicle speed, stopping, or driving in reverse is possible.
        • Complete the turn within 20 seconds.
  7. END OF SENSOR CHECK (INTELLIGENT TESTER)
    1. If the sensor check is completed, the ABS warning light blinks (Test Mode) when the vehicle stops and the ABS warning light is off while the vehicle is driving.
      Fig 9: ABS Warning Light Blinking Pattern In Test Mode
      G04977997Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • When the yaw rate sensor, acceleration sensor, speed sensor, and master cylinder pressure sensor checks are completed, the sensor check is completed.
      • If the sensor check is not completed, the ABS warning light blinks even while the vehicle is driving and the ABS does not operate.
  8. READ DTC OF SIGNAL CHECK FUNCTION (INTELLIGENT TESTER)
    1. Read the DTC(s) by following the tester screen.
      NOTE:
      • If only the DTCs are displayed, repair the malfunction area and clear the DTCs.
      • If the DTCs or Test Mode codes (DTC of signal check function) are displayed, repair the malfunction area, clear the DTCs and perform the Test Mode inspection.

      HINT:

      See the list of DTC (See procedure "A").

  9. SENSOR CHECK USING TEST MODE (SIGNAL CHECK) (SST CHECK WIRE)
    NOTE: After replacement of the brake actuator assembly and/or yaw rate and acceleration sensor, perform zero point calibration of the yaw rate and acceleration sensor.

    HINT:

    • If the engine switch is turned from on (IG) to on (ACC) or off during Test Mode (signal check), DTCs of the signal check function will be erased.
    • During Test Mode (signal check), the skid control ECU records all DTCs of the signal check function. By performing the Test Mode (signal check), the codes are erased if a normal condition is confirmed. The remaining codes are the codes where an abnormality was found.
    1. Procedure to enter Test Mode.
      1. Turn the engine switch off.
      2. Check that the steering wheel is centered and move the shift lever to the P position.
      3. Using SST, connect terminals TS and CG of the DLC3.

        SST 09843-18040

      4. Turn the engine switch on (IG).
        Fig 10: Identifying DLC3 Connector Terminals
        G04977895Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      5. Check that the ABS warning light blinks and "VSC TEST MODE" is displayed on the multi information display (Test Mode).

        HINT:

        • The SLIP indicator light remains on during Test Mode because TRAC is prohibited.
        • If the ABS and VSC warning (multi information display) lights do not blink, inspect the TS and CG terminal circuit, and ABS and VSC warning light circuits.
          TROUBLESHOOTING CHART

          Trouble Area See procedure
          TS and CG terminal circuit TS AND CG TERMINAL CIRCUIT
          ABS warning light circuit ABS WARNING LIGHT DOES NOT COME ON
          VSC warning light circuit VSC WARNING LIGHT DOES NOT COME ON

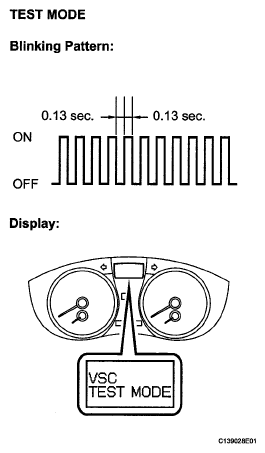

          Fig 11: ABS Warning Light Blinking Pattern
          G05250358Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      6. Check the ABS sensor.

        HINT:

        Check that the ABS warning light is blinking in Test Mode and perform the check.

        Fig 12: ABS Warning Light Blinking Pattern In Test Mode
        G04977997Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. ACCELERATION SENSOR CHECK (SST CHECK WIRE)
    1. Keep the vehicle stationary on a level surface for 1 second or more.

      HINT:

      Acceleration sensor check can be performed with the master cylinder pressure sensor check below.

  11. MASTER CYLINDER PRESSURE SENSOR CHECK (SST CHECK WIRE)
    1. Leave the vehicle in a stationary condition and release the brake pedal for 1 second or more, and quickly and continuously depress the brake pedal with a force of 98 N (10 kgf, 22 lbf) or more for 1 second.
    2. Check that the ABS warning light stays on for 3 seconds.

      HINT:

      • Ensure that the ABS warning light comes on.
      • While the ABS warning light stays on, continue to depress the brake pedal with a force of 98 N (10 kgf, 22 lbf) or more.
      • The ABS warning light comes on for 3 seconds every time the brake pedal operation above is performed.
      • If the check of the master cylinder pressure sensor is not completed, depressing the brake pedal causes further decrease in the negative pressure, making the sensor check difficult to be completed.
      • If the negative pressure is insufficient, the master cylinder pressure sensor check may not be completed. In this case, run the engine at idle to obtain sufficient negative pressure.
      • If the brake pedal is strongly depressed when the negative pressure is insufficient, the BRAKE warning light may come on in accordance with the booster pressure control. In this case, run the engine at idle to obtain sufficient negative pressure.
  12. SPEED SENSOR CHECK (SST CHECK WIRE)
    1. Check the speed sensor signal.
      1. Drive the vehicle straight ahead.

        Accelerate the vehicle to a speed of 45 km/h (28 mph) or more for several seconds and check that the ABS warning light goes off.

        HINT:

        The sensor check may not be completed if wheel spin occurs.

    2. Stop the vehicle.
      NOTE:
      • Before performing the speed sensor check, complete the acceleration sensor and master cylinder pressure sensor checks.
      • The speed sensor check may not be completed if the speed sensor check is started while turning the steering wheel or spinning the wheels.
      • After the ABS warning light goes off, if vehicle speed exceeds 80 km/h (50 mph), a signal check code will be stored again. Accelerate or stop the vehicle before the speed reaches 80 km/h (50 mph).
      • If the signal check has not been completed, the ABS warning light blinks while driving and the ABS system does not operate.

      HINT:

      When the sensor check has been completed, the ABS warning light goes off while driving and blinks in the Test Mode pattern while stationary.

    3. Check the VSC sensor.

      Check that the "VSC TEST MODE" is displayed on the multi information display, and perform the check.

      Fig 13: Display In VSC TEST MODE
      G05250349Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. YAW RATE SENSOR CHECK (SST CHECK WIRE)
    1. Check the output of the yaw rate sensor.
      1. Keep the vehicle stationary on a level surface for 1 second or more.
      2. Move the shift lever from P to the D position and drive the vehicle at a vehicle speed of approximately 5 km/h (3 mph) and turn the steering wheel either to the left or right 90° or more and until the vehicle makes a 180° turn.
      3. Stop the vehicle and move the shift lever to the P position. Check that the skid control buzzer sounds for 3 seconds.
        Fig 14: Identifying Start And End Position Of Vehicle
        G05010931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        HINT:

        • If the skid control buzzer sounds, the sensor check is completed normally.
        • If the skid control buzzer does not sound, check the skid control buzzer circuit (See SKID CONTROL BUZZER CIRCUIT  ), then perform the sensor check again.
        • If the skid control buzzer still does not sound, there is a malfunction in the yaw rate sensor, so check the DTC.
        • Make a 180° turn. At the end of the turn, the direction of the vehicle should be within 180° +-5° of its start position.
        • Do not spin the wheels.
        • Do not turn the engine switch off while turning.
        • Do not move the shift lever to the P position while turning, but changing in the vehicle speed, stopping, or driving in reverse is possible.
        • Complete the turn within 20 seconds.
  14. END OF SENSOR CHECK (SST CHECK WIRE)
    1. If the sensor check is completed, the ABS warning light blinks (Test Mode) when the vehicle stops and the ABS warning light is off while the vehicle is driving.
      Fig 15: ABS Warning Light Blinking Pattern In Test Mode
      G04977997Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • When the yaw rate sensor, acceleration sensor, speed sensor, and master cylinder pressure sensor checks are completed, the sensor check is completed.
      • If the sensor check is not completed, the ABS warning light blinks even while the vehicle is driving and the ABS does not operate.
  15. READ DTC OF SIGNAL CHECK FUNCTION (SST CHECK WIRE)
    1. Using SST, connect terminals TC and CG of the DLC3.

      SST 09843-18040

      Fig 16: Identifying DLC3 Connector Terminals
      G04977897Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Count the number of blinks of the ABS warning light and read "DIAG VSC" on the multi information display.

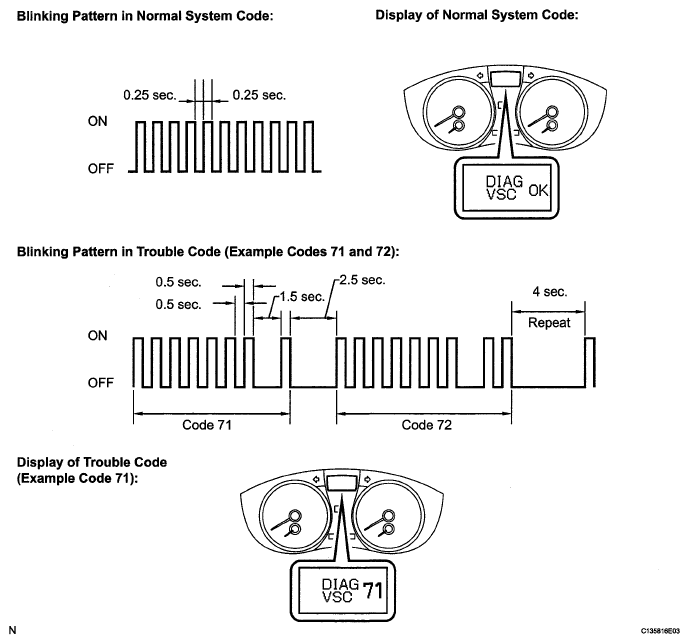

      Fig 17: ABS Warning Light Blinking Pattern In Normal System Code And Trouble Code On Multi Information Display
      G05250370Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • If only the DTCs are displayed, repair the malfunction area and clear the DTCs.
      • If the DTCs or Test Mode codes (DTC of signal check function) are displayed, repair the malfunction area, clear the DTCs and perform the Test Mode inspection.

      HINT:

      • If more than 1 malfunction is detected at the same time, the lowest numbered code will be displayed first.
      • See the list of DTC (See procedure "A").
    3. After performing the check, disconnect the SST from terminals TS and CG, and TC and CG of the DLC3 and turn the engine switch off.
    4. Turn the engine switch on (IG).

      HINT:

      • If the engine switch is not turned on (IG) after the SST is removed from the DLC3, the previous Test Mode will continue.
      • If the engine switch is turned on (IG) with terminals TS and CG shorted, the previous Test Mode will continue.
  16. DTC OF TEST MODE (SIGNAL CHECK) FUNCTION (Procedure "A")

    ABS sensor:

    DTC CHART - ABS SENSOR

    DTC Code Detection Item Trouble Area
    C1271/71 Low output signal of front speed sensor RH
    • Front speed sensor RH
    • Sensor installation
    • Speed sensor rotor
    C1272/72 Low output signal of front speed sensor LH
    • Front speed sensor LH
    • Sensor installation
    • Speed sensor rotor
    C1273/73 Low output signal of rear speed sensor RH
    • Rear speed sensor RH
    • Sensor installation
    • Speed sensor rotor
    C1274/74 Low output signal of rear speed sensor LH
    • Rear speed sensor LH
    • Sensor installation
    • Speed sensor rotor
    C1275/75 Abnormal change in output signal of front speed sensor RH Speed sensor rotor
    C1276/76 Abnormal change in output signal of front speed sensor LH Speed sensor rotor
    C1277/77 Abnormal change in output signal of rear speed sensor RH Speed sensor rotor
    C1278/78 Abnormal change in output signal of rear speed sensor LH Speed sensor rotor
    C1279/79 Acceleration sensor output voltage malfunction
    • Yaw rate and acceleration sensor
    • Sensor installation
    C1281/81 Master cylinder pressure sensor output malfunction
    • Stop light switch
    • Master cylinder pressure sensor

    VSC sensor:

    DTC CHART - VSC SENSOR

    DTC Code Detection Item Trouble Area
    C0371/71 Yaw rate sensor Yaw rate and acceleration sensor

    HINT:

    The codes in this table are output only in Test Mode (signal check).
