Dynamic Radar Cruise Control: Notes

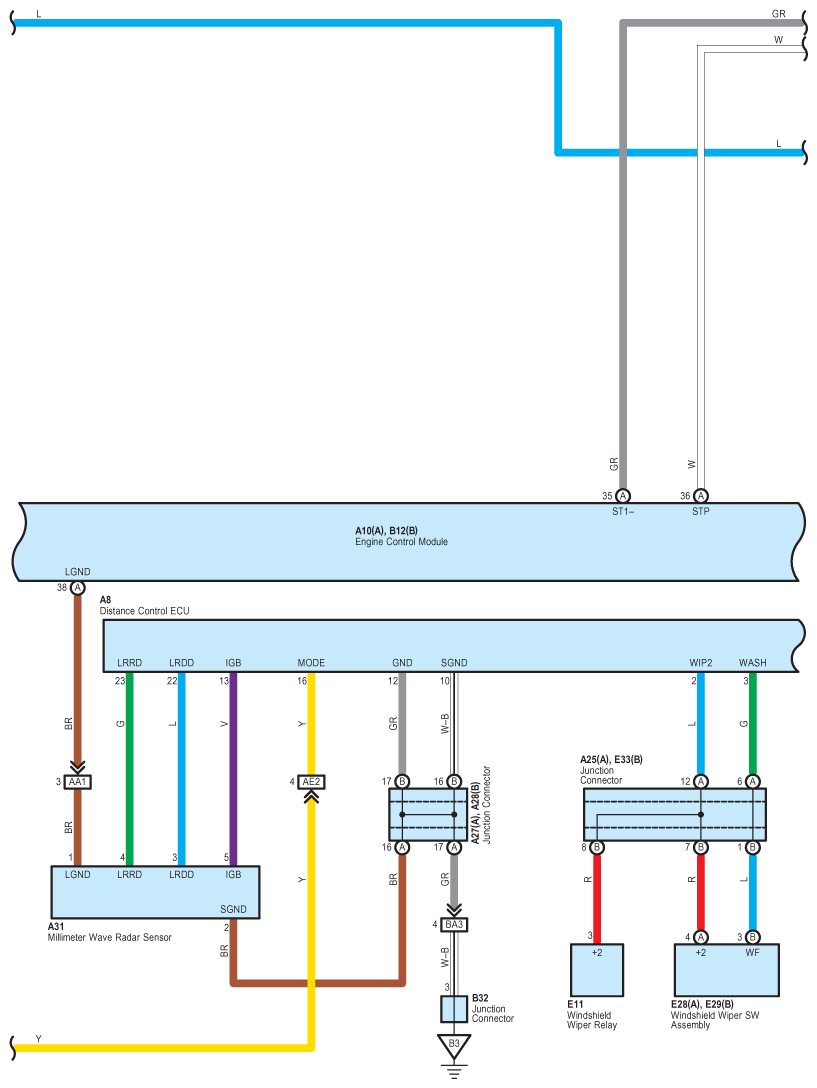

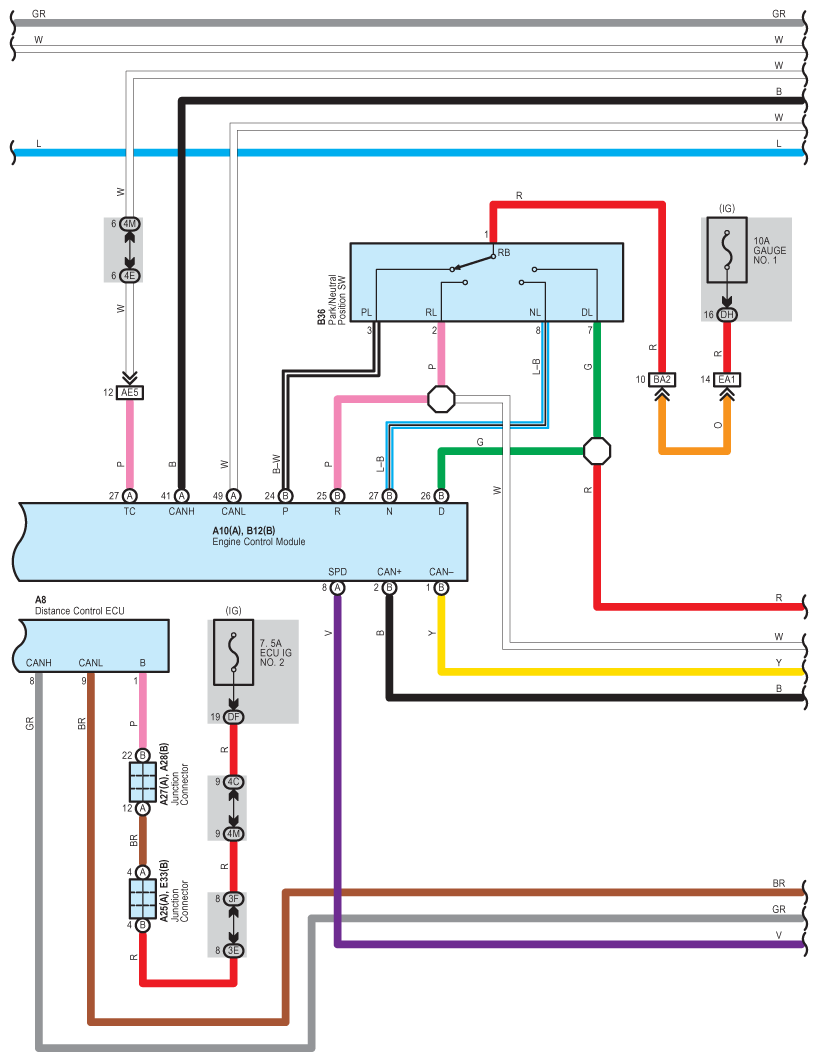

Fig 1: Dynamic Radar Cruise Control System Wiring Diagram (1 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

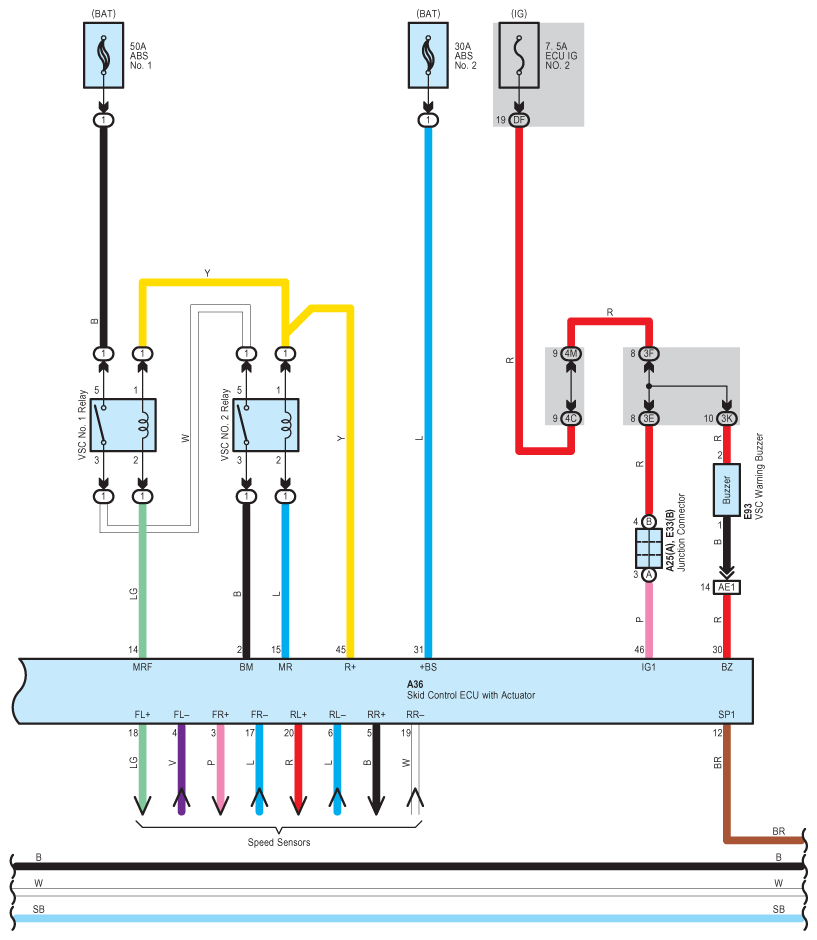

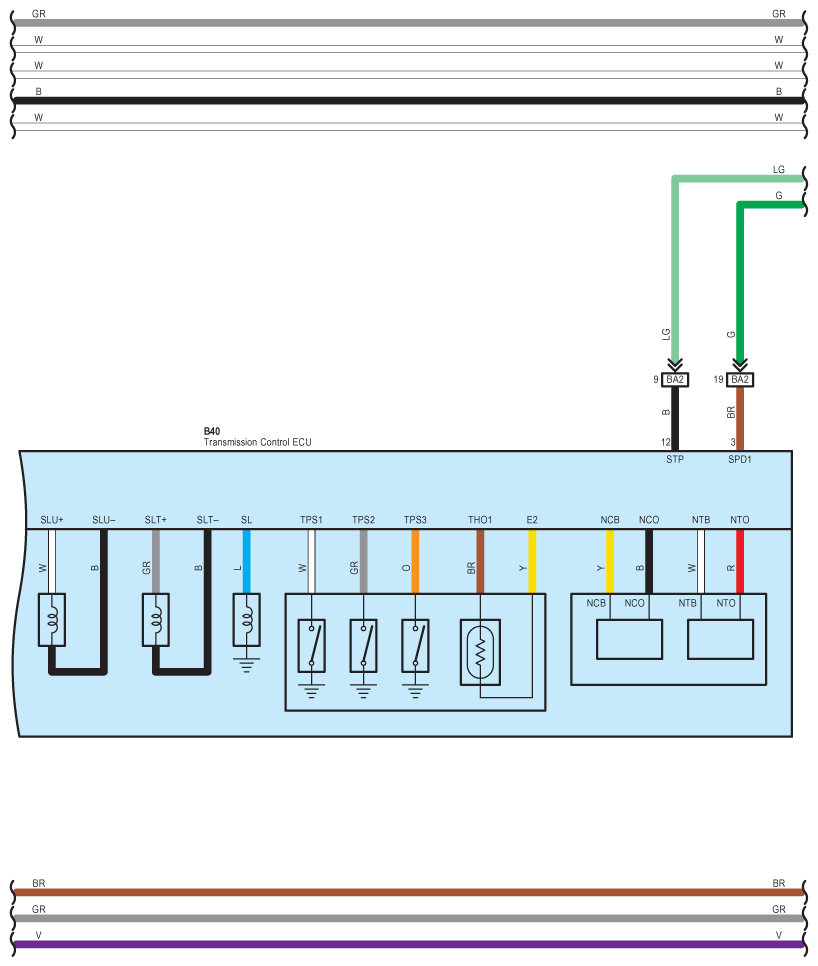

Fig 2: Dynamic Radar Cruise Control System Wiring Diagram (2 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

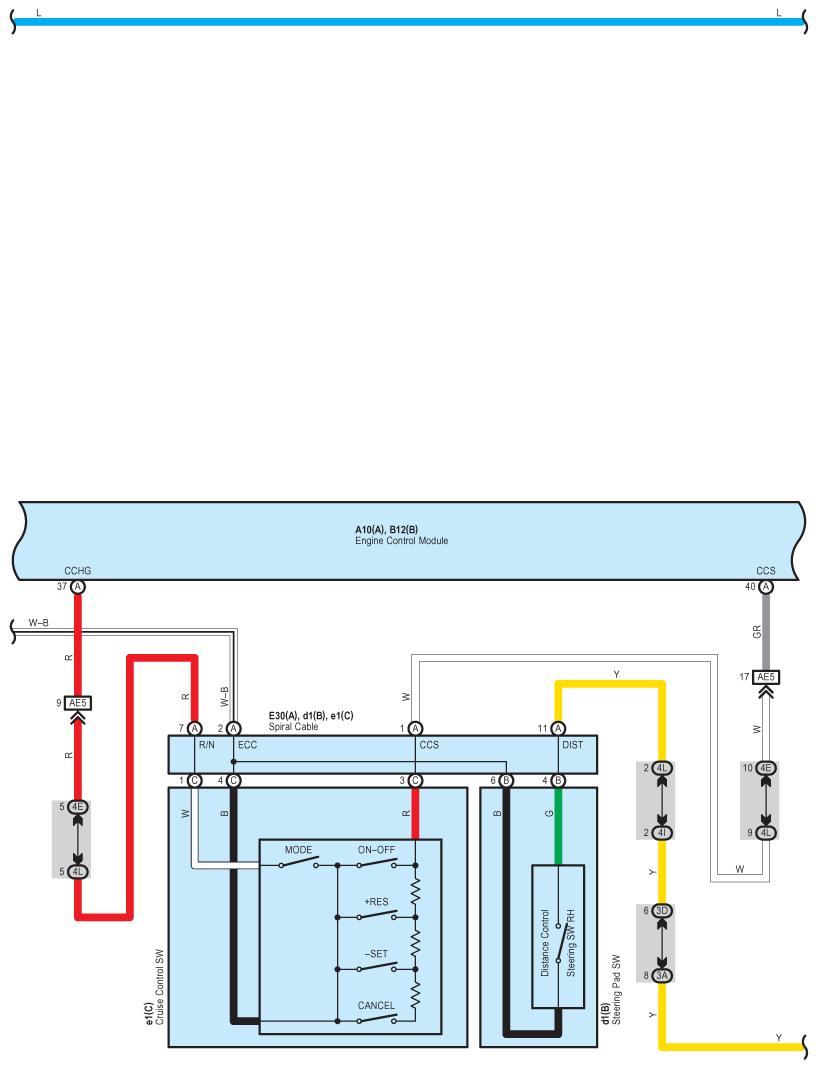

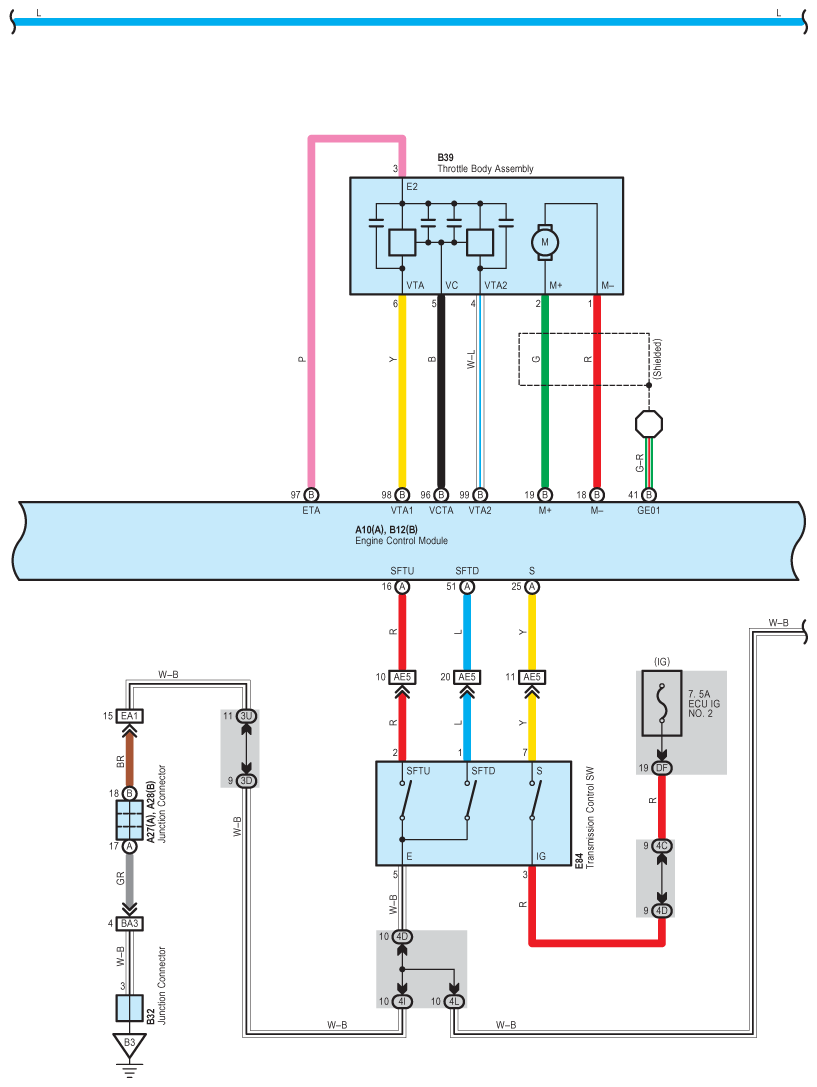

Fig 3: Dynamic Radar Cruise Control System Wiring Diagram (3 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

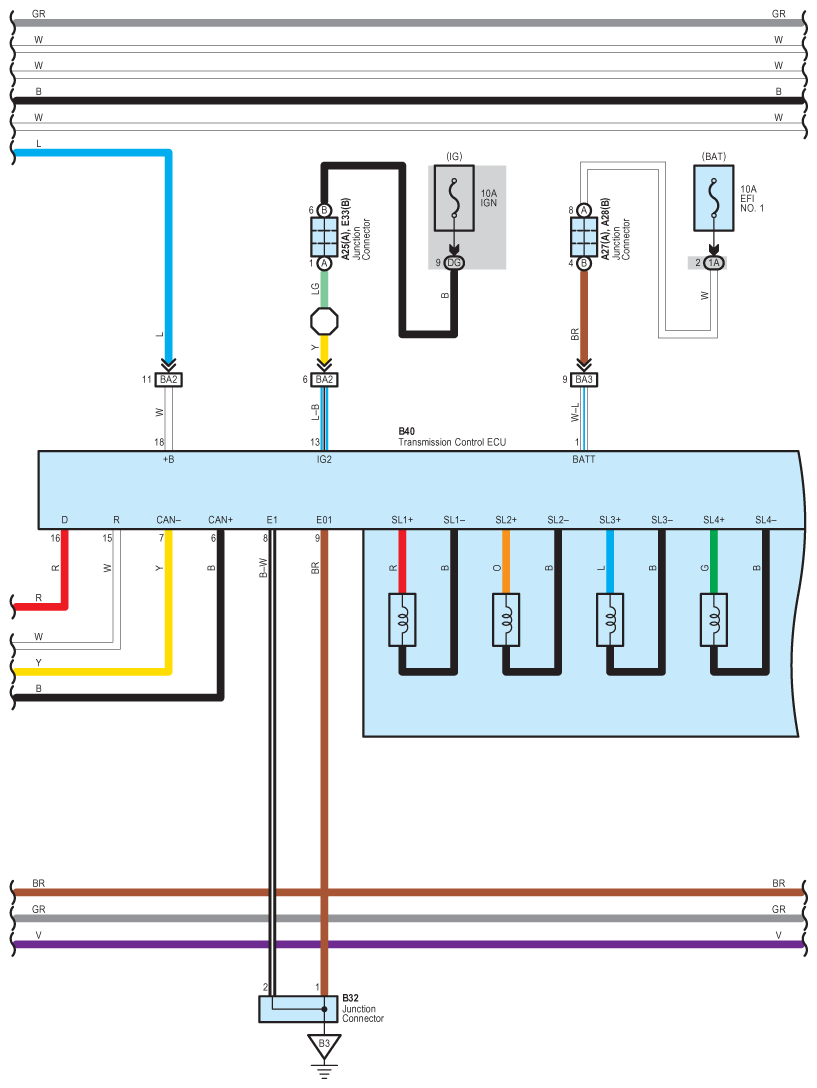

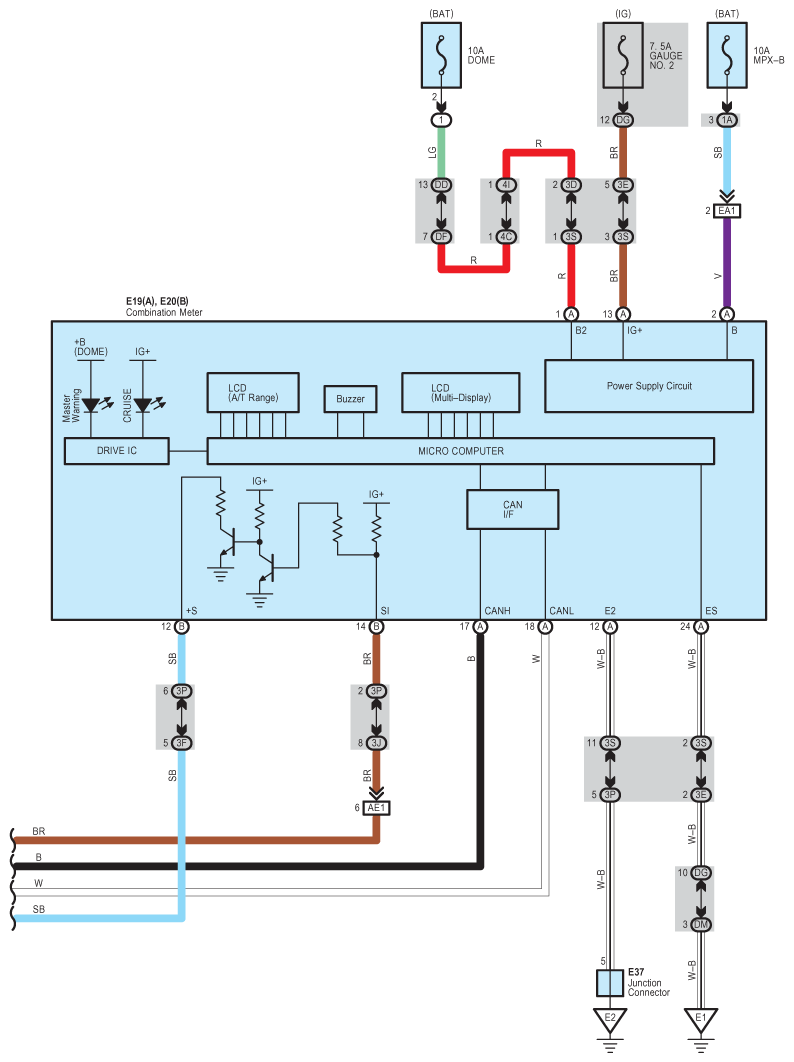

Fig 4: Dynamic Radar Cruise Control System Wiring Diagram (4 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

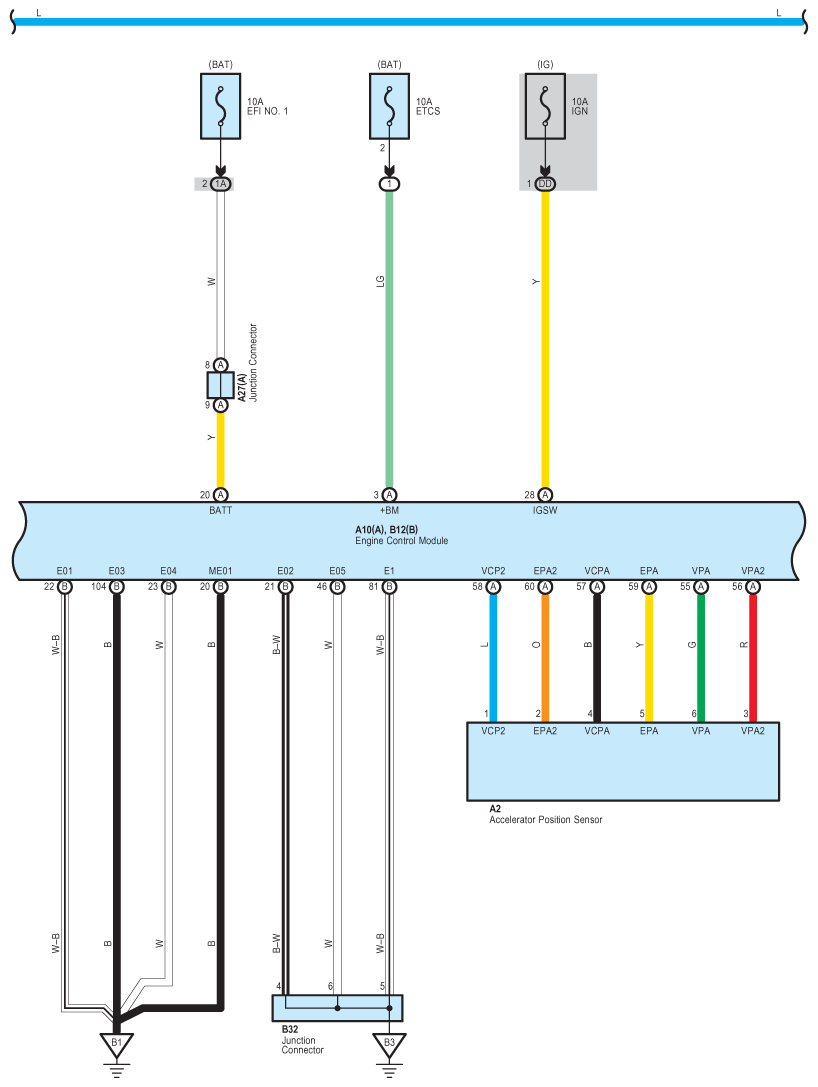

Fig 5: Dynamic Radar Cruise Control System Wiring Diagram (5 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

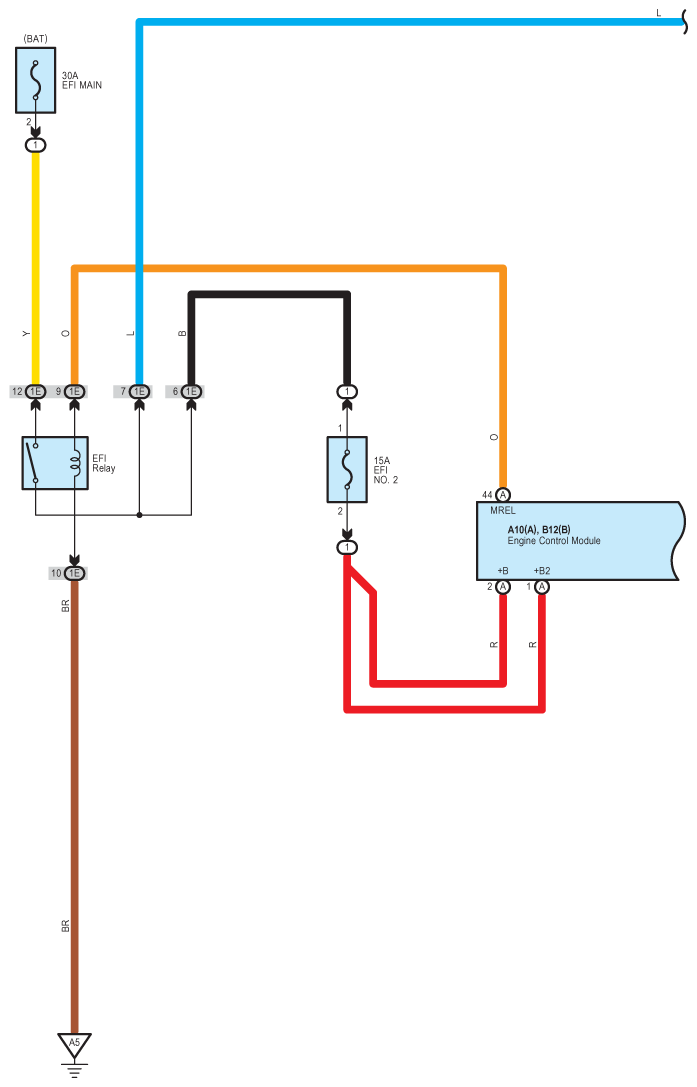

Fig 6: Dynamic Radar Cruise Control System Wiring Diagram (6 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

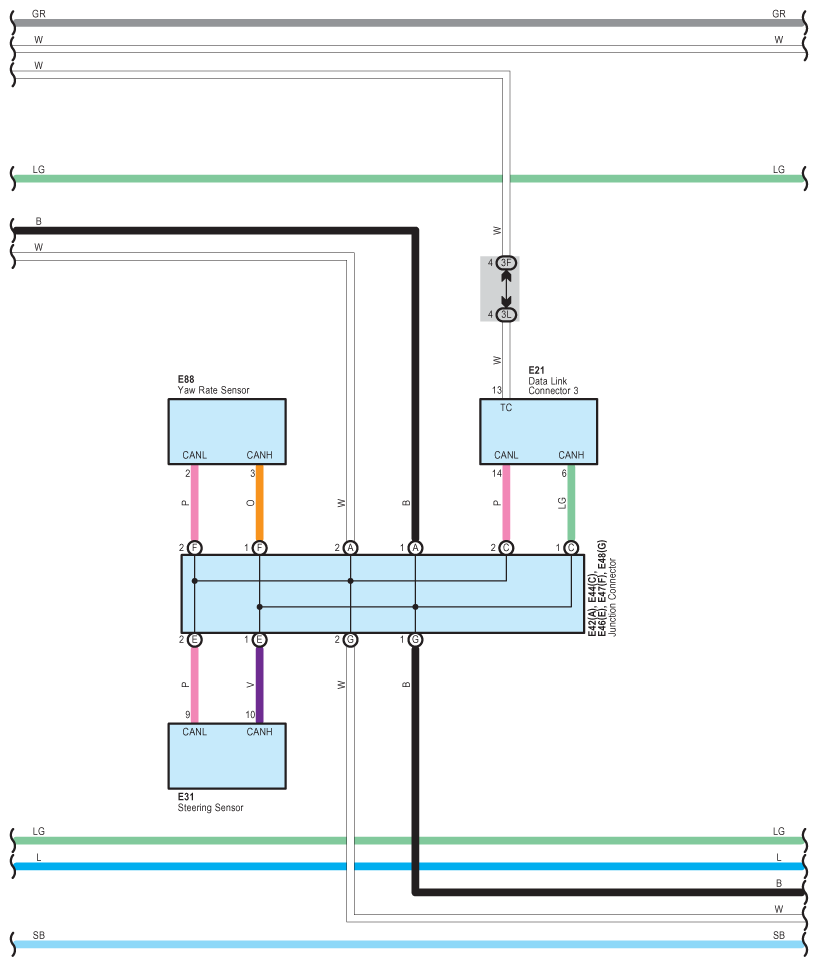

Fig 7: Dynamic Radar Cruise Control System Wiring Diagram (7 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

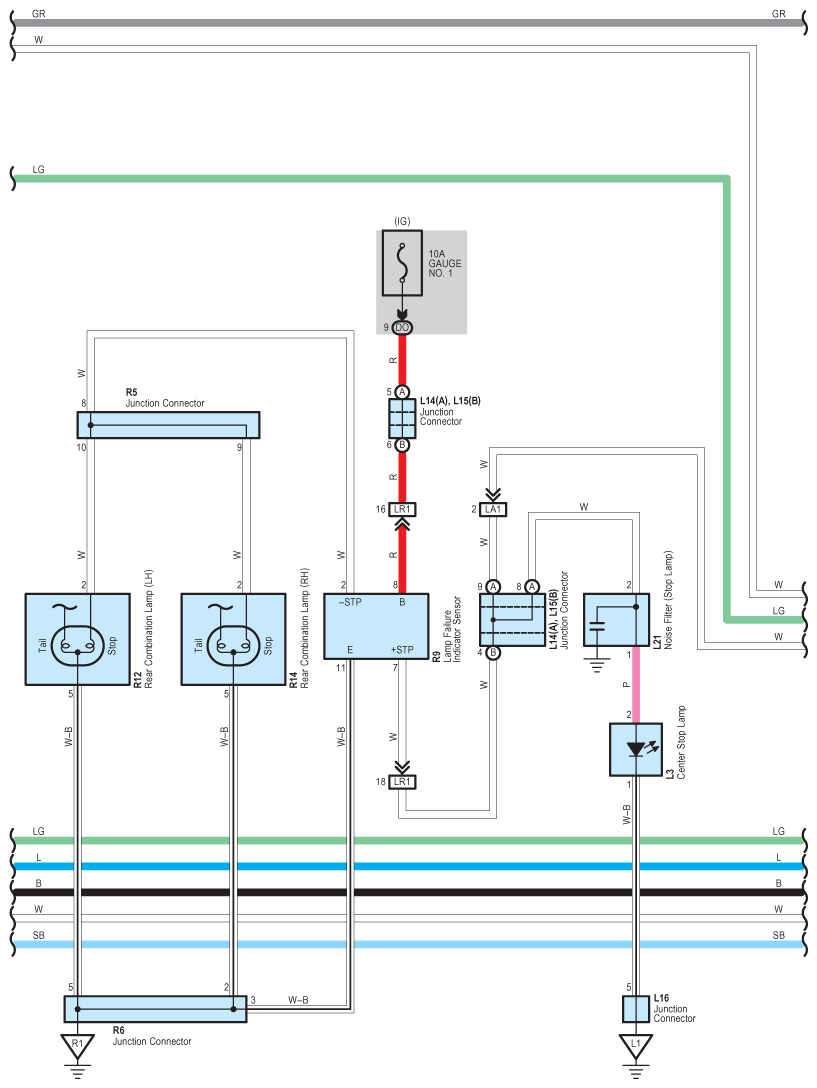

Fig 8: Dynamic Radar Cruise Control System Wiring Diagram (8 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Dynamic Radar Cruise Control System Wiring Diagram (9 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Dynamic Radar Cruise Control System Wiring Diagram (10 Of 14)

Fig 11: Dynamic Radar Cruise Control System Wiring Diagram (11 Of 14)

Fig 12: Dynamic Radar Cruise Control System Wiring Diagram (12 Of 14)

Fig 13: Dynamic Radar Cruise Control System Wiring Diagram (13 Of 14)

Fig 14: Dynamic Radar Cruise Control System Wiring Diagram (14 Of 14)
