Front Fog Light: Notes

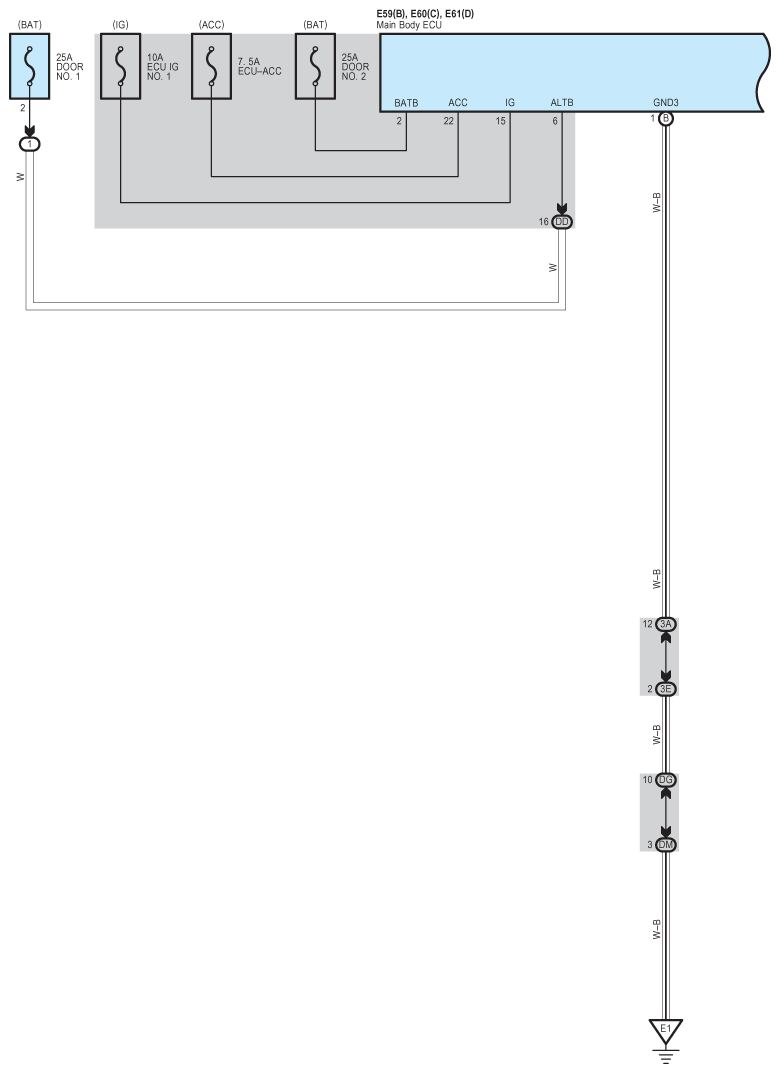

Fig 1: Front Fog Light System Wiring Diagram (1 Of 4)
G08916802Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Front Fog Light System Wiring Diagram (2 Of 4)
G08916803Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

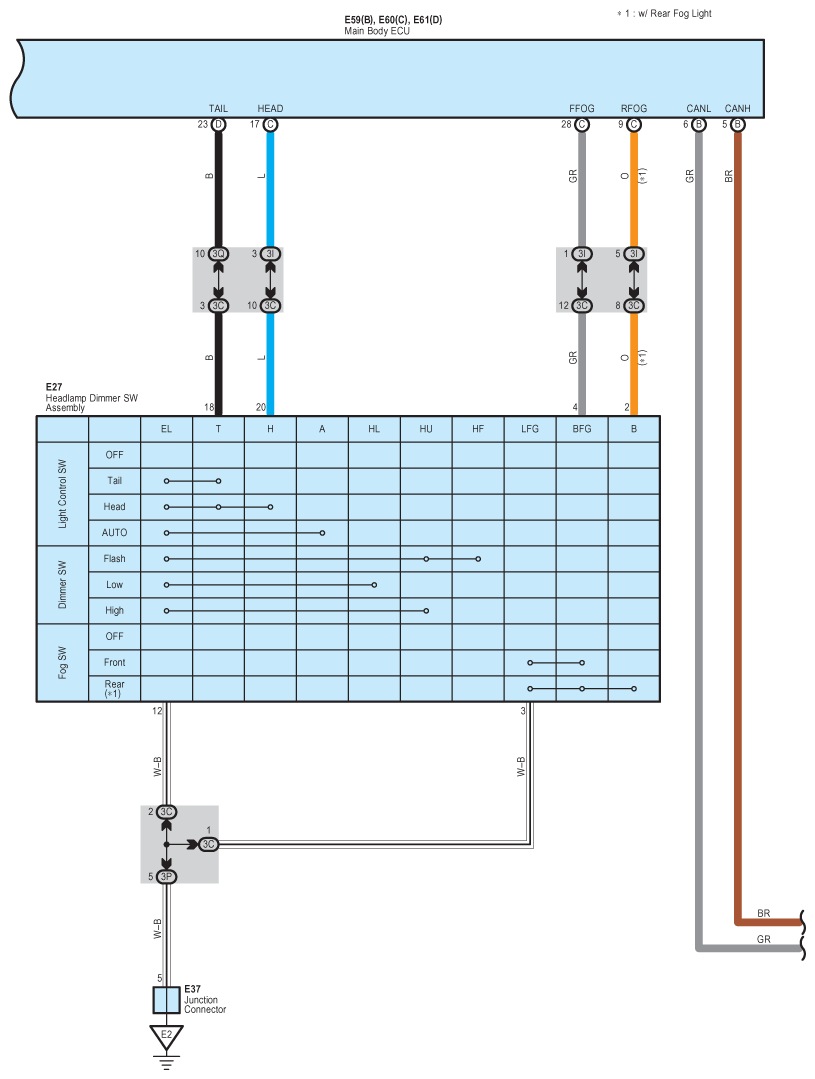

Fig 3: Front Fog Light System Wiring Diagram (3 Of 4)
G08916804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

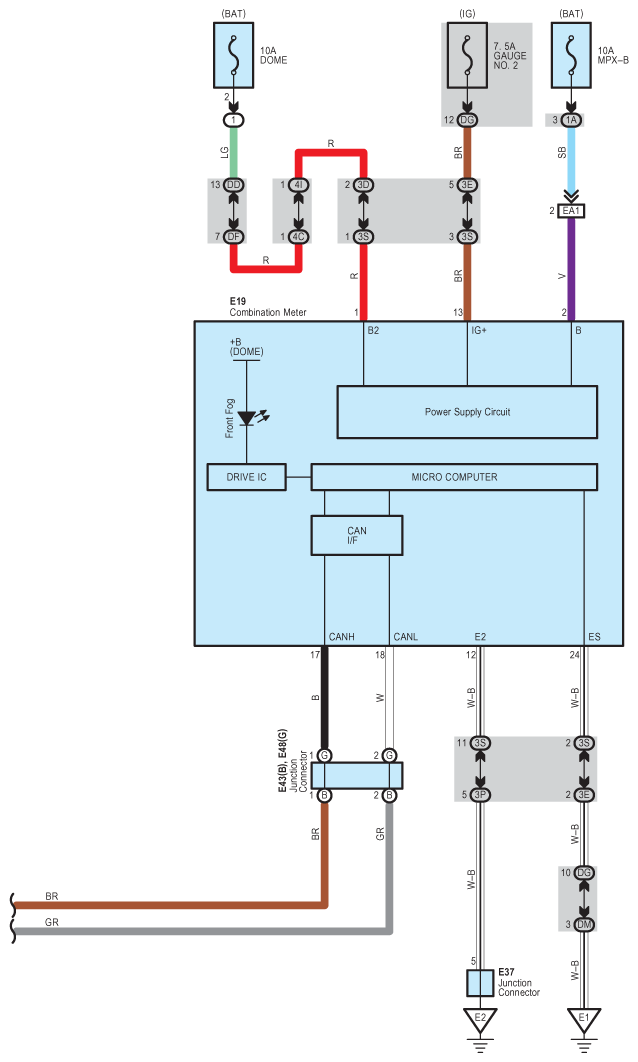

Fig 4: Front Fog Light System Wiring Diagram (4 Of 4)
G08916805Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
