Interior Light: Notes

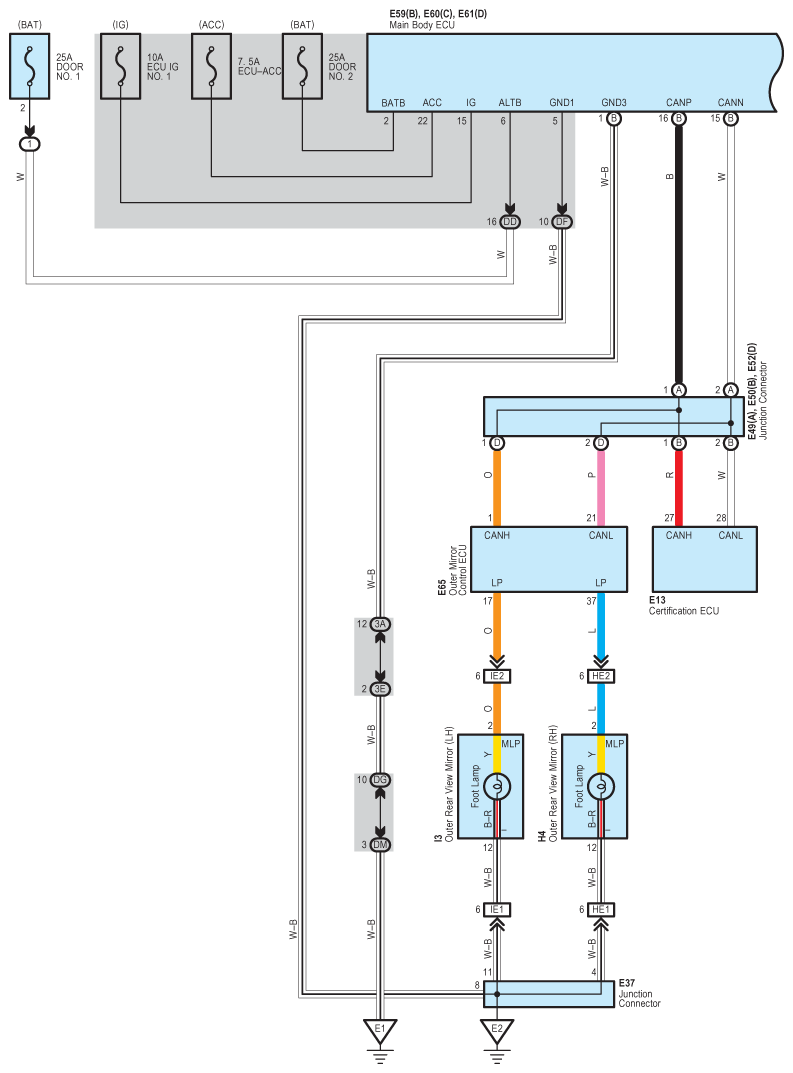

Fig 1: Interior Light System Wiring Diagram (1 Of 5)
G08916782Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

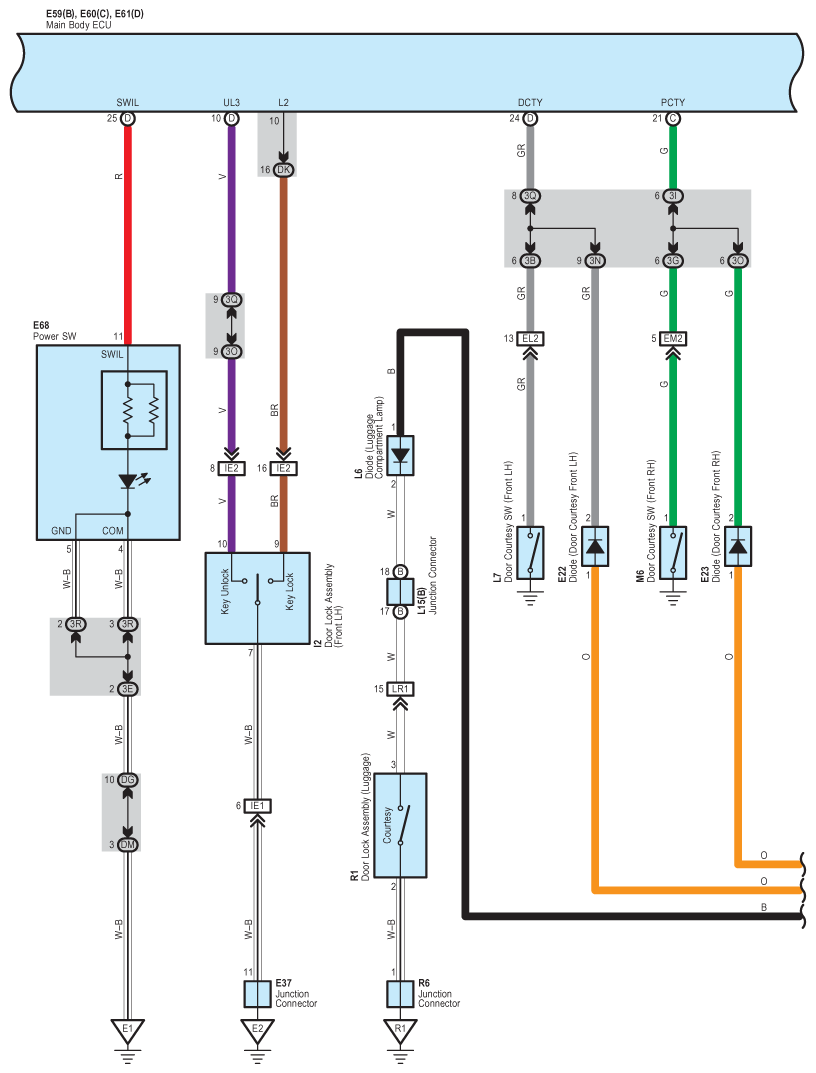

Fig 2: Interior Light System Wiring Diagram (2 Of 5)
G08916783Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

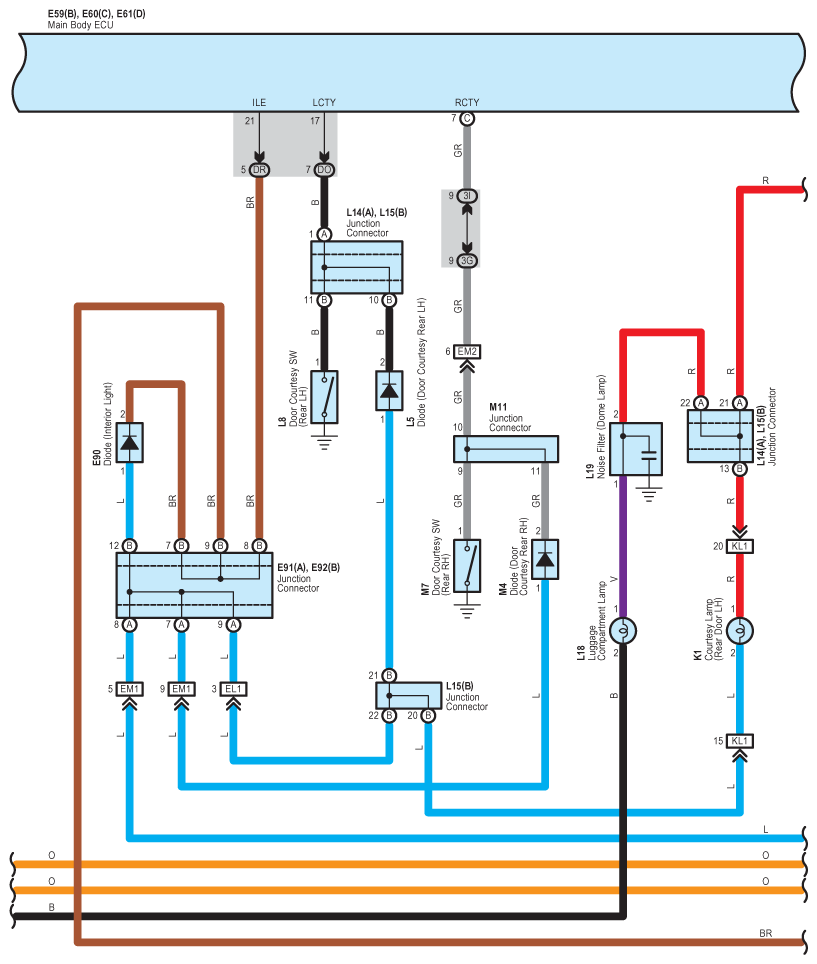

Fig 3: Interior Light System Wiring Diagram (3 Of 5)
G08916784Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

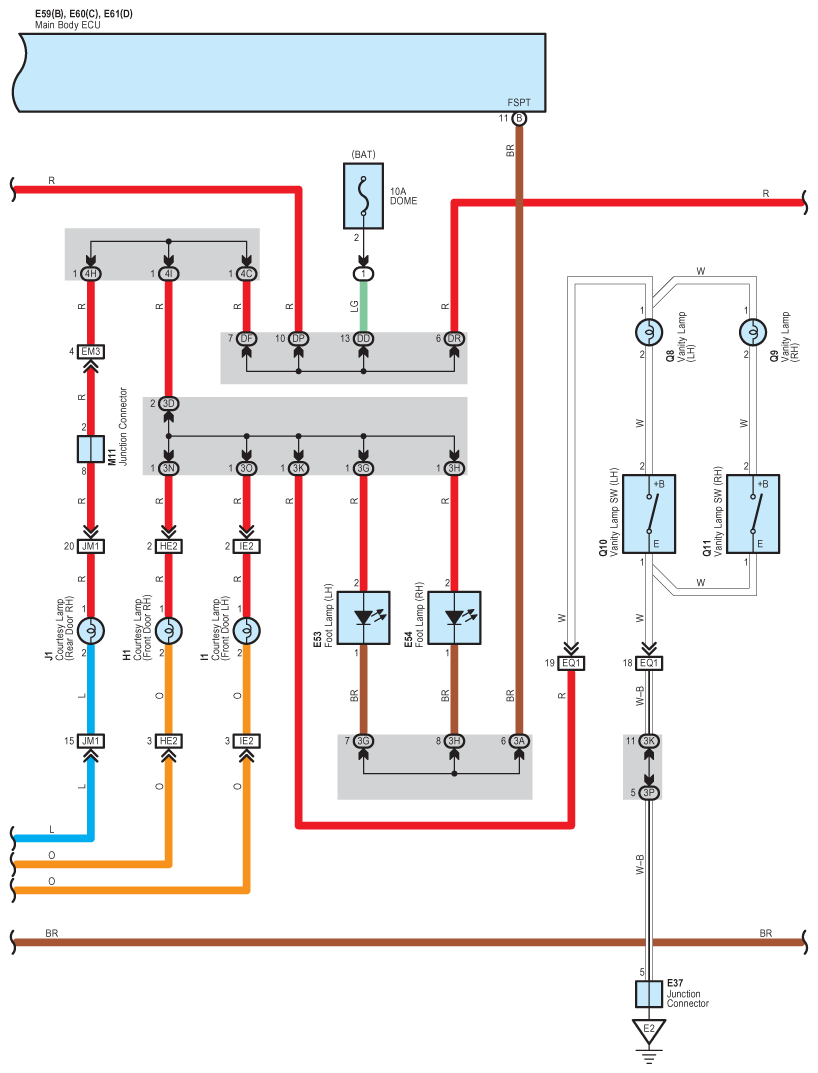

Fig 4: Interior Light System Wiring Diagram (4 Of 5)
G08916785Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

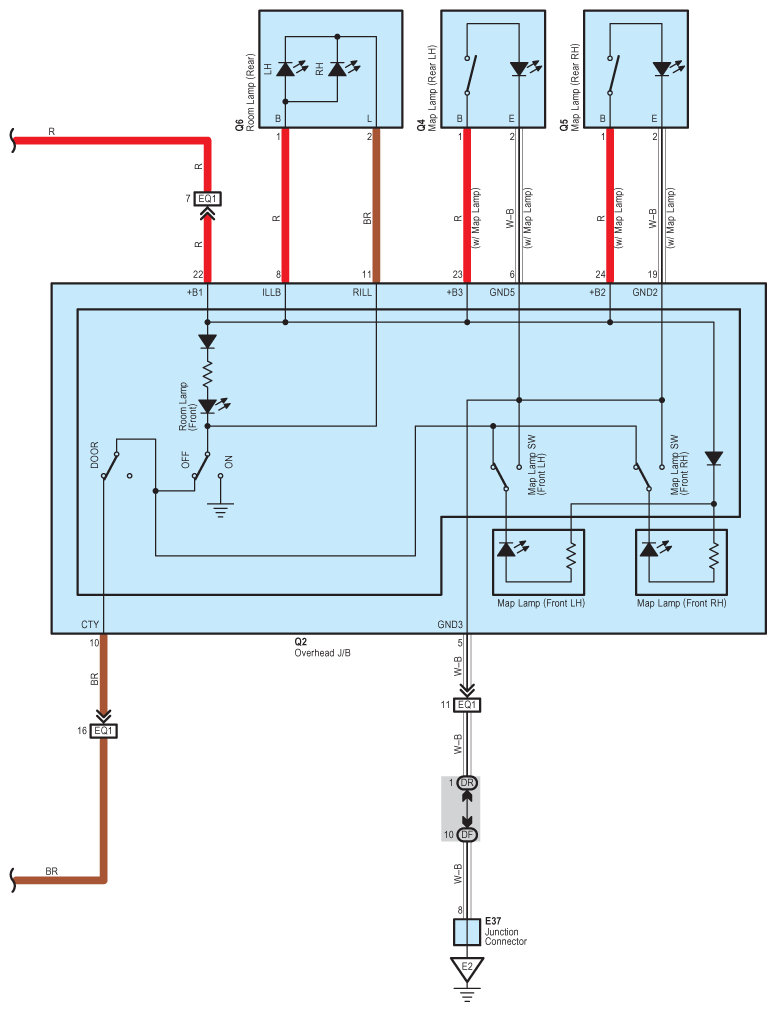

Fig 5: Interior Light System Wiring Diagram (5 Of 5)
G08916786Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
