Pre-Collision System: Notes

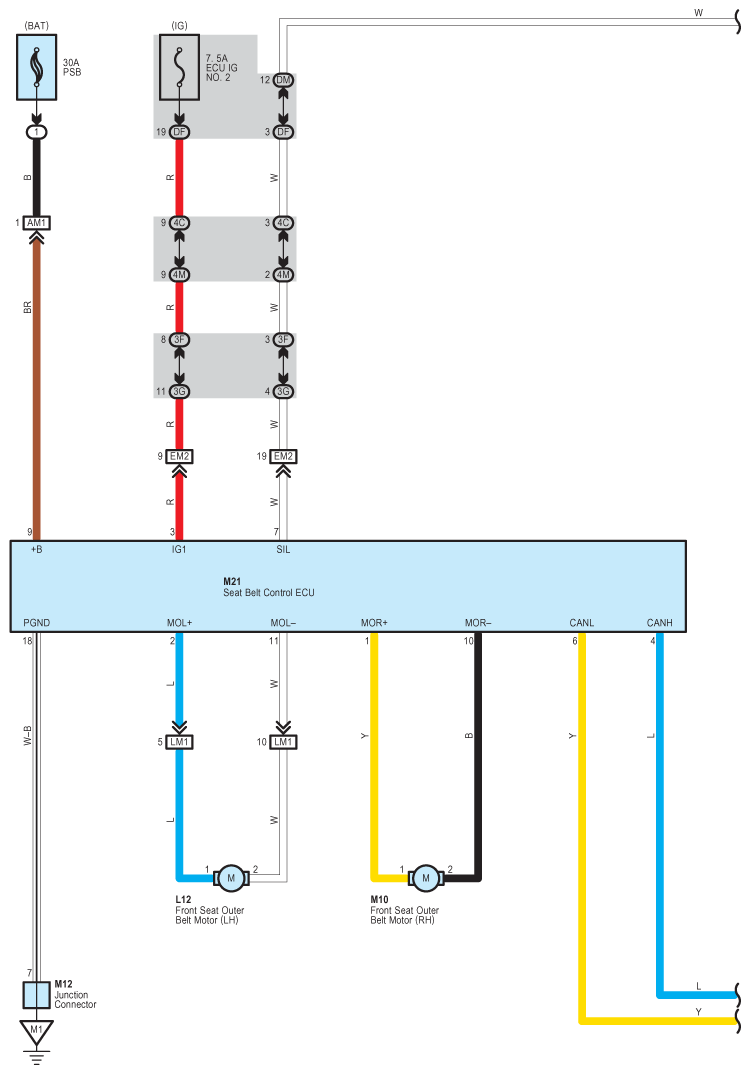

Fig 1: Pre-Collision System Wiring Diagram (1 Of 4)
G08916896Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

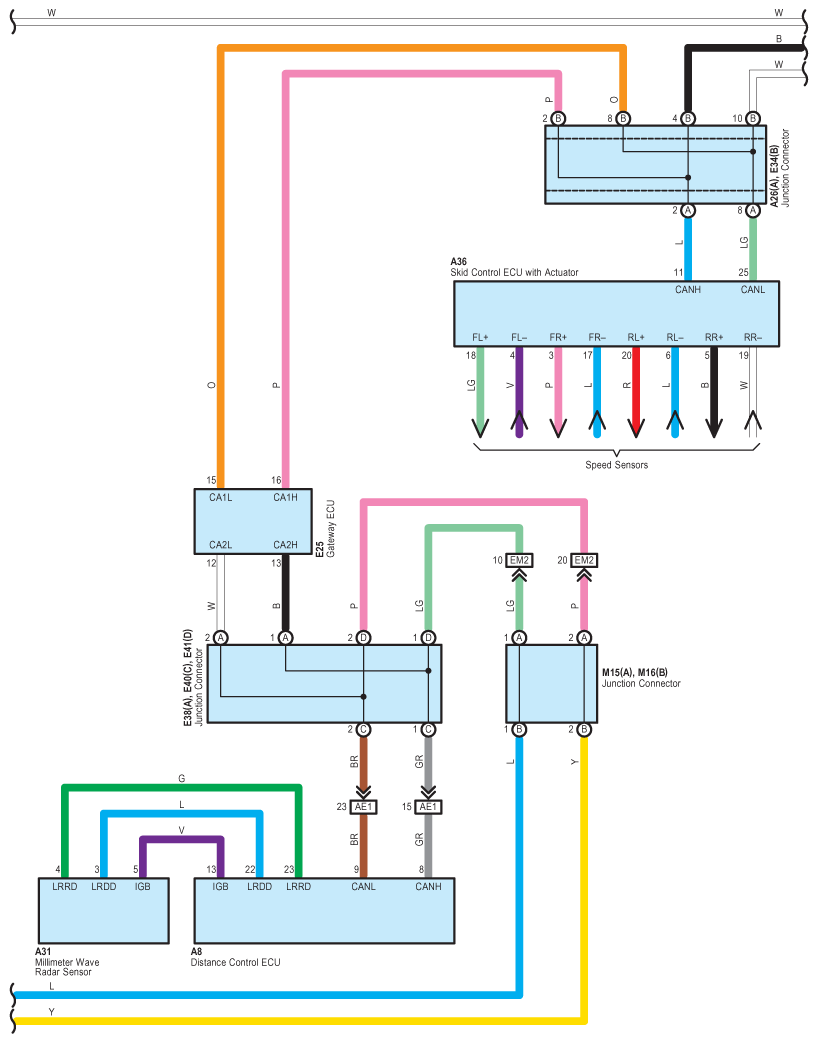

Fig 2: Pre-Collision System Wiring Diagram (2 Of 4)
G08916897Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

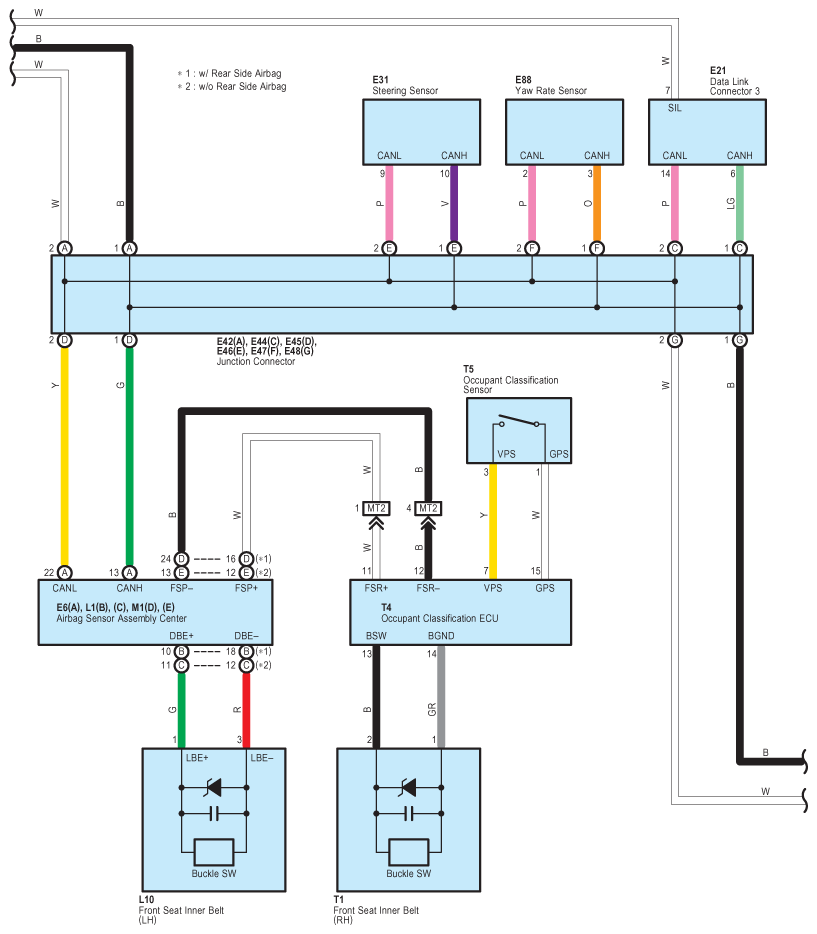

Fig 3: Pre-Collision System Wiring Diagram (3 Of 4)
G08916898Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

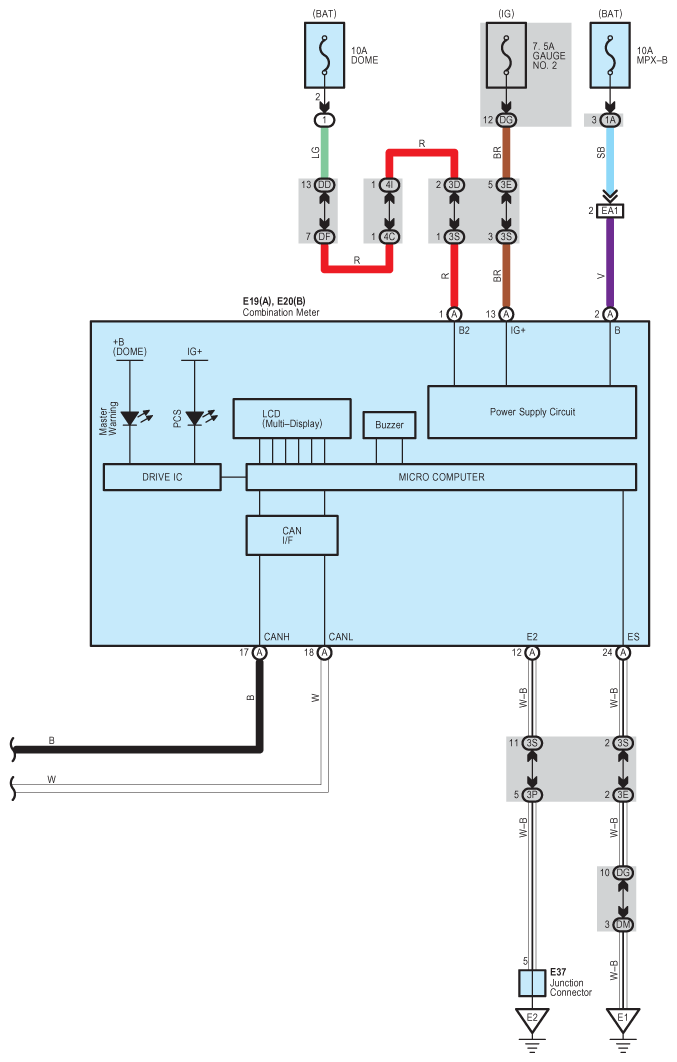

Fig 4: Pre-Collision System Wiring Diagram (4 Of 4)
G08916899Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
