Smart Access System with Push-Button Start: Notes

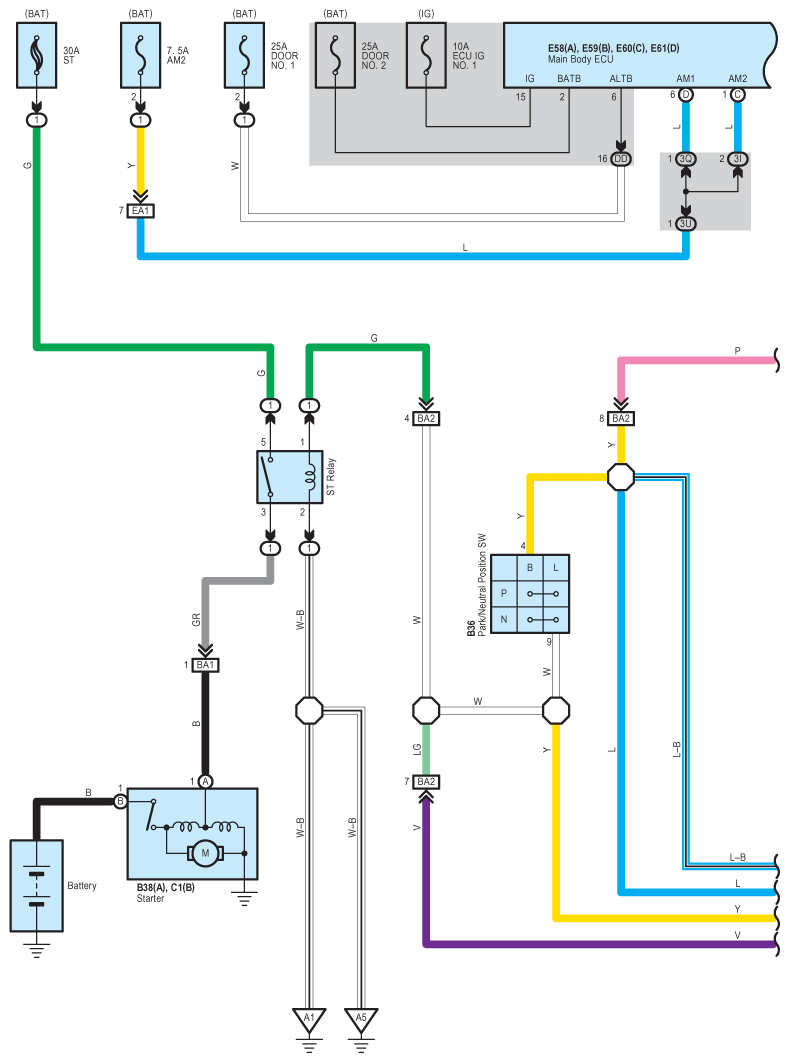

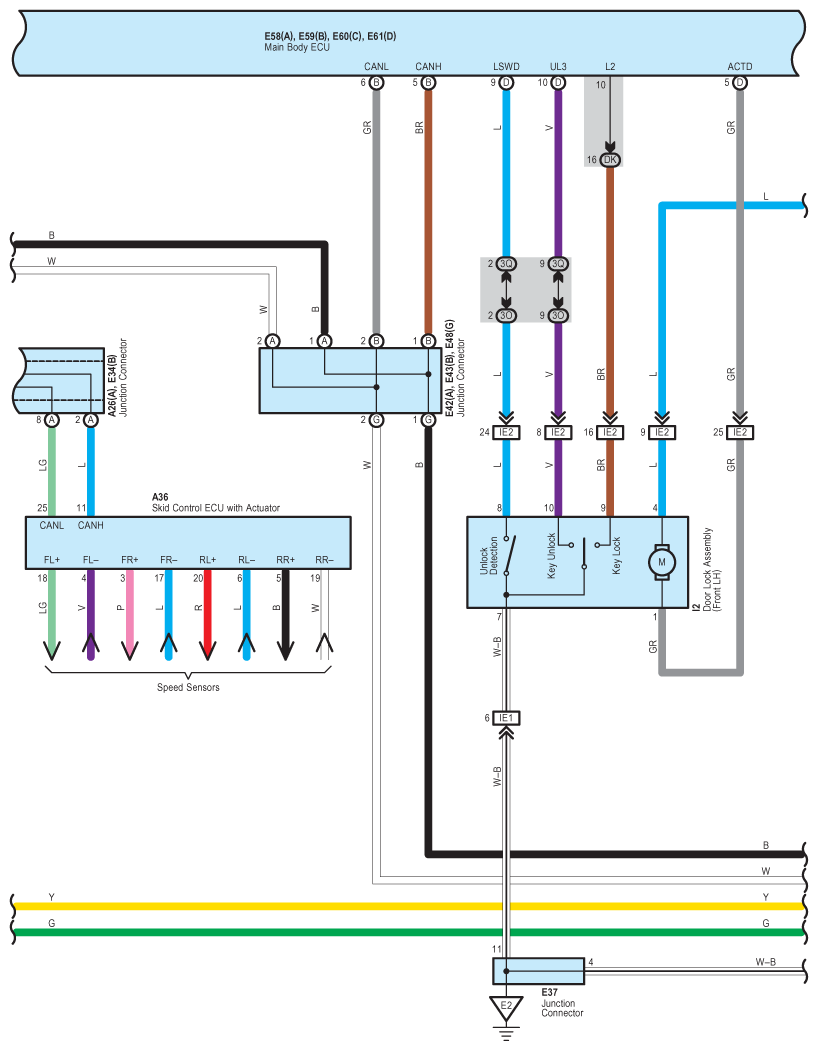

Fig 1: Smart Access System With Push-Button Start System Wiring Diagram (1 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

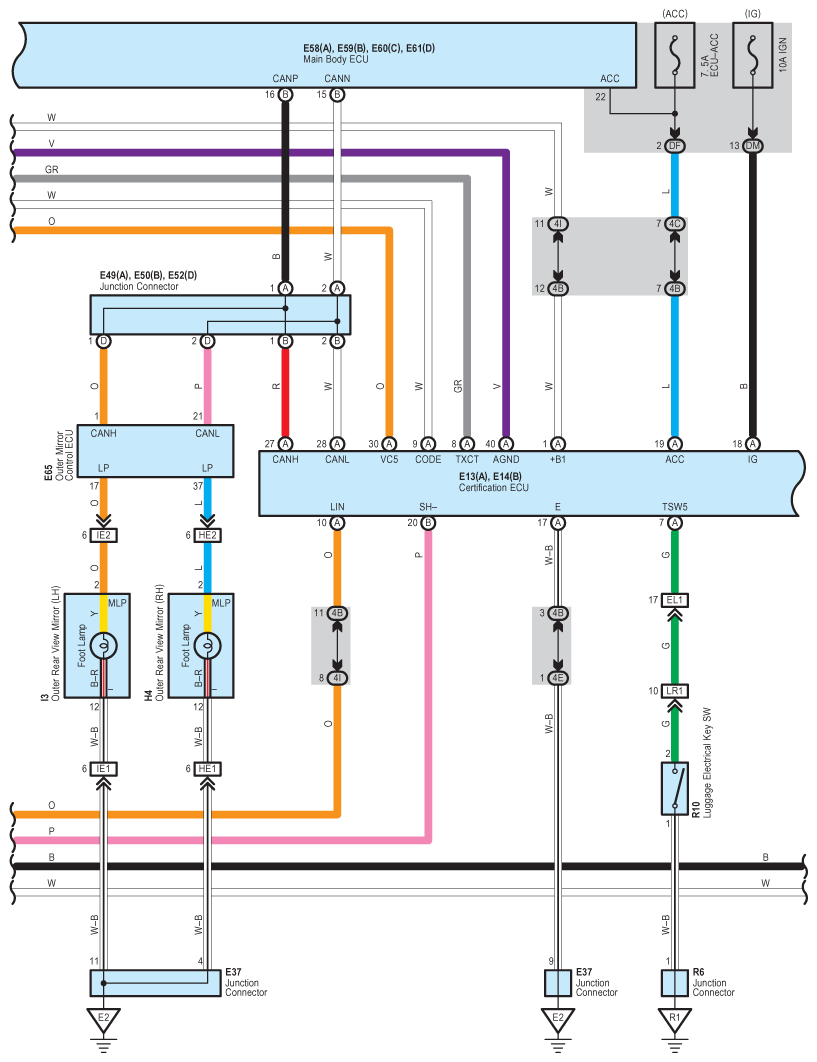

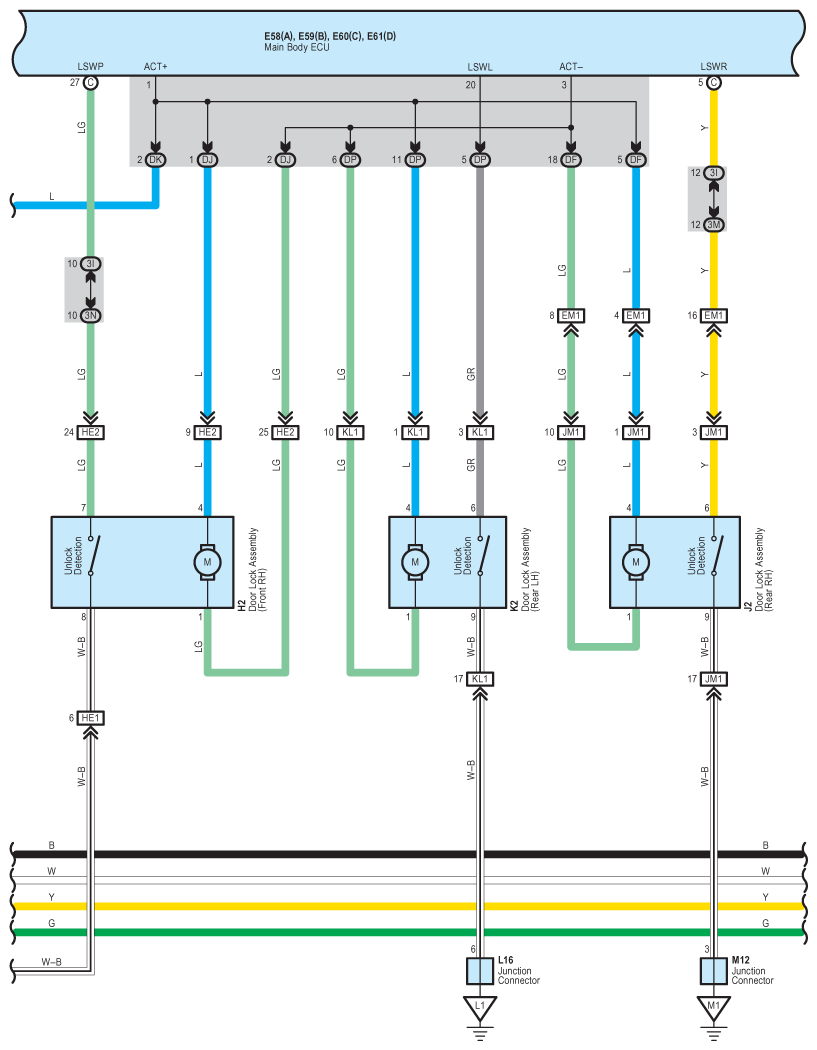

Fig 2: Smart Access System With Push-Button Start System Wiring Diagram (2 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

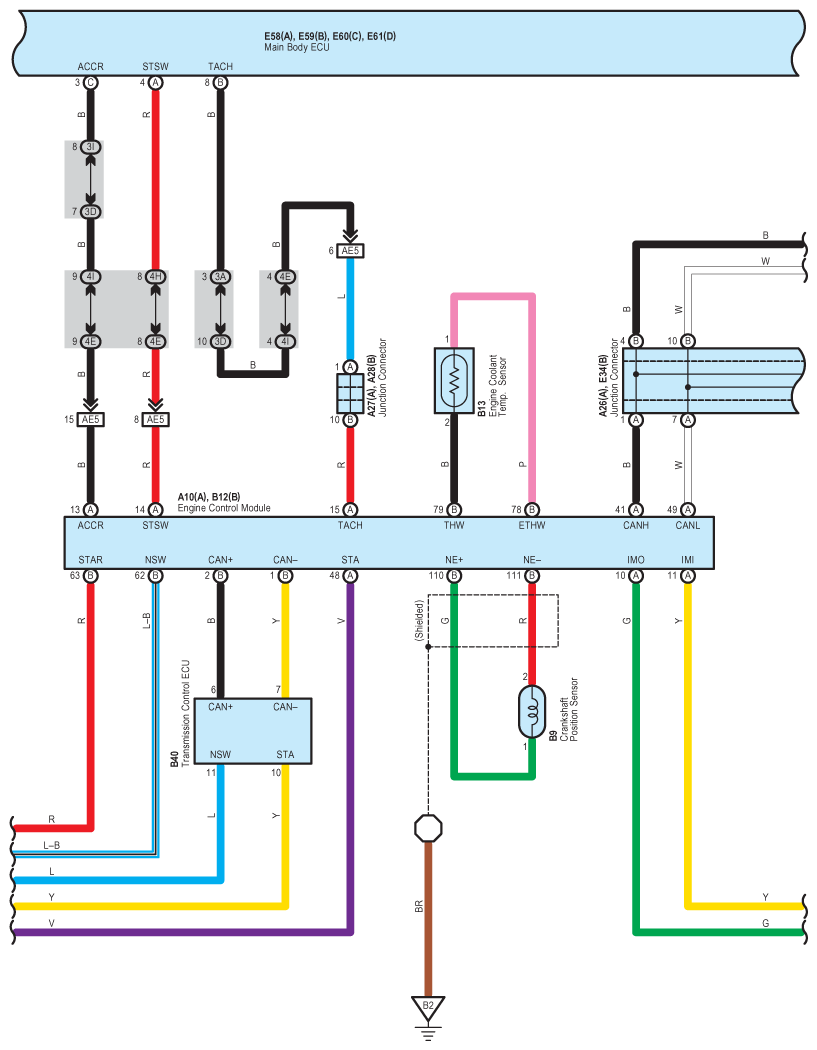

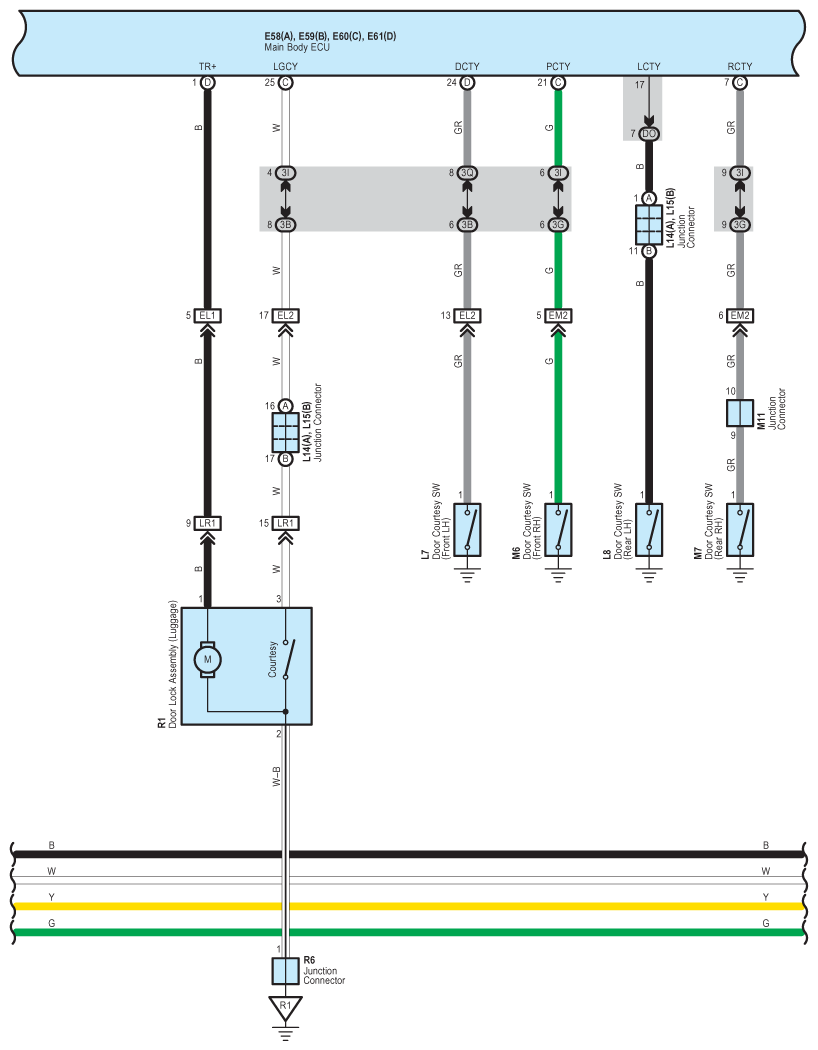

Fig 3: Smart Access System With Push-Button Start System Wiring Diagram (3 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

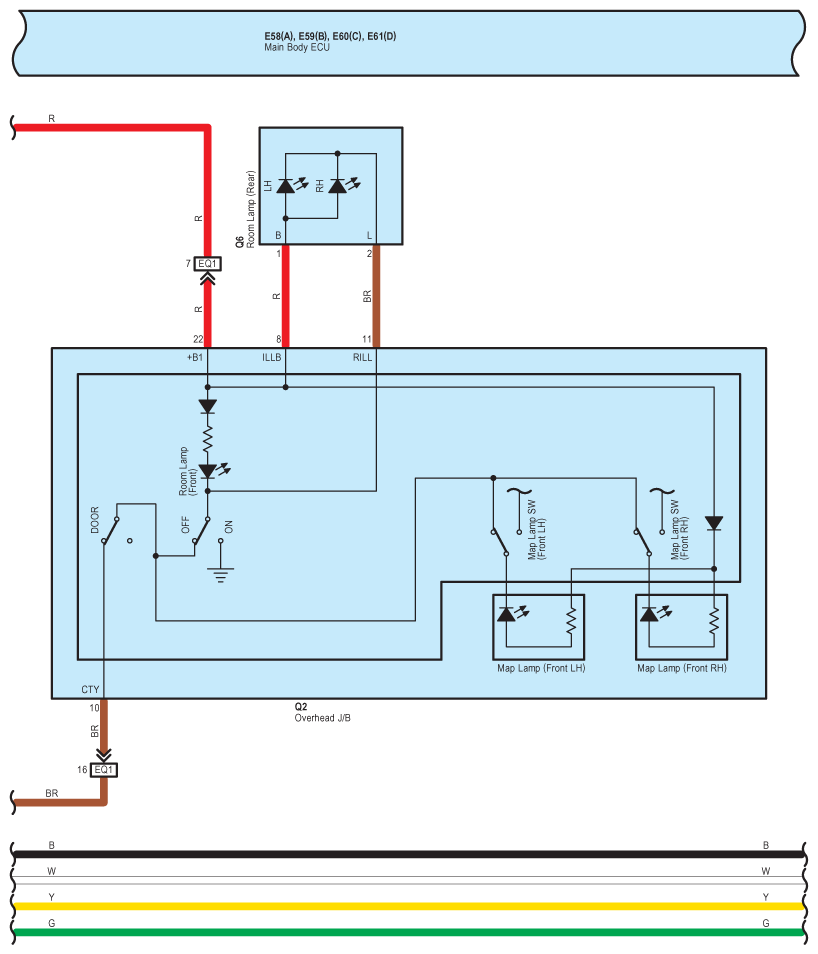

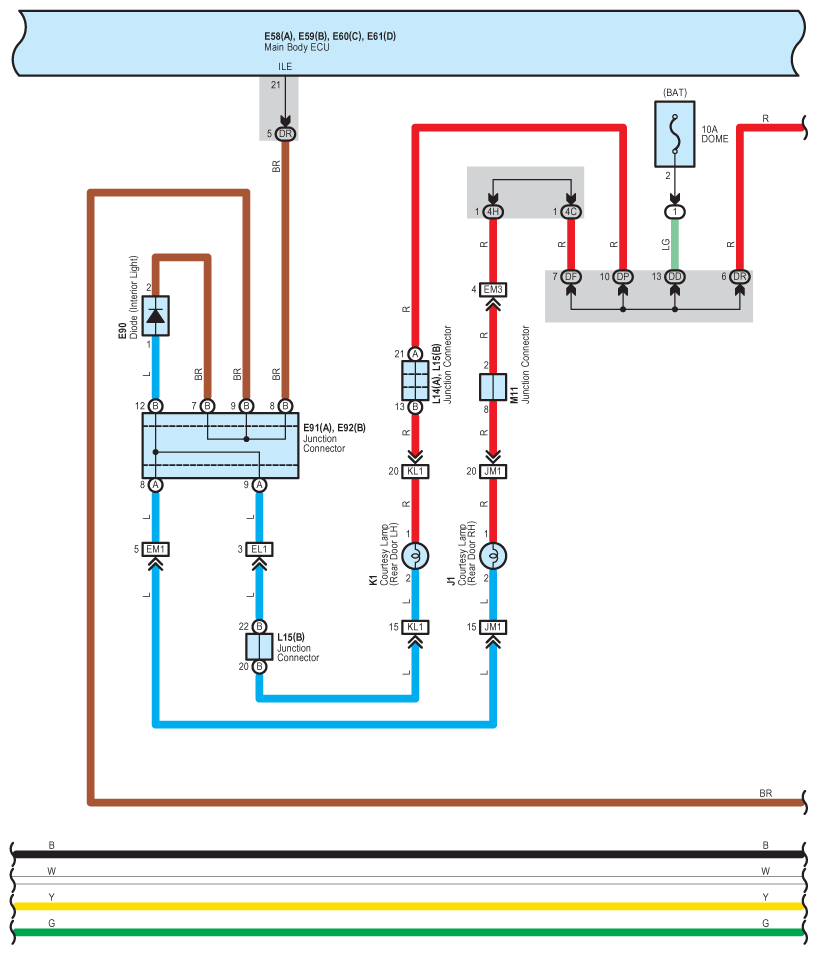

Fig 4: Smart Access System With Push-Button Start System Wiring Diagram (4 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

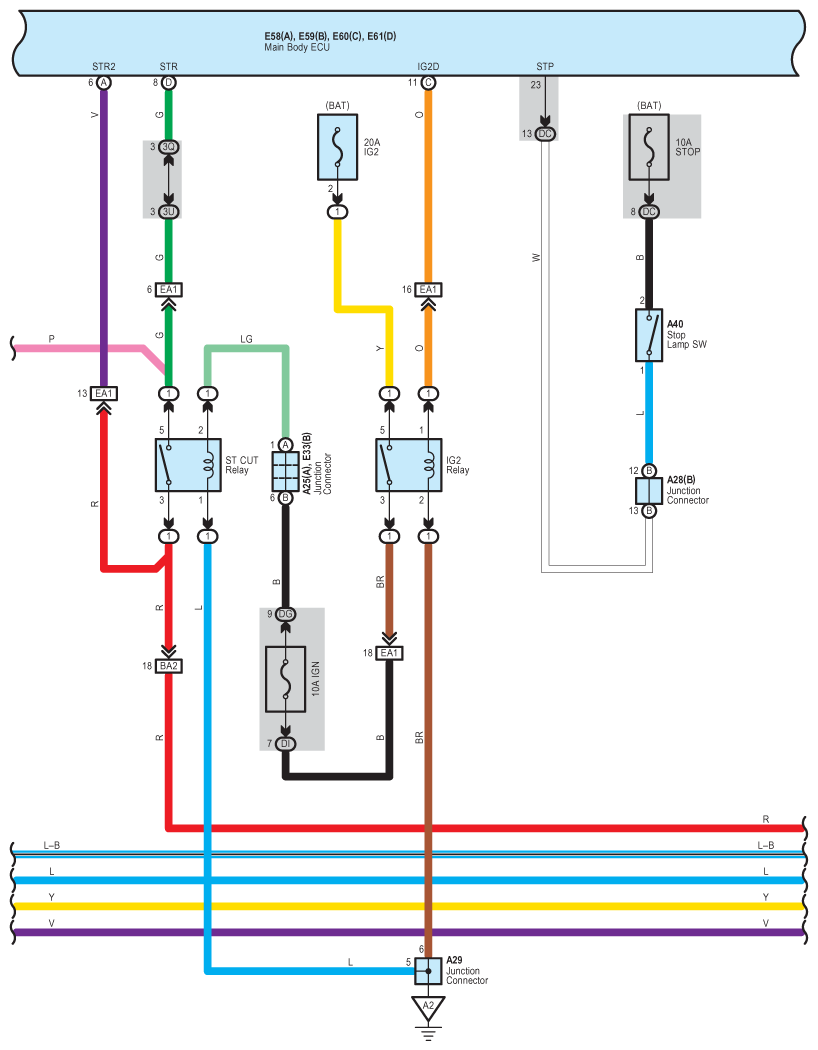

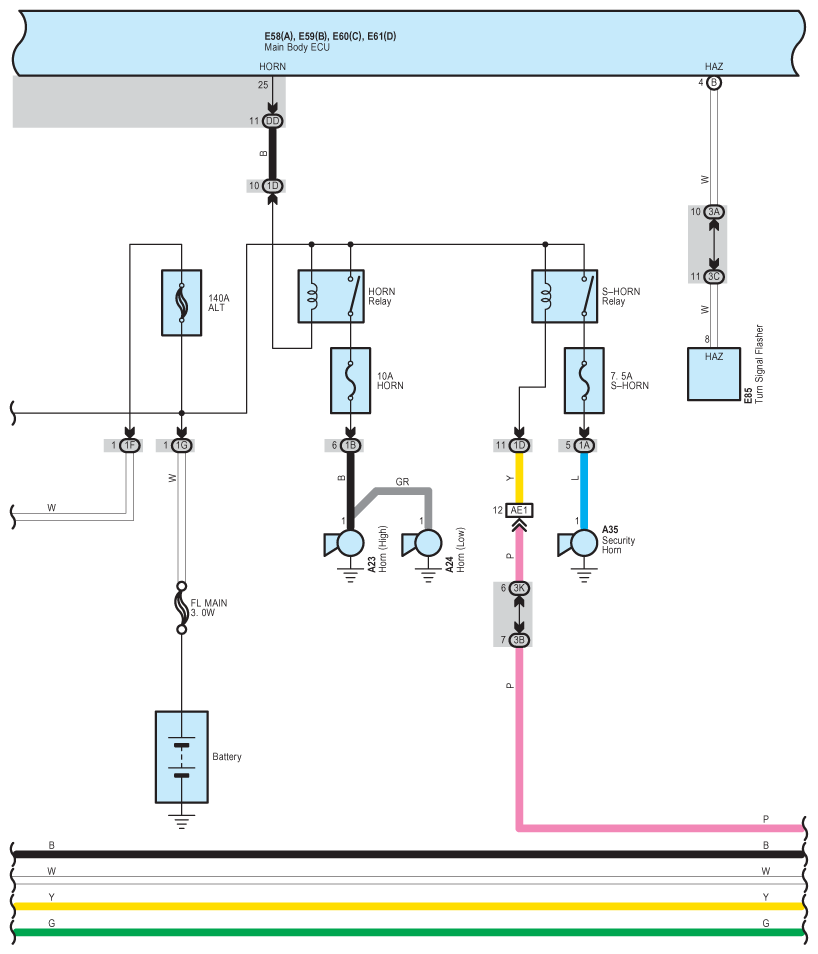

Fig 5: Smart Access System With Push-Button Start System Wiring Diagram (5 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

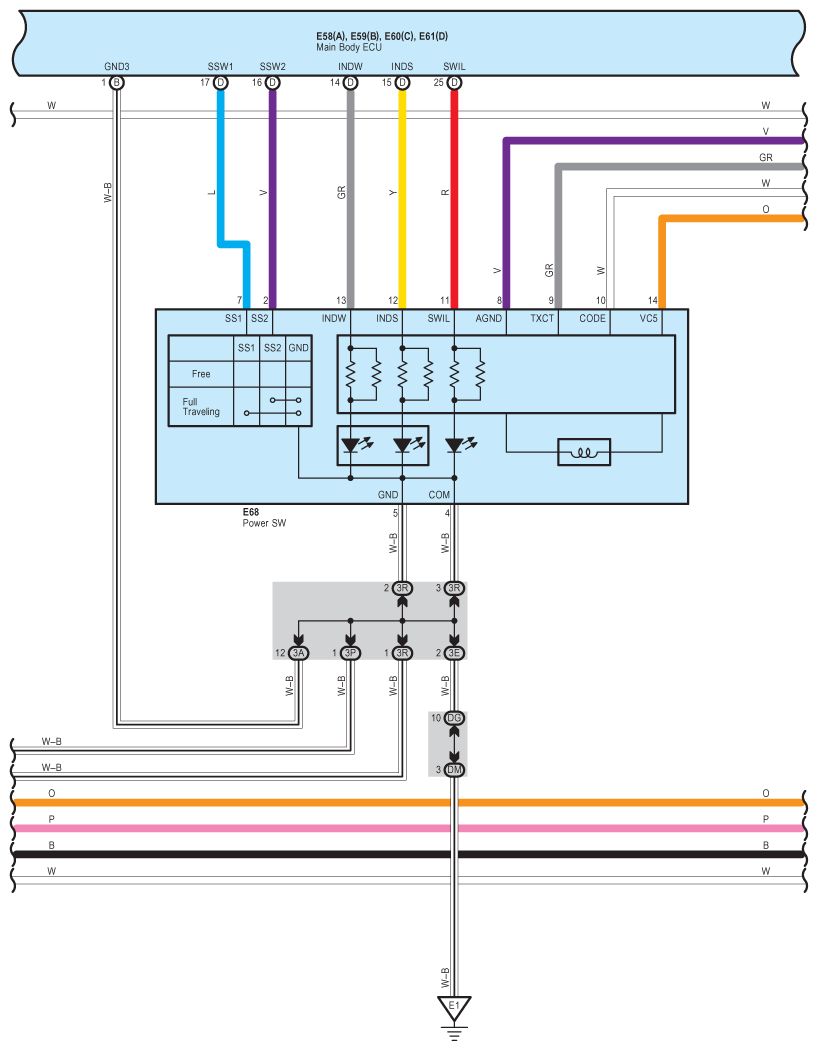

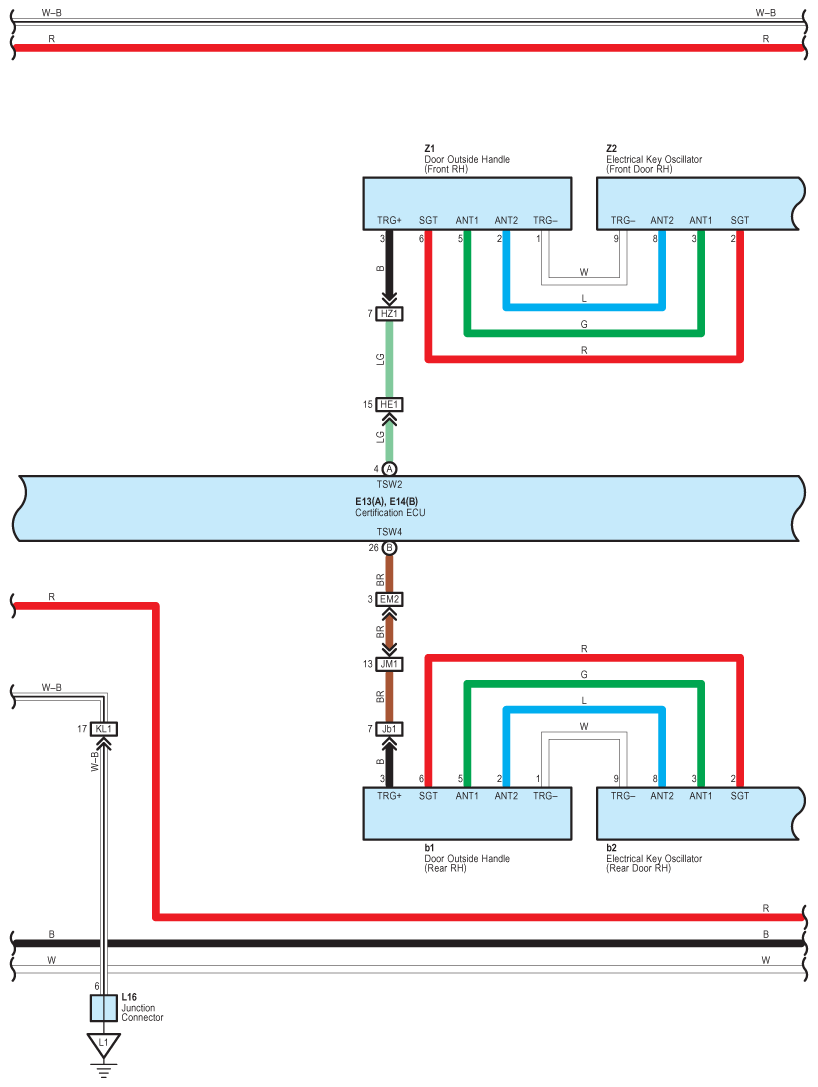

Fig 6: Smart Access System With Push-Button Start System Wiring Diagram (6 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

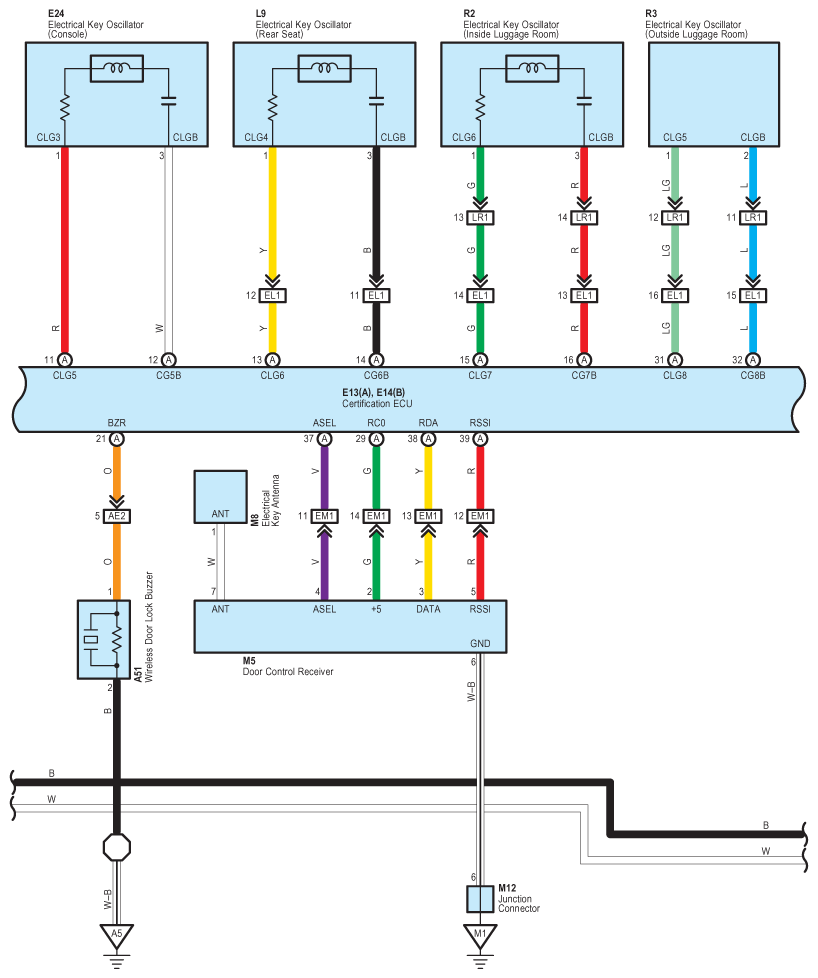

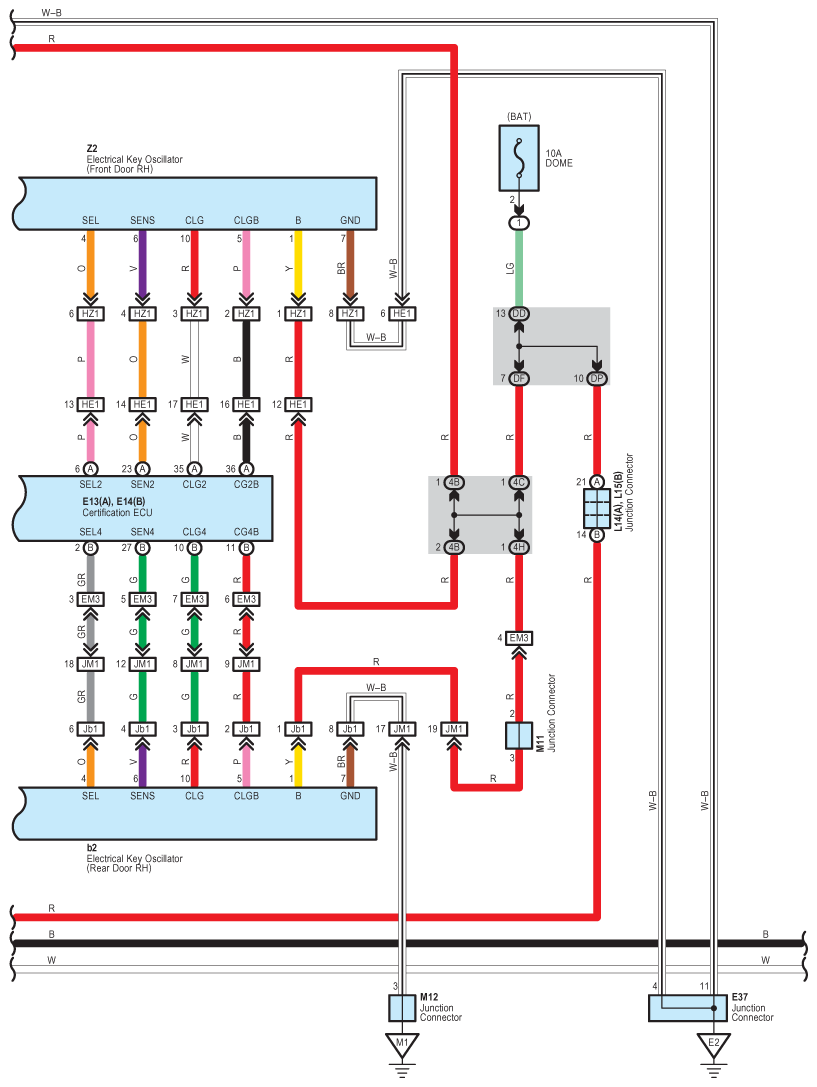

Fig 7: Smart Access System With Push-Button Start System Wiring Diagram (7 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

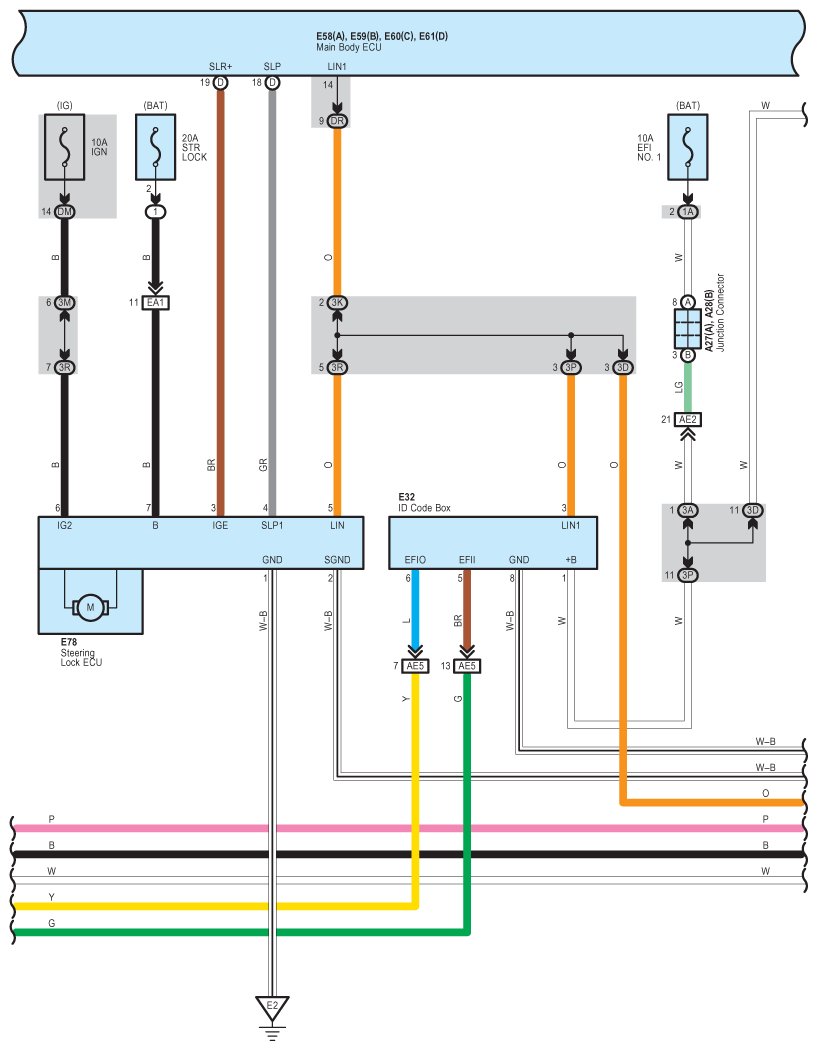

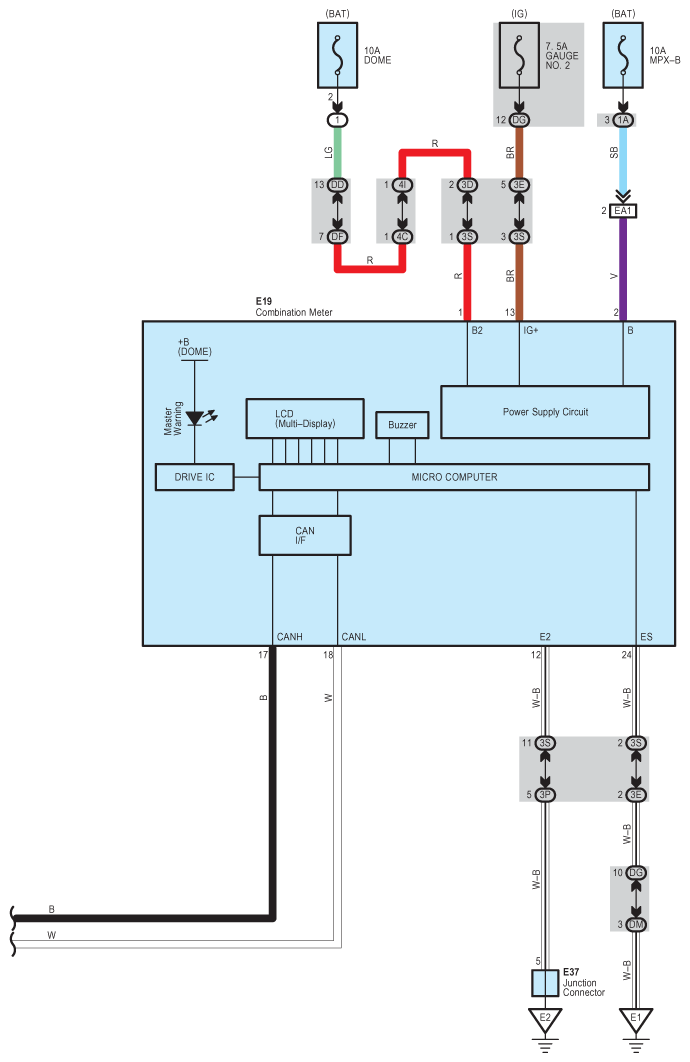

Fig 8: Smart Access System With Push-Button Start System Wiring Diagram (8 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

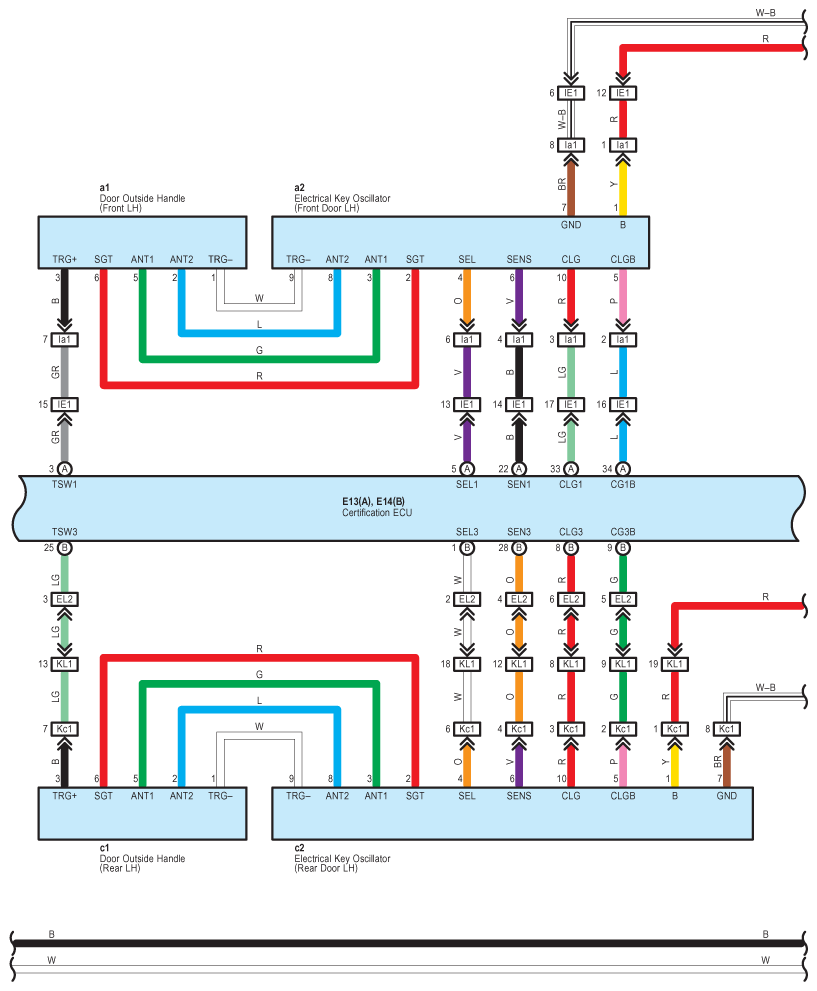

Fig 9: Smart Access System With Push-Button Start System Wiring Diagram (9 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

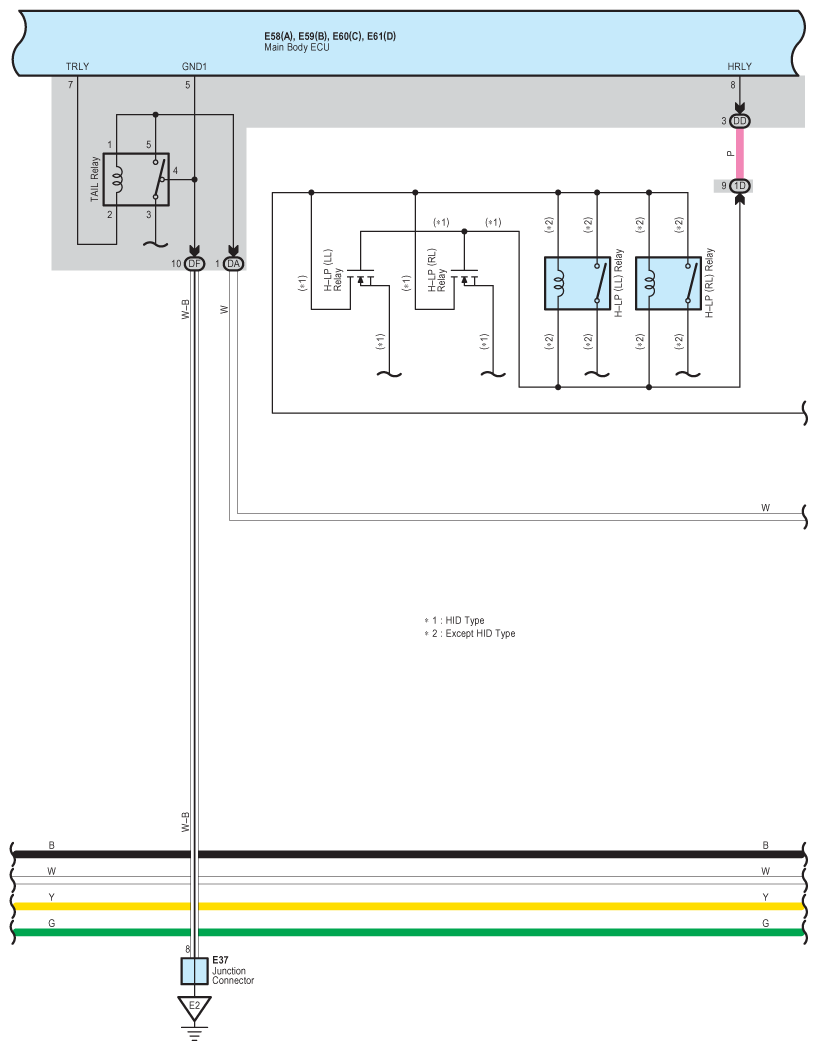

Fig 10: Smart Access System With Push-Button Start System Wiring Diagram (10 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Smart Access System With Push-Button Start System Wiring Diagram (11 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Smart Access System With Push-Button Start System Wiring Diagram (12 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 13: Smart Access System With Push-Button Start System Wiring Diagram (13 Of 18)

Fig 14: Smart Access System With Push-Button Start System Wiring Diagram (14 Of 18)

Fig 15: Smart Access System With Push-Button Start System Wiring Diagram (15 Of 18)

Fig 16: Smart Access System With Push-Button Start System Wiring Diagram (16 Of 18)

Fig 17: Smart Access System With Push-Button Start System Wiring Diagram (17 Of 18)

Fig 18: Smart Access System With Push-Button Start System Wiring Diagram (18 Of 18)
