Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

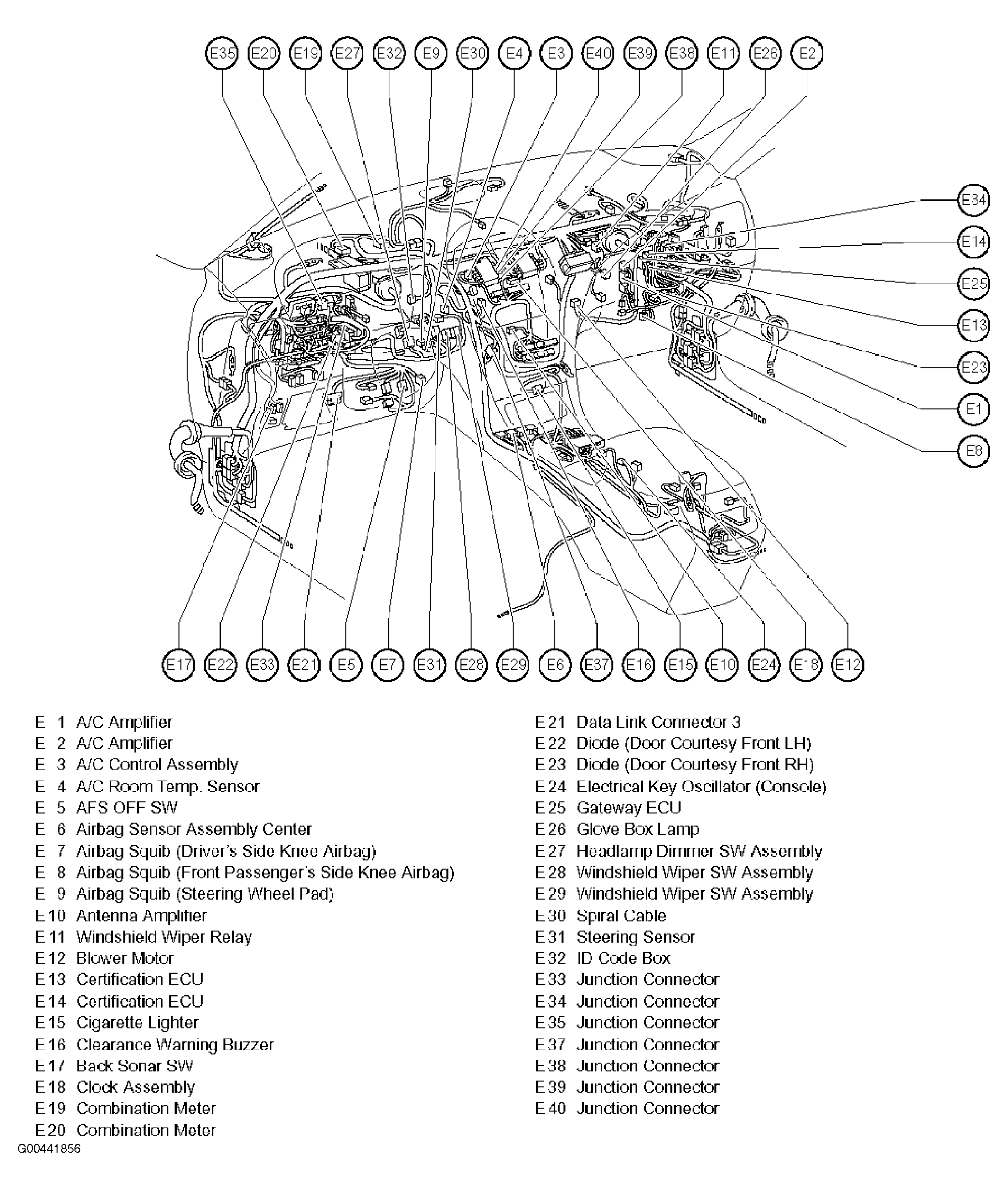

| Diode (Door Courtesy Front LH) | Left side of dash. See Figure. |
| Diode (Door Courtesy Front RH) | Right side of dash. See Figure. |

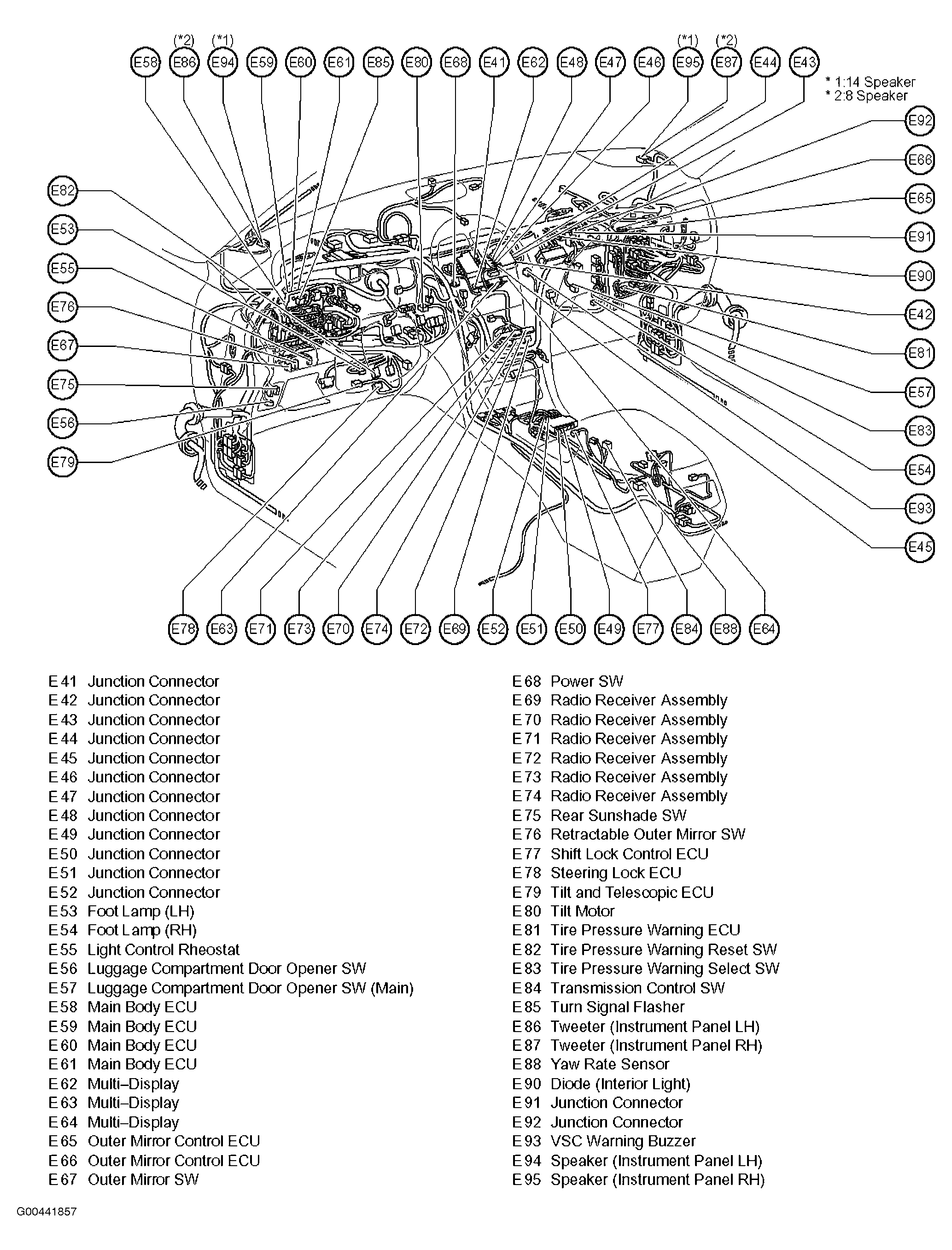

| Diode (Interior Light) | Right side of dash. See Figure. |
| Electrical Key Oscillator (Console) | Under center console. See Figure. |

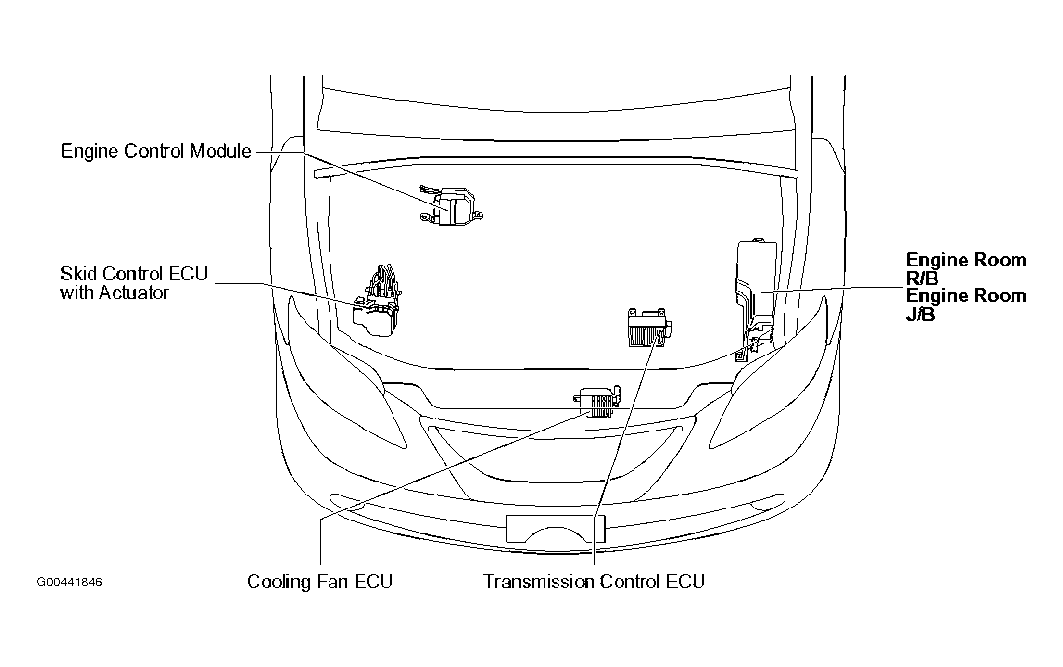

| Engine Room J/B | Left front of engine compartment. See Figure. |
| Engine Room R/B | Left side of engine compartment. See Figure. |

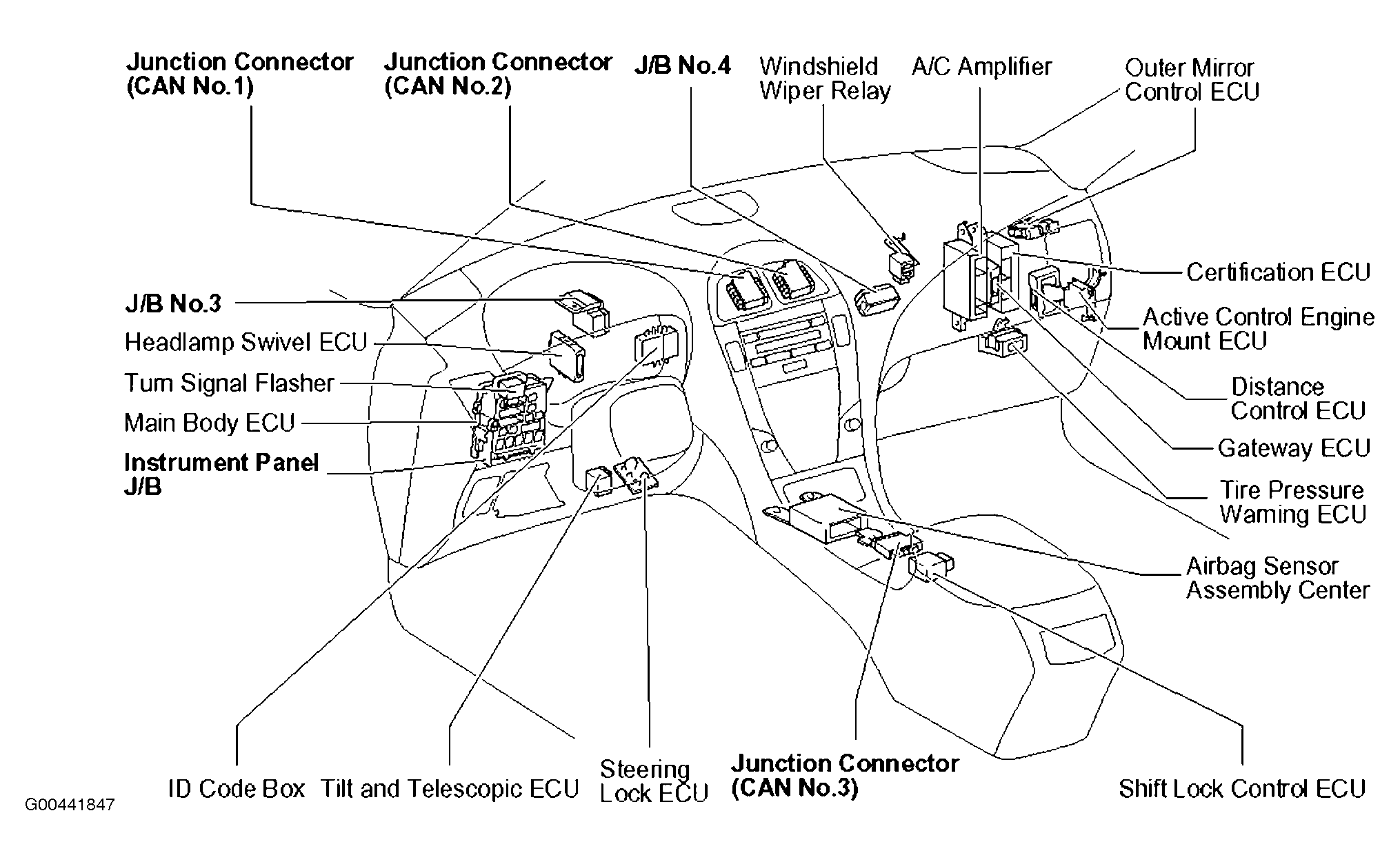

| Instrument Panel J/B | Left side of dash. See Figure. |
| J/B No. 3 | Left side of dash. See Figure. |
| J/B No. 4 | Right side of dash. See Figure. |

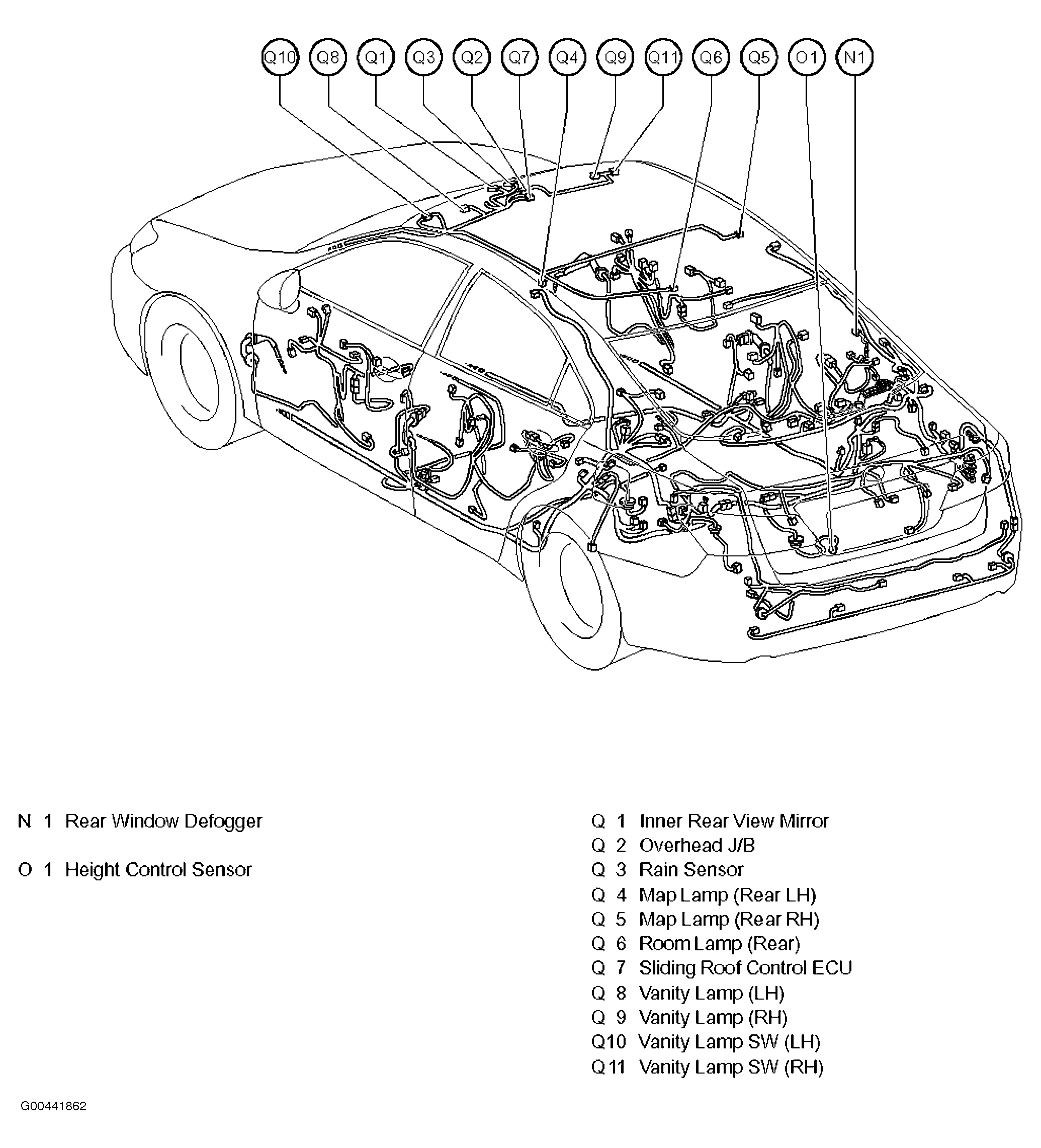

| Overhead J/B | Center front of roof. See Figure. |
