Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Engine Compartment

G00441847

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Dash

G00441846

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Vehicle Overview

G00441848

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Front Seats

G00441849

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

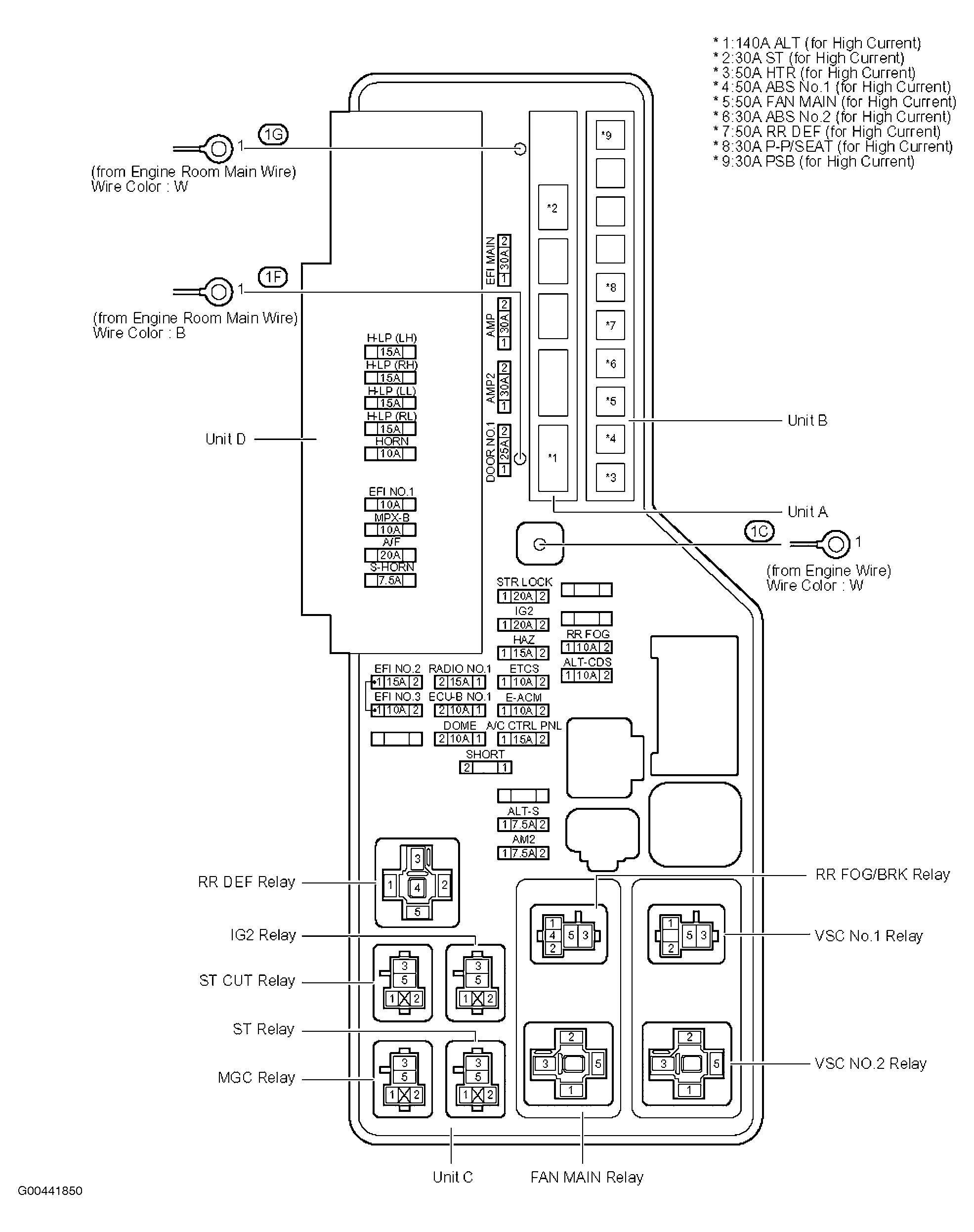

Fig 5: Engine Room R/B - J/B

G00441850

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

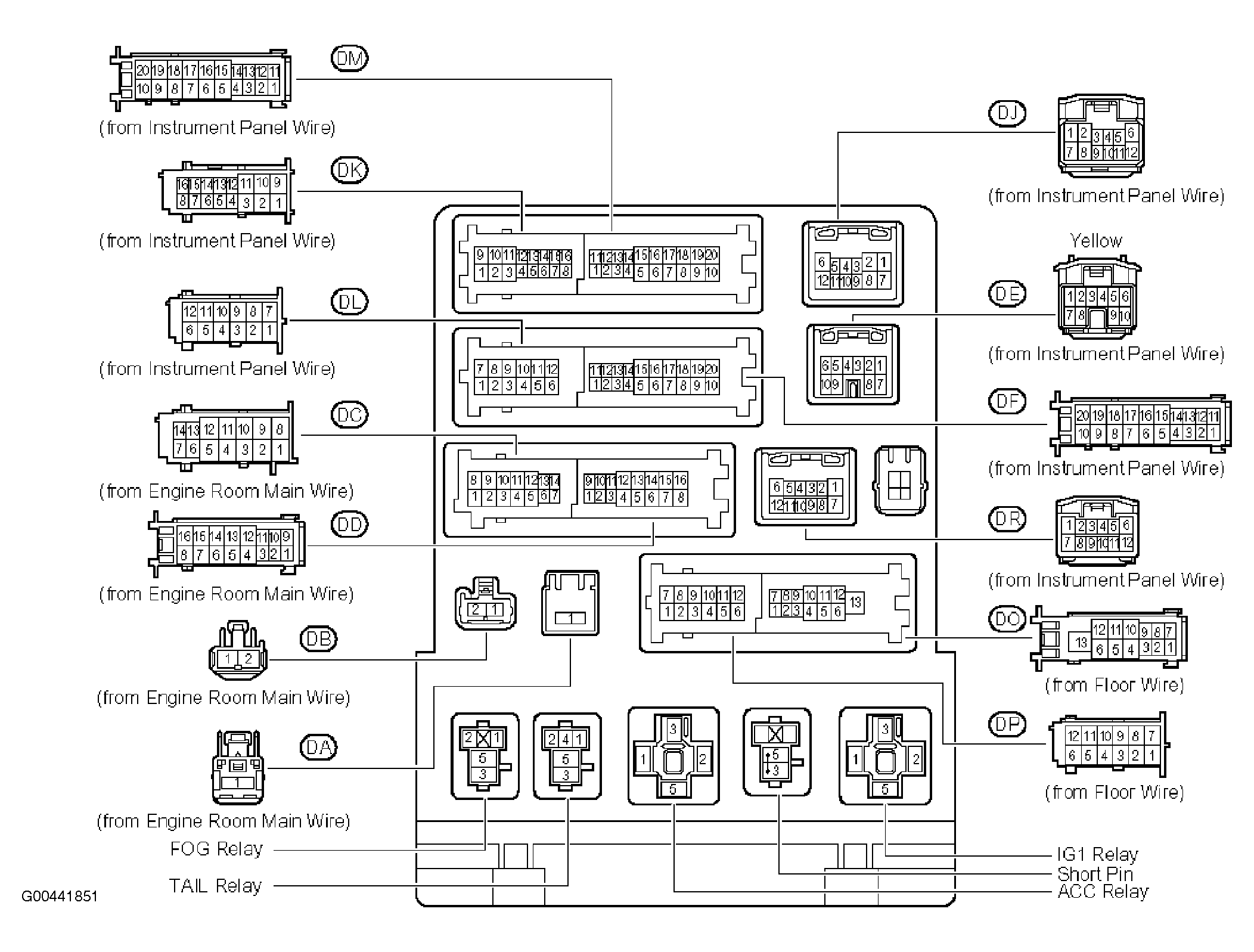

Fig 6: Instrument Panel J/B

G00441851

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

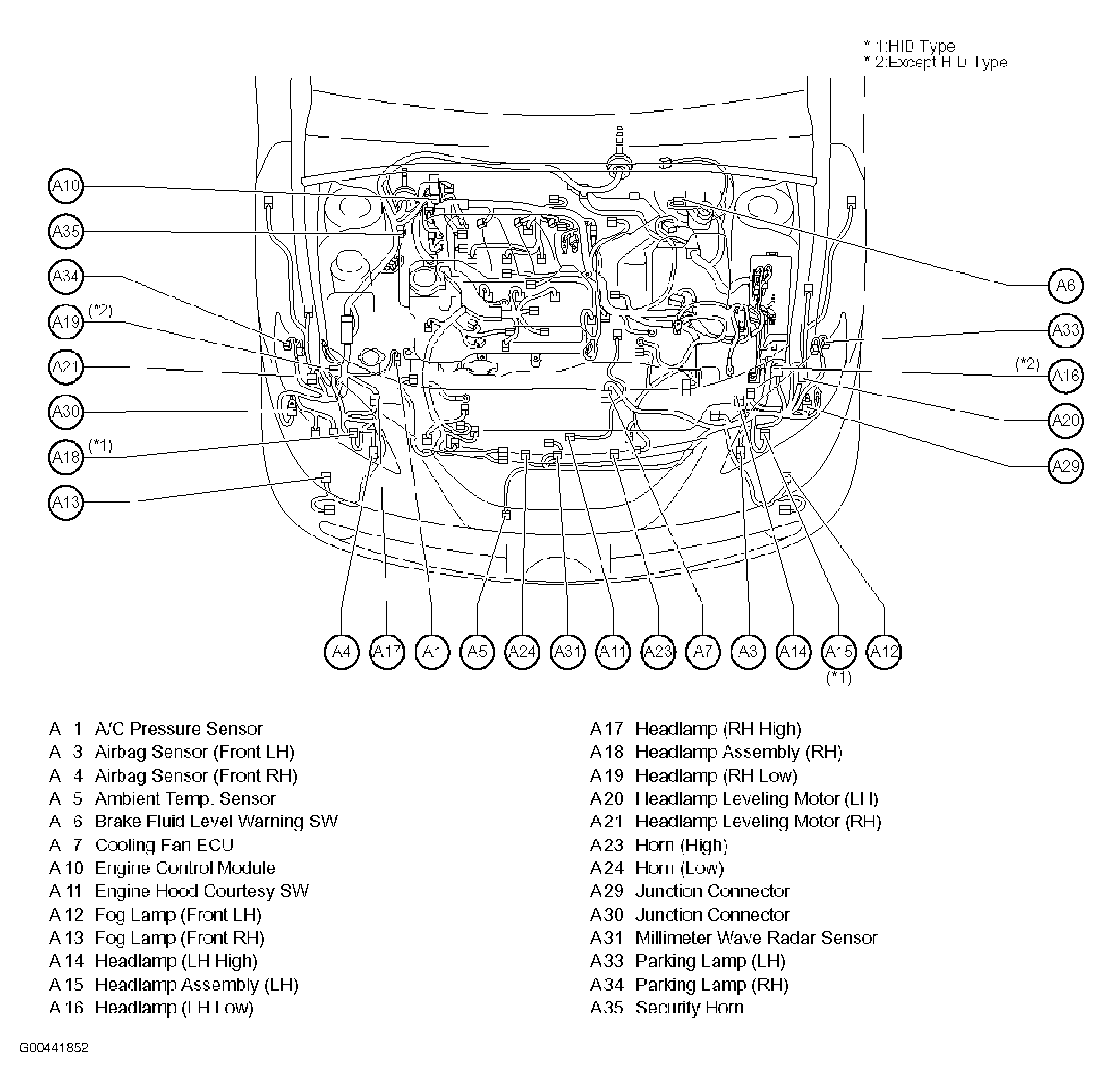

Fig 7: Engine Compartment

G00441852

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

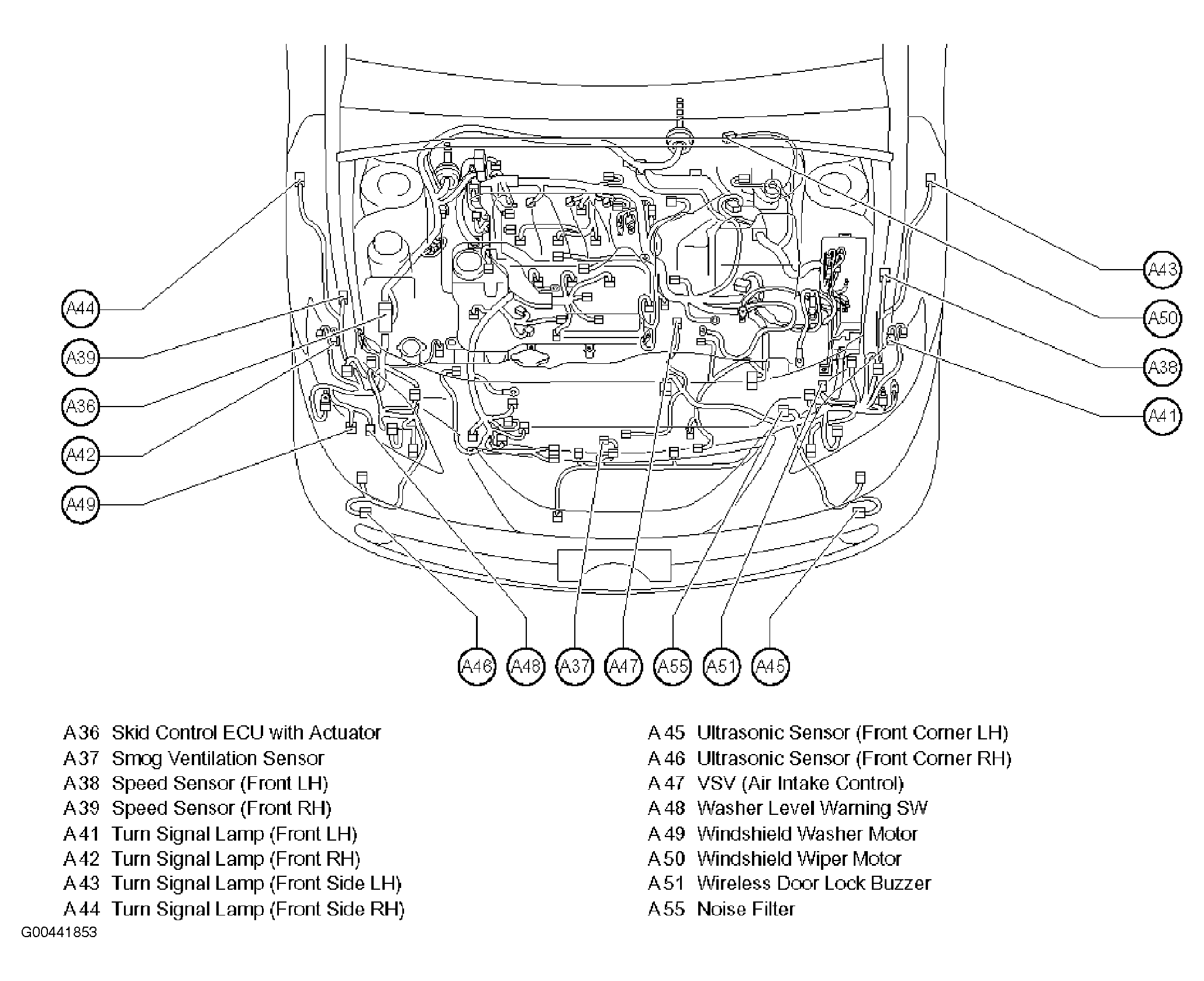

Fig 8: Engine Compartment

G00441853

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

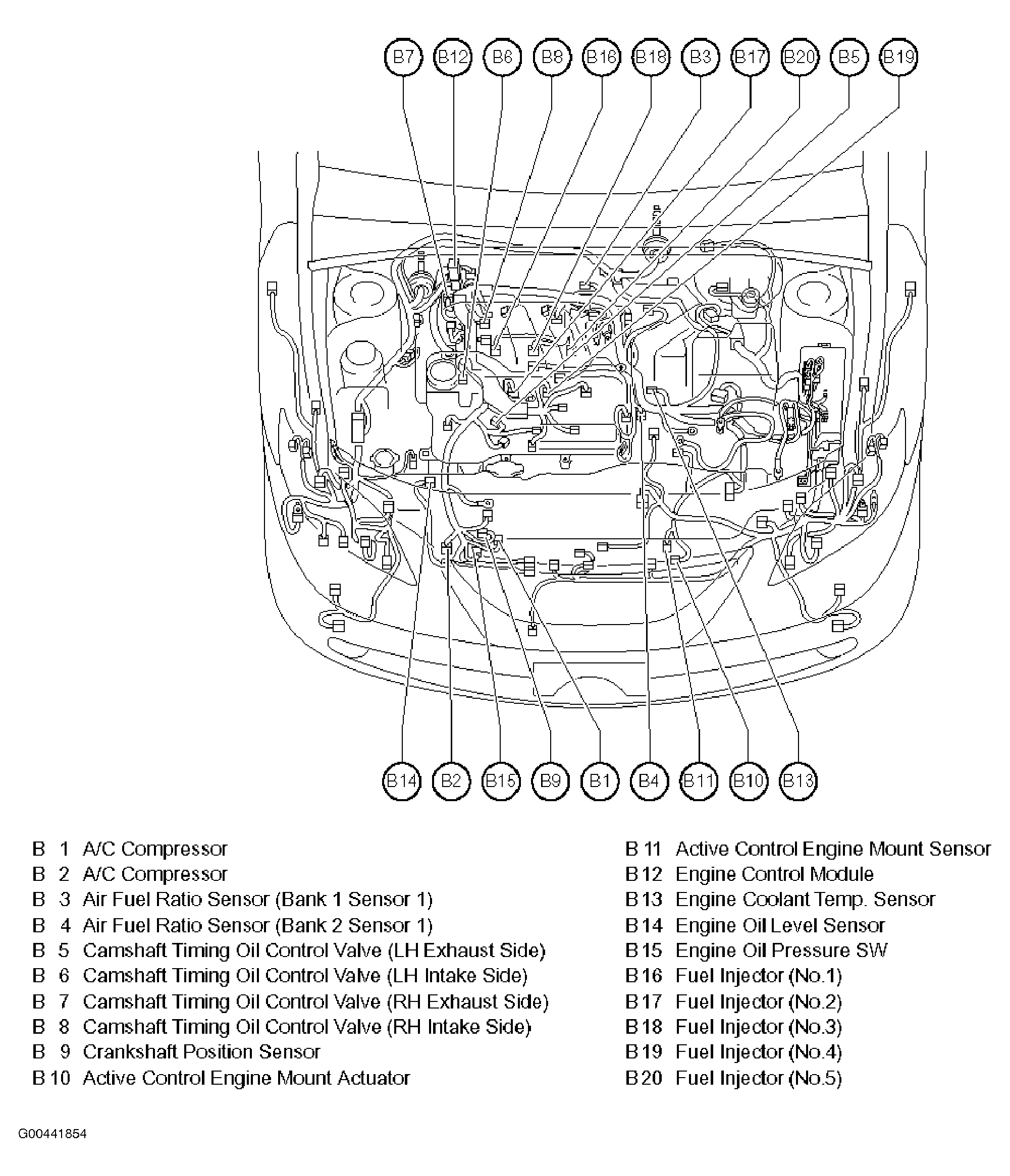

Fig 9: Engine Compartment

G00441854

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

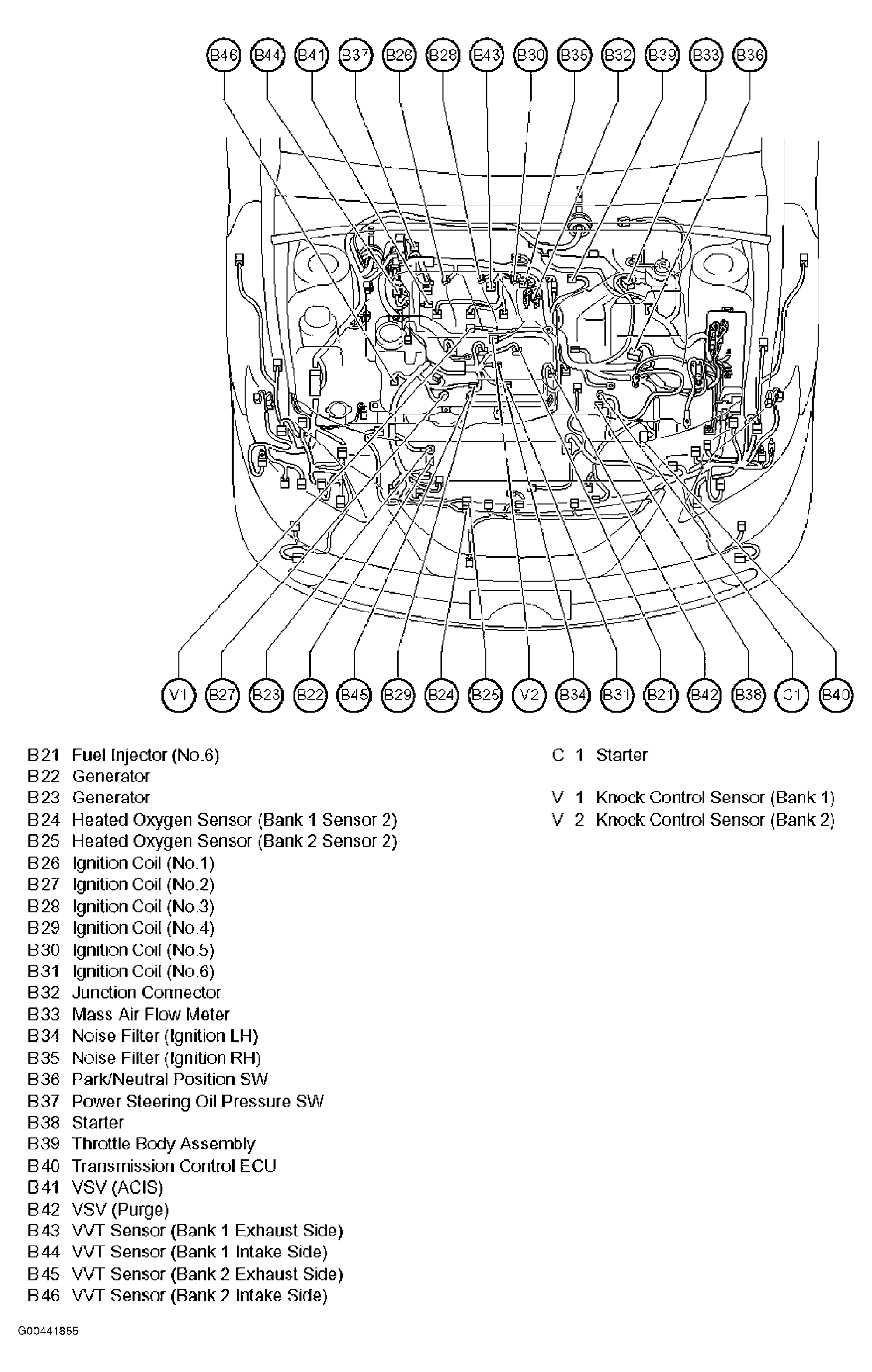

Fig 10: Engine Compartment

G00441855

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Dash

G00441856

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Dash

G00441857

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

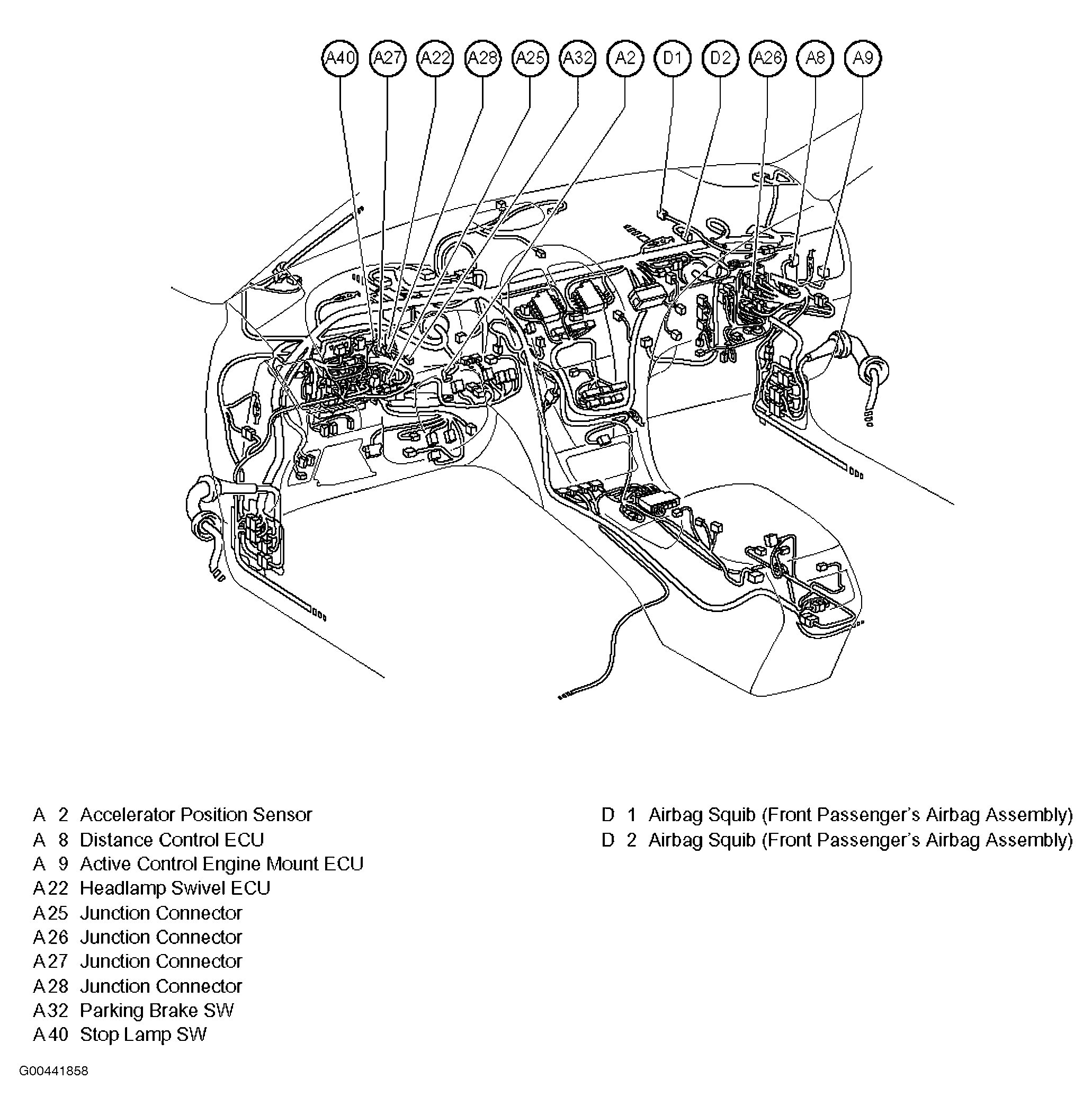

Fig 13: Dash

G00441858

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

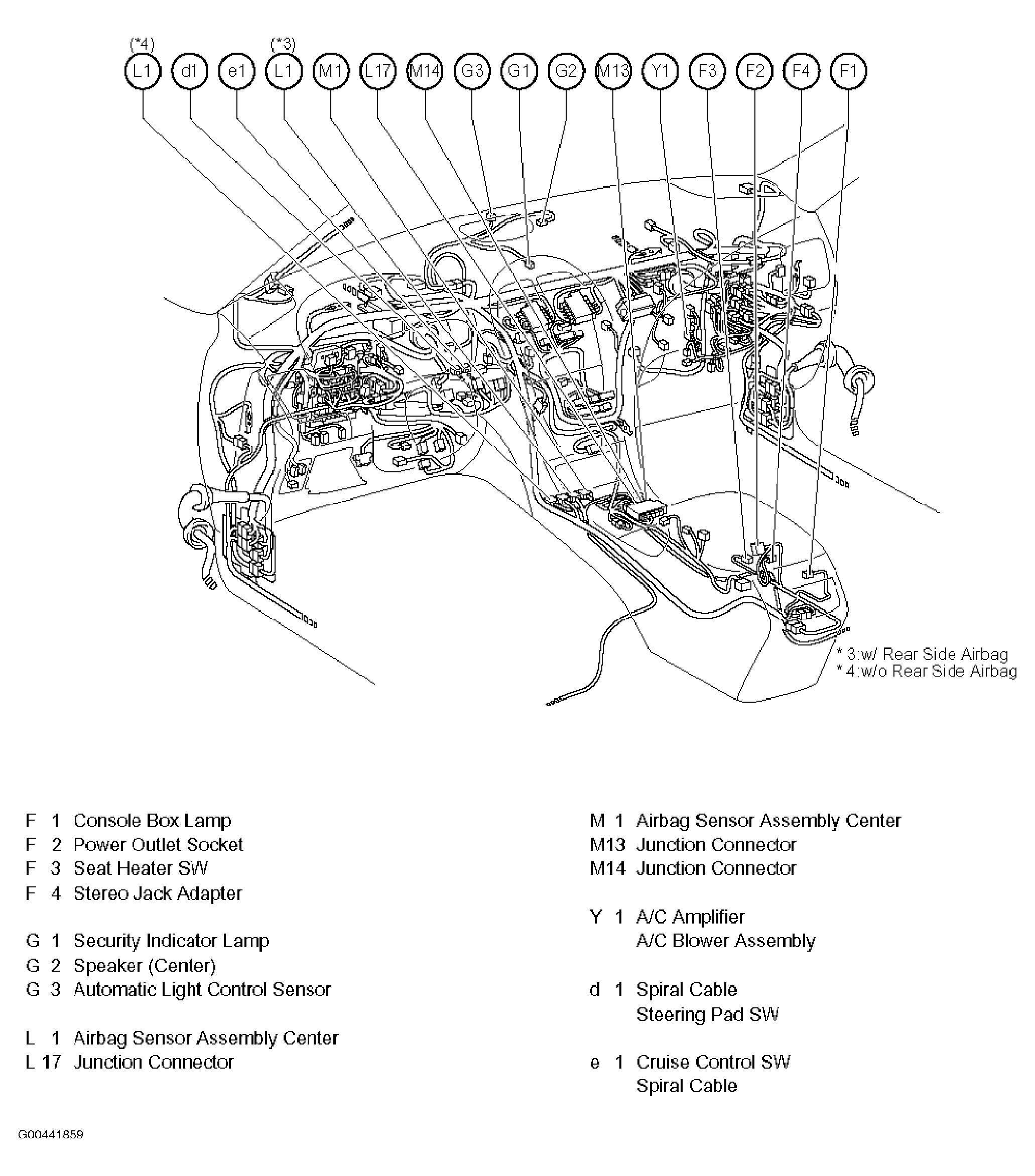

Fig 14: Dash

G00441859

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

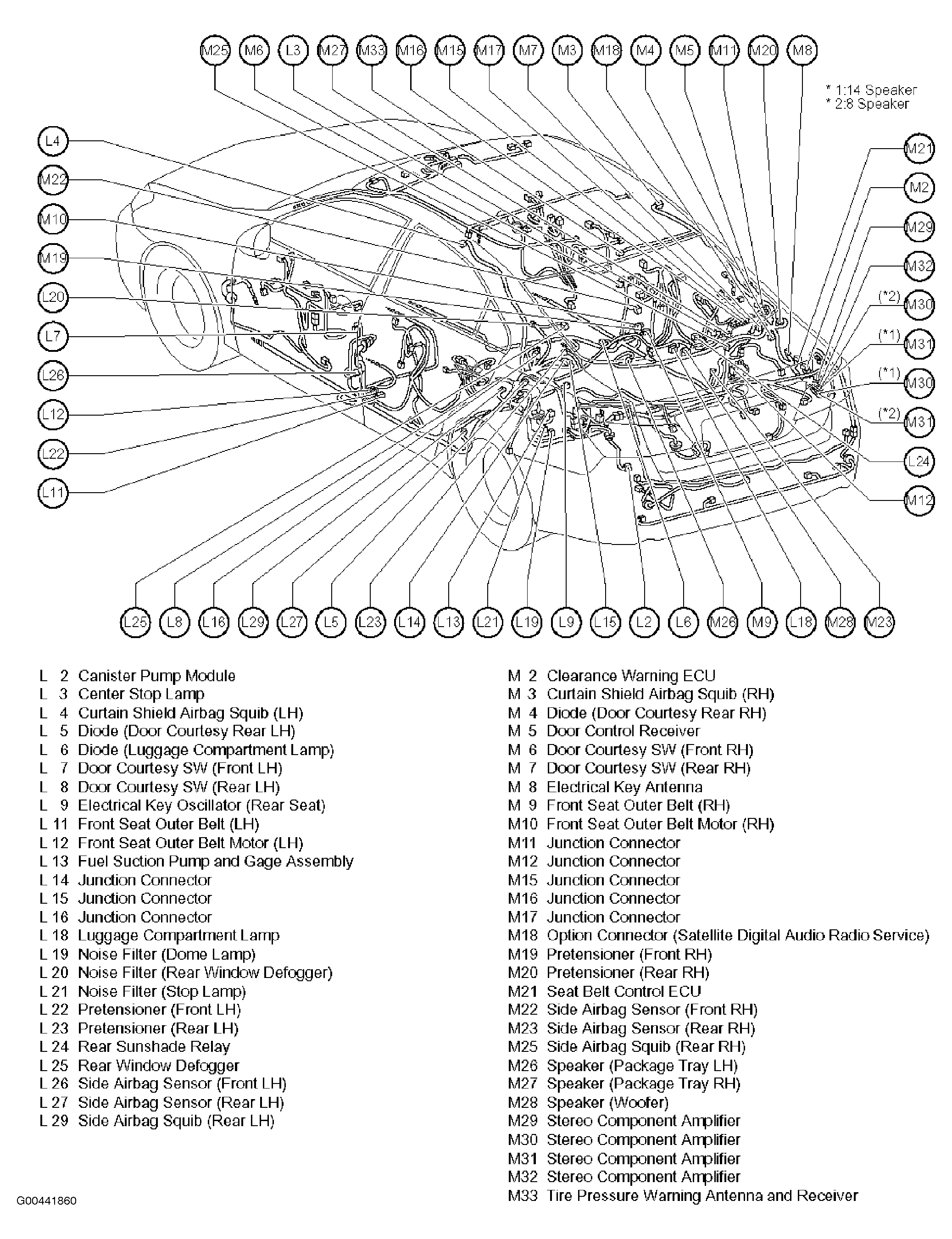

Fig 15: Vehicle Overview

G00441860

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

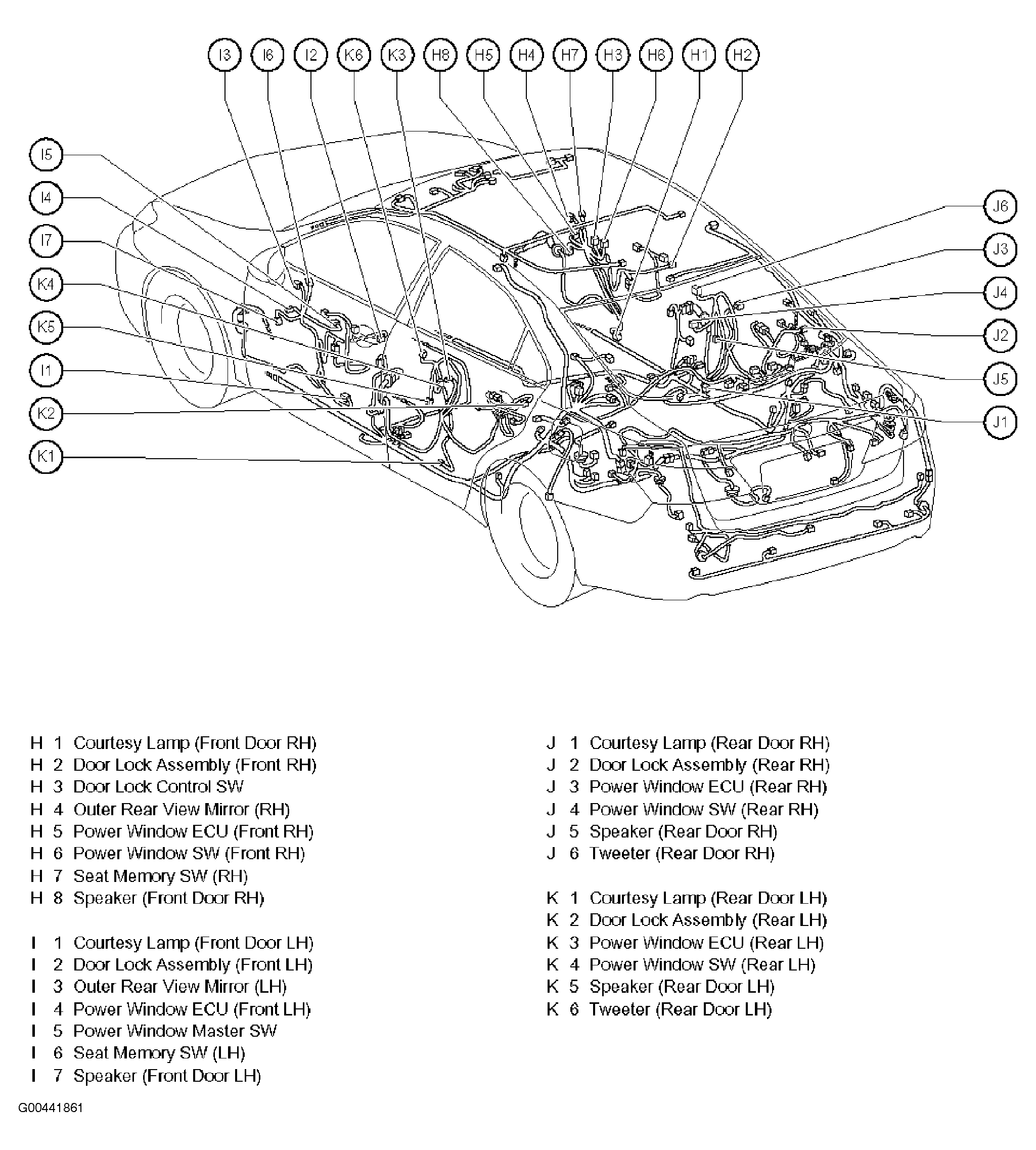

Fig 16: Vehicle Overview

G00441861

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 17: Vehicle Overview

G00441862

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

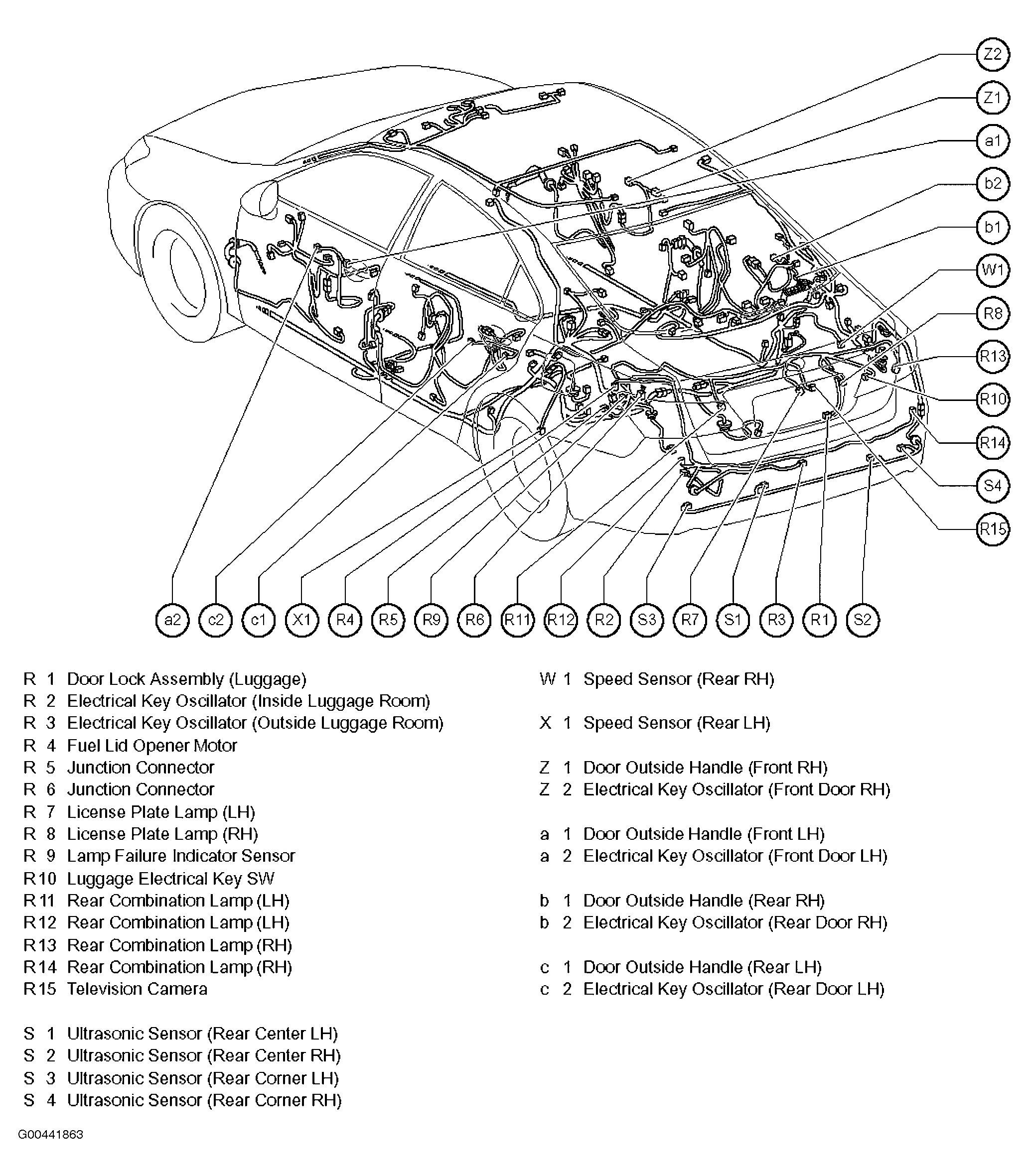

Fig 18: Vehicle Overview

G00441863

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

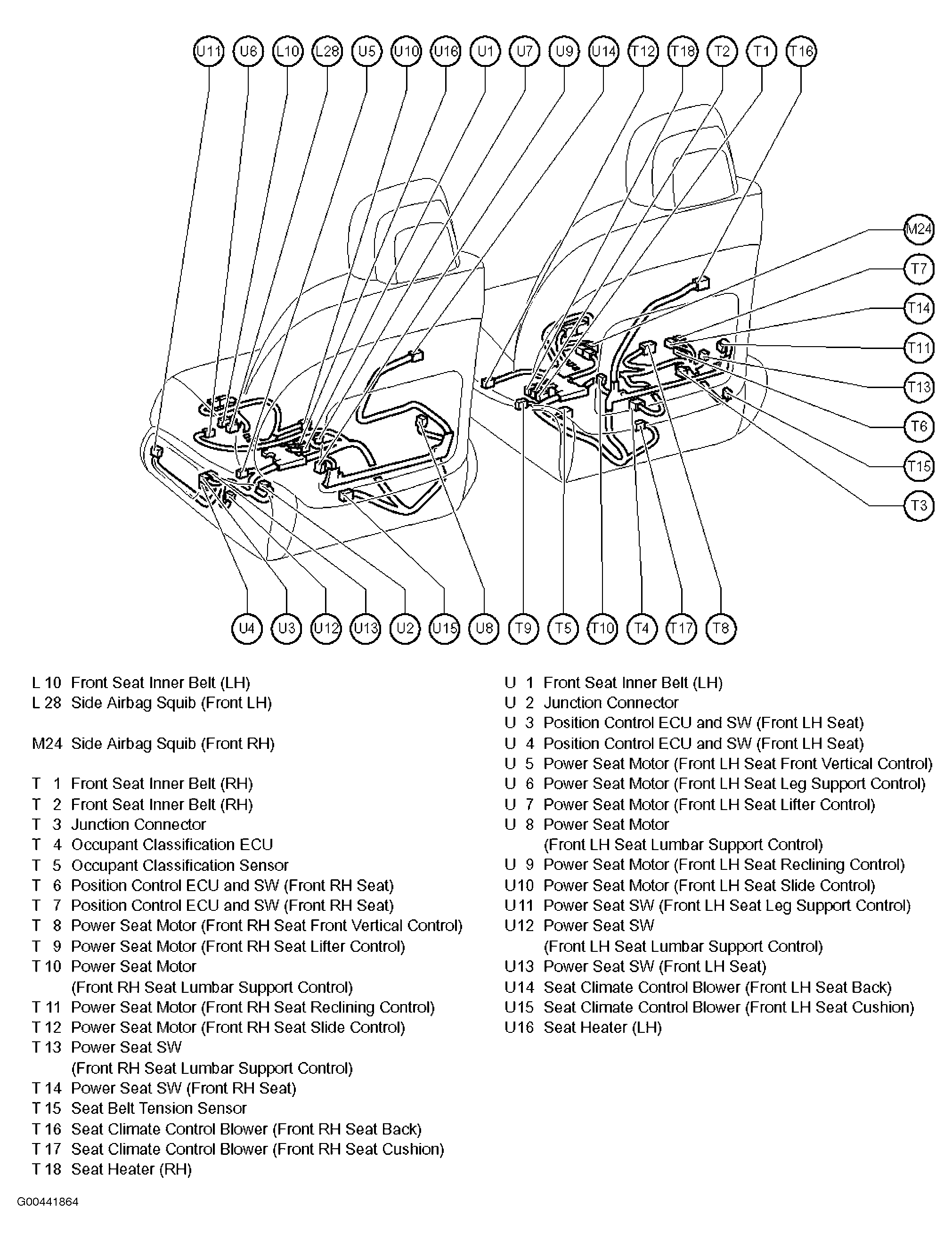

Fig 19: Front Seats

G00441864

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

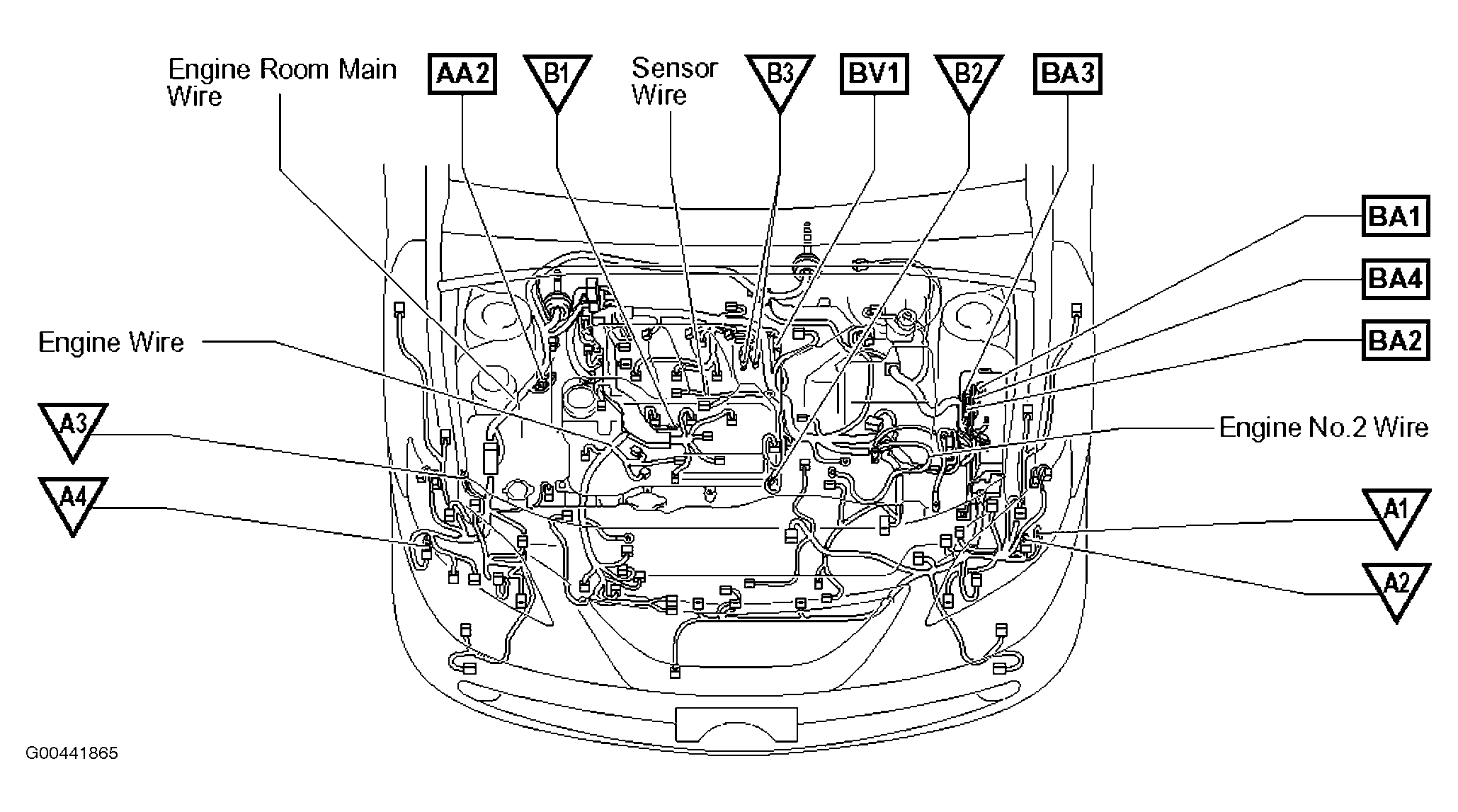

Fig 20: Engine Compartment

G00441865

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

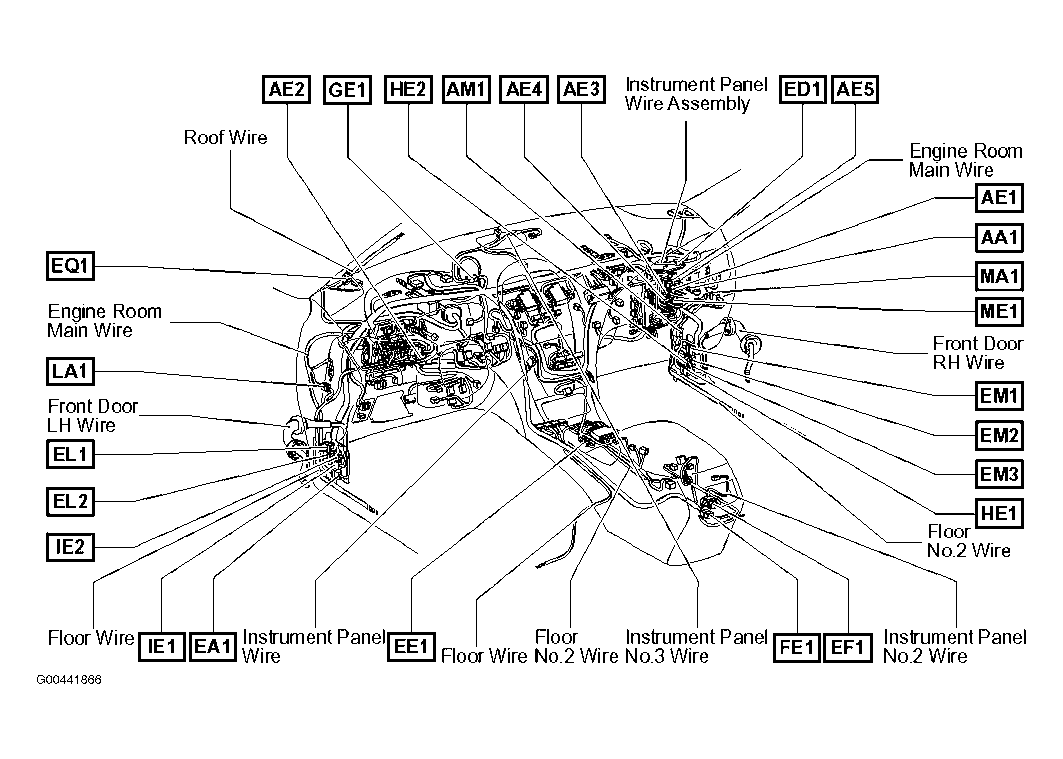

Fig 21: Dash

G00441866

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

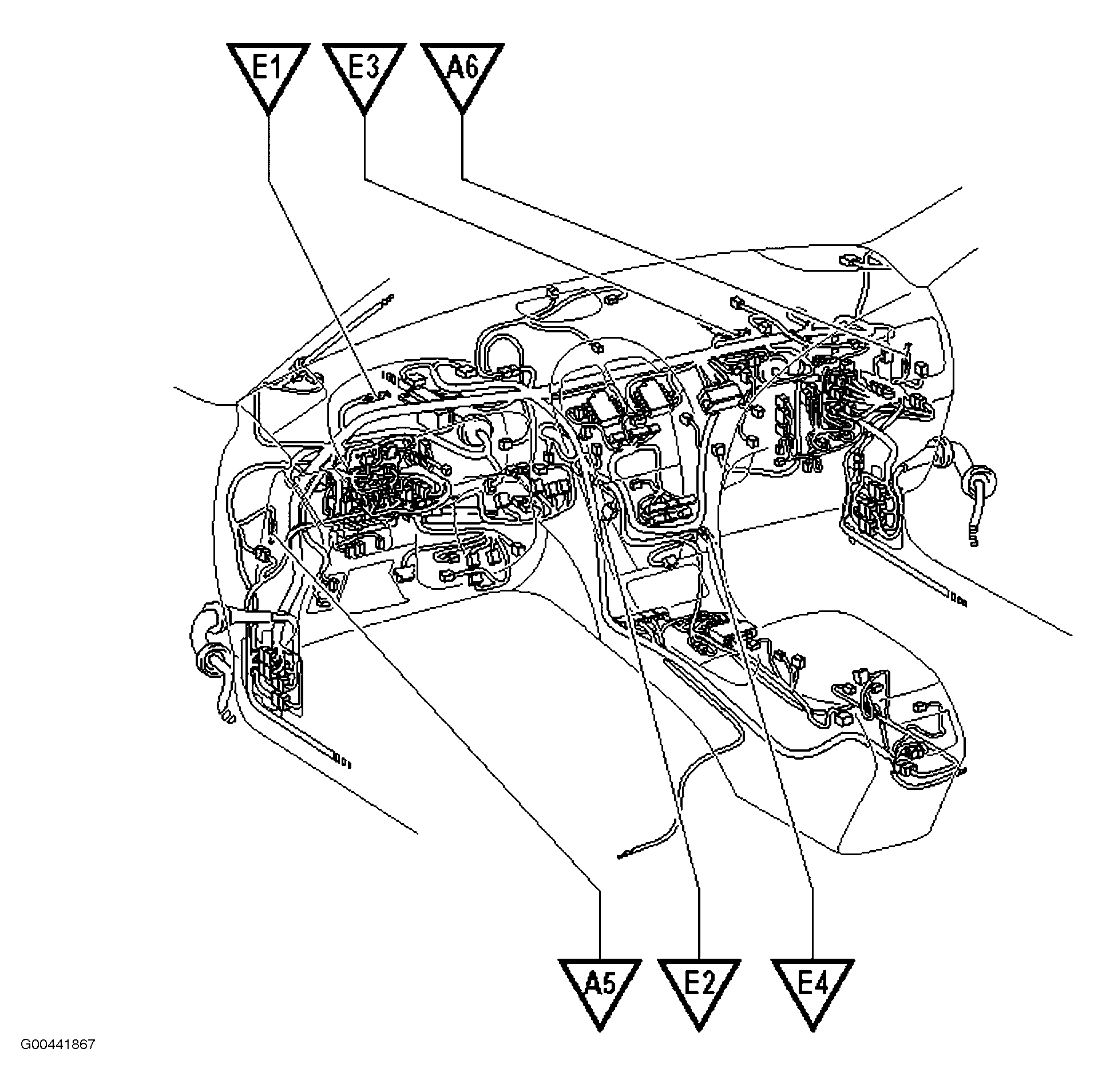

Fig 22: Dash

G00441867

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

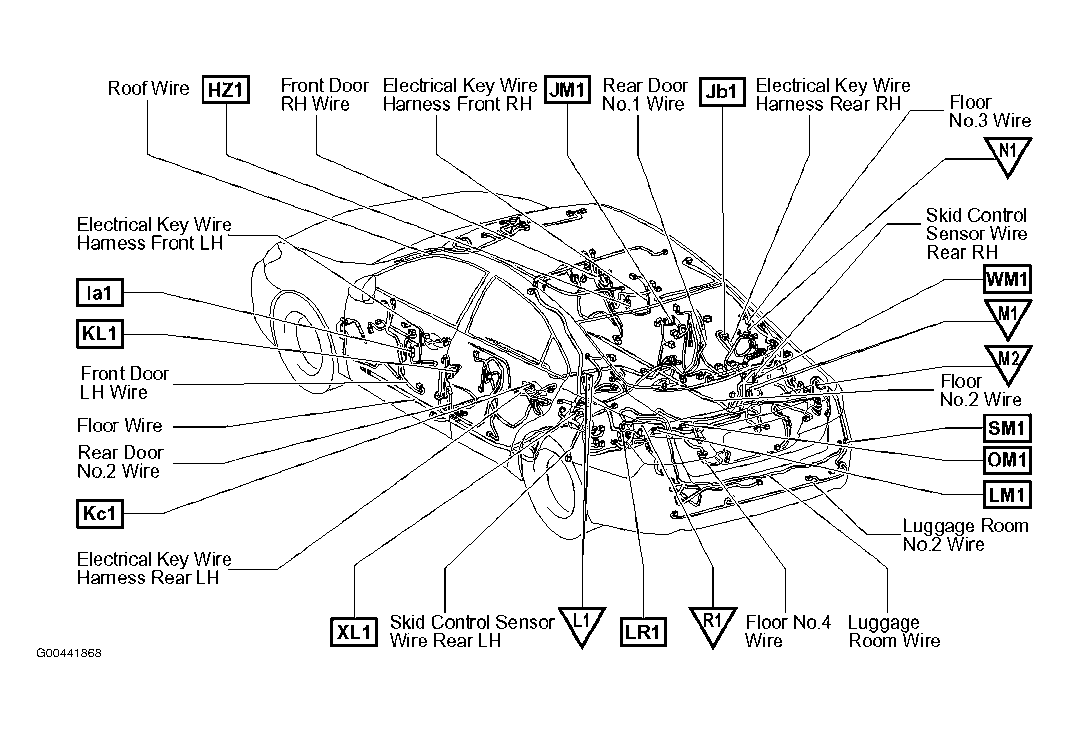

Fig 23: Vehicle Overview

G00441868

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

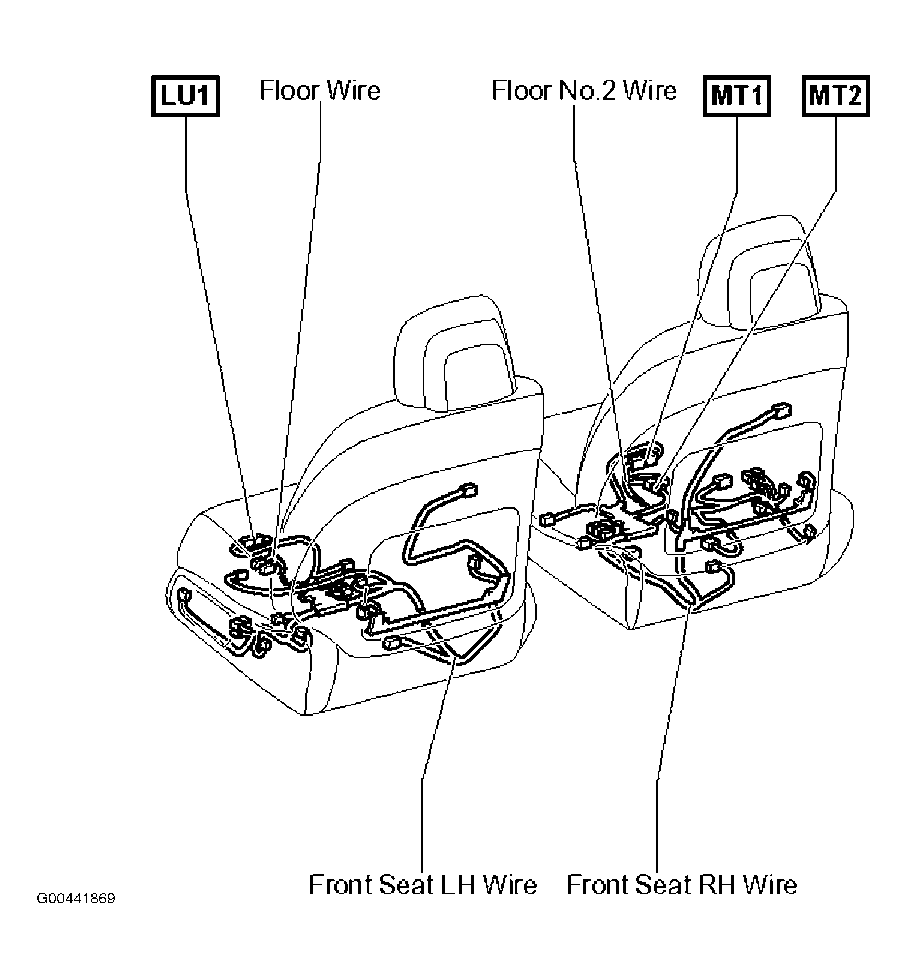

Fig 24: Front Seats

G00441869

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
