Fuel Injector: Components

Fig 1: Fuel Injector Replacement Components With Torque Specifications (1 Of 3)
G05248485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

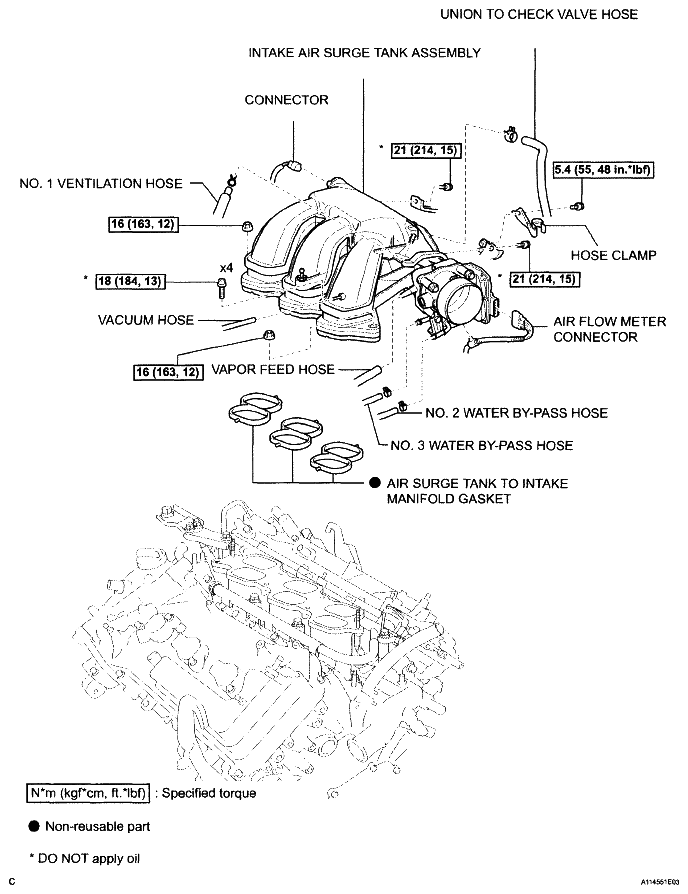

Fig 2: Fuel Injector Replacement Components With Torque Specifications (2 Of 3)
G04975000Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

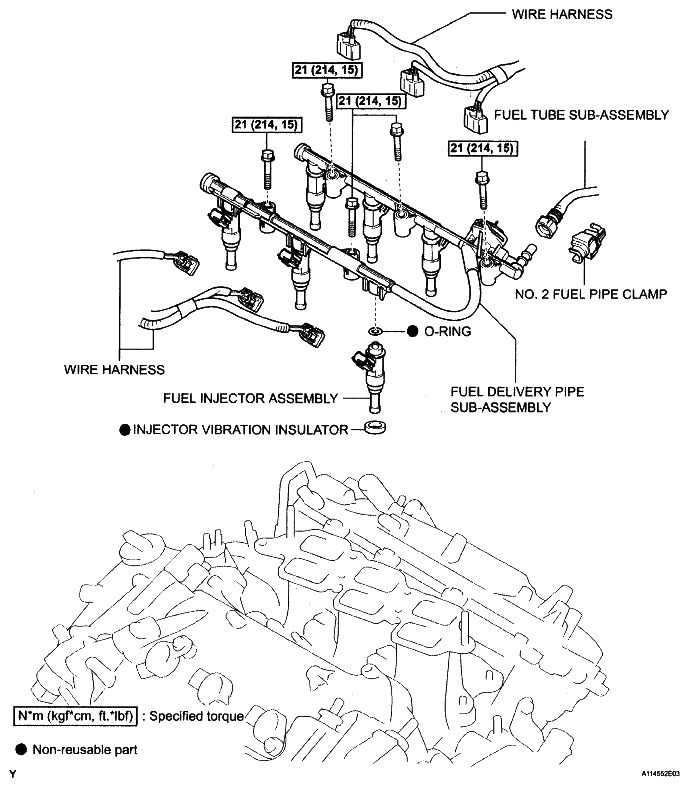

Fig 3: Fuel Injector Replacement Components With Torque Specifications (3 Of 3)
G04975001Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
