Fuel Tank: Components

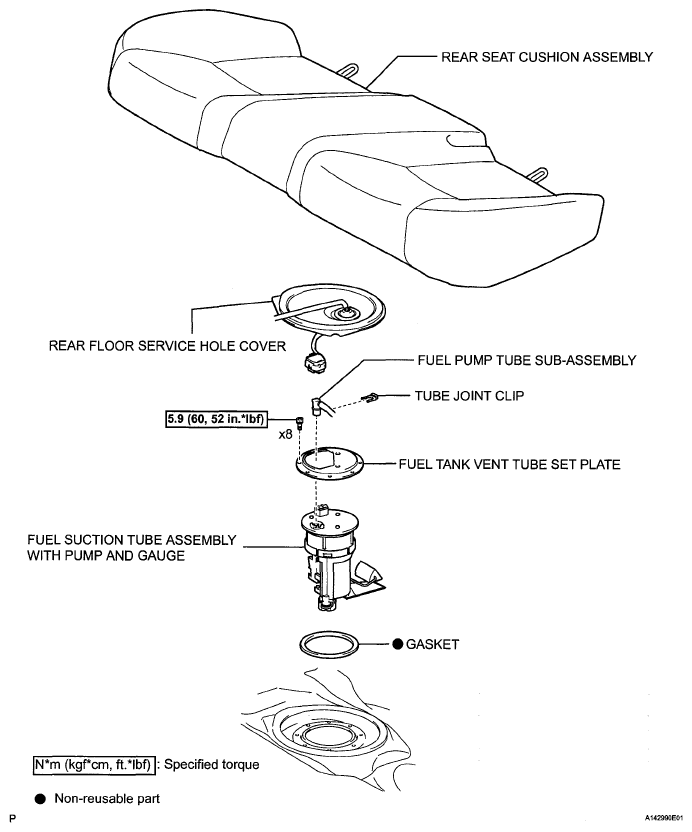

Fig 1: Fuel Pump Replacement Components With Torque Specifications (1 Of 2)
G05248518Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

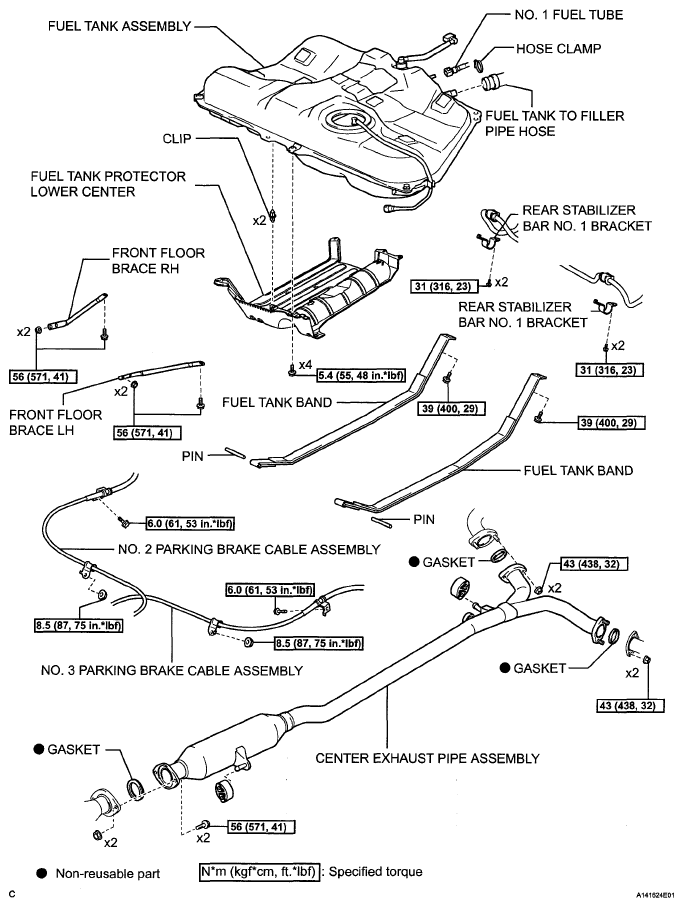

Fig 2: Identifying Fuel Tank Components (2 Of 3)
G05248546Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

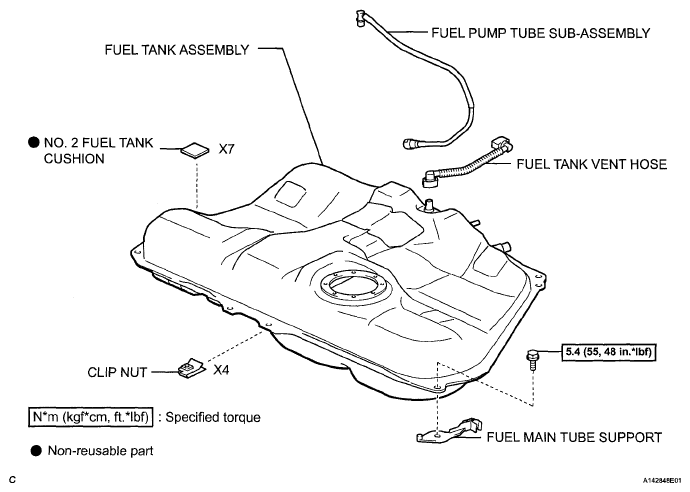

Fig 3: Identifying Fuel Tank Components (3 Of 3)
G05248547Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
