Automatic Transaxle System: Registration

NOTE:

When the automatic transaxle is replaced, the transaxle compensation code must be input into the TCM (Proceed to step 1). After the automatic transaxle is reinstalled, the QR code label will be positioned where the code cannot be read. Therefore, before reinstalling the automatic transaxle, record the transaxle compensation codes or input them in the intelligent tester.
When the TCM is replaced, the existing transaxle compensation codes must be input into the new TCM (Proceed to step 2).

INPUT TRANSAXLE COMPENSATION CODE INTO TCM
NOTE: Transaxle compensation codes are unique, 60-digit alphanumeric values printed on the QR label. If an incorrect transaxle compensation code is input into the TCM, shift shock may occur.
1. Record the transaxle compensation code specified on the QR label.
  HINT:

  The transaxle compensation code is imprinted on the QR label.
2. Shift the shift lever to the N or P position.
3. Connect the intelligent tester to the DLC3.
4. Turn the engine switch on (IG).
5. Turn the tester on.
  NOTE: Do not start the engine.

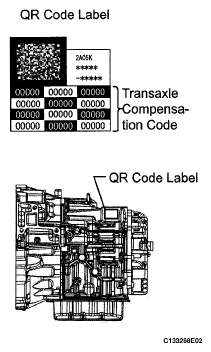

  Fig 1: Identifying QR Code Label
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Enter the menu items in this order: DIAGNOSIS / OBD/MOBD / ECT / AT CODE UTILITY.

  Fig 2: Intelligent Tester Display - M-OBD/OBD II MENU
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Press "ENTER".
8. Select "AT CODE REGIST".

  Fig 3: Screen Display - AT Code Regist
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. Press "ENTER".
10. Press "ENTER" again to proceed.

  Fig 4: Screen Display - Enter
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
11. Press "ENTER" again to proceed.

  Fig 5: Screen Display - Enter
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
12. Press "ENTER" again to proceed.

  Fig 6: Screen Display - Enter
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
13. Select "SET A/T CODE".

  Fig 7: Screen Display - Set A/T Code
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
14. Press "ENTER".
15. Select "INPUT A/T CODE".

  Fig 8: Screen Display - Input A/T Code
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
16. Press "ENTER".
17. Register the compensation code.
  1. Press "ENTER".

    Fig 9: Screen Display - Enter
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Manually input the transaxle compensation code. The code is a 60-digit alphanumeric value imprinted on the QR label.

    Fig 10: Screen Display - A/T Code Regist
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
18. Check that the compensation code displayed on the screen is correct by comparing it with the 60-digit alphanumeric value on the QR label.
  NOTE: If an incorrect transaxle compensation code is input into the TCM, shift shock will occur.

  HINT:

  Input alphabetical letters by operating the keys from 0 to 5 while pressing the * key.
19. Press "ENTER" to set the compensation code to the TCM.
  HINT:
  - If the registration process fails, the compensation code may be incorrect. Check the compensation code again.
  - If the attempted compensation code is correct, a problem with the wire harness or a bad connection with the DLC3 may cause a registration failure. Check the wire harness and the DLC3 connection. If no problem is found, the TCM may be malfunctioning. Check the TCM and repeat this operation.

    Fig 11: Intelligent Tester Display - A/T CODE REGIST
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
TRANSFER TRANSAXLE COMPENSATION CODE
NOTE: Transaxle compensation codes are 60-digit alphanumeric values imprinted on the QR label. If an incorrect transaxle compensation code is input into the TCM, shift shock may occur.

HINT:

The following operation is available for use with TCMs that can transmit the registered transaxle compensation code to the intelligent tester.
1. Shift the shift lever to the N or P position.
2. Connect the intelligent tester to the DLC3.
3. Turn the engine switch on (IG).
4. Turn the tester on.
  NOTE: Do not start the engine.

  HINT:

  The transaxle compensation code is imprinted on the QR label.
5. Read the transaxle compensation code.
  1. Enter the menu items in this order: DIAGNOSIS / OBD/MOBD / ECT / AT CODE UTILITY.
  2. Press "ENTER".

    Fig 12: Intelligent Tester Display - M-OBD/OBD II MENU
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Select "AT CODE REGIST".

    Fig 13: Screen Display - AT Code Regist
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. Press "ENTER".
  5. Press "ENTER" again to proceed.

    Fig 14: Screen Display - Enter
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. Press "ENTER" again to proceed.

    Fig 15: Screen Display - Enter
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. Press "ENTER" again to proceed.

    Fig 16: Screen Display - Enter
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. Select "READ A/T CODE".

    Fig 17: Screen Display - Read A/T Code
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. Press "ENTER".
  10. Press "EXIT".
    NOTE: Do not use the code specified on the transaxle QR label even if the transmission compensation code cannot be read using the intelligent tester. The code printed on an in-service transaxle may not match its current characteristics. Replace the TCM with a new one and perform a road test to allow the TCM to learn.

    Fig 18: Screen Display - Exit
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. Turn the engine switch off.
6. Replace the TCM.
7. Set the transaxle compensation code.
  1. Turn the engine switch on (IG).
  2. Turn the tester on.
  3. Enter the menu items in this order: DIAGNOSIS / OBD/MOBD / ECT / AT CODE UTILITY.

    Fig 19: Intelligent Tester Display - M-OBD/OBD II MENU
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. Press "ENTER".
  5. Press "ENTER" again to proceed.

    Fig 20: Screen Display - Enter
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. Press "ENTER" again to proceed.

    Fig 21: Screen Display - Enter
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. Press "ENTER" again to proceed.

    Fig 22: Screen Display - Enter
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. Select "SET A/T CODE"

    Fig 23: Screen Display - Set A/T Code
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. Press "ENTER".
  10. Select "SAVED A/T CODE"

    Fig 24: Screen Display - Saved A/T Code
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. Press "ENTER".
  12. Press "EXIT".

    Fig 25: Screen Display - Exit
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
