Automatic Transaxle Unit: Components

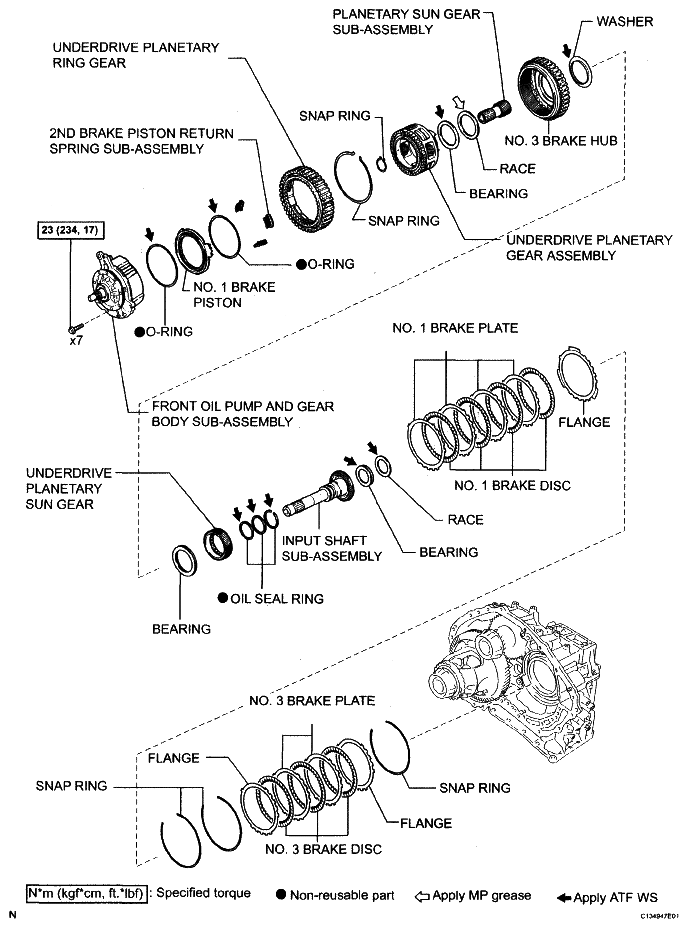

Fig 1: Identifying Automatic Transaxle Unit Replacement Components With Torque Specifications (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

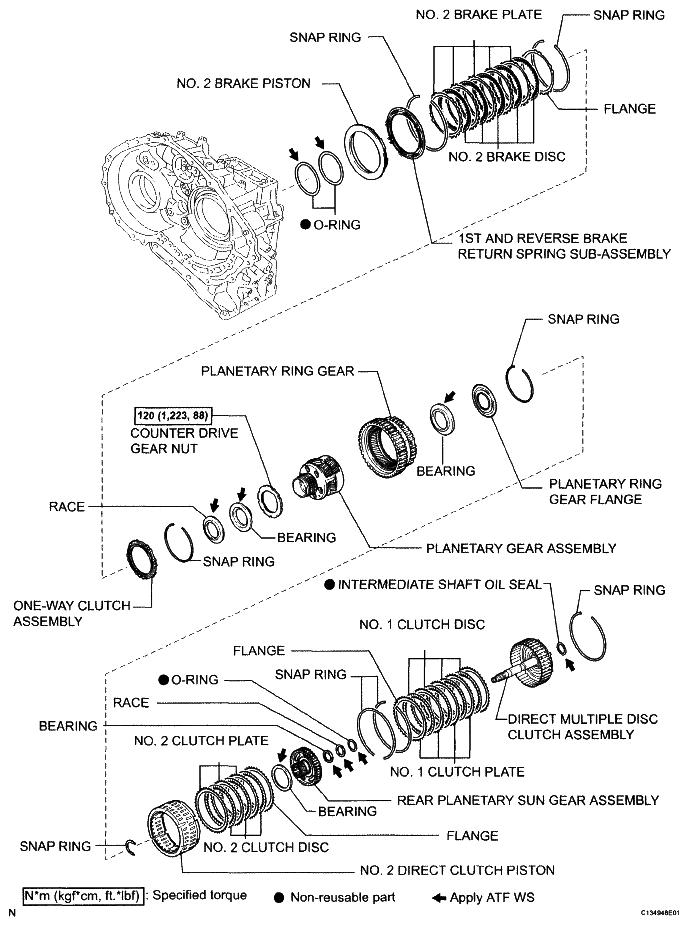

Fig 2: Identifying Automatic Transaxle Unit Replacement Components With Torque Specifications (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

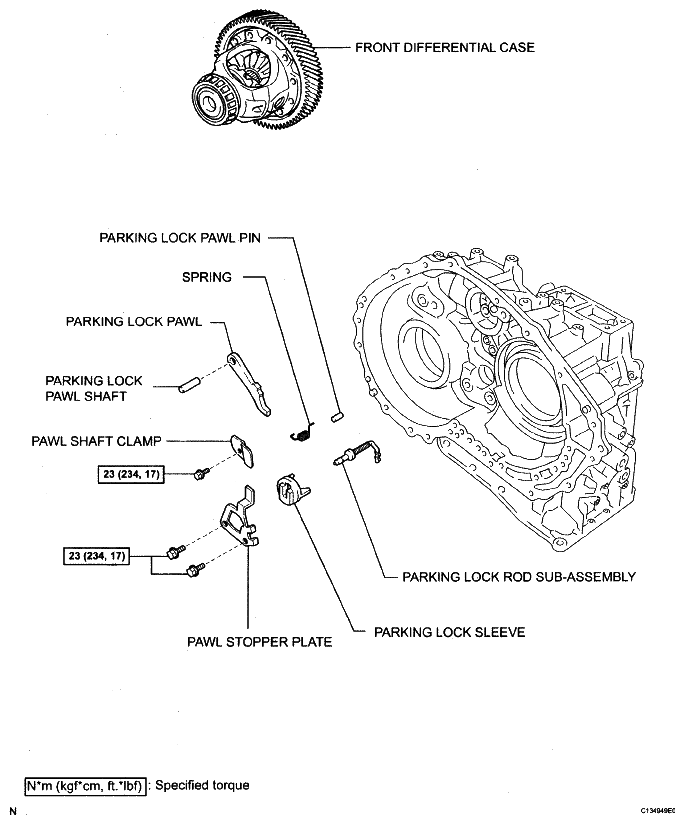

Fig 3: Identifying Automatic Transaxle Unit Replacement Components With Torque Specifications (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

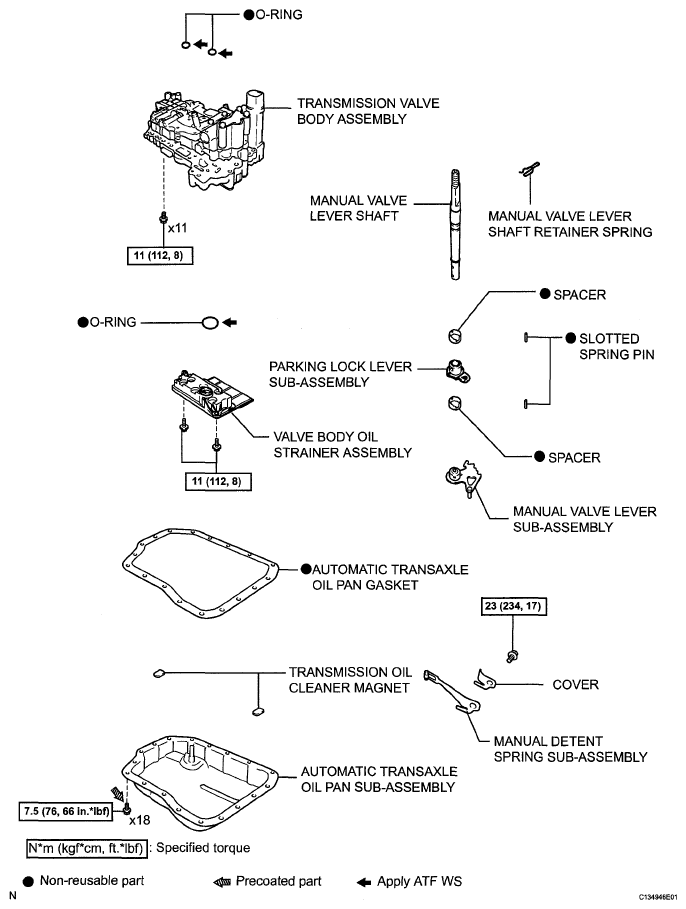

Fig 4: Identifying Automatic Transaxle Unit Replacement Components With Torque Specification (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

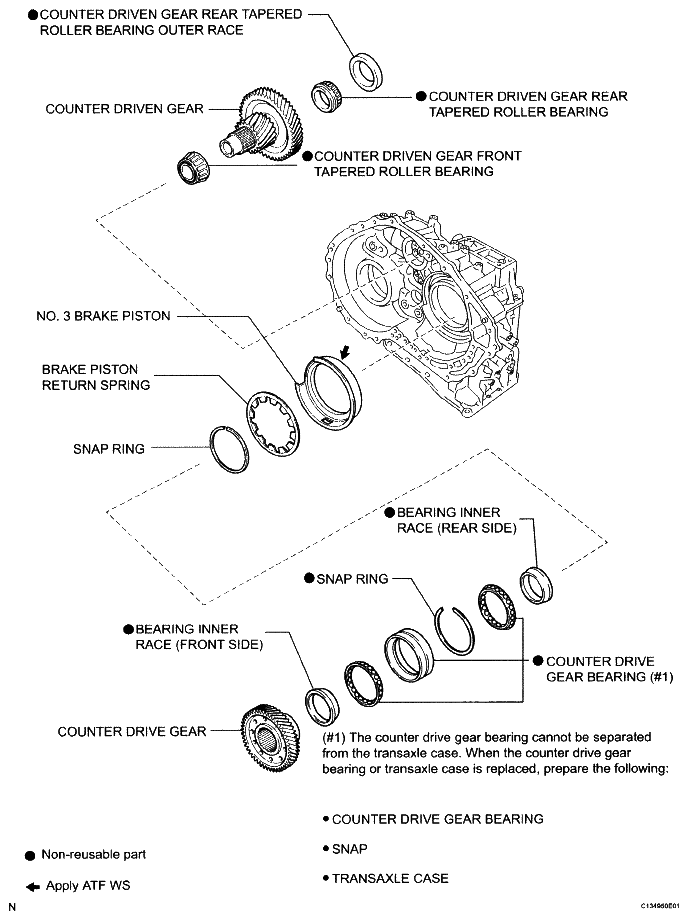

Fig 5: Identifying Automatic Transaxle Unit Replacement Components With Torque Specification (5 Of 7)

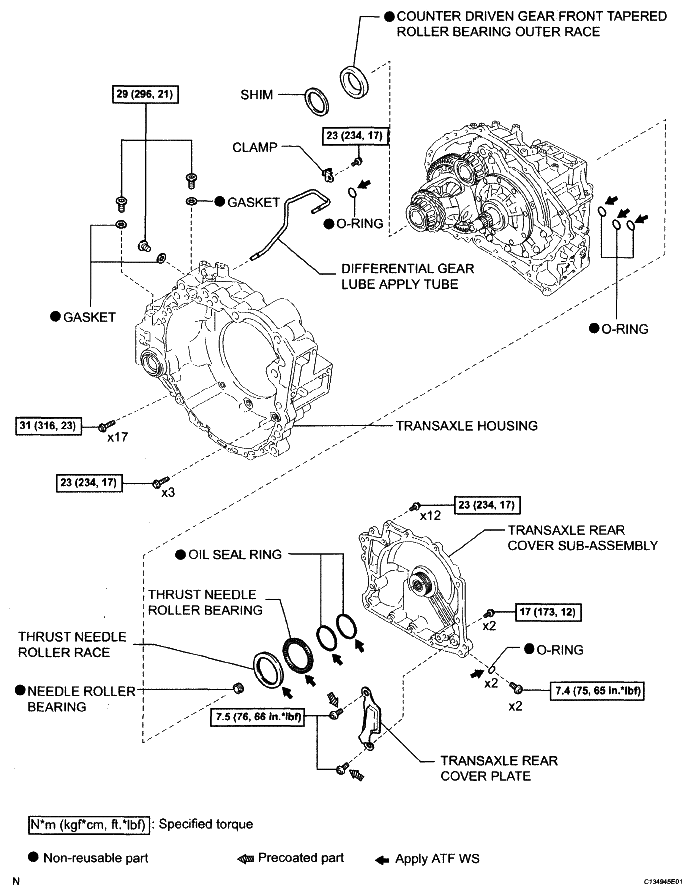

Fig 6: Identifying Automatic Transaxle Unit Replacement Components With Torque Specification (6 Of 7)

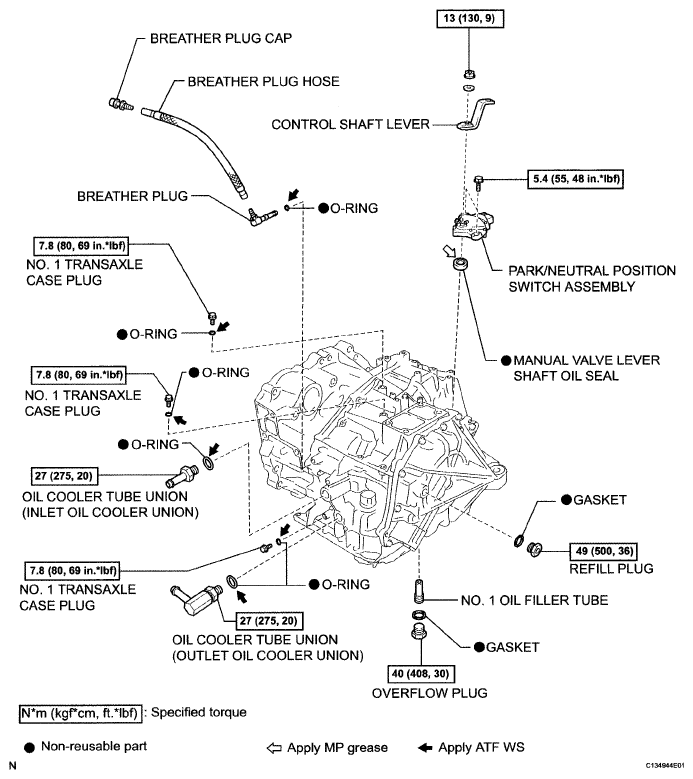

Fig 7: Identifying Automatic Transaxle Unit Replacement Components (7 Of 7)
