Automatic Transaxle: TCM: Installation

INSTALL TCM
1. Install the TCM to the transaxle.
2. Install and tighten the 2 bolts in the order shown in the illustration.
  Torque: 11 N*m (115 kgf*cm, 8 ft.*lbf)

  Fig 1: Locating TCM Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the connector to the TCM.

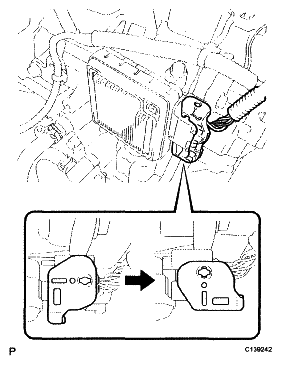

  Fig 2: Locating TCM Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Turn the lock lever and secure the connector with the lock lever.
INSTALL INTAKE AIR RESONATOR SUB-ASSEMBLY (See INSTALLATION )
INSTALL NO. 1 AIR CLEANER INLET (See INSTALLATION )
INSTALL AIR CLEANER INLET ASSEMBLY (See INSTALLATION )
INSTALL BATTERY (See INSTALLATION )
INSTALL COOL AIR INTAKE DUCT SEAL (See INSTALLATION )
PERFORM TCM REGISTRATION
HINT:

(See REGISTRATION )
PERFORM INITIALIZATION
1. Perform initialization procedure (See INITIALIZATION ).
  NOTE: Some systems need initialization after reconnecting the cable to the negative battery terminal.
