Transmission Control Cable Assembly: Installation

1. Pass the control cable from the cabin to the engine compartment.
2. Install the No. 2 shift cable grommet retainer with the 2 bolts.

   Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

   Fig 1: Locating Shift Cable Grommet Retainer With Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Move the shift lever to the N position.
2. Install the transmission control cable assembly as shown in the illustration.

   HINT:

   • Install the floor shift cable with the uneven surface facing up.
   • Securely engage the claws of the floor shift cable.
     Fig 2: Installing Transmission Control Cable Assembly

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the control cable to the bracket with a new clip.
   Fig 3: Locating Transmission Cable Bracket Clip

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the control cable to the control shaft lever with the nut.

   Torque: 13 N*m (130 kgf*cm, 9 ft.*lbf)

   Fig 4: Locating Transmission Control Cable Nut

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Push in the lock piece of the transmission control cable.
   NOTE: Firmly push in the lock piece until the slider lock is engaged.

   HINT:

   After pushing in the lock piece, make sure that the boot is not deformed.

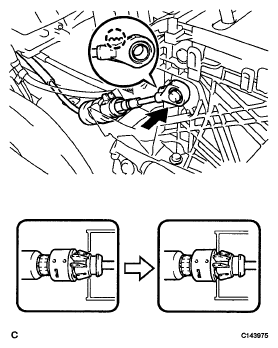

   Fig 5: Pushing In Lock Piece

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

(See INSTALLATION )
