System Diagram

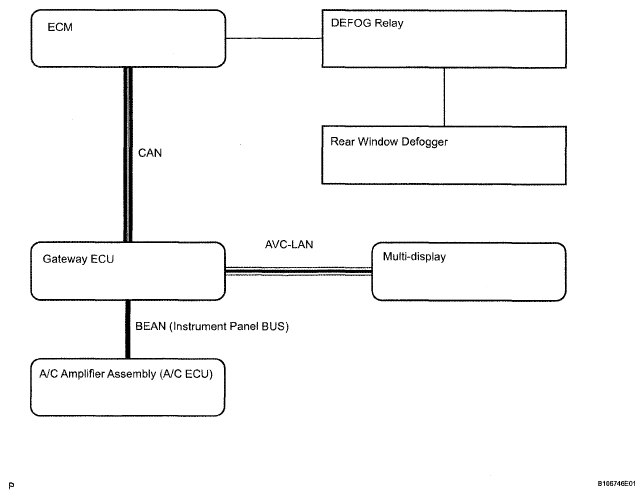

Fig 1: Window Defogger System - System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Communication table
COMMUNICATION CHART
Sender
Receiver
Signal
Line
Multi-display
A/C amplifier assembly (A/C ECU)
Rear defogger switch signal
BEAN / AVC-LAN
A/C amplifier assembly (A/C ECU)
ECM
Rear defogger switch signal
BEAN / CAN
