Brake Control Power Supply: Components

Fig 1: Identifying Brake Control Brake Control Power Supply Components (1 Of 2)
G05297190Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

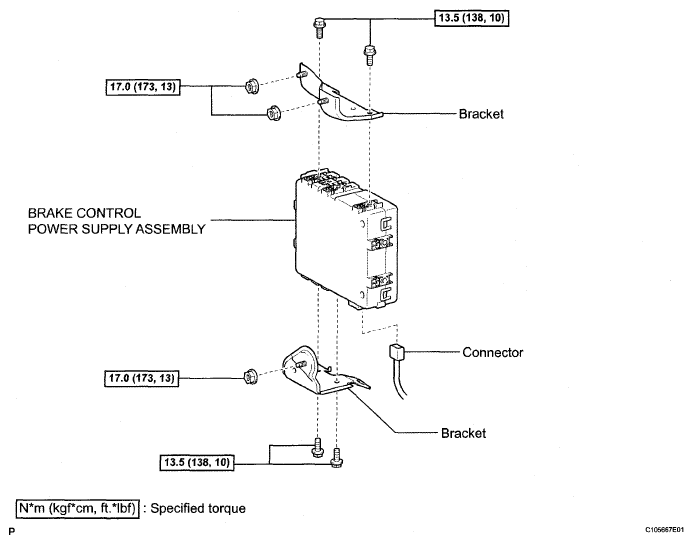

Fig 2: Brake Control Brake Control Power Supply Replacement Components With Torque Specifications (2 Of 2)
G05297191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
