Electronically Controlled Brake System: Wiring Diagram: Notes

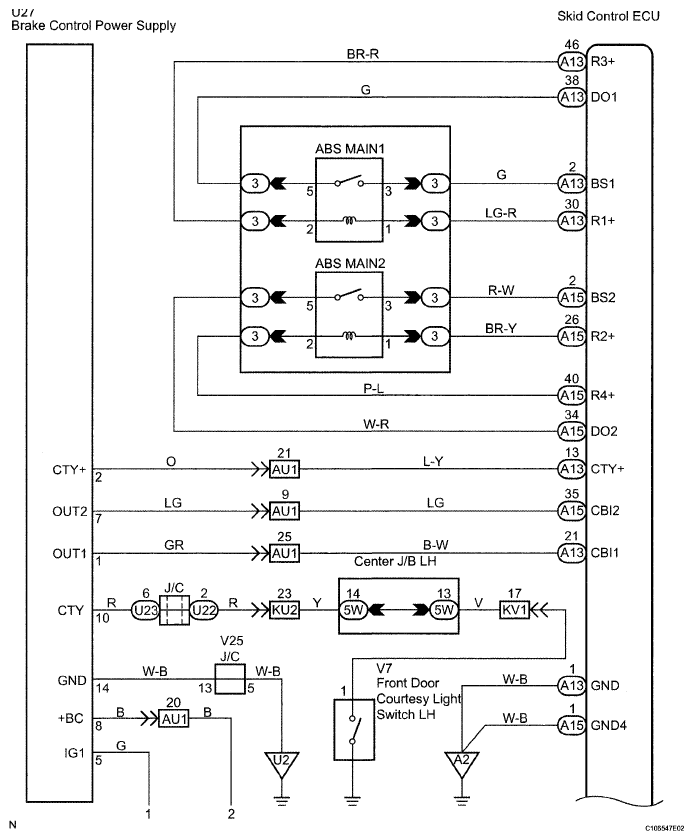

Fig 1: IG1 / IG2 Power Source Circuit - Wiring Diagram (1 Of 3)
G05297064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

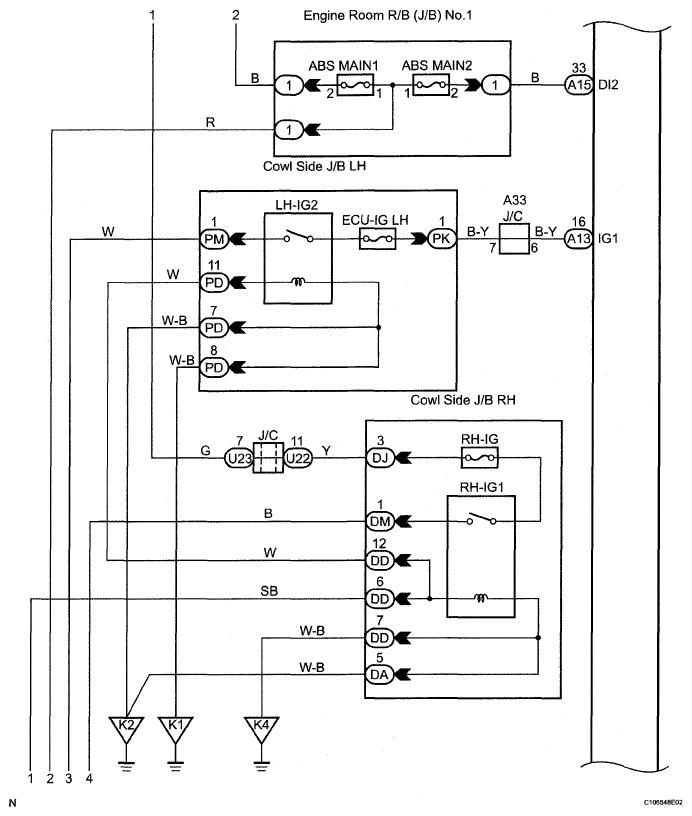

Fig 2: IG1 / IG2 Power Source Circuit - Wiring Diagram (2 Of 3)
G05297065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

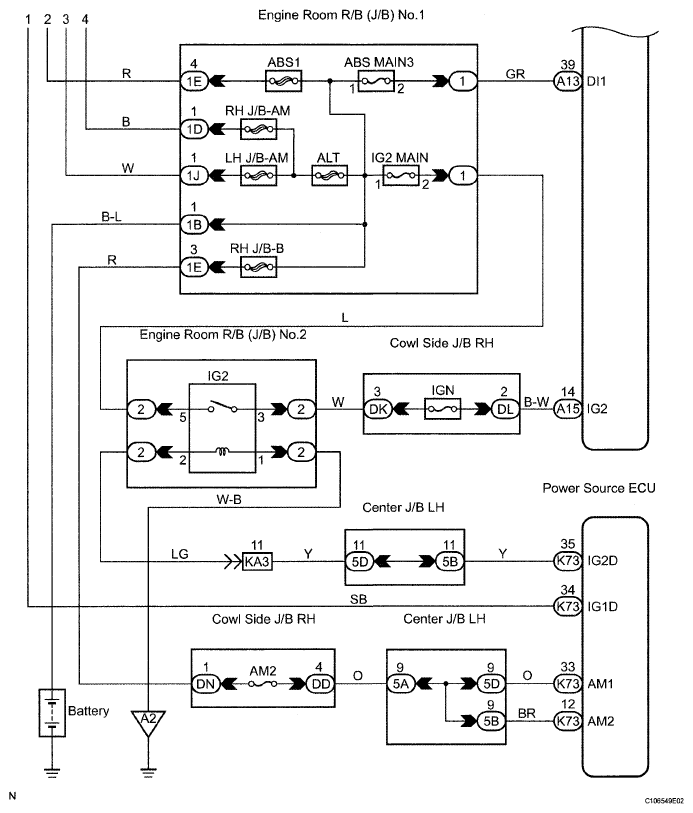

Fig 3: IG1 / IG2 Power Source Circuit - Wiring Diagram (3 Of 3)
G05297066Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
