Rear Speed Sensor: Components

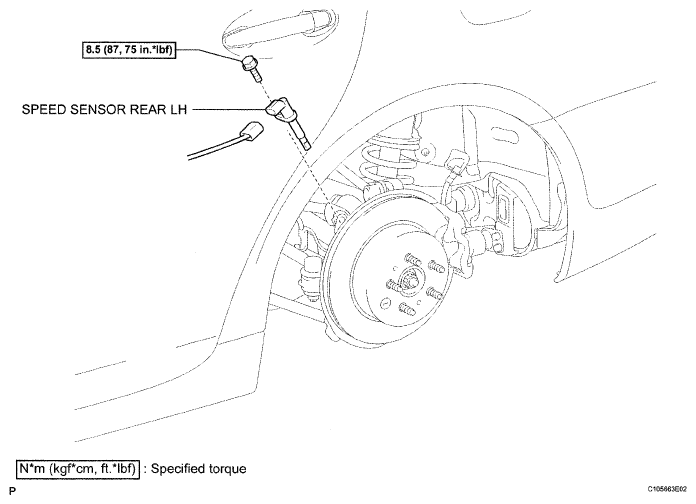

Fig 1: Brake Control Rear Speed Sensor Replacement Components With Torque Specifications
G05297170Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
