Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

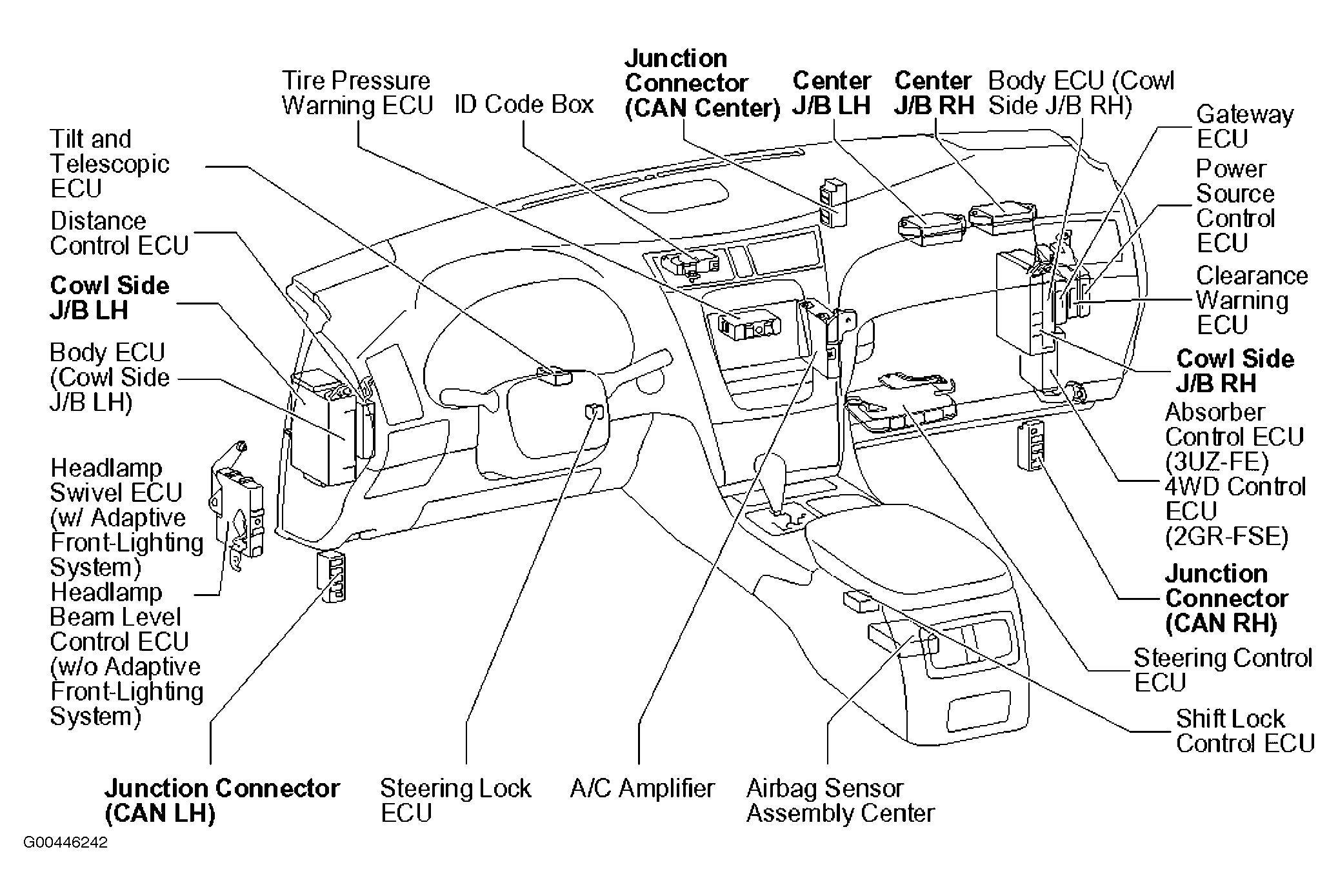

| Center J/B LH | Behind right side of dash. See Figure. |
| Center J/B RH | Behind right side of dash. See Figure. |
| Cowl Side J/B LH | Behind left side of dash. See Figure. |
| Cowl Side J/B RH | Behind right side of dash. See Figure. |

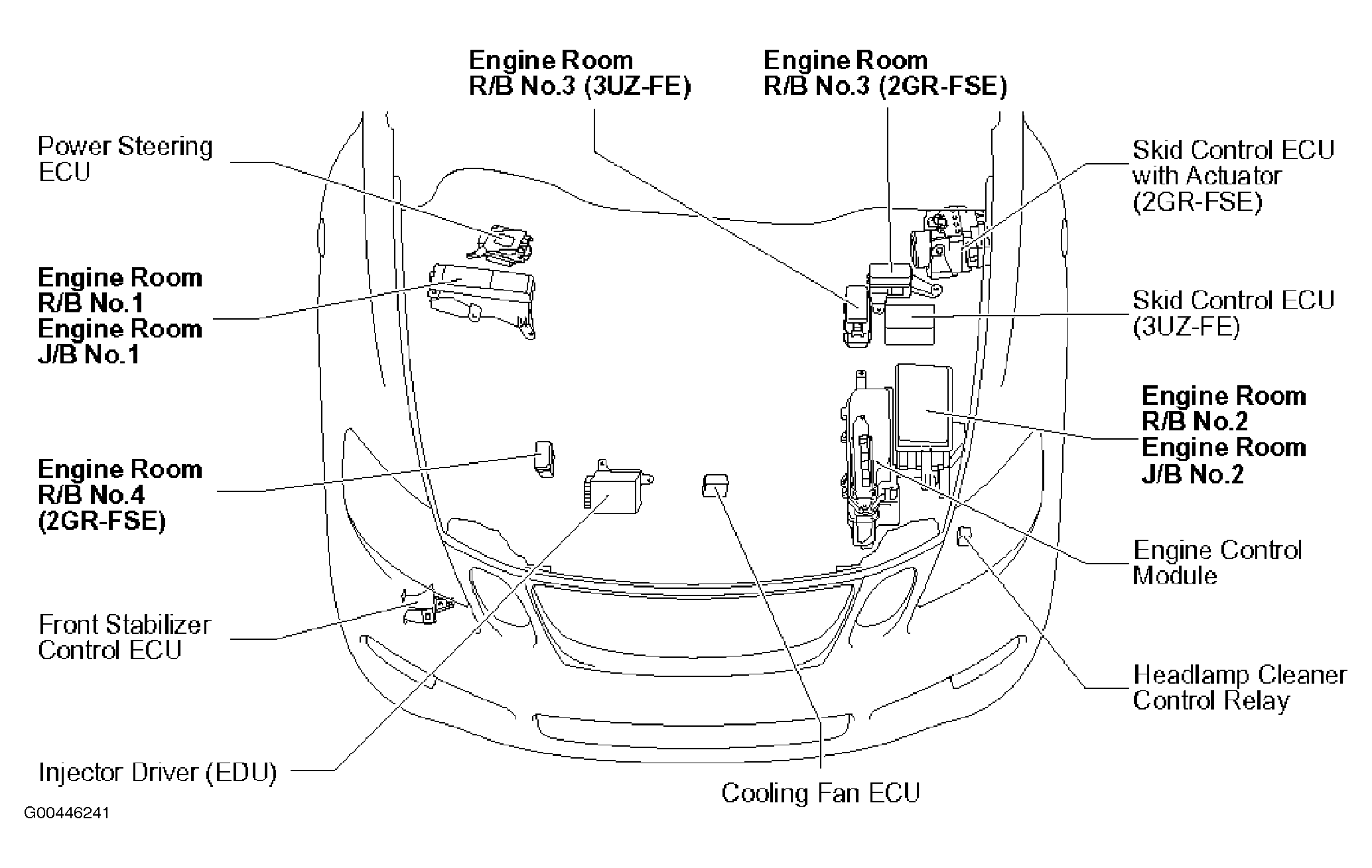

| Engine Room J/B No. 1 | Right rear of engine compartment. See Figure. |
| Engine Room J/B No. 2 | Left side of engine compartment. See Figure. |
| Engine Room R/B No. 1 | Right rear of engine compartment. See Figure. |
| Engine Room R/B No. 2 | Left side of engine compartment. See Figure. |
| Engine Room R/B No. 3 (3.5L) | Left rear of engine compartment. See Figure. |
| Engine Room R/B No. 3 (4.3L) | Left rear of engine compartment. See Figure. |
| Engine Room R/B No. 4 | Right side of engine compartment. See Figure. |

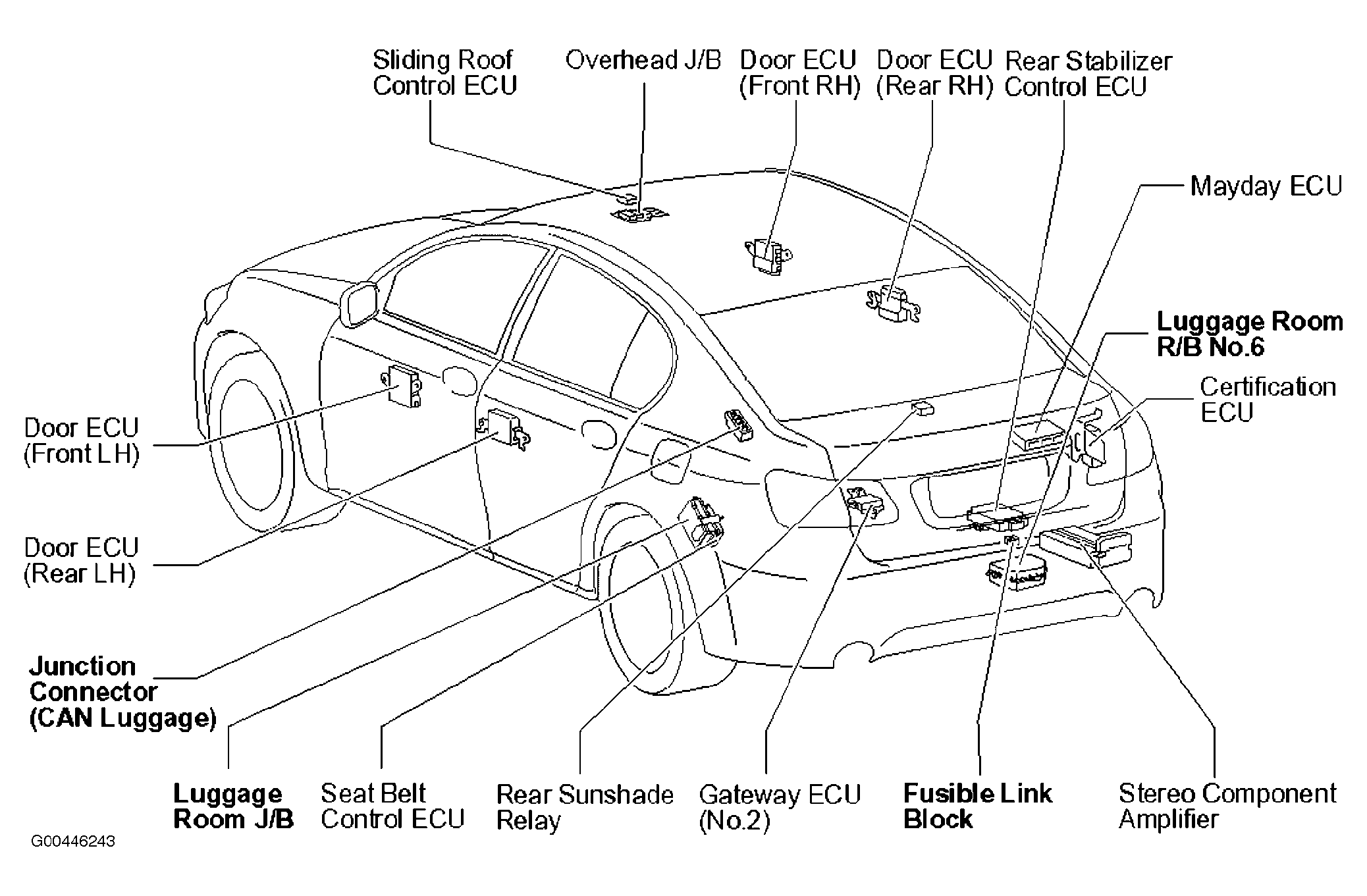

| Fusible Link Block | Right side of luggage compartment. See Figure. |
| Luggage Room J/B | Left side of luggage compartment. See Figure. |
| Luggage Room R/B No. 6 | Right rear corner of luggage compartment. See Figure. |
| Overhead J/B | In overhead console. See Figure. |
