Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Engine Compartment

G00446241

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Dash & Center Floor Console

G00446242

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Vehicle Overview

G00446243

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

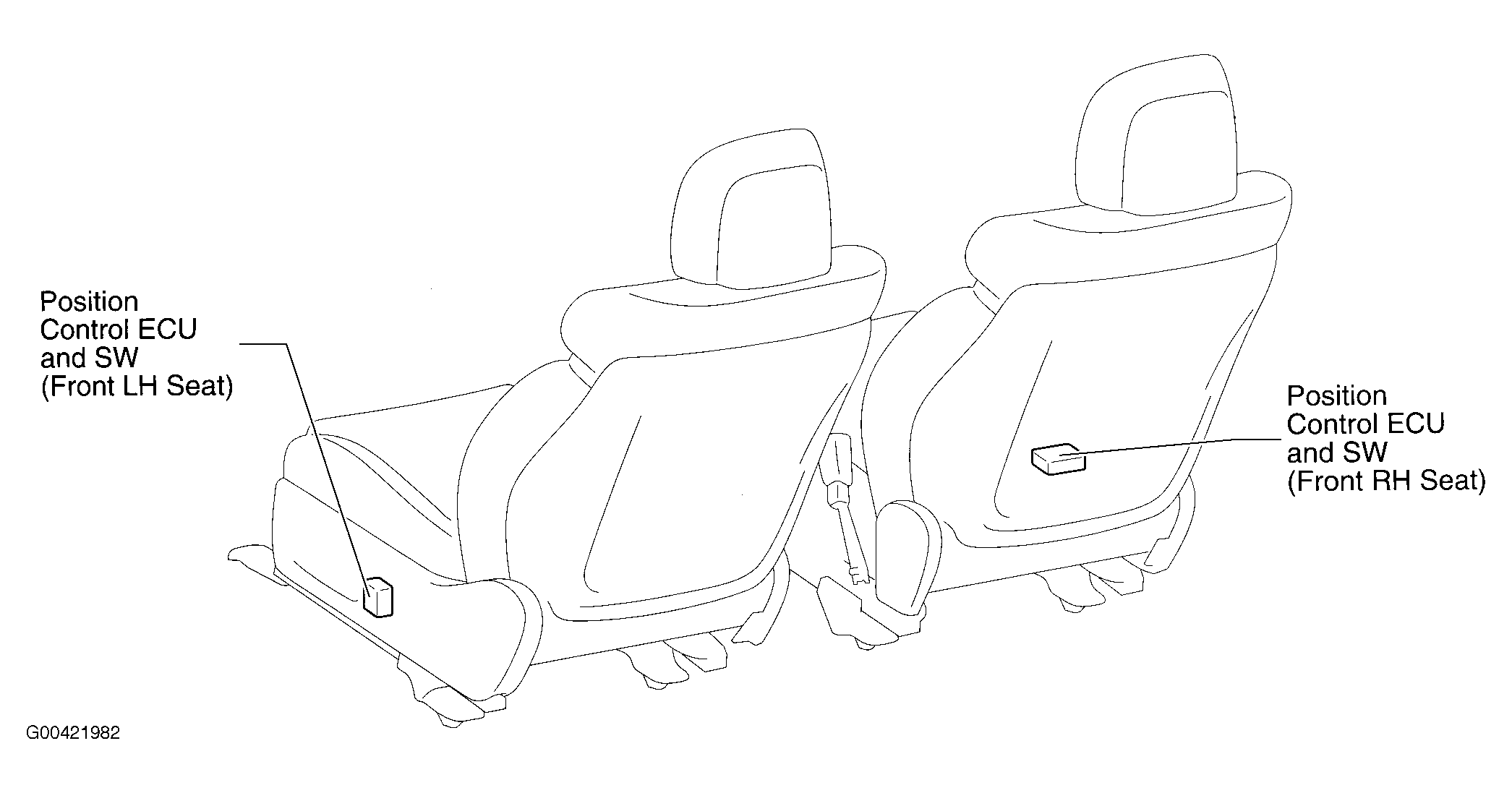

Fig 4: Front Seats

G00421982

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

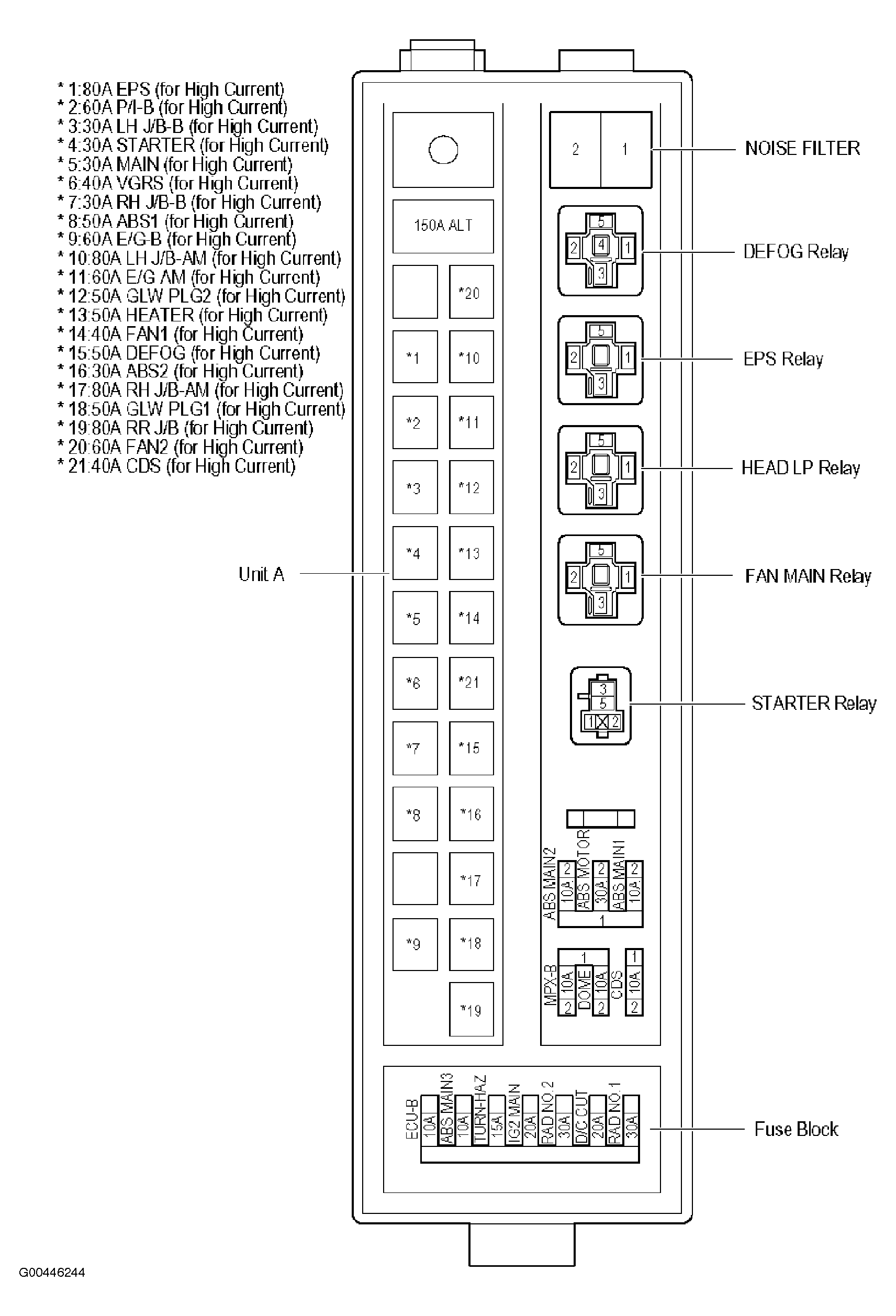

Fig 5: Engine Room R/B No. 1

G00446244

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

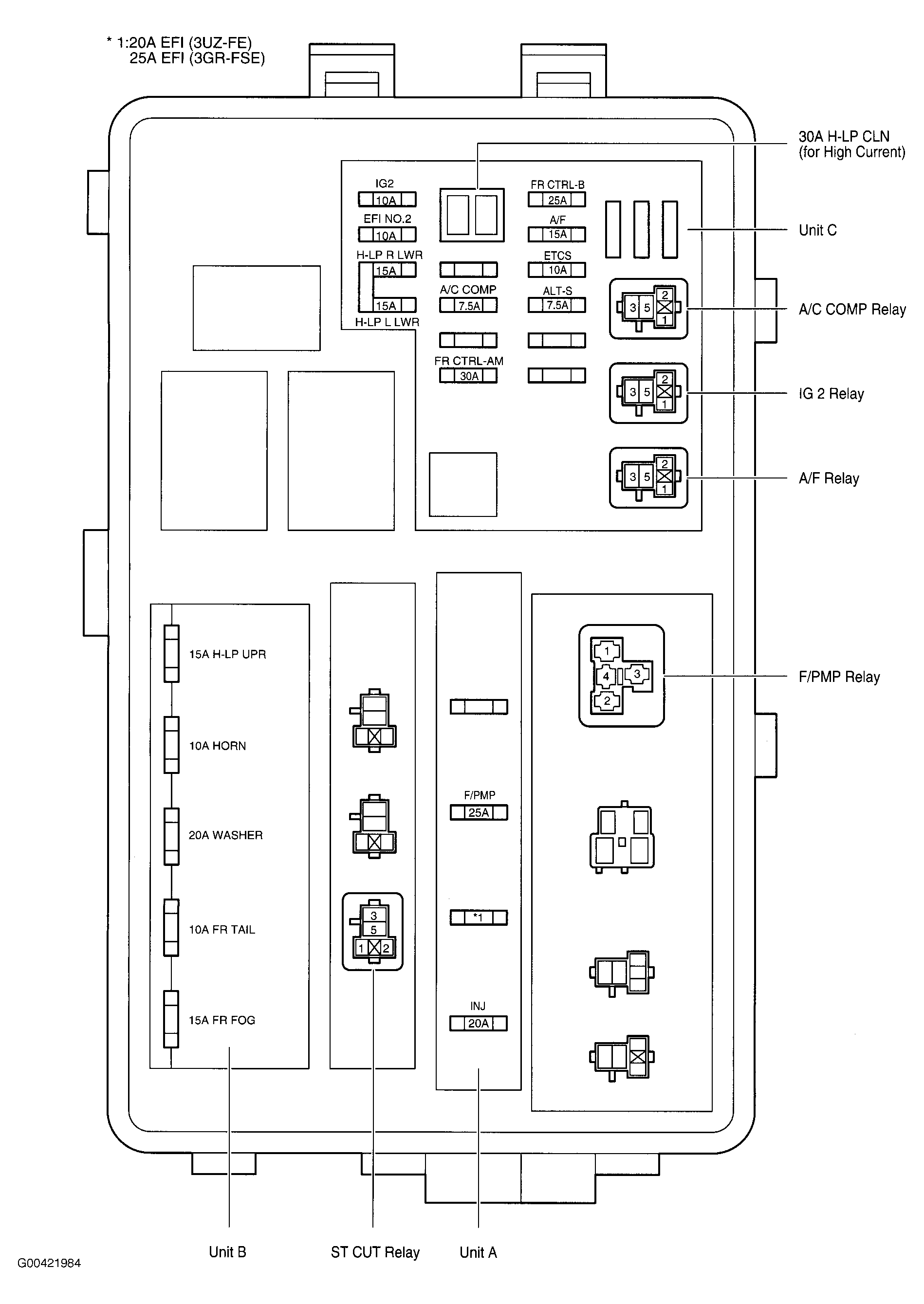

Fig 6: Engine Room R/B No. 2

G00421984

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

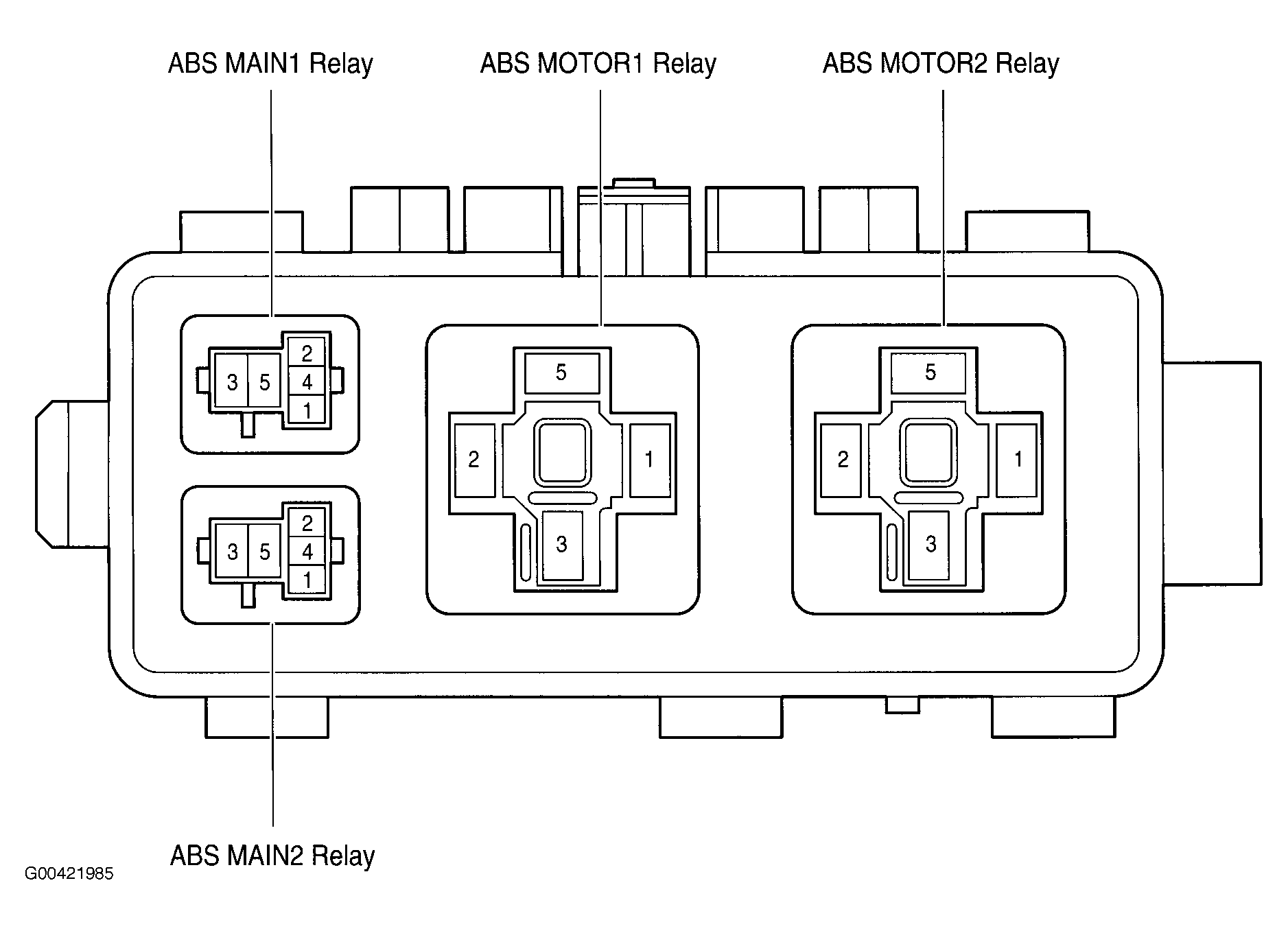

Fig 7: Engine Room R/B No. 3 (4.3L)

G00421985

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

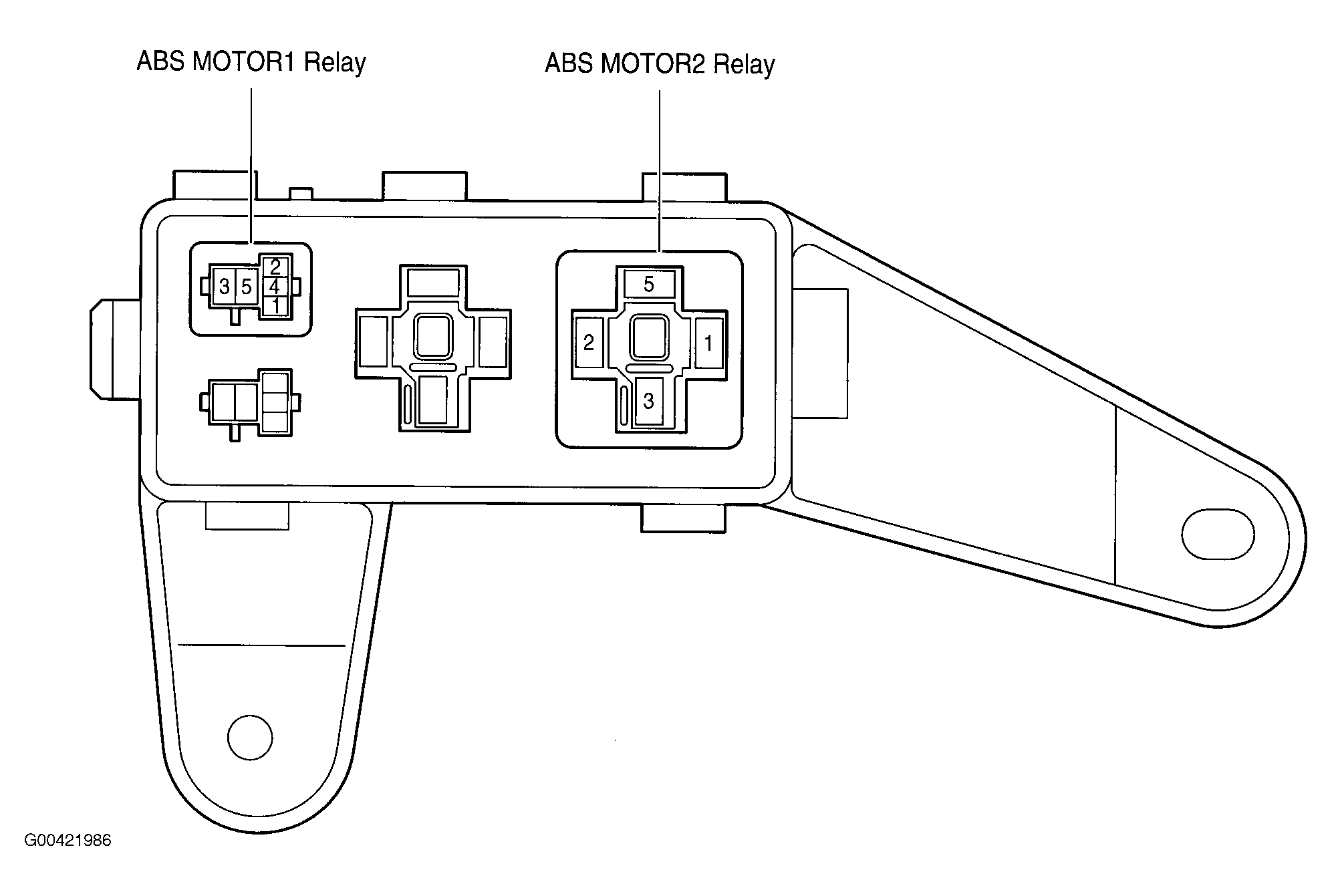

Fig 8: Engine Room R/B No. 3 (3.5L)

G00421986

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

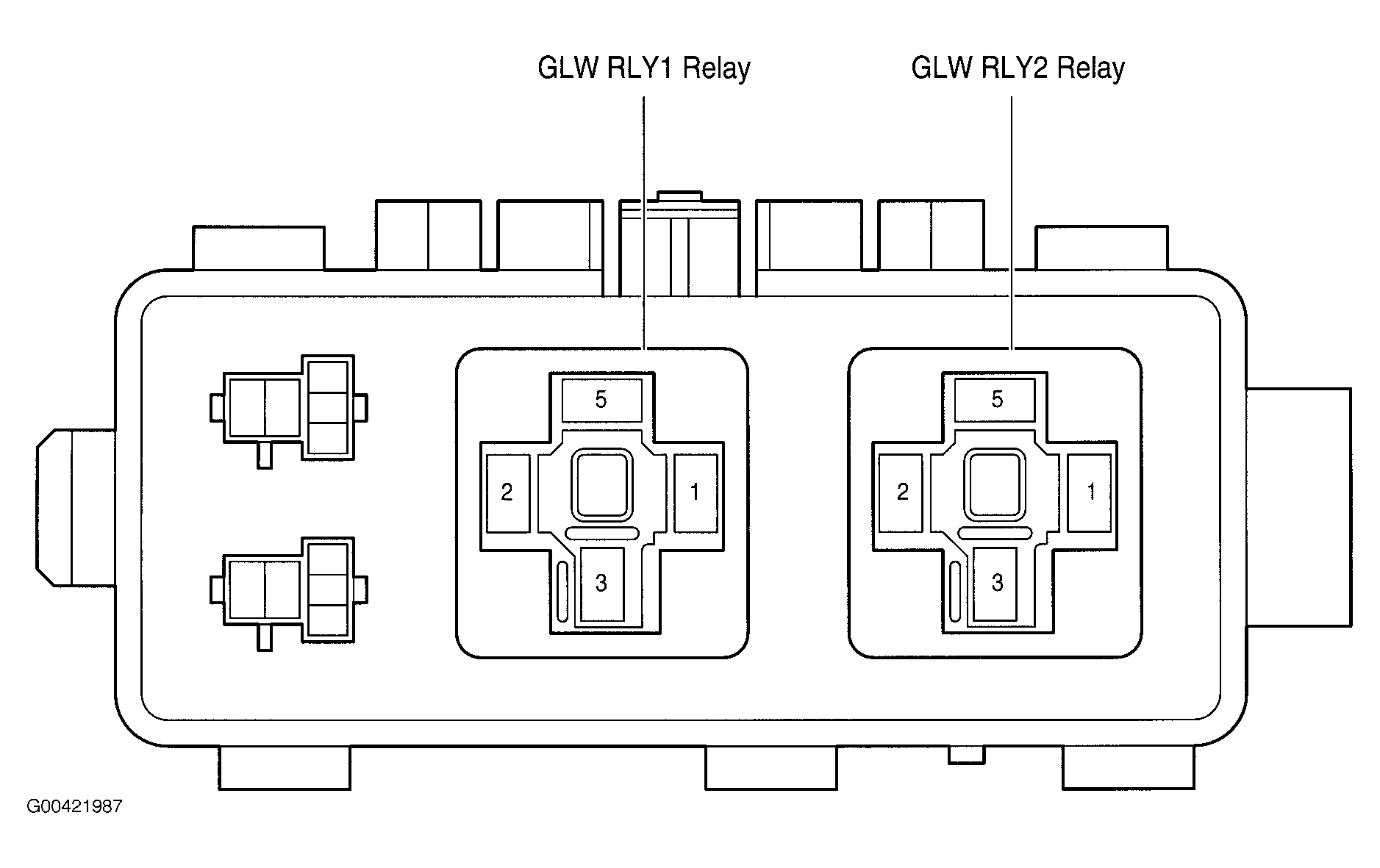

Fig 9: Engine Room R/B No. 4

G00421987

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

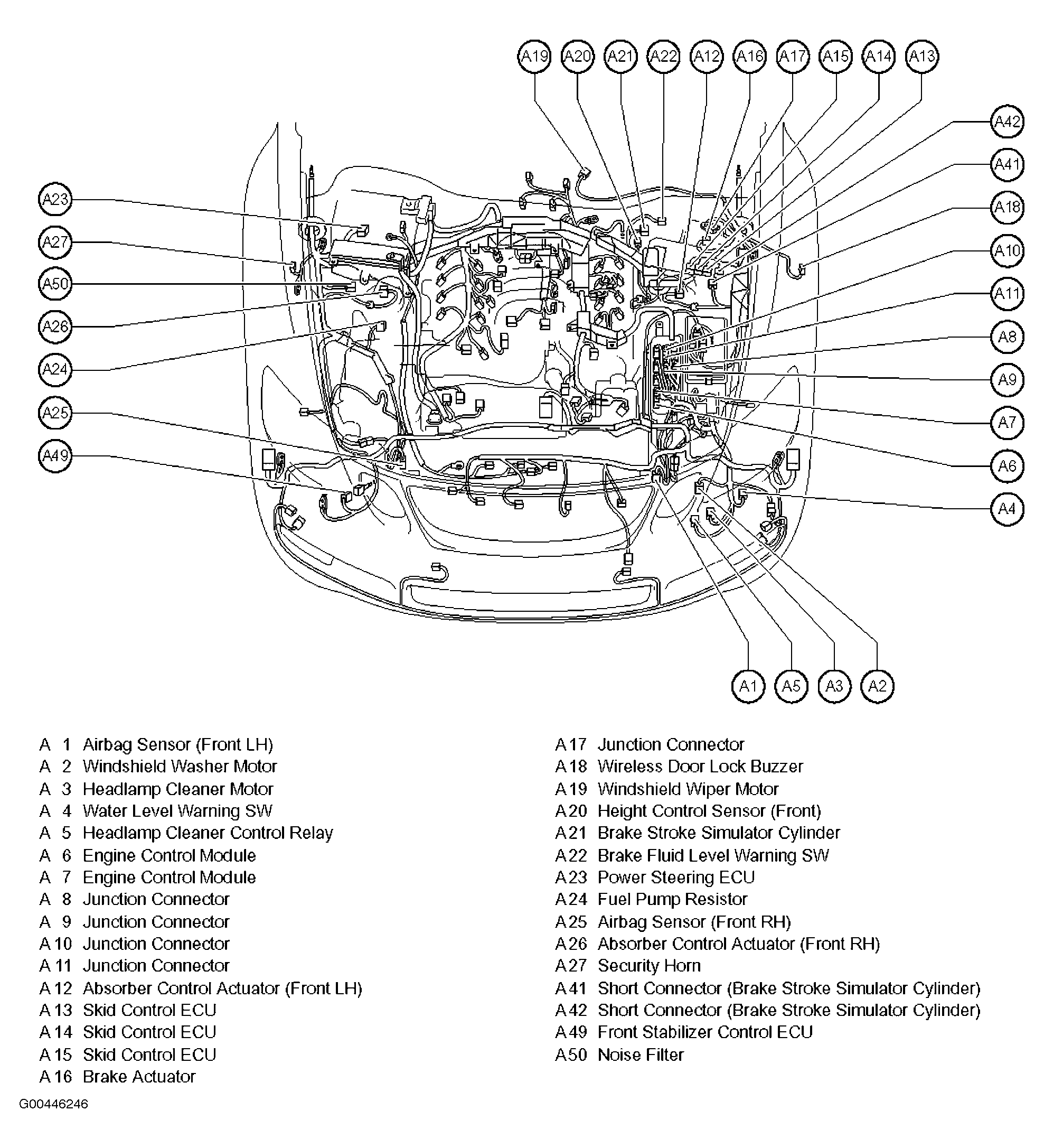

Fig 10: Engine Compartment (4.3L)

G00446246

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

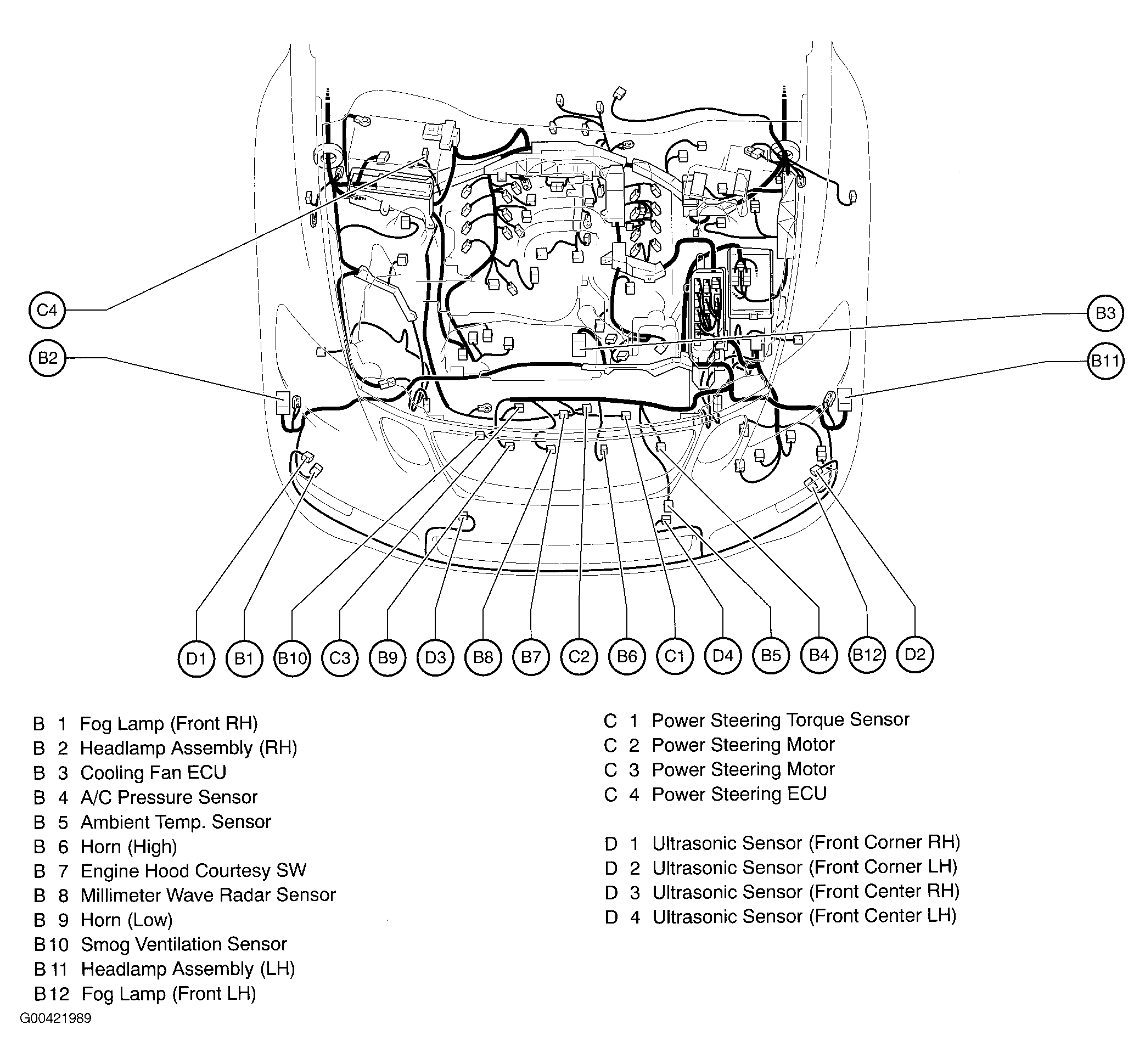

Fig 11: Engine Compartment (4.3L)

G00421989

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

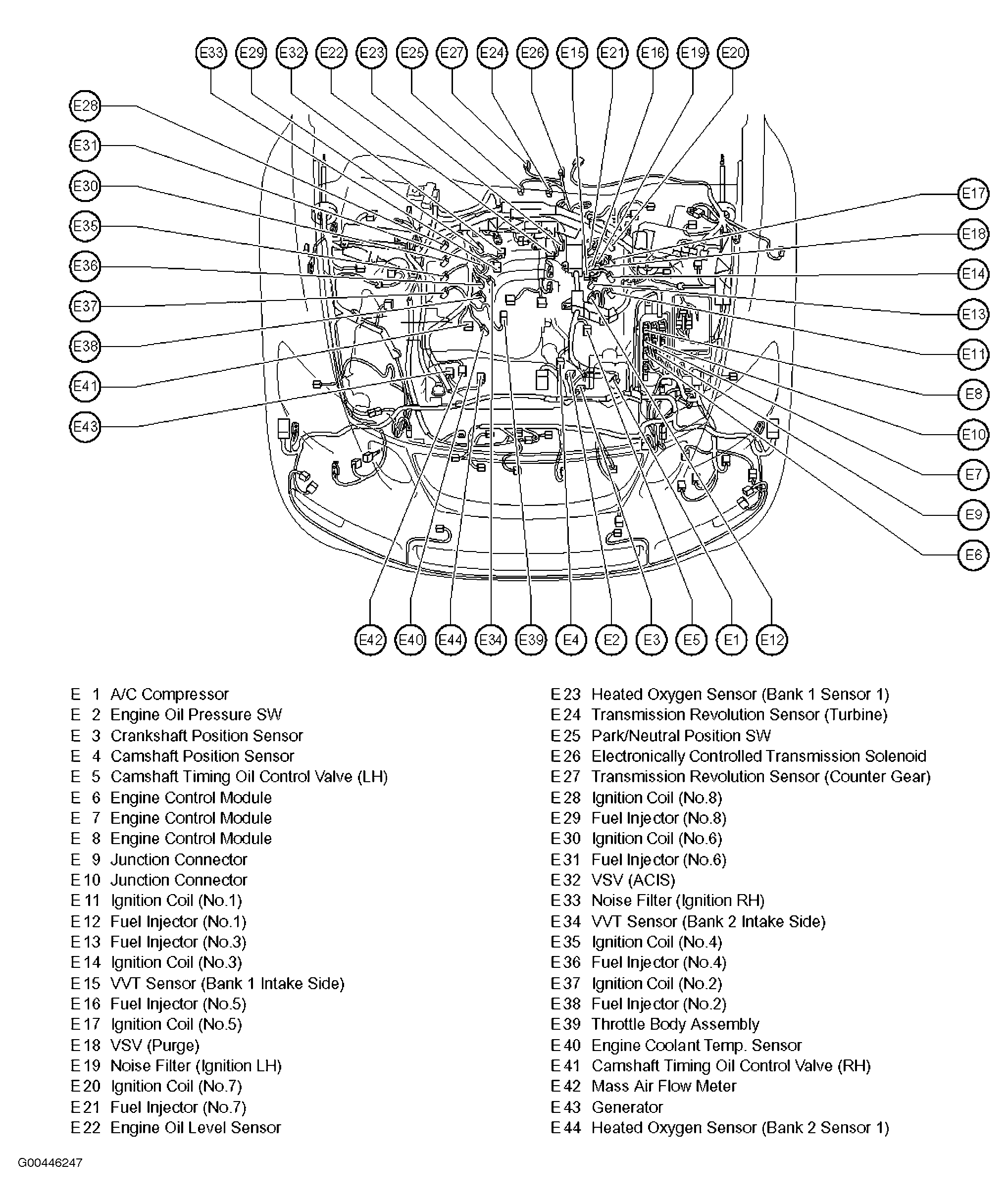

Fig 12: Engine (4.3L)

G00446247

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

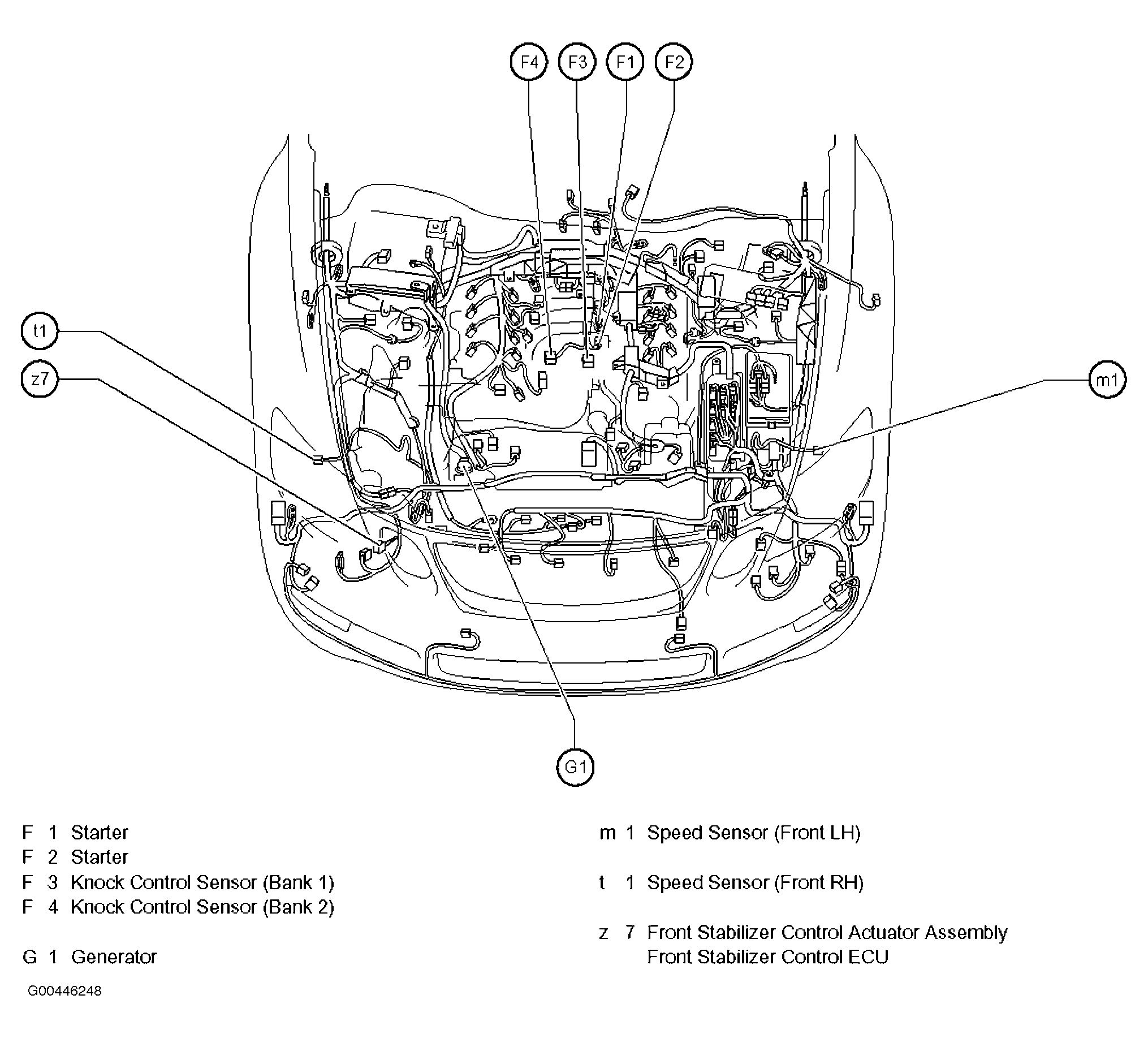

Fig 13: Engine (4.3L)

G00446248

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

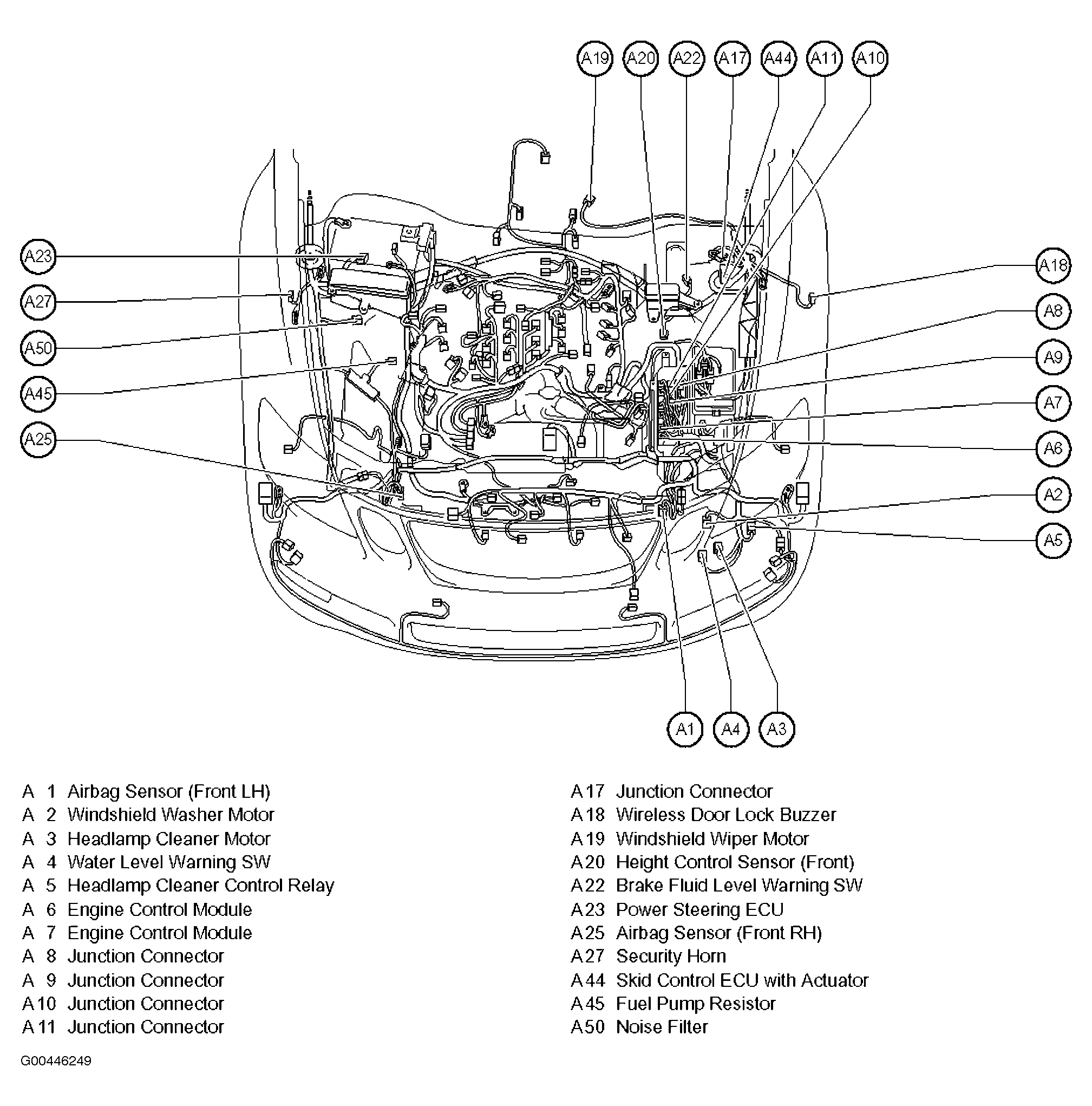

Fig 14: Engine Compartment (3.5L)

G00446249

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

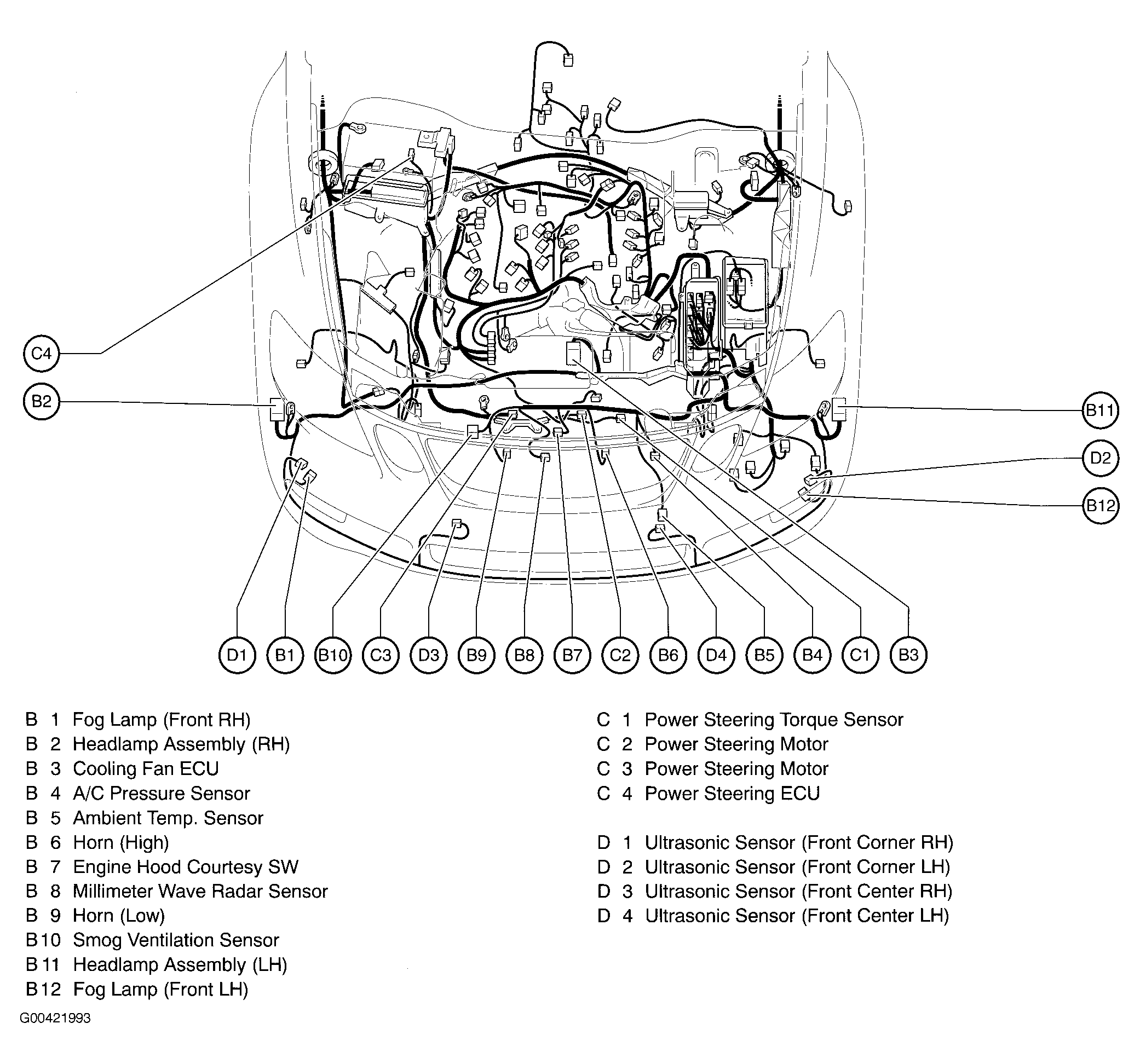

Fig 15: Engine Compartment (3.5L)

G00421993

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

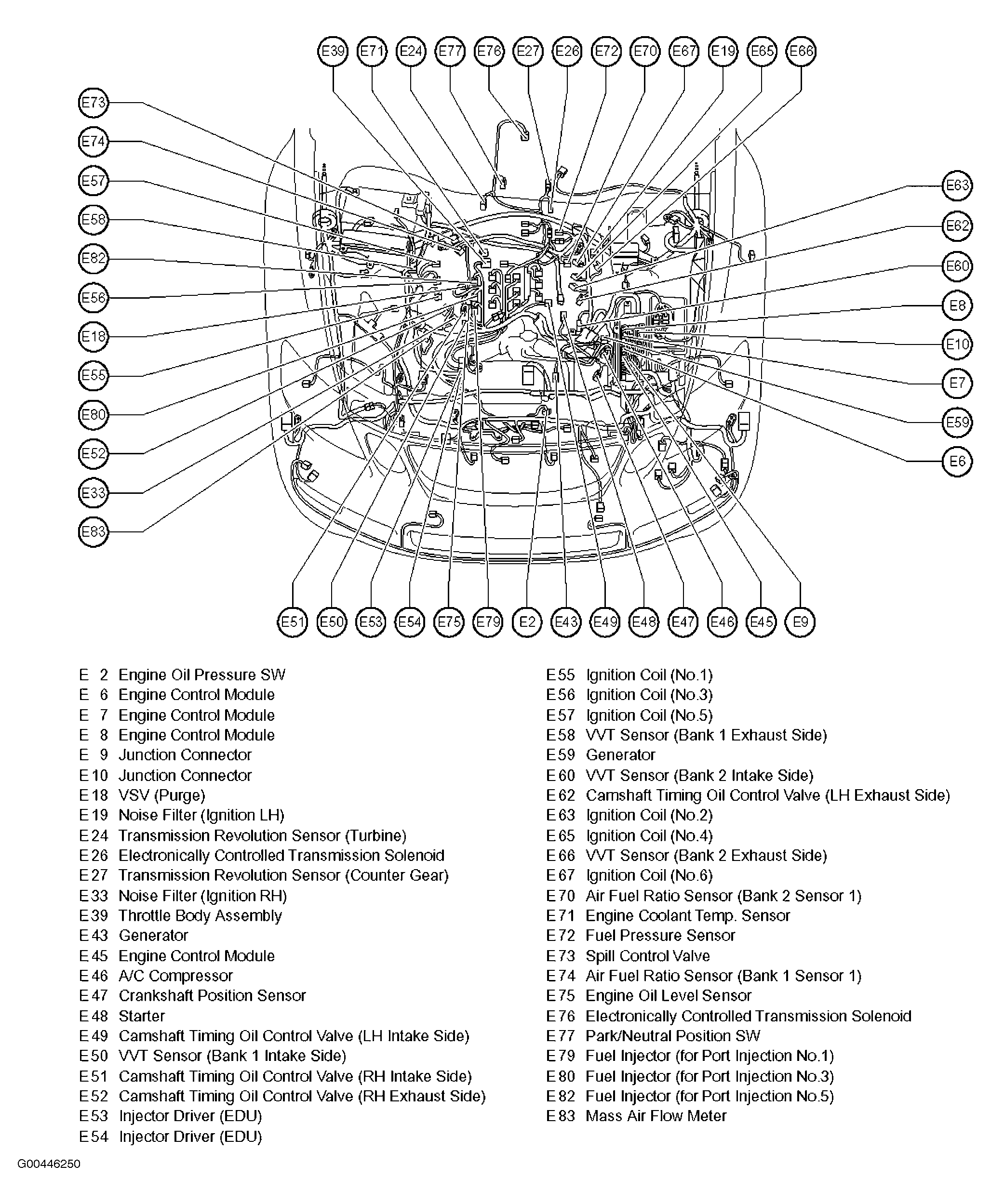

Fig 16: Engine (3.5L)

G00446250

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

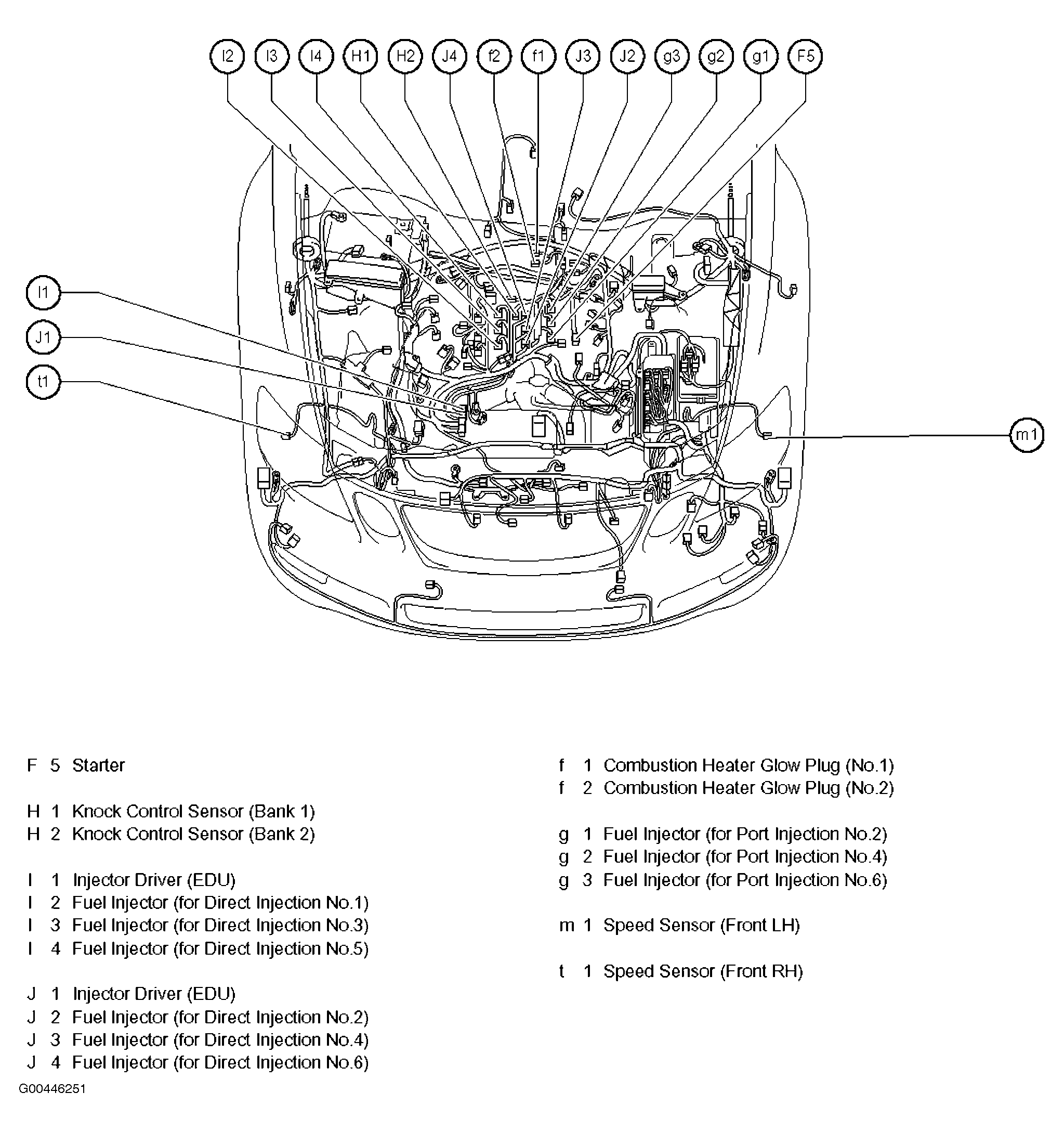

Fig 17: Engine (3.5L)

G00446251

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

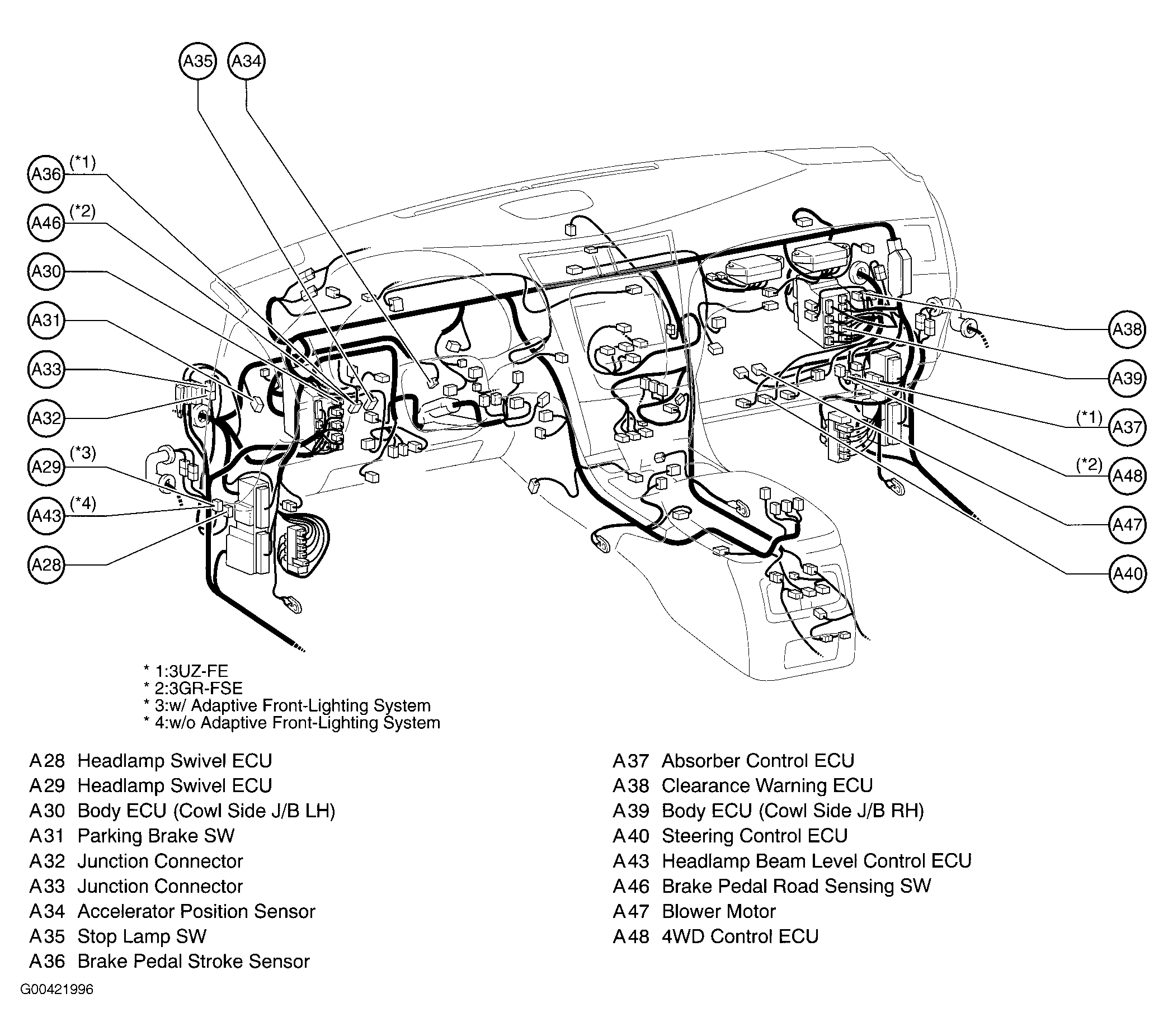

Fig 18: Dash & Center Floor Console

G00421996

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

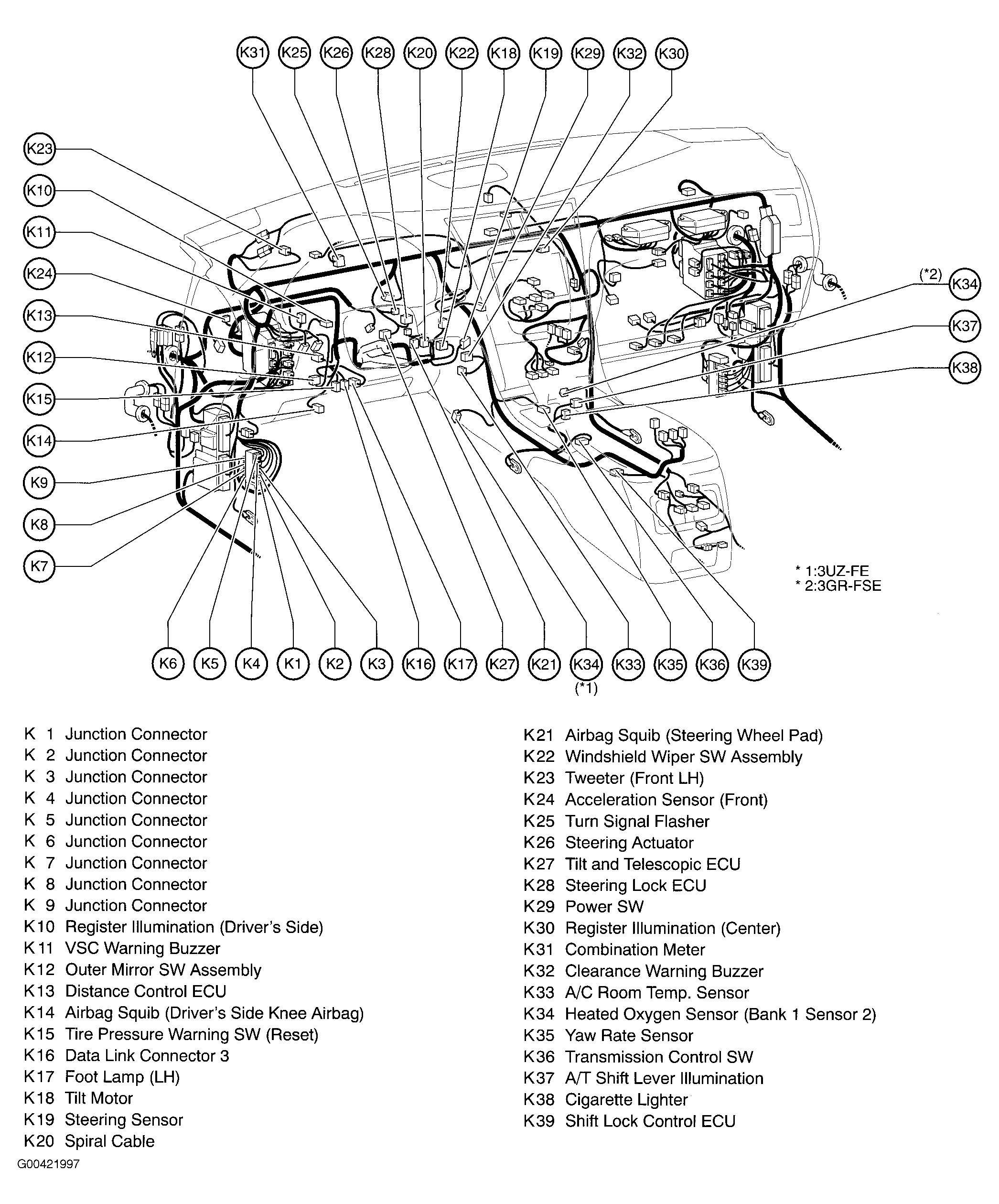

Fig 19: Dash & Center Floor Console

G00421997

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

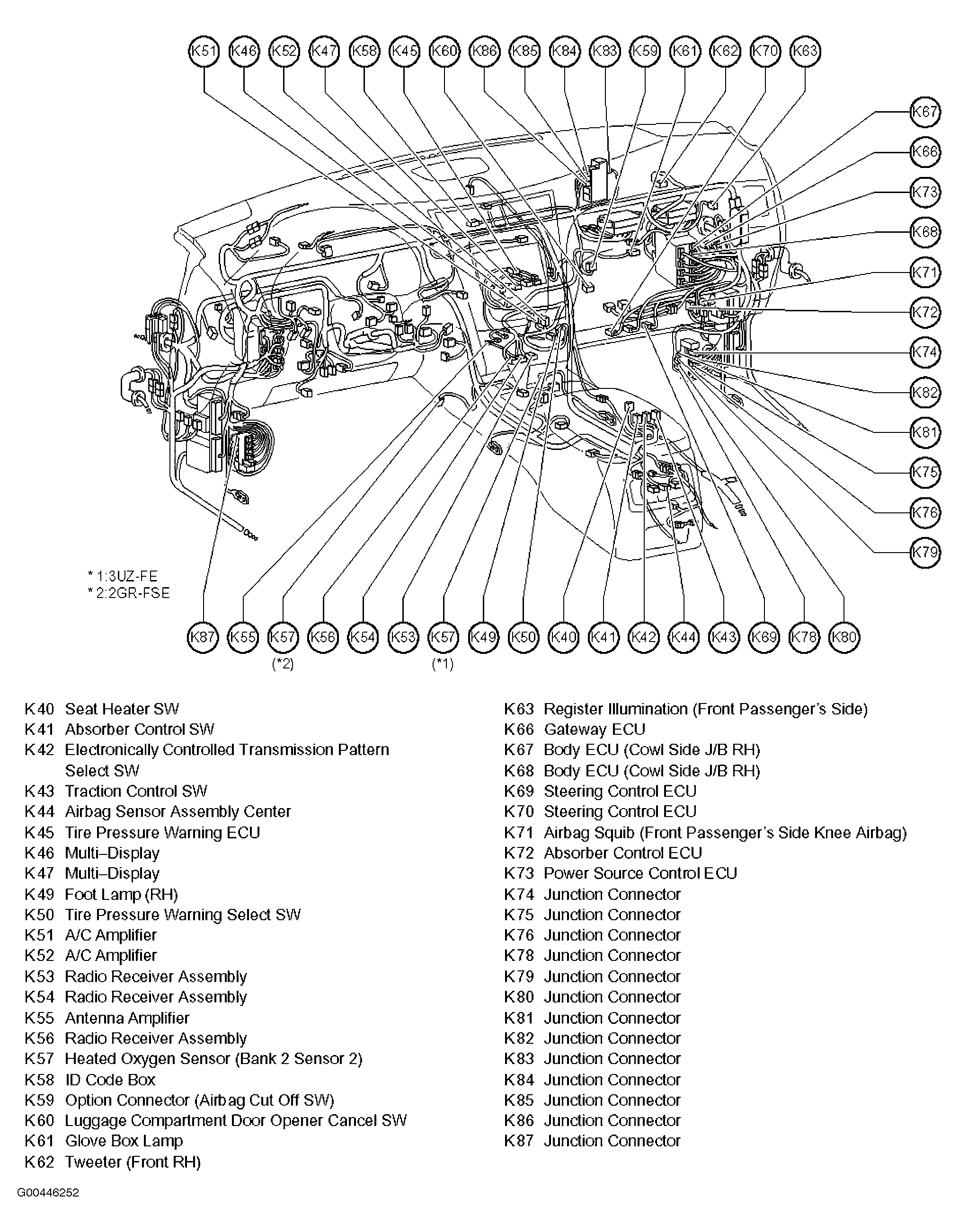

Fig 20: Dash & Center Floor Console

G00446252

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

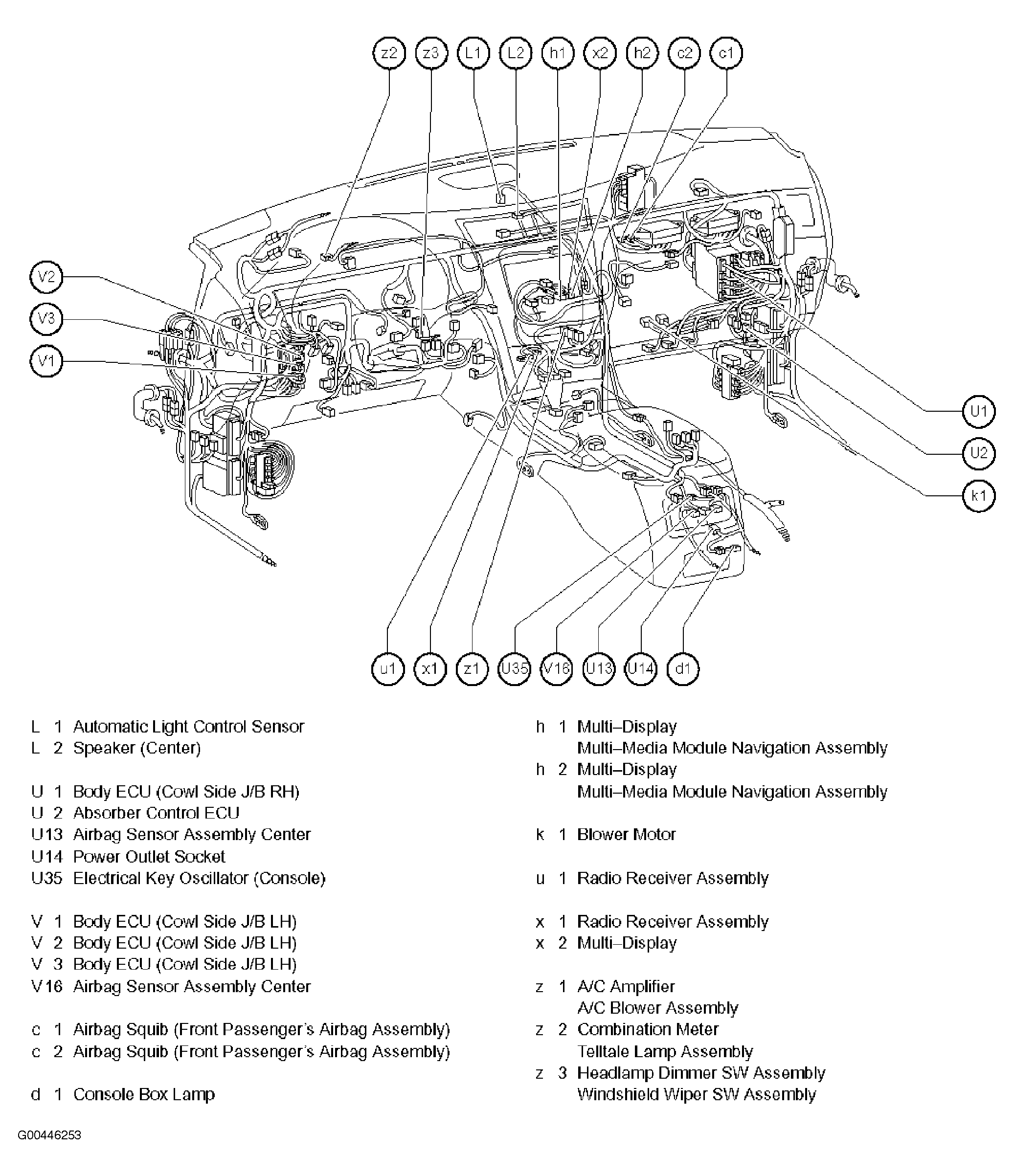

Fig 21: Dash & Center Floor Console

G00446253

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

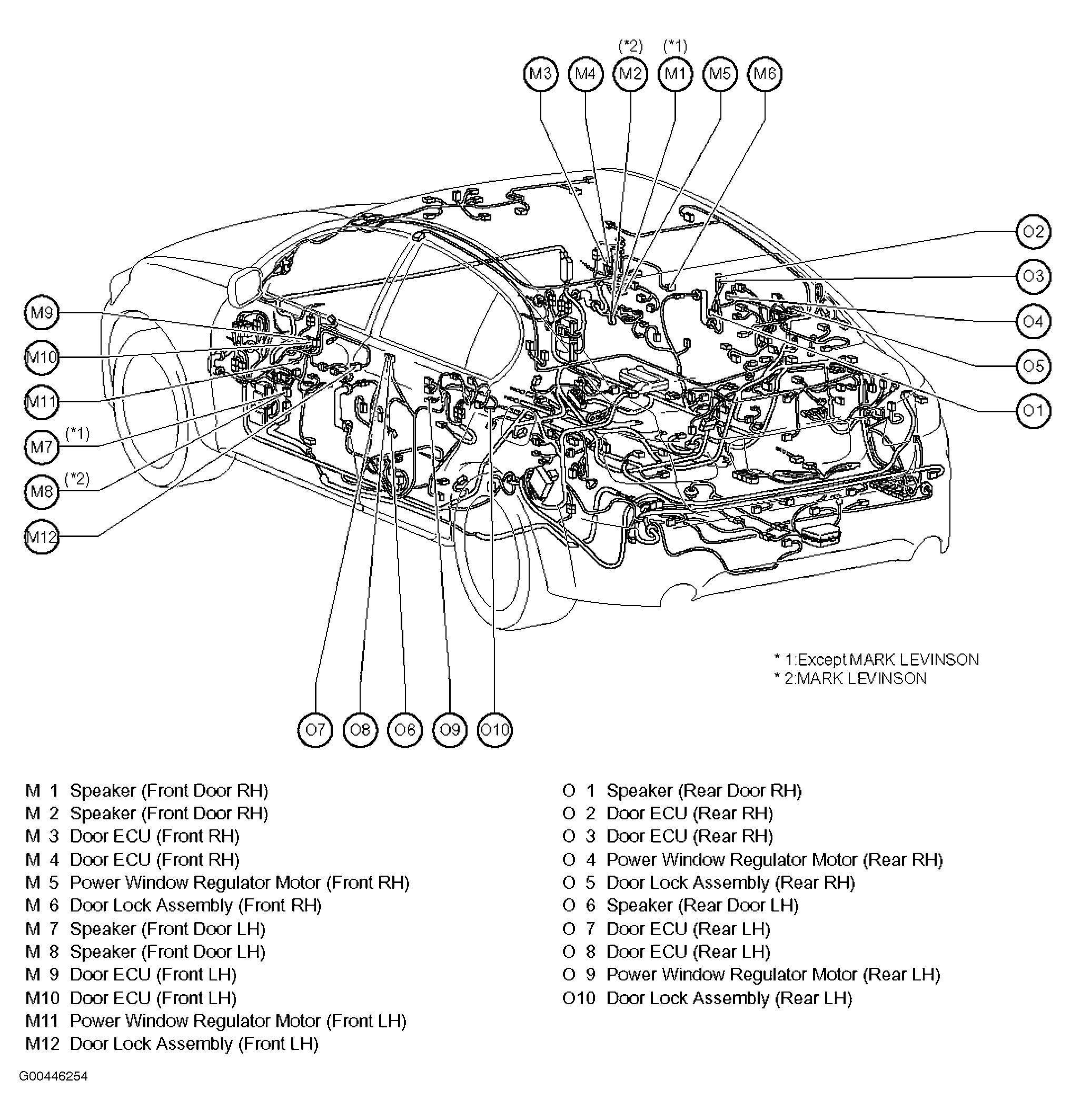

Fig 22: Vehicle Overview

G00446254

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

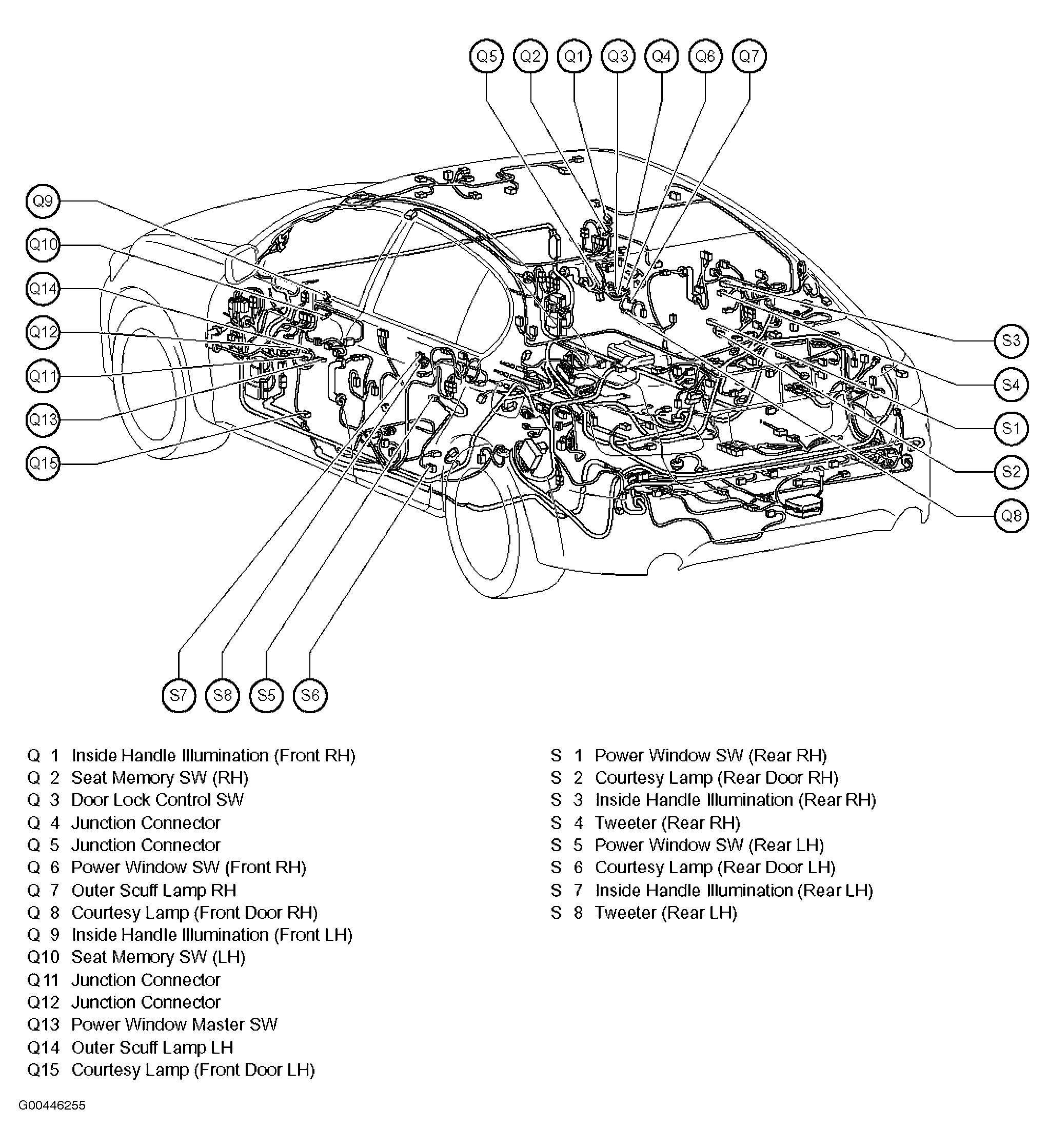

Fig 23: Vehicle Overview

G00446255

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

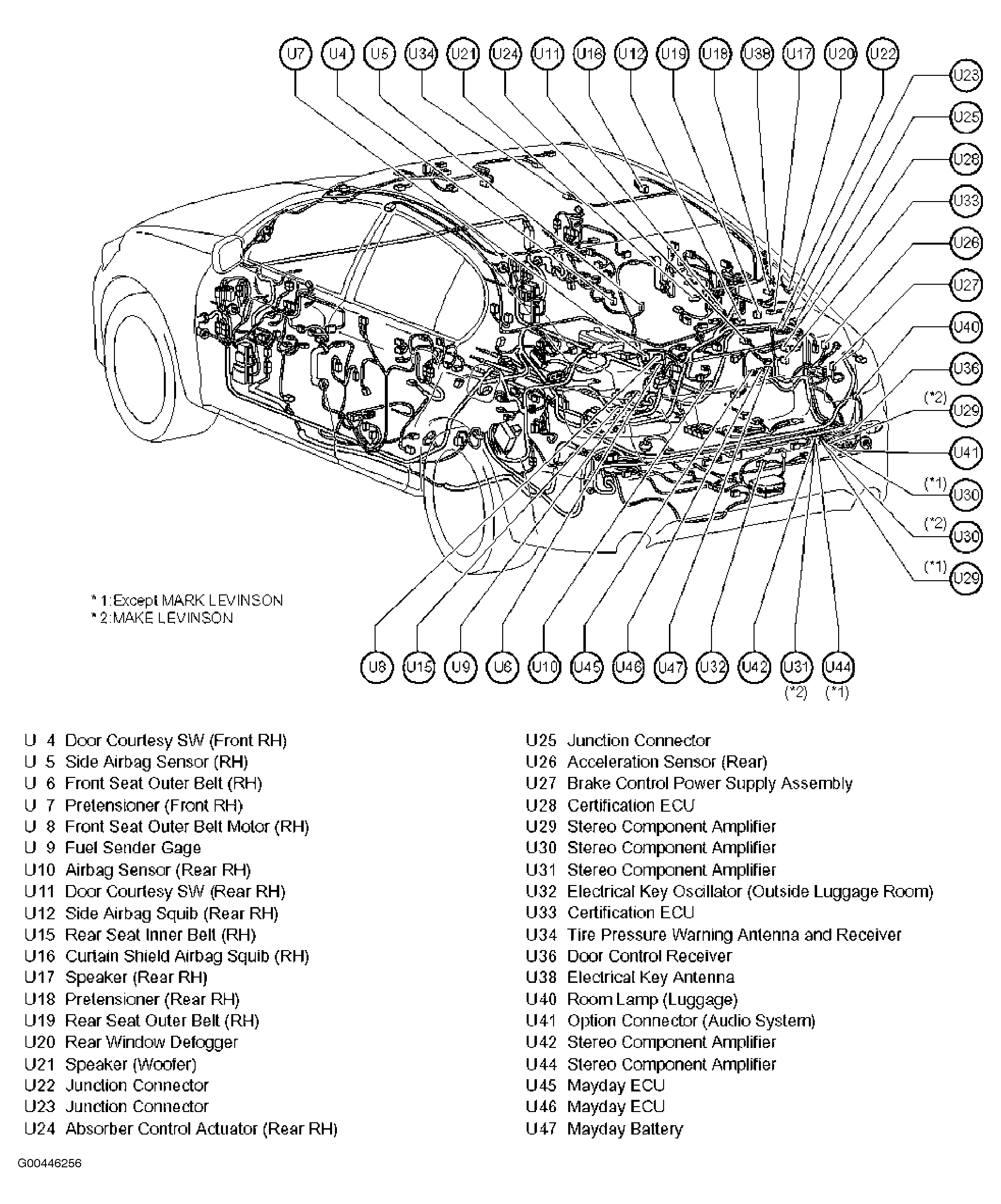

Fig 24: Vehicle Overview

G00446256

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

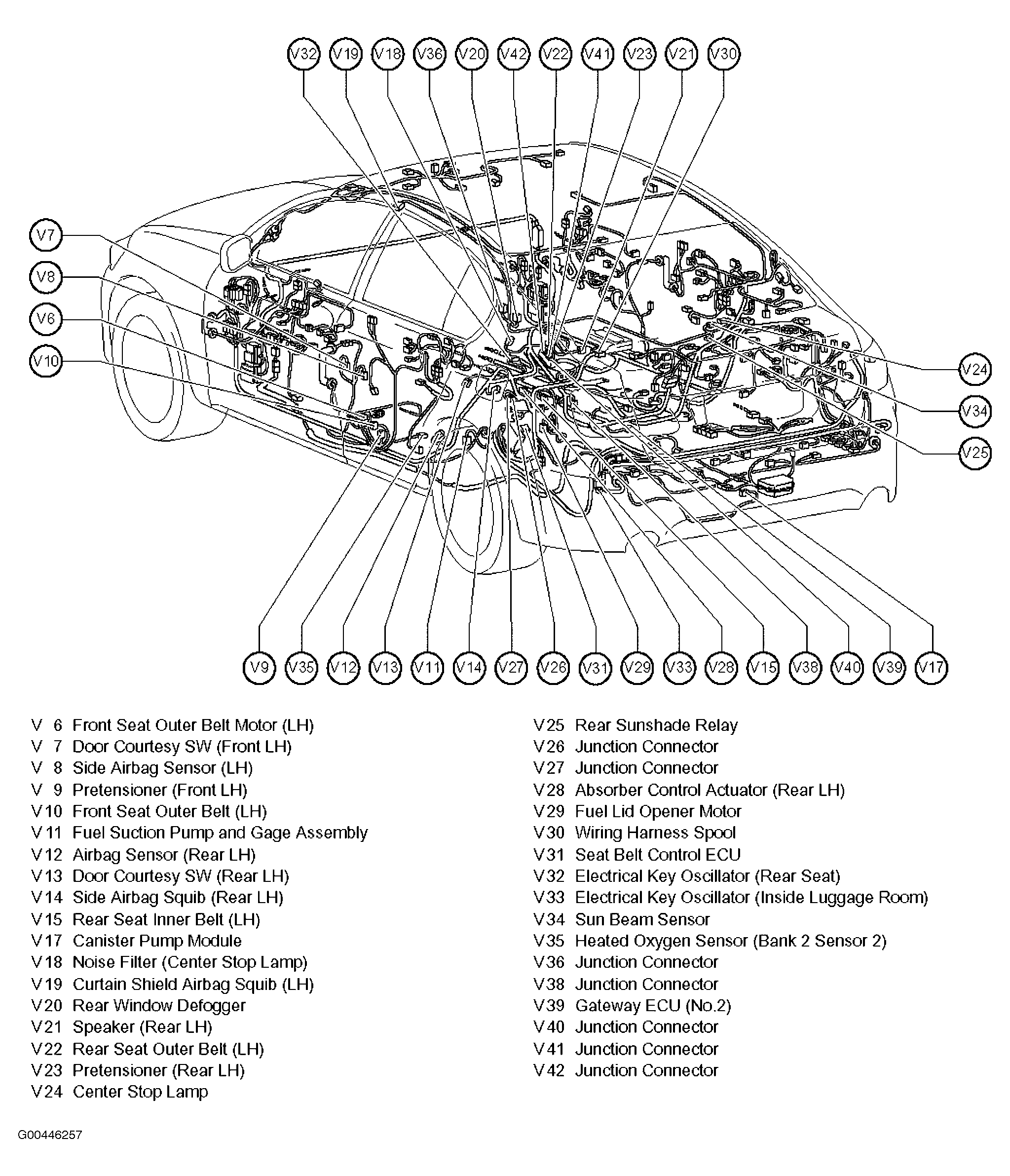

Fig 25: Vehicle Overview

G00446257

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

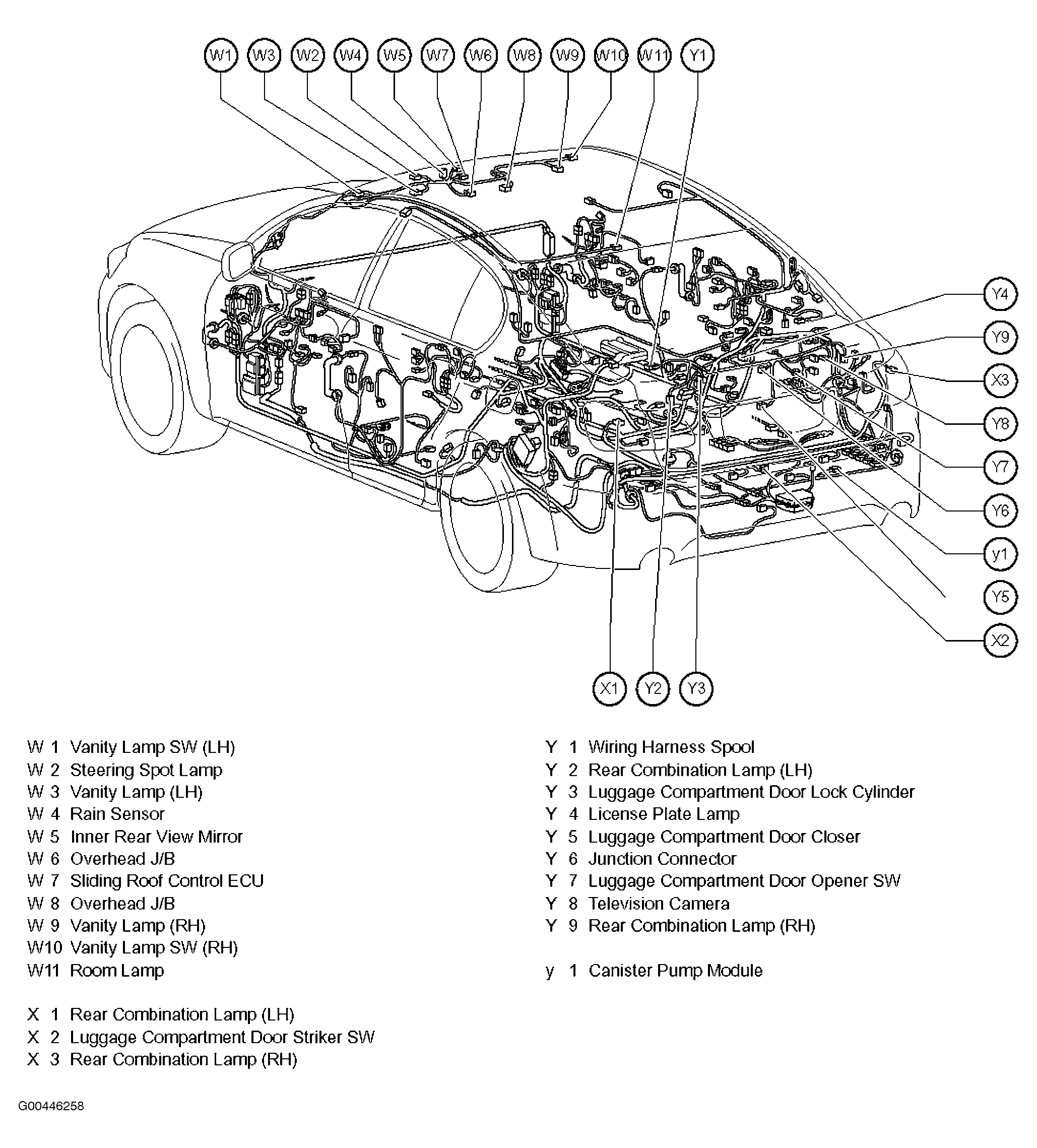

Fig 26: Vehicle Overview

G00446258

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

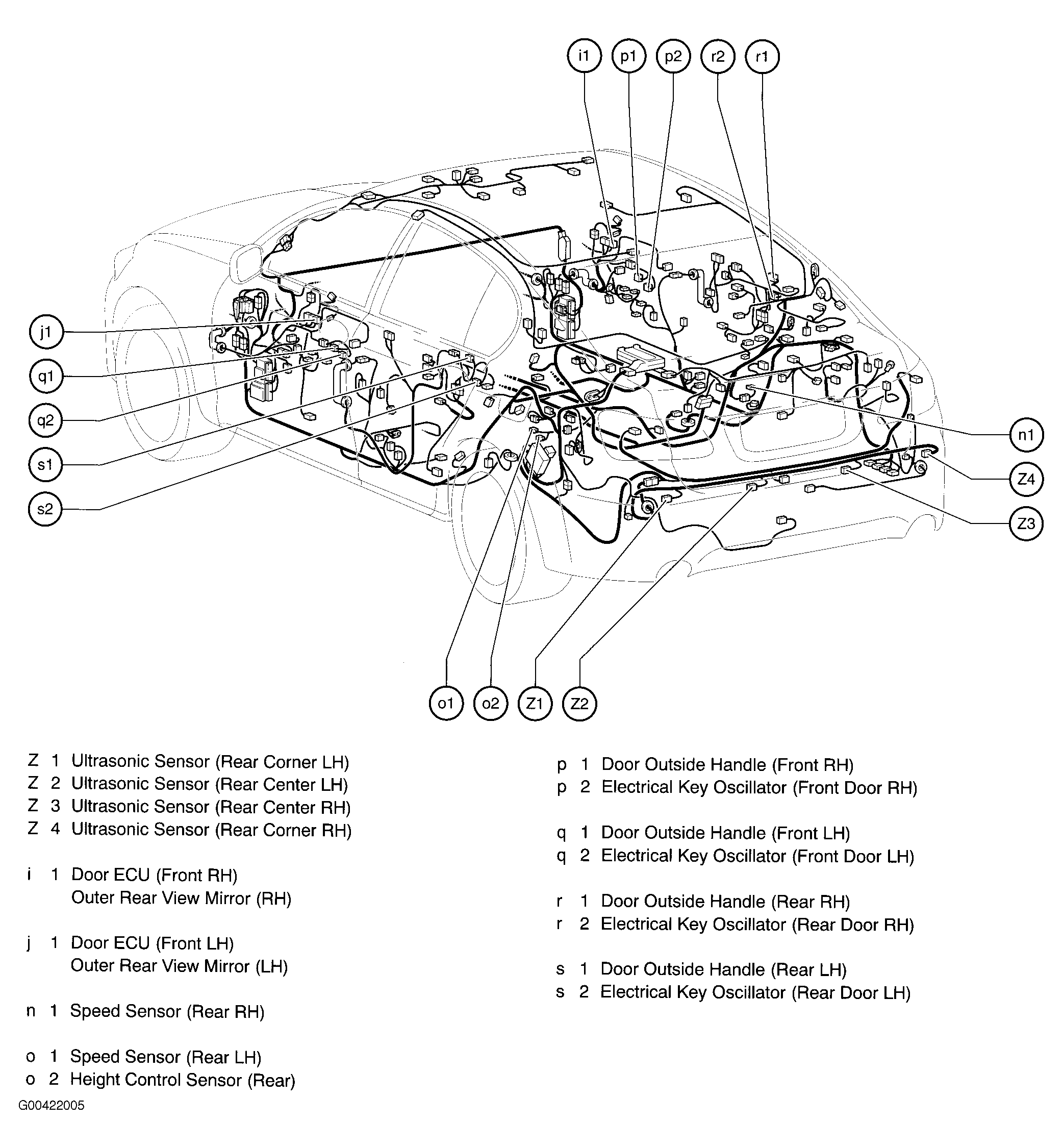

Fig 27: Vehicle Overview

G00422005

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

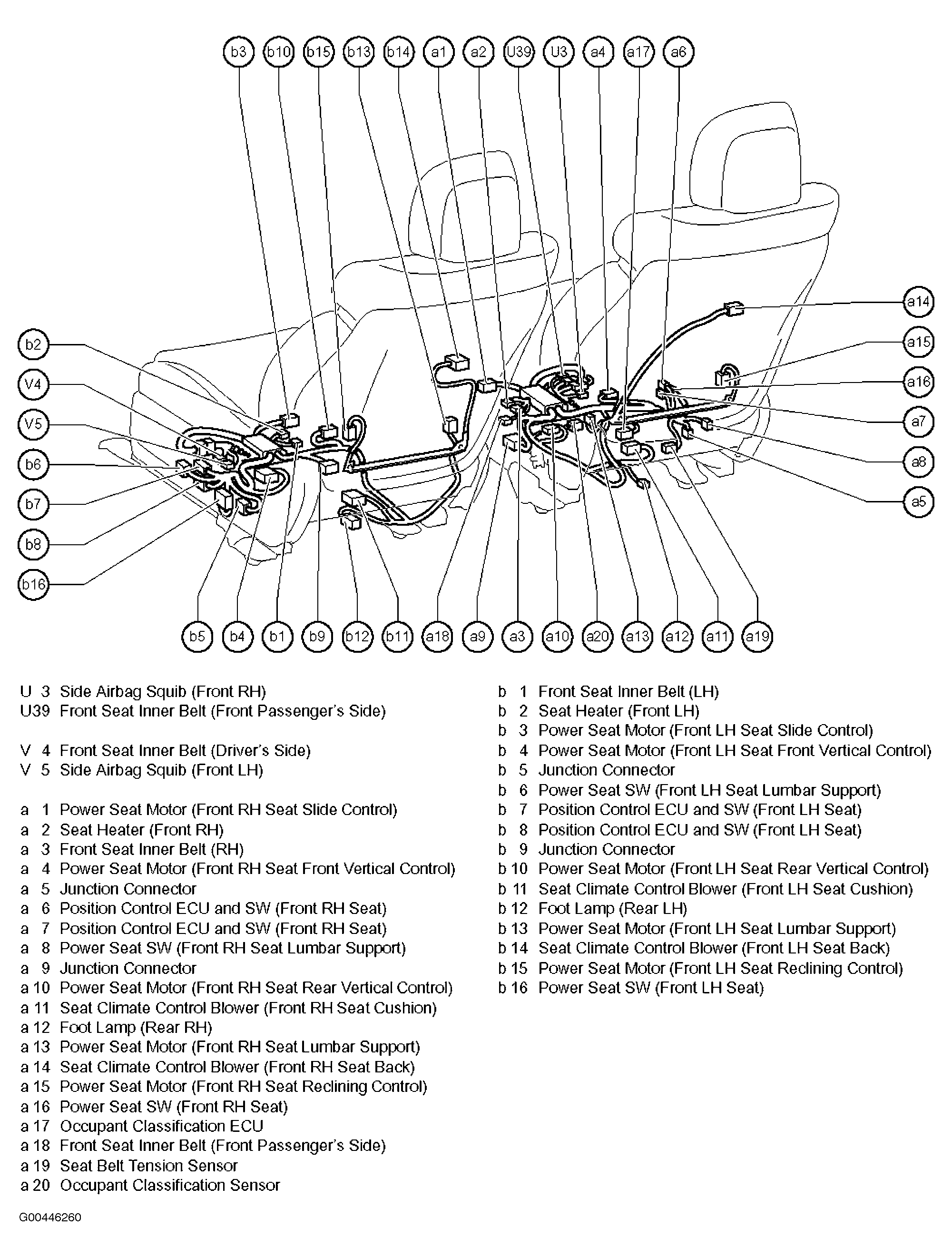

Fig 28: Front Seats

G00446260

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

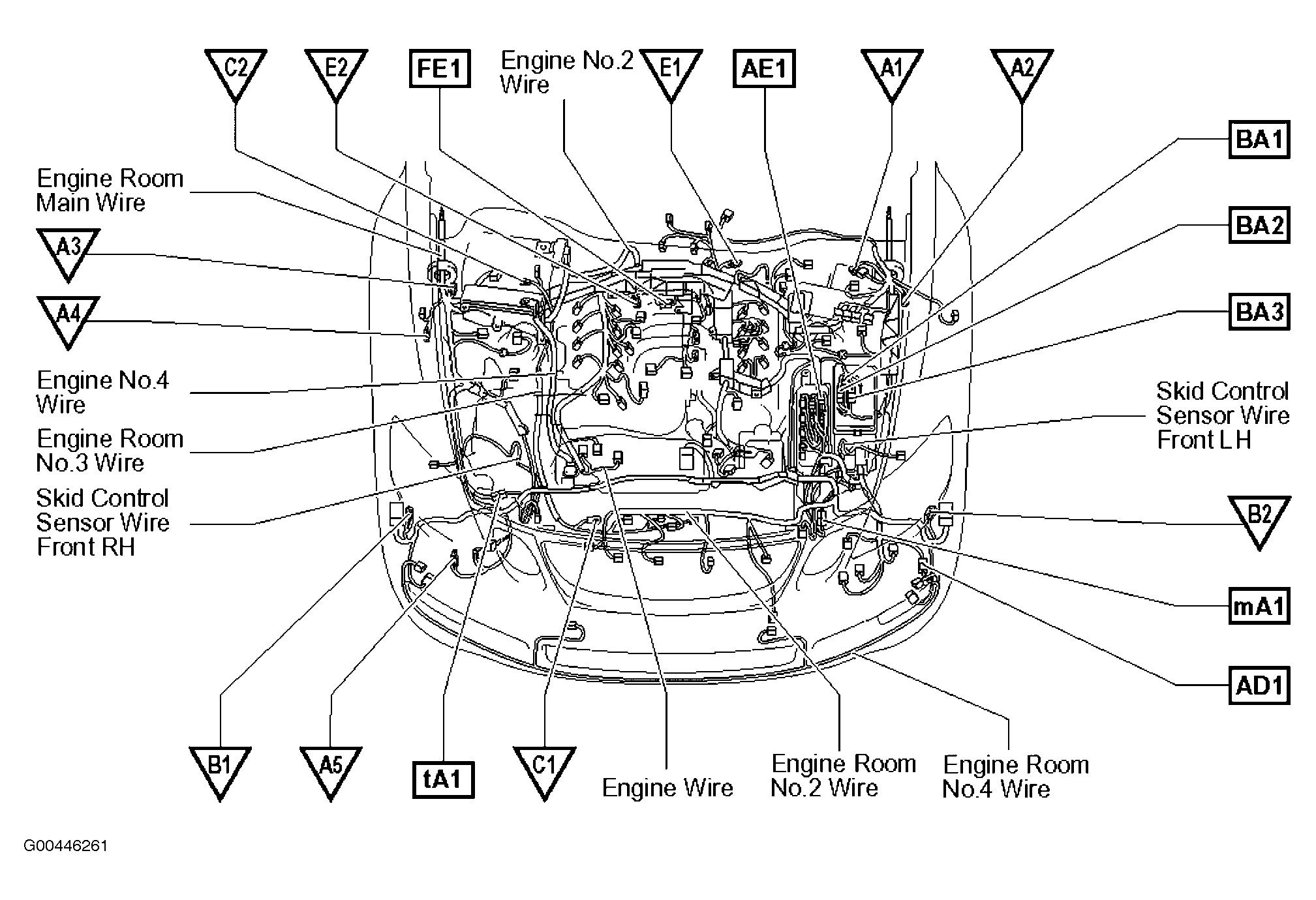

Fig 29: Engine Compartment (4.3L)

G00446261

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

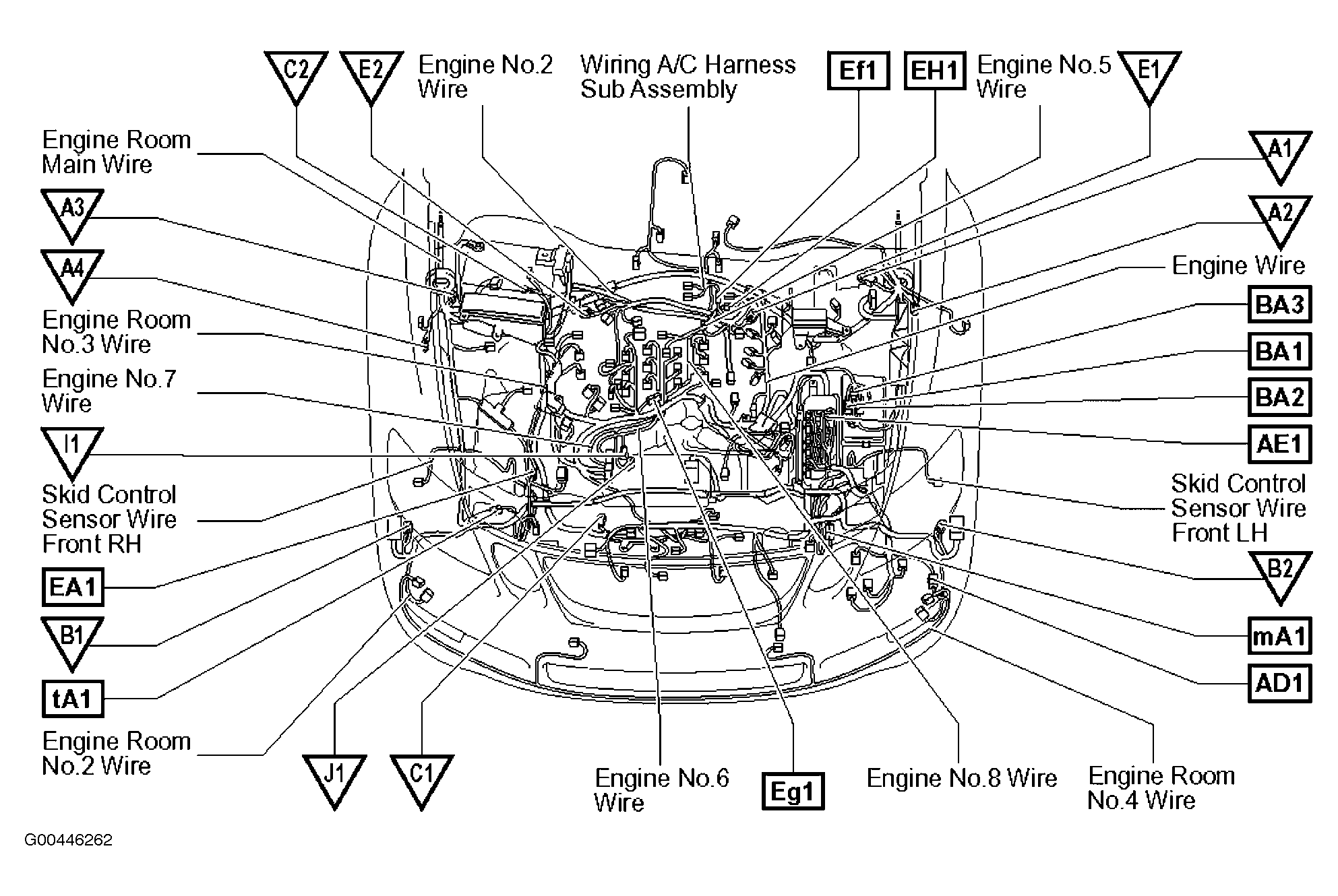

Fig 30: Engine Compartment (3.5L)

G00446262

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

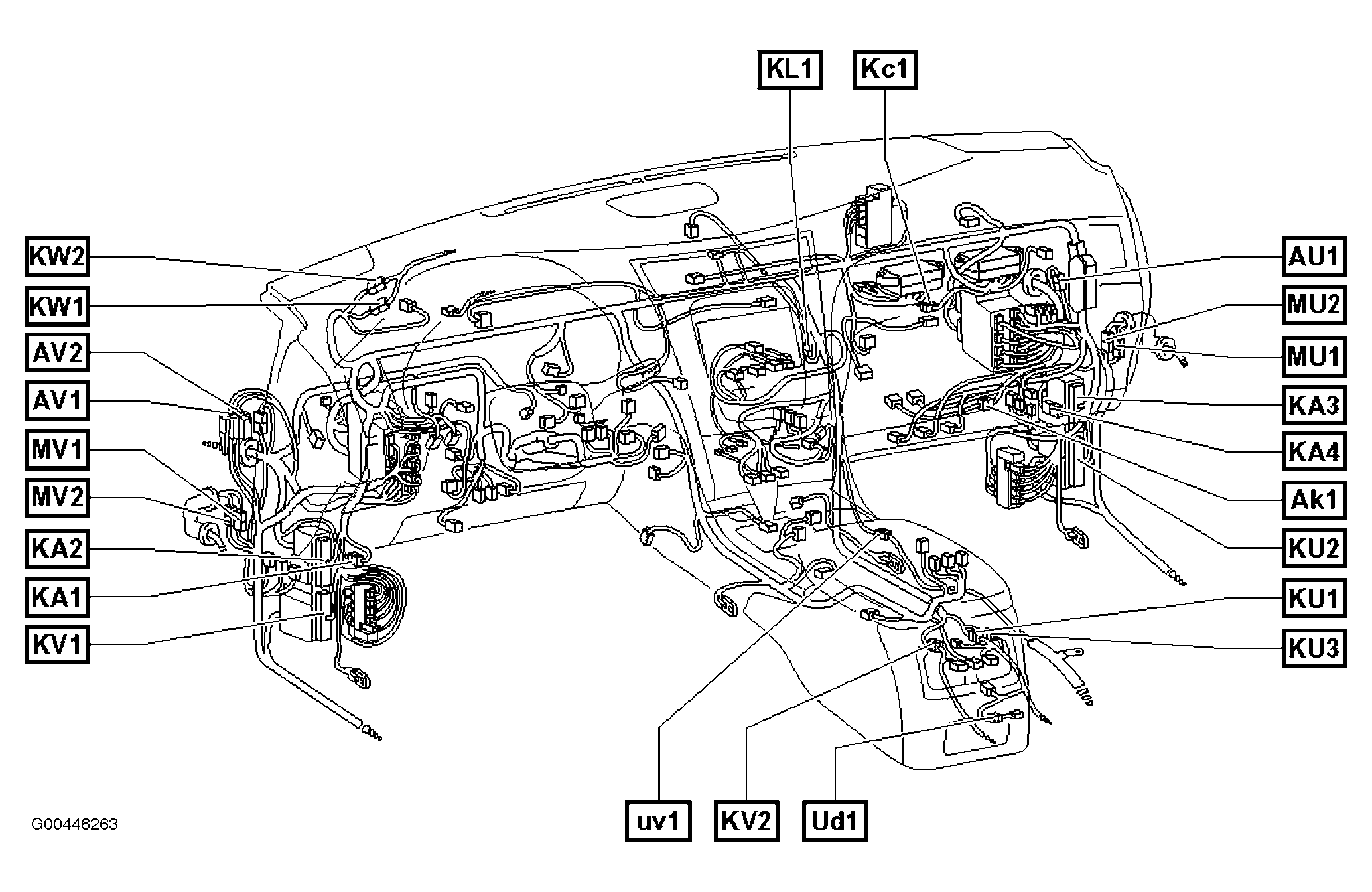

Fig 31: Dash & Center Floor Console

G00446263

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

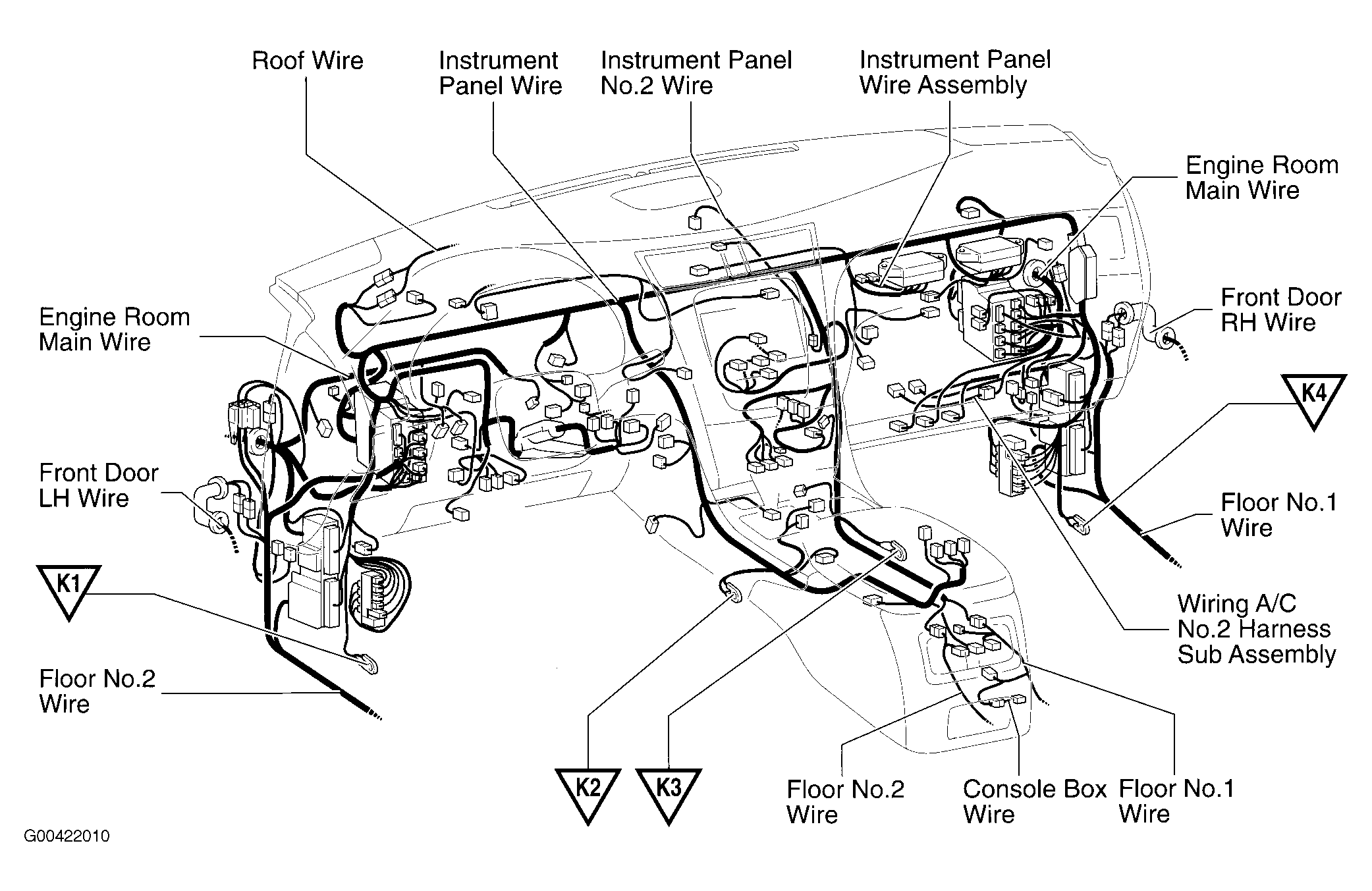

Fig 32: Dash & Center Floor Console

G00422010

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

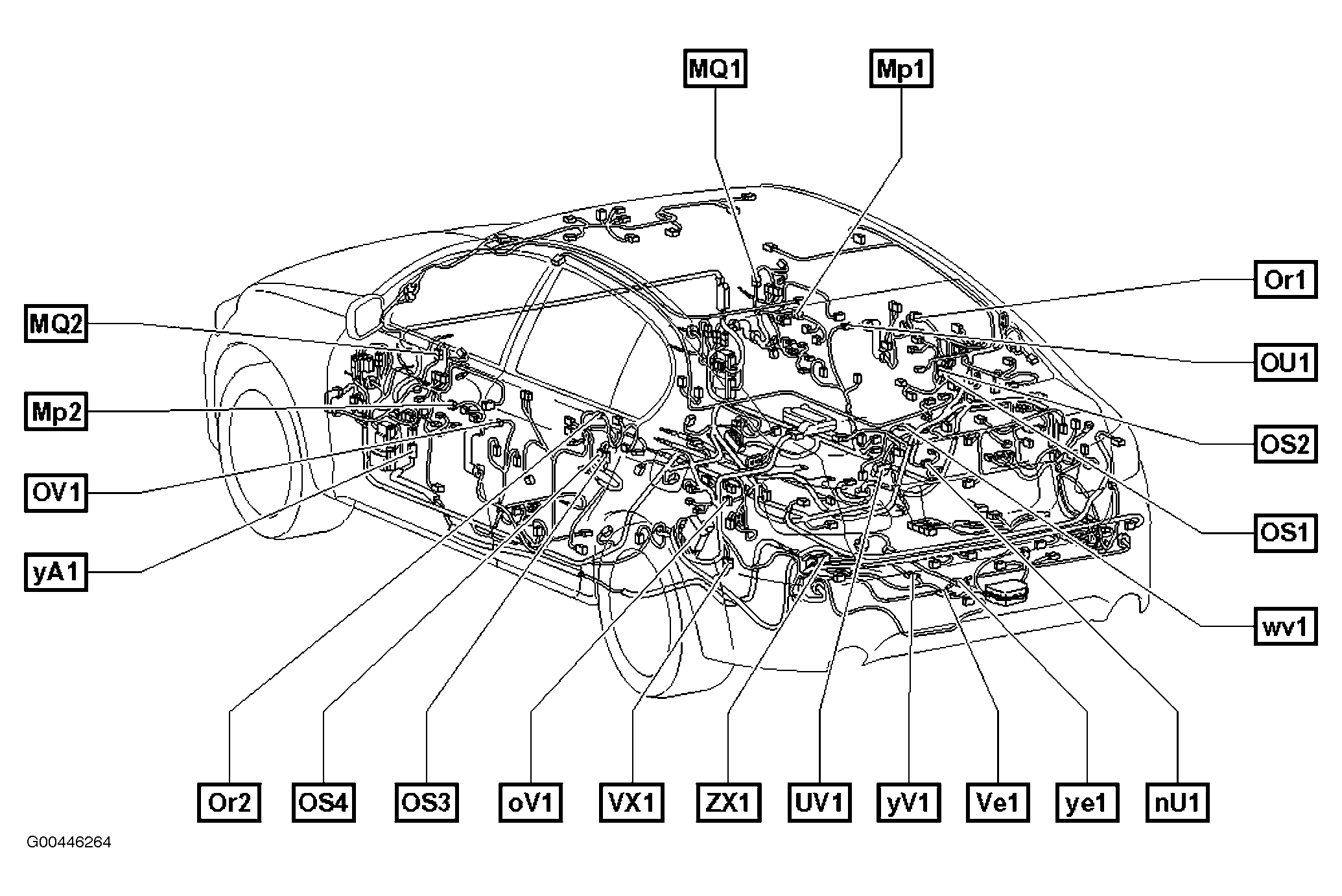

Fig 33: Vehicle Overview

G00446264

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

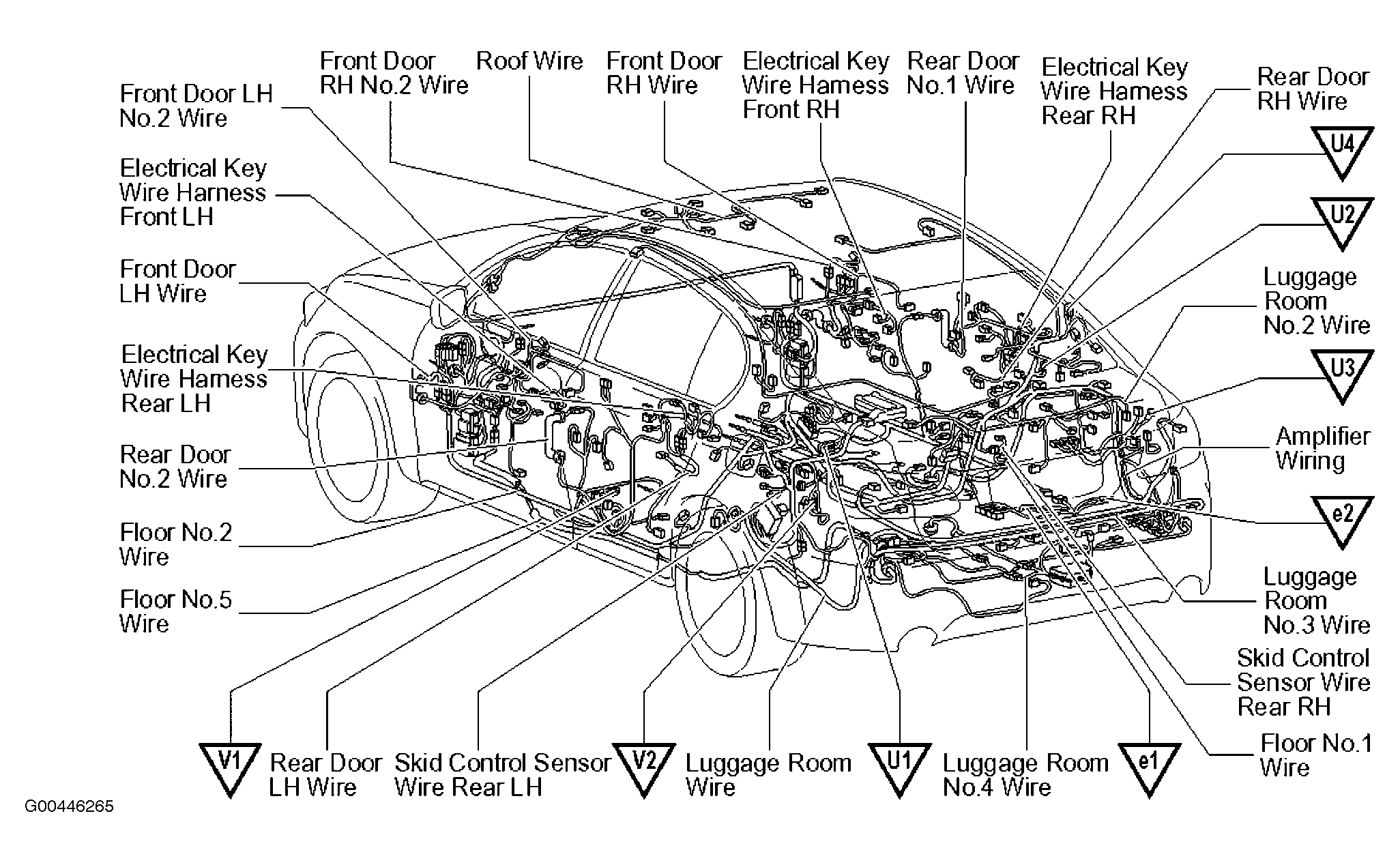

Fig 34: Vehicle Overview

G00446265

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

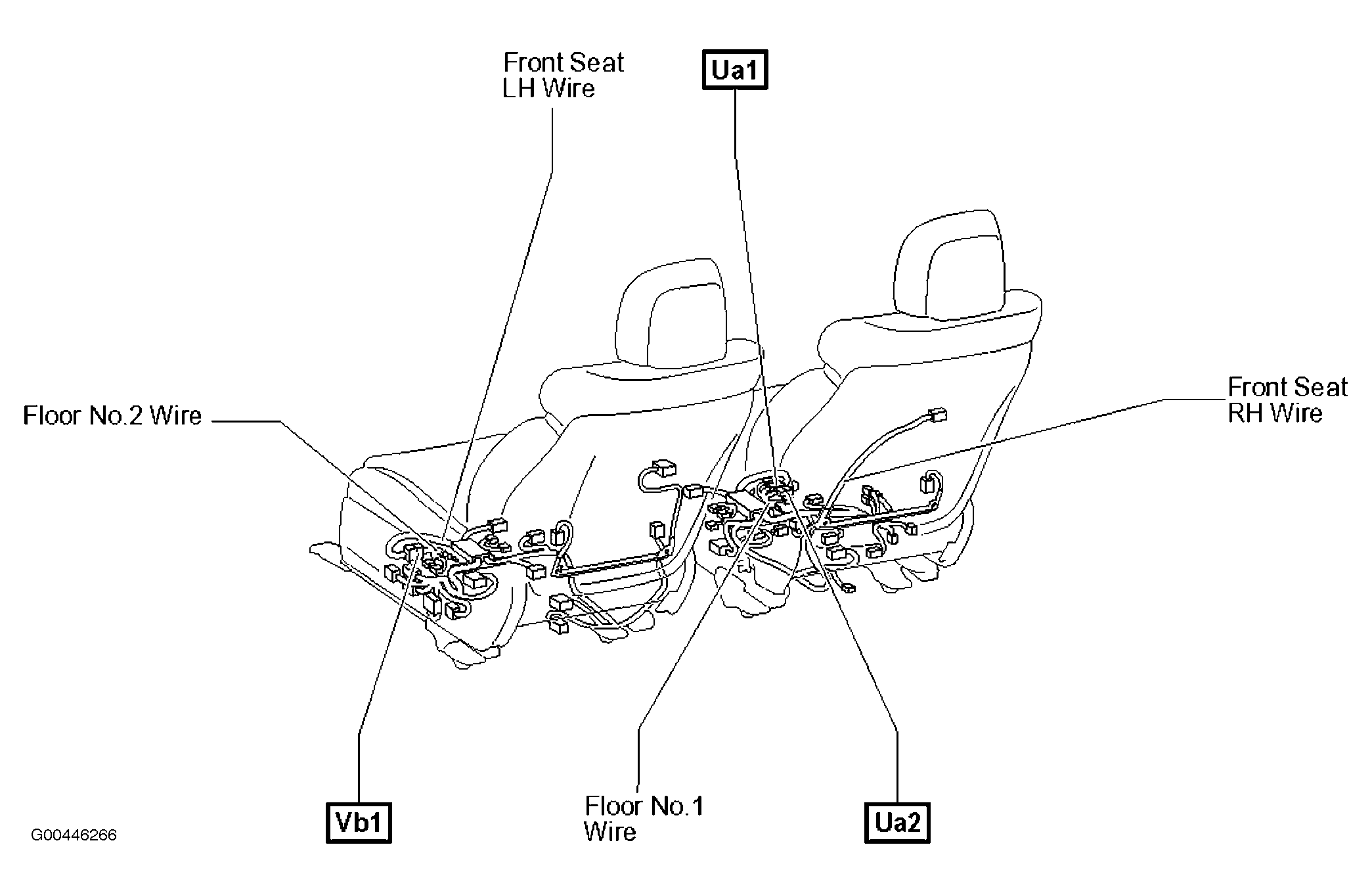

Fig 35: Front Seats

G00446266

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

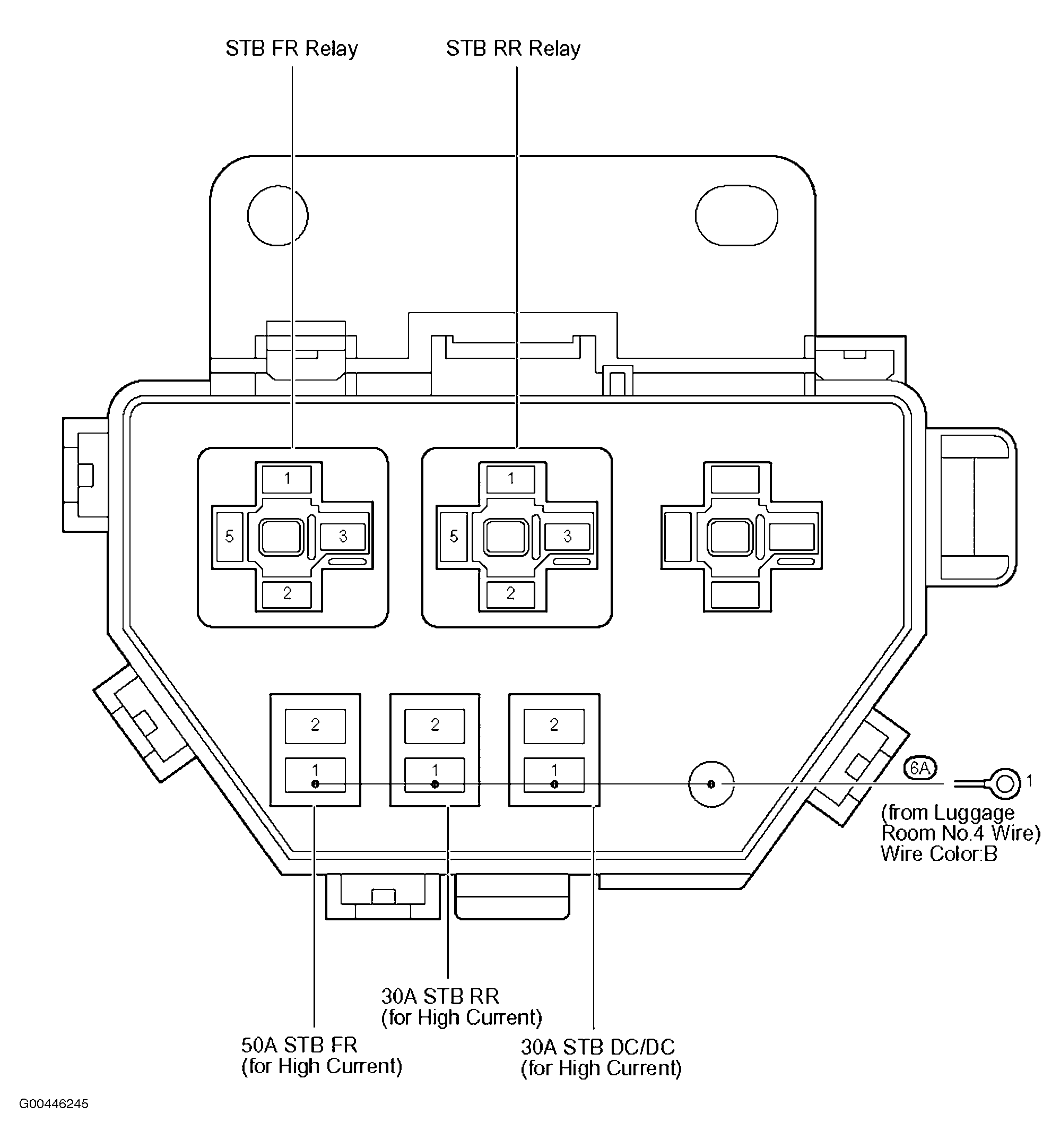

Fig 36: Luggage Room R/B No. 6

G00446245

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
