Engine Control System (3UZ-FE): ECM: Components

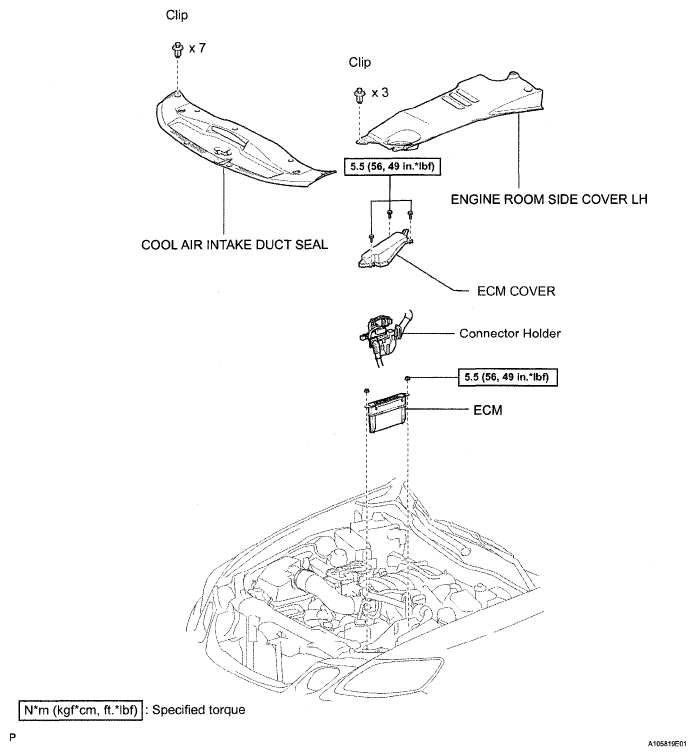

Fig 1: ECM Replacement Components With Torque Specifications
G05285814Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
