MIL Circuit: Wiring Diagram

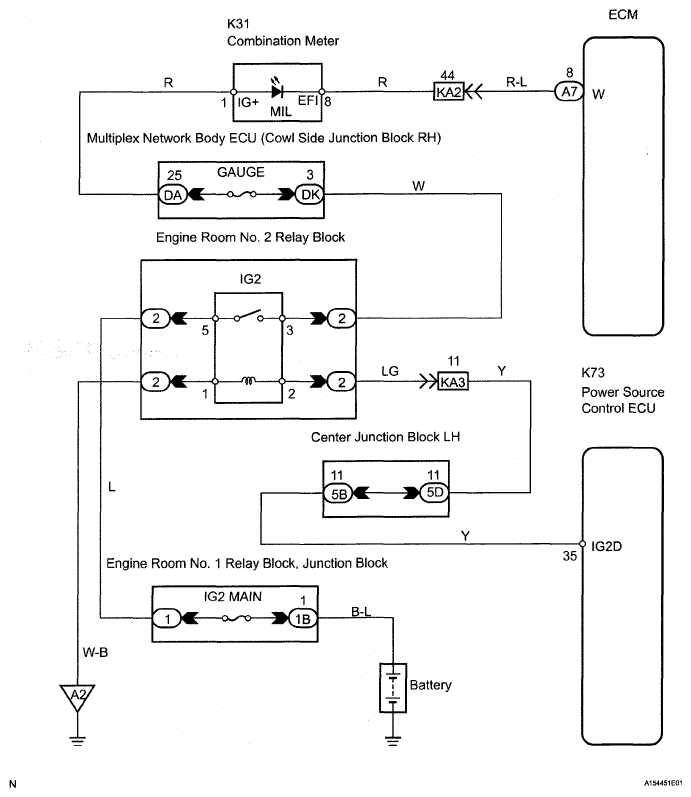

Fig 1: MIL Circuit - Wiring Diagram (1 Of 2)
G05285752Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

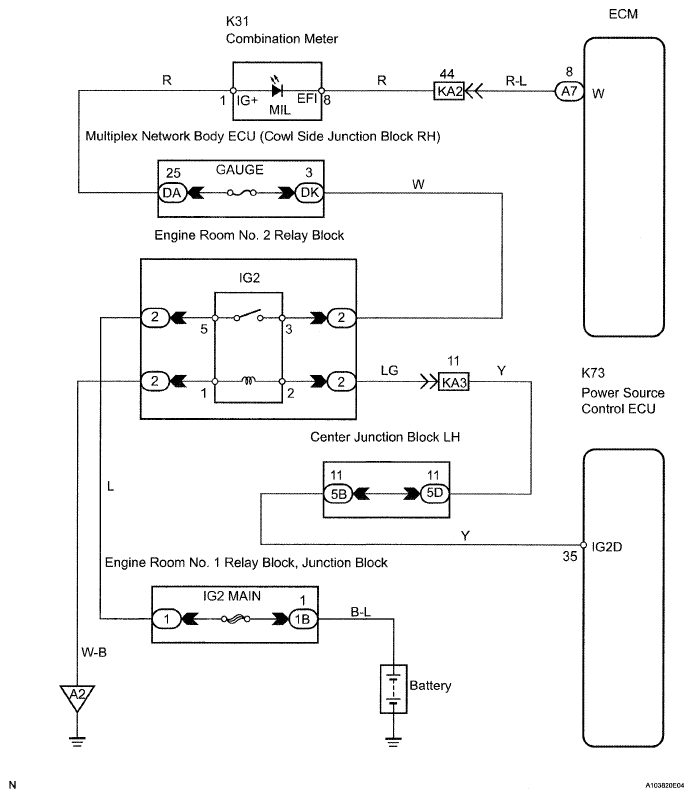

Fig 2: MIL Circuit - Wiring Diagram (2 Of 2)
G05285753Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
