Customize Parameters

HINT:

The following can be customized.

NOTE:
  • When the customer requests a change in a function, first make sure that the function can be customized.
  • Be sure to make a note of the current settings before customizing.
  • When troubleshooting a function, first make sure that the function is set to the default setting.
  1. POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM

    Tilt & Telesco

    TILT & TELESCO

    DISPLAY DEFAULT CONTENTS SETTING
    AUTO AWAY/RETURN FUNCTION ON ON/OFF of the auto away/return function ON/OFF
  2. AIR CONDITIONING SYSTEM

    Air Conditioning System

    AIR CONDITIONING SYSTEM

    DISPLAY (ITEM) DEFAULT CONTENTS SETTING
    SET TEMP SHIFT (Set Temperature Shift) NORMAL To control with the shifted temperature against the display temperature +2 C / +1 C / NORMAL /-1 C / -2 C
    AIR INLET MODE (Air Inlet Mode) AUTO In case of turning the A/C ON when you desire to make the compartment cool down quickly, this is the function to change the mode automatically to RECIRCULATION mode MANUAL/AUTO
    COMPRESSOR MODE (Compressor Mode) AUTO Function to turn the A/C ON automatically by pressing the AUTO button when the blower is ON and the A/C is OFF MANUAL/AUTO
    COMPRS / DEF OPER (Compressor / Air Inlet DEF Operation) LINK Function to turn the A/C ON automatically linked with the FRONT DEF button when A/C OFF MANUAL / LINK
    EVAP CTRL (Evaporator Control) AUTO Function to set the evaporator control to the AUTOMATIC position (AUTO) to save power, or to the coldest position (MANUAL) to dehumidify the air and to prevent the windows from fogging up MANUAL/AUTO
    GAS SENS SHIFT (Emission Gas Sensor Shift) NORMAL Function to change the sensitivity of the exhaust gas sensor MU MORE / MORE / LI MORE / NORMAL / LI LESS / LESS / MU LESS
    BUTTON PRS BUZ (Button press buzzer) ON Function to sound a buzzer when button is pressed OFF / ON
    FOOT / DEF MODE (Foot / DEF auto mode) ON Function to turn the airflow from FOOT / DEF ON automatically when AUTO MODE is ON OFF / ON
    AUTO BLOW UP (Foot / DEF automatic blower up function) ON Function to change the blower level automatically when the defroster is ON OFF / ON
    AMBIENT TMP SFT (Ambient Temperature Shift) NORMAL Function to control the shifted ambient temperature in relation to the displayed ambient temperature +3C / +2 C / +1 C / NORMAL / -1 C / -2 C / -3 C
    FOOT AIR LEAK (Foot air leak) ON Function to cut off the airstream felt underfoot while the vehicle is moving OFF / ON
  3. THEFT DETERRENT SYSTEM

    Theft deterrent system:

    THEFT DETERRENT SYSTEM

    Display (Item) Default Contents Setting
    WARN BY HORN (Warning by horn) ON Function that allows vehicle horns and theft deterrent horn to be used as warning device. ON/OFF
    PASSIVE MODE (Passive arming mode) OFF Passive mode is a function that switches theft deterrent system from arming preparation state to armed state 30 seconds after key is not inside vehicle and driver side door is closed.
    In passive mode, theft deterrent system will judge that a theft is taking place and switch to alarm sounding state if one of the following operations are not performed within 14 seconds (see entry delay below) after door is opened:
    • Unlock any door by key or wireless operation
    • Reconnect battery
    • Turn the engine switch on (IG)
    		 ON/OFF
    ENTRY DELAY (Entry delay time) 14s Function that changes entry delay time (time before warning starts) for PASSIVE MODE 0 s/14 s/ 30 s
  4. LIGHTING SYSTEM

    ILLUMINATED ENTRY

    ILLUMINATED ENTRY

    Display Default Contents Setting
    I/L ON/ACC OFF ON Function to light the interior light when the engine switch is operated from on (IG) to off ON / OFF
    LIGHTING TIME 15s To change the lighting time after closing the door.
    (It will quickly fade out in case of turning the engine switch on (IG))    		 7.5s / 15s / 30s
    LIGHT CONTROL ON Function to light up the step light and door inside handle light when the engine switch is on (IG) and the shift position is not P. ON / OFF
    I/L ON / UNLOCK ON Function to light, the interior light etc. when the door is unlocked with a transmitter, door key or door lock control switch. ON / OFF
    SEAT LIGHT CTRL AVAIL Function to light up the seat light when unlocking with the door key cylinder. NOT AVL / AVAIL
    STEERING LIGHT AVAIL Function to light up the steering light when unlocking with the door key cylinder. NOT AVL/AVAIL
    SHIFT LIGHT CTL AVAIL Function to light up the shift light when unlocking with the door key cylinder. NOT AVL/AVAIL

    HINT:

    Sensitivity adjustment can hardly be confirmed. Check by driving the customer's vehicle.

    LIGHT CONTROL

    LIGHT CONTROL

    Display Default Contents Setting
    LIGHT OFF DELAY 30s Function to keep on lighting the headlight for a certain period of time after closing all the doors with the engine switch turned off from on (IG) to off under the condition that the light control switch is at HEAD or AUTO with the headlight ON. OFF / 30s / 60s / 90s
    SENSITIVITY NORMAL To adjust the sensitivity of the lighting illumination. *1 LIGHT2 / LIGHT1 / NORMAL / DARK1/DARK2
    DISP EX ON SEN NORMAL Changes the brightness when lowering lights such as the combination meter indicator light, A/C indicator light, and clock lamp. Refer to the illustration.*2 LIGHT2 / LIGHT1 / NORMAL / DARK1/DARK2
    DISP EX OFF SEN NORMAL Changes the brightness when lowering lights such as the combination meter indicator light, A/C indicator light, and clock lamp. Refer to the illustration.*3 LIGHT2 / LIGHT1 / NORMAL / DARK1/DARK2
    D/FOOT LIGHT T 15s Function to set how long the foot light stays on (driver's side). OFF / 7.5s / 15s / 30s
    P/FOOT LIGHT T 15s Function to set how long the foot light stays on (passenger's side). OFF /7.5s / 15s / 30s
    FOOT LIGHTS ON Function to light up foot light. ON / OFF

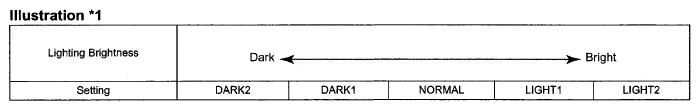

    Illustration *1

    Fig 1: Light Brightness Chart
    G05284432Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

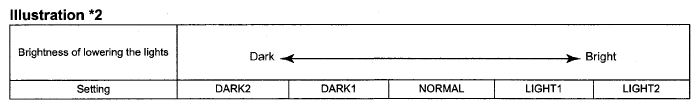

    Illustration *2

    Fig 2: Light Brightness Chart
    G05284433Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

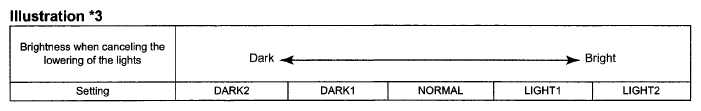

    Illustration *3

    Fig 3: Light Brightness Chart
    G05284434Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. WIPER AND WASHER SYSTEM

    COWL SIDE JUNCTION BLOCK LH ECU

    COWL SIDE JUNCTION BLOCK LH ECU

    Display (Item) Default Contents Setting
    AUTO WIPER (Auto wiper) AVAIL Function to operate the wiper automatically when it is raining NOT AVAIL / AVAIL
    REWPER CONTROL (Rewiper control) SPD MOD Function to change the time between end of wiper motor operation and start of wiper operation to prevent streaking from washer fluid OFF / 3s / SPD MOD
    SPEED MODE (Speed mode) AVAIL Function to change to the intermittent operation when the vehicle comes to a stop from driving condition with the wiper switch in the LO position NOT AVAIL / AVAIL
  6. POWER DOOR LOCK CONTROL SYSTEM

    Power door lock control system

    POWER DOOR LOCK CONTROL SYSTEM

    Display (Item) Default Contents Setting
    UNLOCK/PARK OFF Function that unlocks all doors when lever is shifted to P from any position other than P while the engine switch is on (IG) ON/OFF
    ALL UNLK/OPN-CL OFF Function that unlock all other doors when opening driver door within 10 seconds after turning the engine switch is on (IG) ON/OFF
    UNLK/KEY TWICE ON Function that unlocks only driver side door when driver side door key cylinder is turned to unlock once, and unlock all doors when it is turned to unlock twice. For OFF setting, turning it once unlocks all doors ON/OFF
    AUTO LOCK OFF Function that locks all doors when vehicle speed reaches a certain level ON/OFF
    AUTO LOCK/SHIFT ON Function that locks all doors when lever is shifted to P from any position other than P ON/OFF
  7. WIRELESS DOOR LOCK CONTROL SYSTEM

    Wireless door lock control system

    WIRELESS DOOR LOCK CONTROL SYSTEM

    Display (Item) Default Contents Setting
    HAZARD ANS BACK ON When wireless lock switch on transmitter is pressed, this function illuminates all hazard warning lights once. When unlock switch is pressed, all hazard warning lights illuminate twice ON / OFF
    WIRELESS OPER ON ON /OFF of the wireless door lock function ON / OFF
    OPEN DOOR WARN ON If door is not completely closed and transmitter LOCK switch is pressed, this function makes buzzer sound for 10 seconds ON/OFF
    TRUNK LID OPER 0.8 s PR This function changes transmitter operation method for opening luggage compartment door 1 time / 2 times/ 0.8 s PR / OFF
    PANIC FUNCTION ON Function to operate theft deterrent system by continuously pressing panic switch on transmitter for 2.5 seconds. ON / OFF
    UNLOCK/2 OPER All door Pressing UNLOCK switch unlocks all doors. If setting is D door, pressing UNLOCK switch once unlocks driver side door All doors / D door
    AUTO LOCK DELAY 60s To change time until relocking after unlocking with wireless door lock function 30 s / 60 s / 120 s / OFF
    WIRLS BUZZ RESP ON ON / OFF on wireless buzzer response function ON / OFF
  8. SMART ACCESS SYSTEM WITH PUSH-BUTTON START (FOR DOOR LOCK)

    Smart access system with push-button start

    SMART ACCESS SYSTEM WITH PUSH-BUTTON START

    Display (Item) Default Contents Setting
    PARK WAIT TIME (Waiting time to permit opening door after locking) 3.0s Function that sets waiting time to permit opening door after door is locked with entry lock function 1.0s / 2.0s / 3.0s / 5.5s
    TRUNK OPEN MODE (Luggage compartment door open mode when vehicle is locked) ON Function to permit opening luggage compartment door ON / OFF
    KEY LO-BATT WRN (Warn when key battery becomes weak) ON Function that warns driver that key's battery power is low ON / OFF
    DOOR UNLOCK MODE (Entry door unlock mode) All Function that makes entry unlock operation available All / EACH/D-DOOR/SIDE
  9. METER / GAUGE SYSTEM

    WIRING BUZZER

    WIRING BUZZER

    DISPLAY (ITEM) DEFAULT CONTENTS SETTING
    KEY REMND VOLUM LARGE To change the volume of the key reminder buzzer LARGE / MEDIUM / SMALL
    KEY REMND SOUND NORMAL To change the frequency of the key reminder buzzer NORMAL / FAST / SLOW / OS
  10. INTUITIVE PARKING ASSIST SYSTEM

    Warning

    WARNING

    DISPLAY (ITEM) DEFAULT CONTENTS SETTING
    FR BUZ RANGE (Front buzzer onset range) WIDE Function to set front buzzer activation range NARROW/WIDE
    RR BUZ RANGE (Rear buzzer onset range) WIDE Function to set rear buzzer activation range NARROW / WIDE
    KEEP SENSE BUZ (Keep sense status buzzer) ON Function to make buzzer sound when distance between vehicle and obstacle does not change for more than 3 seconds ON / OFF
    F & R BUZZER VOLM (Front & rear buzzer volume) M2 Function to change volume of buzzer L / M1 / M2 / M3 / H

    Sensor

    SENSOR

    DISPLAY (ITEM) DEFAULT CONTENTS SETTING
    SENSOR COND / N (Sensor condition N range) OFF Function to make sensors available when shift position is N OFF / ON
    SONAR MODE (Sonar mode) STEER Function to change sonar mode NORMAL / STEER

    Display

    DISPLAY

    DISPLAY (ITEM) DEFAULT CONTENTS SETTING
    DISPLAY MODE (Display mode) GUIDE Function to change display mode ALL/GUIDE/UNDISP
  11. POWER WINDOW CONTROL SYSTEM

    POWER WINDOW CONTROL SYSTEM

    POWER WINDOW CONTROL SYSTEM

    Display (Item) Default Contents Setting
    UP/DOOR KEY AVAIL Function that raises all power windows when, with engine switch off, key is used to hold driver door key cylinder to lock position for more than 1.5 seconds AVAIL/NOT AVL
    DOWN/DOOR KEY AVAIL Function that lowers all power windows when, with engine switch off, key is used to hold driver door key cylinder to unlock position for more than 1.5 seconds AVAIL/NOT AVL
    DOWN/WIRELESS AVAIL Function that lowers all power windows when, with engine switch off, lock switch on key is pressed and hold for more than 1.5 seconds AVAIL/NOTAVL
  12. REAR SUNSHADE SYSTEM

    Rear sunshade system

    REAR SUNSHADE SYSTEM

    System Contents Default Selection
    Automatic Transmission Reverse Signal Response Time Function to adjust reverse-linked sunshade lowering function's response time 0.7 sec. 0/0.7/0.9/1.2
  13. SLIDING ROOF SYSTEM

    Sliding roof ECU

    SLIDING ROOF ECU

    Display (Item) Default Contents Setting
    OPEN/DOOR KEY (Door key related OPEN) ON Function to manually open sliding roof linked with power window if holding driver side door key for 1.5 seconds or more to unlock position when engine switch is off ON / OFF
    CLOSE/DOOR KEY (Door key related CLOSE) ON Function to manually close sliding roof linked with power window if holding driver side door key for 1.5 seconds or more to lock position when engine switch is off ON / OFF
    OPEN/WIRELESS (Wireless key related OPEN) ON Function to manually open sliding roof linked with power window if pressing transmitter UNLOCK switch for 1.5 seconds or more when engine switch is off ON / OFF
    DOOR KEY OPER (Door key related operation) SLIDE Function to select tilt up or slide open of manual sliding roof operation linked with power window
    Activate by holding driver side door key for 1.5 seconds or more to unlock position when engine switch is off    		 TILT / SLIDE
    WIRELESS OPER (Wireless key related operation) SLIDE Function to select tilt up or slide open of manual sliding roof operation linked with power window Activate by pressing on transmitter UNLOCK switch for 1.5 seconds or more when engine switch is off TILT / SLIDE
