Automatic Transmission Unit: Components

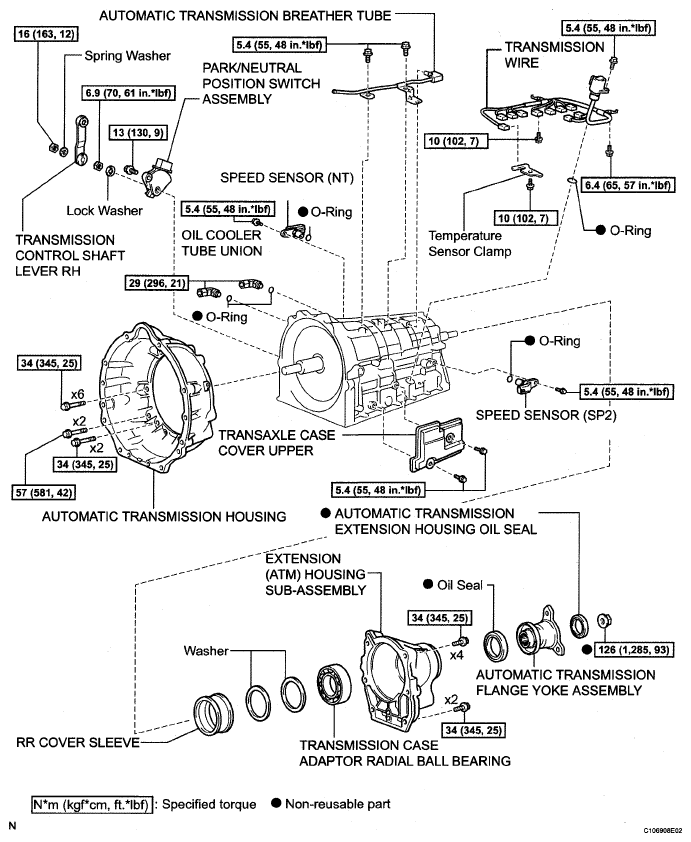

Fig 1: Automatic Transmission Unit Components With Torque Specifications (1 Of 5)
G05295466Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

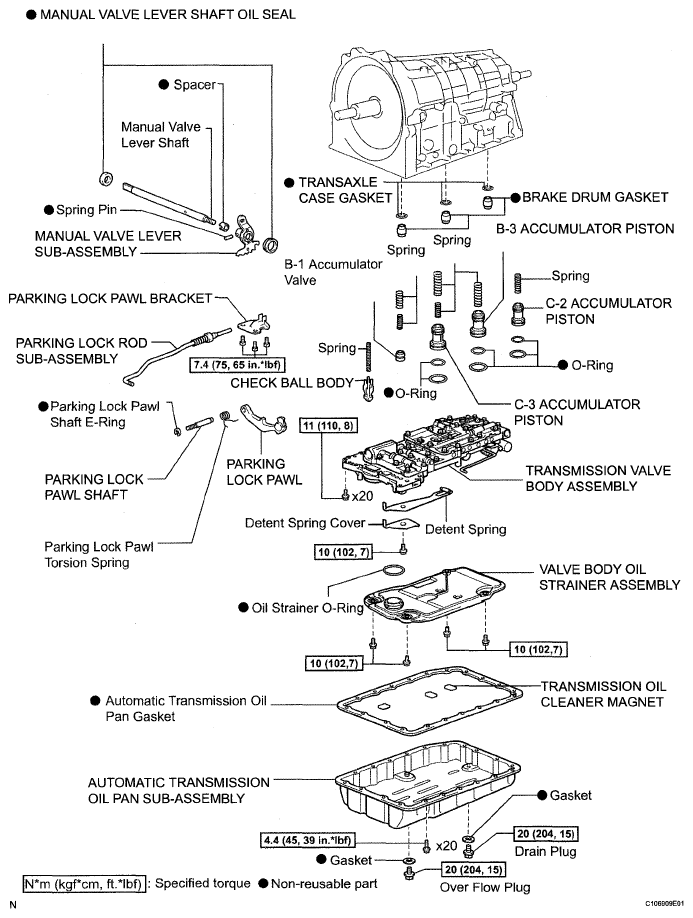

Fig 2: Automatic Transmission Unit Components With Torque Specifications (2 Of 5)
G05295467Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

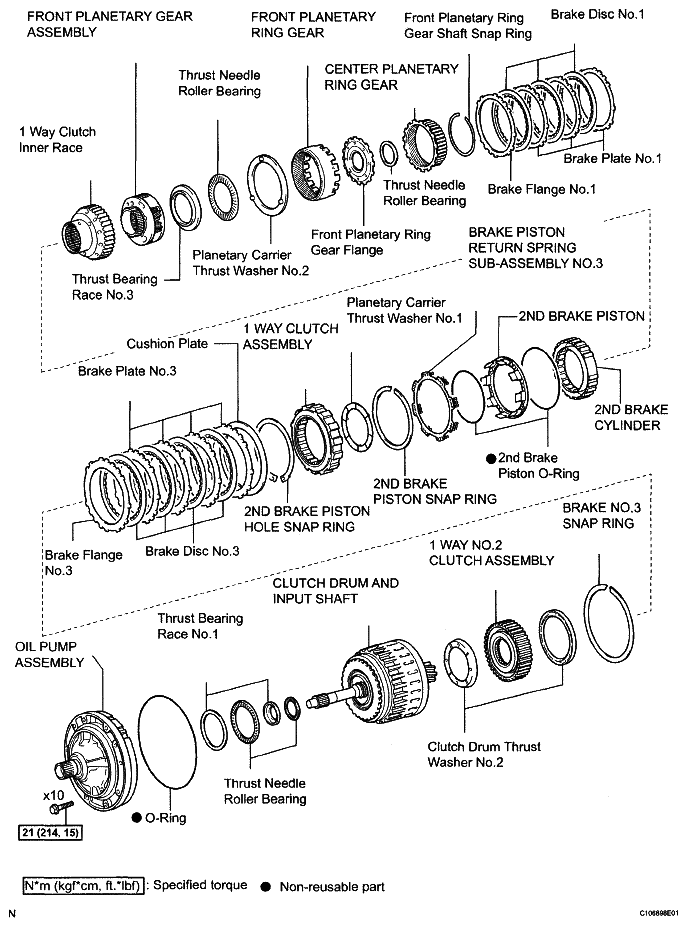

Fig 3: Automatic Transmission Unit Components With Torque Specification (3 Of 5)
G05294870Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

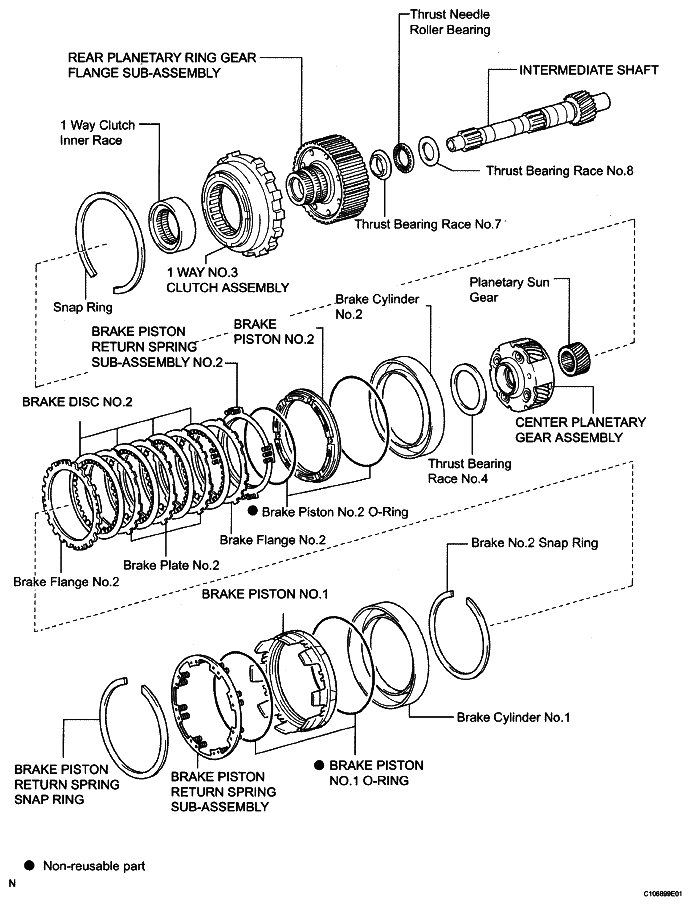

Fig 4: Identifying Automatic Transmission Unit Components (4 Of 5)
G05294871Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

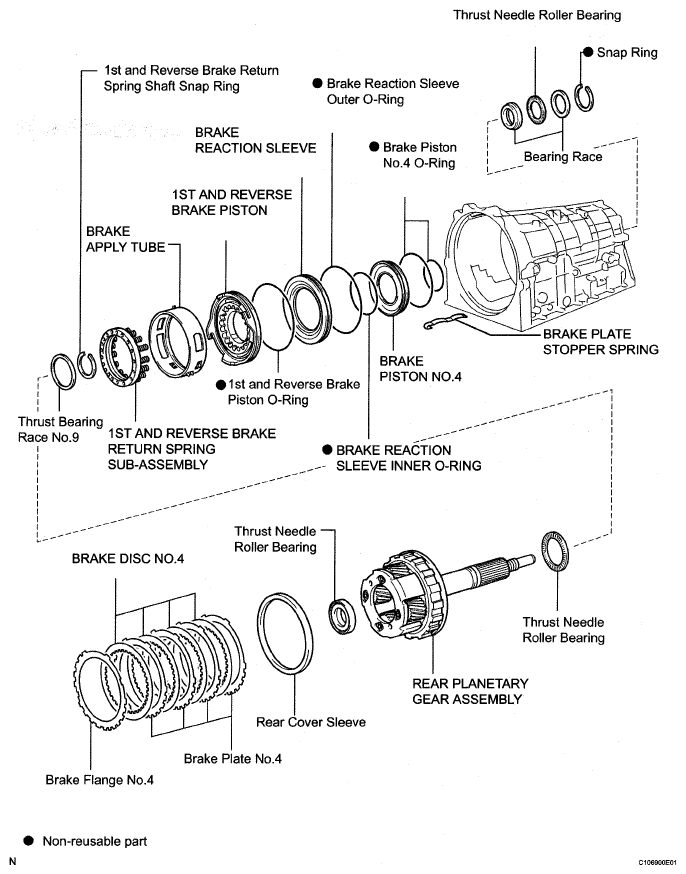

Fig 5: Identifying Automatic Transmission Unit Components (5 Of 5)
G05295470Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
