Injector Driver: Components

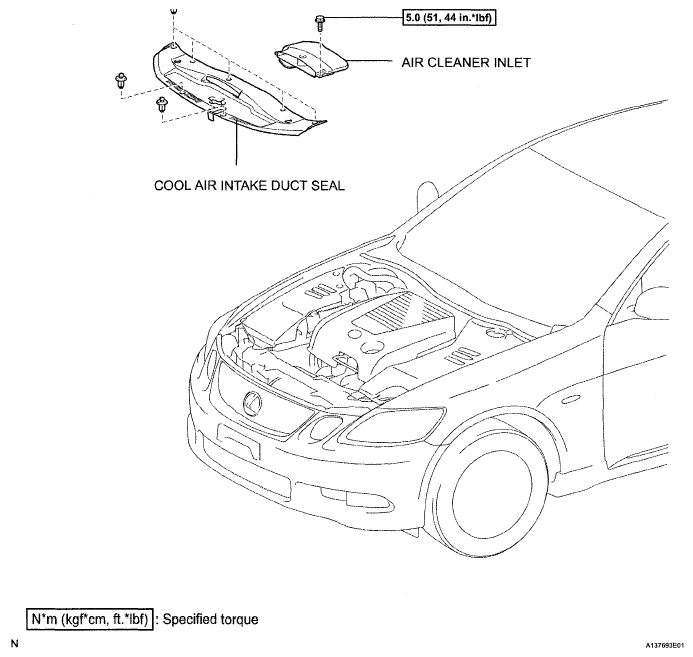

Fig 1: Injector Driver Replacement Components With Torque Specifications (1 Of 2)
G05303217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

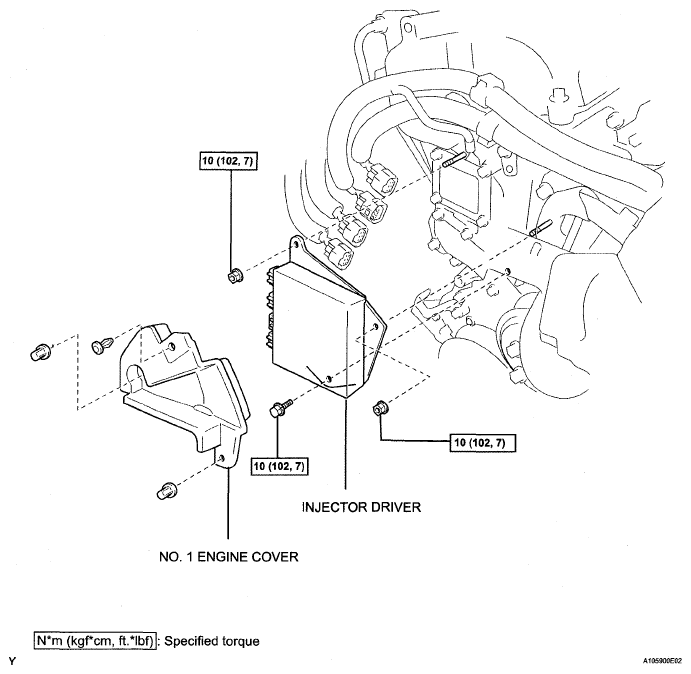

Fig 2: Injector Driver Replacement Components With Torque Specifications (2 Of 2)
G05303218Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
