Inspection Procedure

HINT:

Check which power window cannot be operated, and then proceed with the troubleshooting for the applicable power window as shown in the table below.

POWER WINDOW POSITION REFERENCE TABLE

Position	Go To Step
Passenger side	1
Rear LH	5
Rear RH	9
All	13

CHECK MANUAL UP/DOWN FUNCTION (PASSENGER SIDE)
1. Check that the door glass can be operated by the power window switch.
NG: OTHER PROBLEM

OK: Go to next step

INSPECT POWER WINDOW REGULATOR MASTER SWITCH

Using the intelligent tester, check operation of the master switch using the DATA LIST.
Standard:

DATA LIST in D-DOOR ECU

DATA LIST IN D-DOOR ECU

Measurement Item	Label	Parameter
Passenger switch on master switch	P P/W AUTO SW	ON/OFF

NG: REPLACE POWER WINDOW REGULATOR MASTER SWITCH

CHECK WIRE HARNESS (FOR POWER WINDOW SWITCH)

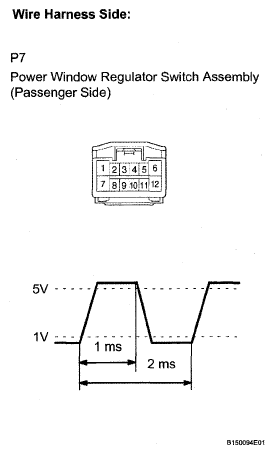

Fig 1: Identifying Power Window Regulator Switch Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Disconnect the P7 power window switch connector.
2. Turn the ignition switch ON.
3. Using an oscilloscope, check the waveform of terminal 2 of the wire harness side connector when operating the passenger side switch of the power window master switch.
  Standard:

  The waveform is as shown.
NG: REPLACE POWER WINDOW REGULATOR SWITCH (REAR LH)

OK: Go to next step

CHECK WIRE HARNESS (POWER WINDOW SWITCH - BODY ECU)

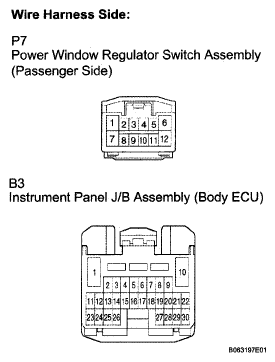

Fig 2: Identifying Power Window Regulator Switch & Instrument Panel J/B Assembly Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Disconnect the B3 body ECU connector from the instrument panel J/B assembly.
Check the continuity between the terminals of the wire harness side connectors.
Standard resistance

RESISTANCE SPECIFICATION

Terminal No.	Specified Condition
P7-2 - B3-11	Below 1 Ω
P7-2 - Body ground	No continuity

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: CHECK AND REPLACE INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY (BODY ECU)

CHECK MANUAL UP/DOWN FUNCTION (REAR LH)
1. Check that the power window can be operated by the power window switch.
  NG: OTHER PROBLEM

  OK: Go to next step

INSPECT POWER WINDOW REGULATOR MASTER SWITCH

Using the intelligent tester, check operation of the master switch using the data list.
Standard:

DATA LIST in D-DOOR ECU

DATA LIST IN D-DOOR ECU

Measurement Item	Label	Parameter
Rear LH switch on master switch	RL P/W AUTO SW	ON/OFF

NG: REPLACE POWER WINDOW REGULATOR MASTER SWITCH

OK: Go to next step

CHECK WIRE HARNESS (FOR POWER WINDOW SWITCH)

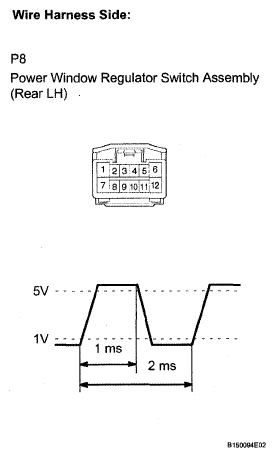

Fig 3: Identifying Power Window Regulator Switch Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Disconnect the P8 power window switch connector.
2. Turn the ignition switch ON.
3. Using an oscilloscope, check the waveform of terminal 2 of the wire harness side connector when operating the rear LH switch of the master switch.
  Standard:

  The waveform is as shown.

  OK: REPLACE POWER WINDOW REGULATOR SWITCH (REAR LH)

  NG: Go to next step

CHECK WIRE HARNESS (POWER WINDOW SWITCH - BODY ECU)

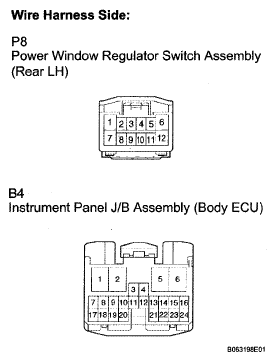

Fig 4: Identifying Power Window Regulator Switch & Instrument Panel J/B Assembly Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Disconnect the B4 body ECU connector from the instrument panel J/B assembly.
Check the continuity between the terminals of the wire harness side connectors.
Standard resistance

RESISTANCE SPECIFICATION

Terminal No.	Specified Condition
P8-2 - B4-14	Below 1 Ω
P8-2 - Body ground	No continuity

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: CHECK AND REPLACE INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY (BODY ECU)

CHECK MANUAL UP/DOWN FUNCTION (REAR LH)
1. Check that the power window can be operated by the power window switch.
  NG: OTHER PROBLEM

  OK: Go to next step

INSPECT POWER WINDOW REGULATOR MASTER SWITCH

Using the intelligent tester, check operation of the master switch using the data list.

Standard:

DATA LIST in D-DOOR ECU

DATA LIST IN D-DOOR ECU

Measurement Item	Label	Parameter
Rear RH switch on master switch	RR P/W AUTO SW	ON/OFF

NG: REPLACE POWER WINDOW REGULATOR MASTER SWITCH

CHECK WIRE HARNESS (FOR POWER WINDOW SWITCH)

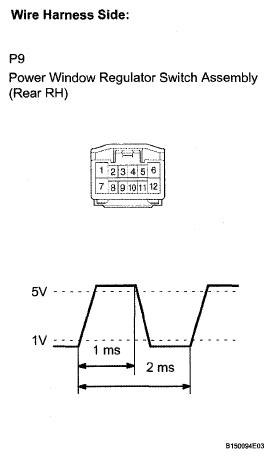

Fig 5: Identifying Power Window Regulator Switch Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Disconnect the P9 power window switch connector.
2. Turn the ignition switch ON.
3. Using an oscilloscope, check the waveform of terminal 2 of the wire harness side connector when operating the rear RH switch of the master switch.
  Standard:

  The waveform is as shown.
OK: REPLACE POWER WINDOW REGULATOR SWITCH (REAR RH)

NG: Go to next step

CHECK WIRE HARNESS (POWER WINDOW SWITCH - BODY ECU)

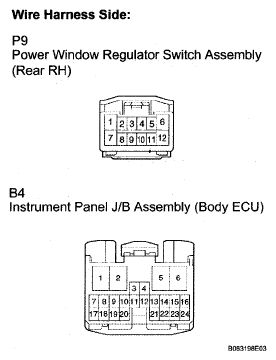

Fig 6: Identifying Power Window Regulator Switch & Instrument Panel J/B Assembly Connector Terminals

Disconnect the B4 body ECU connector from the instrument panel J/B assembly.
Check the continuity between the terminals of the wire harness side connectors.
Standard resistance

RESISTANCE SPECIFICATION

Terminal No.	Specified Condition
P9-2 - B4-16	Below 1 Ω
P9-2 - Body ground	No continuity

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: CHECK AND REPLACE INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY (BODY ECU)

CHECK POWER WINDOW LOCK SWITCH
1. Turn the window lock switch OFF and check that the remote function operates.
OK: END

NG: Go to next step

INSPECT POWER WINDOW REGULATOR MASTER SWITCH (FOR WINDOW LOCK SWITCH)

Fig 7: Identifying Power Window Regulator Master Switch Connector Terminals

Remove the master switch (the connector is connected).
Turn the ignition switch ON.
Check the voltage between terminal 6 and the body ground when operating the window lock switch on the master switch.
Standard voltage

VOLTAGE SPECIFICATION

Terminal No.	Window Lock Switch	Specified Condition
6 - Body ground	ON	5 V
6 - Body ground	OFF	Less than 1 V

NG: REPLACE POWER WINDOW REGULATOR MASTER SWITCH

OK: REPAIR OR REPLACE HARNESS OR CONNECTOR (WINDOW REGULATOR MASTER SWITCH-EACH SWITCH)
