Quarter Window Glass: Components

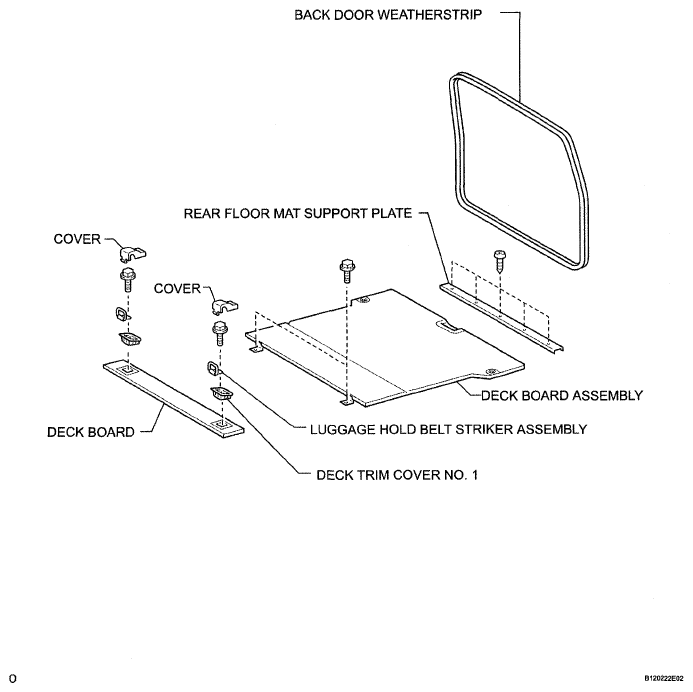

Fig 1: Identifying Quarter Window Glass Replacement Components
G04967174Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

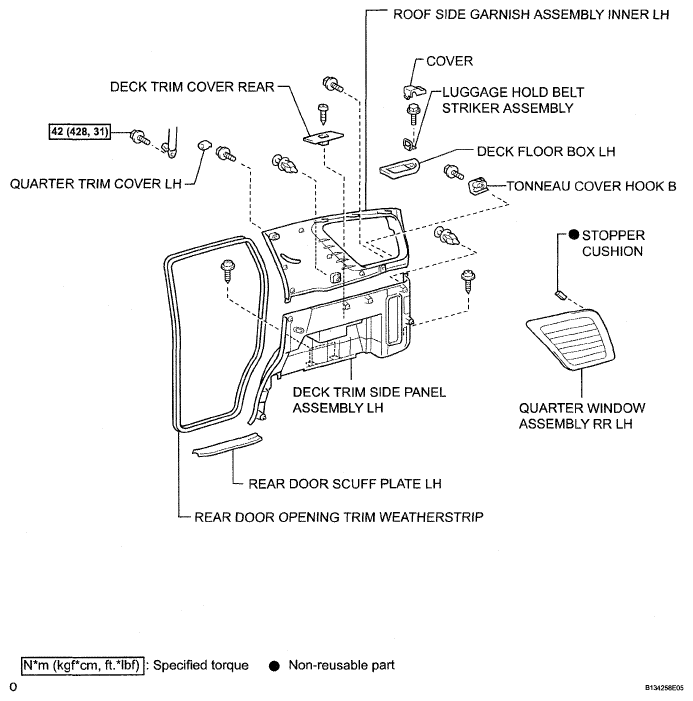

Fig 2: Quarter Window Glass Replacement Components With Torque Specifications
G05266820Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
