System Diagram

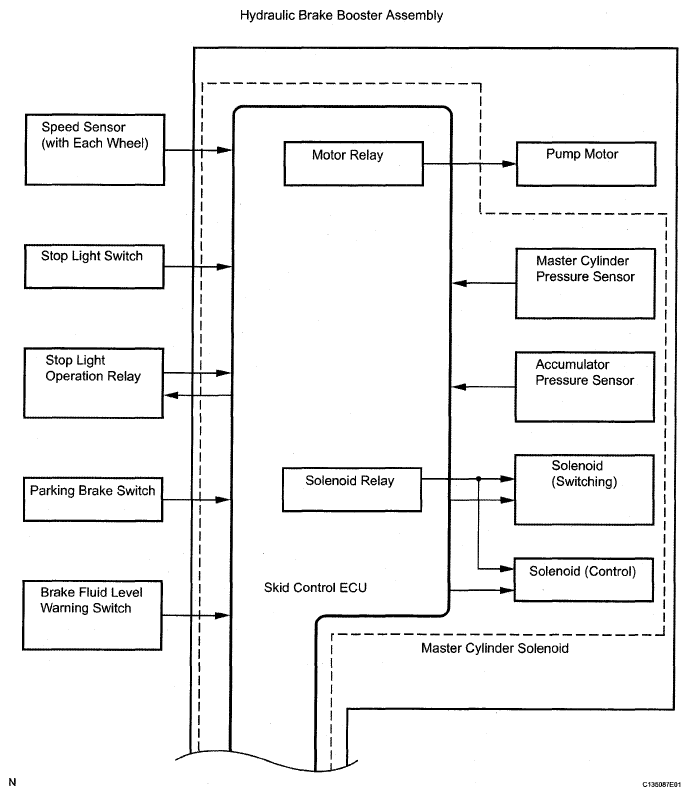

Fig 1: Identifying Vehicle Stability Control System Diagram (1 Of 2)
G05262632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

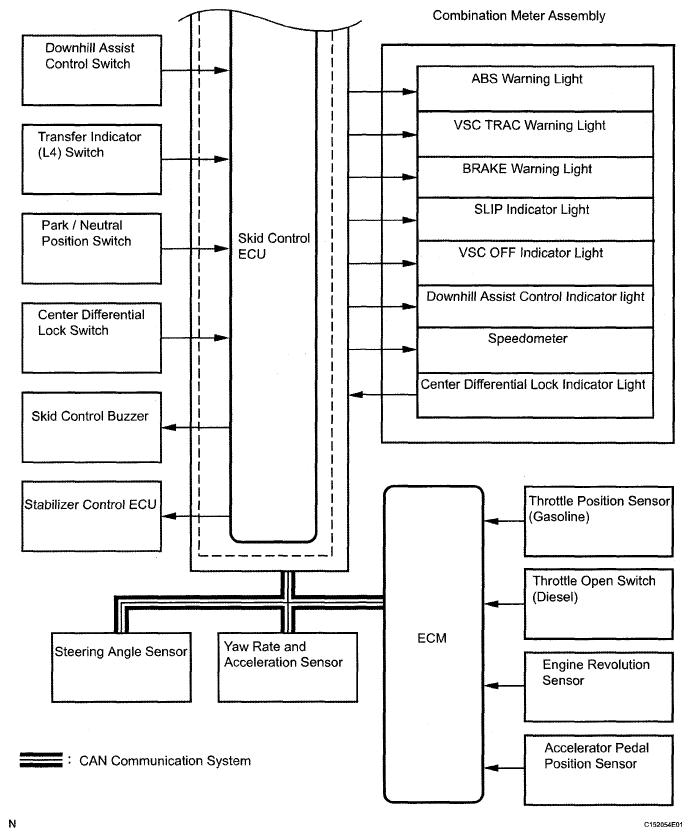

Fig 2: Identifying Vehicle Stability Control System Diagram (2 Of 2)
G05262633Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ECU SIGNALS REFERENCE TABLE

Transmitting ECU (Transmitter) Receiving ECU Signals Communication Method
ECM Skid control ECU Throttle position signal CAN communication system
ECM Skid control ECU Engine revolution signal CAN communication system
ECM Skid control ECU Accelerator pedal position signal CAN communication system
Skid control ECU ECM Yaw rate and acceleration signal CAN communication system
Skid control ECU ECM Steering angle signal CAN communication system
Skid control ECU ECM Engine torque request signal CAN communication system
