Yaw Rate And Acceleration Sensor: Components

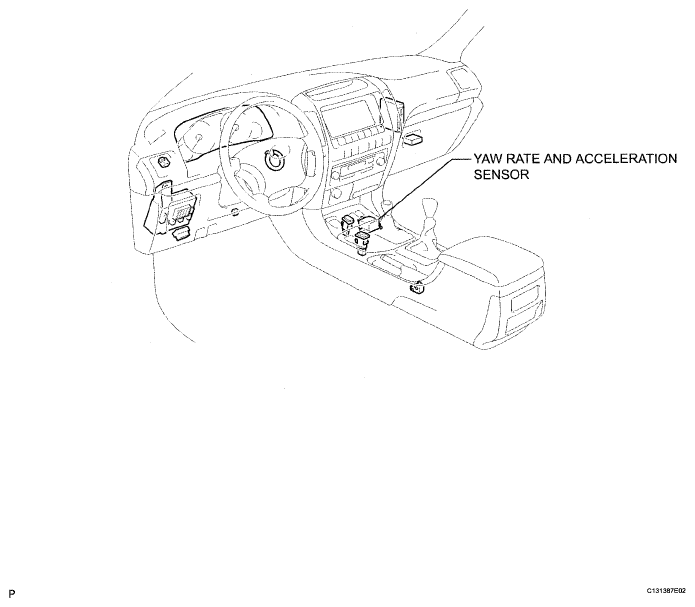

Fig 1: Identifying Yaw Rate & Acceleration Sensor Replacement Components (1 Of 2)
G05262822Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

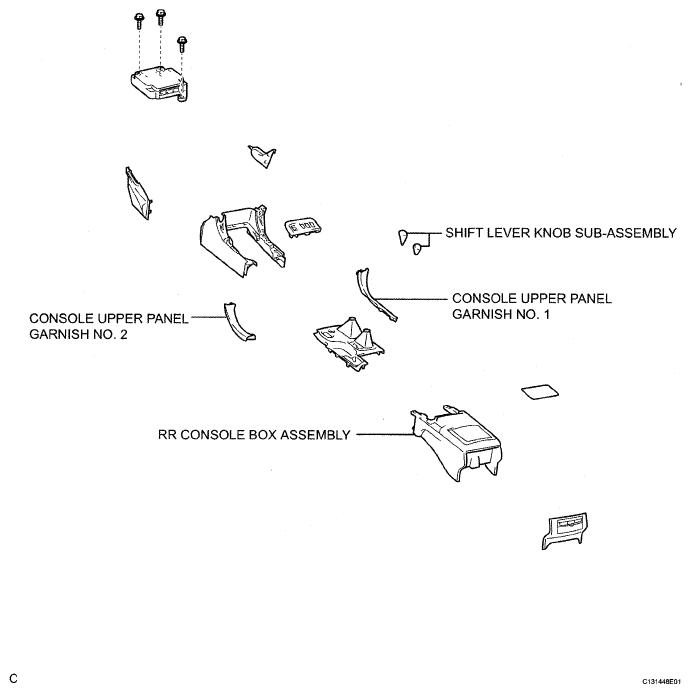

Fig 2: Identifying Yaw Rate & Acceleration Sensor Replacement Components (2 Of 2)
G05262823Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
