Fuel Tank: Components

Fig 1: Fuel Tank Replacement Components With Torque Specifications (1 Of 2)
G05264893Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

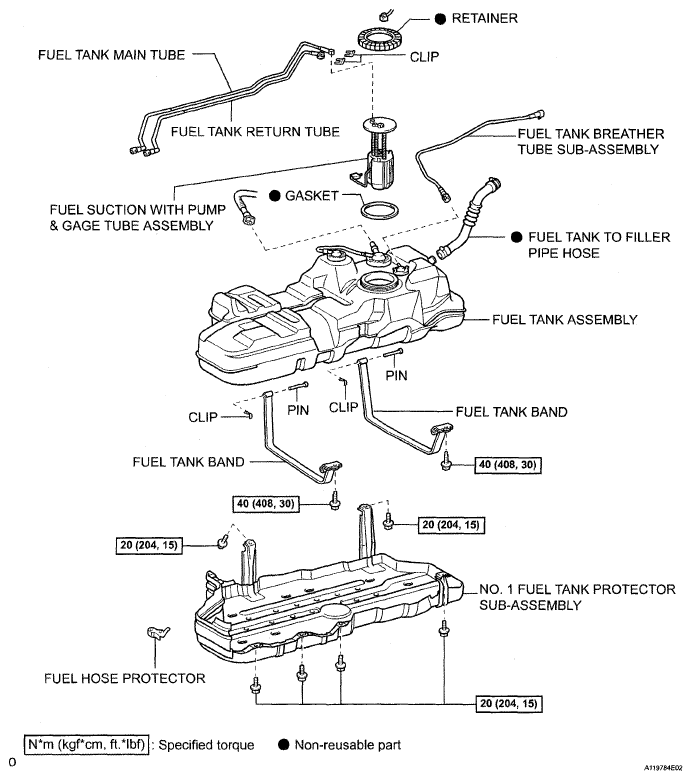

Fig 2: Fuel Tank Replacement Components With Torque Specifications (2 Of 2)
G05264894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
