Repair Instruction: Precaution

1. HINTS ON OPERATIONS
   Fig 1: Identifying Precaution - Hints On Operations

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

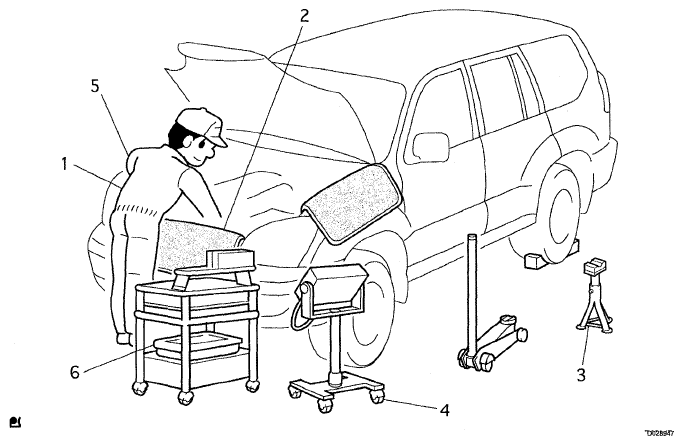

   VEHICLE PROTECTION DESCRIPTION TABLE



   1	Attire	Always wear a clean uniform. Hat and safety shoes must be worn.
   2	Vehicle protection	Prepare a grille cover, fender cover, seat cover and floor mat before starting the operation.
   3	Safety operation	When working with 2 or more persons, be sure to check safety for one another. When working with the engine running, make sure to provide ventilation for exhaust fumes in the workshop. If working on high temperature, high pressure, rotating, moving, or vibrating parts, wear appropriate safety equipment and take extra care not to injure yourself or others. When jacking up the vehicle, be sure to support the specified location with a safety stand. When lifting up the vehicle, use appropriate safety equipment.
   4	Preparation of tools and measuring gauge	Before starting operation, prepare a tool stand, SST, gauge, oil and parts for replacement.
   5	Removal and installation, disassembly and assembly operations	Diagnose with a thorough understanding of proper procedures and of the reported problem. Before removing the parts, check the general condition of the assembly and for deformation and damage. When the assembly is complicated, take notes. For example, note the total number of electrical connections, bolts, or hoses removed. Add matchmarks to insure reassembly of components in the original positions. Temporarily mark hoses and their fittings if needed. Clean and wash the removed parts if necessary and assemble them after a thorough check.
   6	Removed parts	Place the removed parts in a separate box to avoid mixing them up with the new parts or contaminating the new parts. For non-reusabale parts such as gaskets, O-rings, and self-locking nuts, replace them with new ones as instructed in this article. Retain the removed parts for customer inspection, if requested.

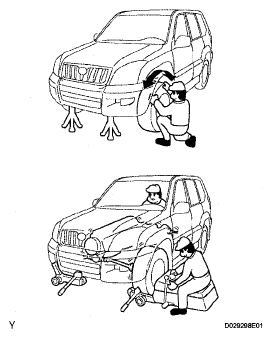

2. JACKING UP AND SUPPORTING VEHICLE
   1. Care must be taken when jacking up and supporting the vehicle. Be sure to lift and support the vehicle at the proper locations.
3. PRECOATED PARTS
   1. Precoated parts are bolts and nuts that are coated with a seal lock adhesive at the factory.
   2. If a precoated part is retightened, loosened or moved in any way, it must be recoated with the specified adhesive.
   3. When reusing a precoated part, clean off the old adhesive and dry the part with compressed air. Then apply new seal lock adhesive appropriate to that part.
      Fig 2: Identifying Seal Lock Adhesive On Bolts

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   4. Some seal lock agents harden slowly. You may have to wait for the seal lock adhesive to harden.
4. GASKETS
   1. When necessary, use a sealer on gaskets to prevent leaks.
5. BOLTS, NUTS AND SCREWS
   1. Carefully follow all the specifications for tightening torques. Always use a torque wrench.
6. FUSES
   1. When inspecting a fuse, check that the wire of the fuse is not broken.
   2. When replacing fuses, be sure that the new fuse has the correct amperage rating. Do not exceed the rating or use one with a lower rating.
   Fig 3: Identifying Fuses Correct & Incorrect Condition

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

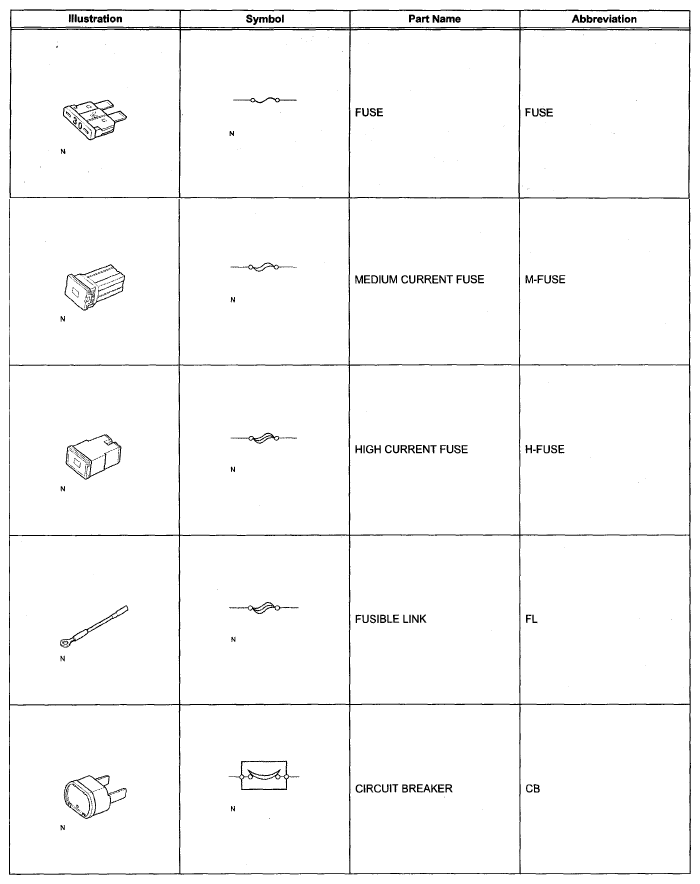

   Fig 4: Identifying Fuse Symbol Table

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. CLIPS
   1. The removal and installation methods of typical clips used for vehicle body parts are shown in the table below.

      HINT:

      If clips are damaged during work, always replace the damaged clip with a new one.

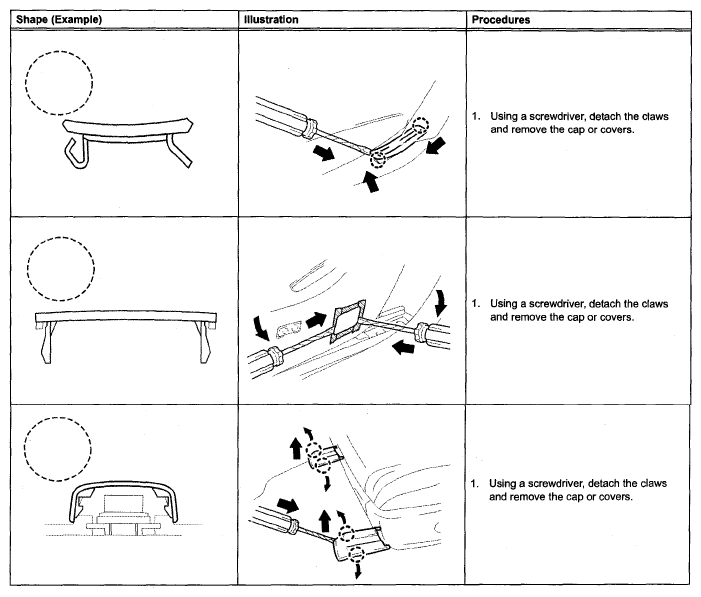

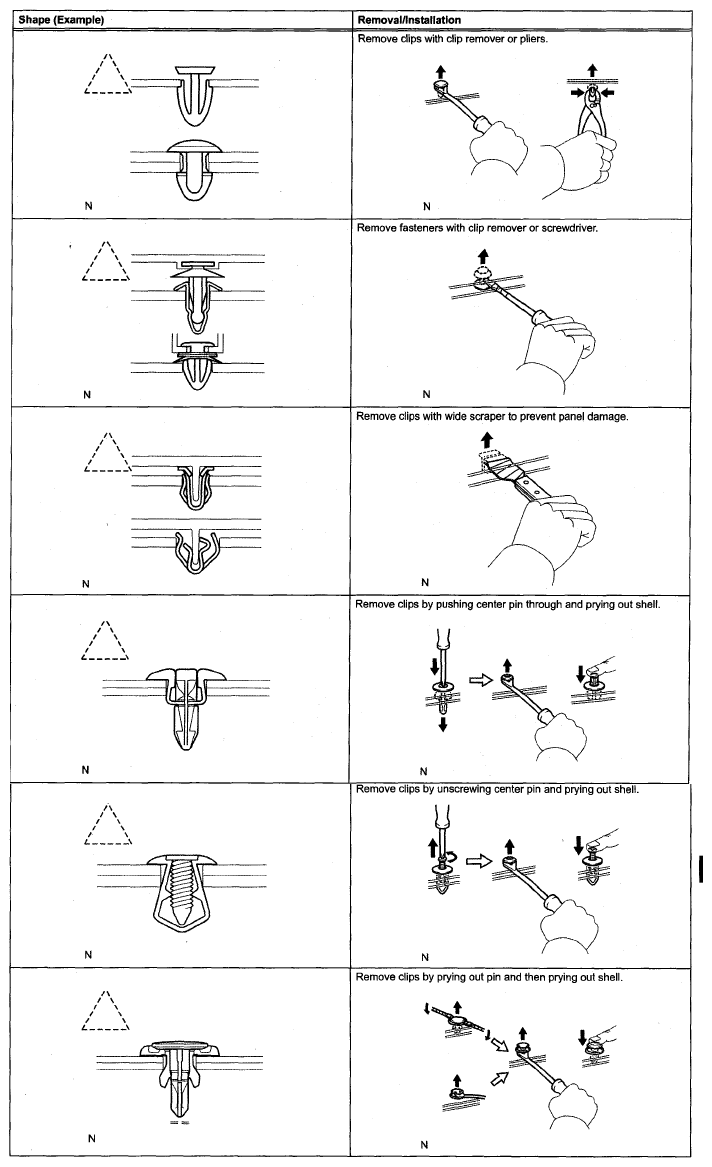

   Fig 5: Identifying Clip Removal/Installation Procedure Table

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. CLAWS
   1. The removal and installation methods of typical claws used for vehicle body parts are shown in the table below.

      HINT:

      If claws are damaged during a procedure, always replace the damaged claws with a new caps or covers.

   Fig 6: Identifying Claws Removal/Installation Procedure Table

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. REMOVAL AND INSTALLATION OF VACUUM HOSES
   1. To disconnect a vacuum hose, pull and twist from the end of the hose. Do not pull from the middle of the hose as this may damage the hose.
      Fig 7: Identifying Correct & Incorrect Procedure For Vacuum Hose Disconnecting

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. When disconnecting vacuum hoses, use tags to identify where they should be reconnected.
   3. After completing any hose related repairs, double check that the vacuum hoses are properly connected. The label under the hood shows the proper layout.
   4. When using a vacuum gauge, never force the hose onto a connector that is too large. If a hose has been stretched, air may leak. Use a step-down adapter if necessary.
   Fig 8: Identifying Correct Vacuum Hoses According To Tags

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
10. TORQUE WHEN USING TORQUE WRENCH WITH EXTENSION TOOL
    Fig 9: Identifying Length Of Extension Tool & Torque Wrench

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Use the formula below to calculate special torque values for situations where SST or an extension tool is combined with the torque wrench.

       Formula: T' = L2/(L1 + L2) * T

Fig 10: Identifying Length Of Extension Tool & Torque Wrench

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

The LEXUS GX 470 is equipped with a Supplemental Restraint System (SRS).

1. GENERAL NOTICE
   1. As malfunctions of the SRS are difficult to confirm, the Diagnostic Trouble Codes (DTCs) become the most important source of information when troubleshooting. When troubleshooting the SRS, always check the DTCs before disconnecting the battery.
   2. Work must be started at least 90 seconds after the ignition switch is turned off and after the cable is disconnected from the negative (-) battery terminal.

      The SRS is equipped with a back-up power source. If work is started within 90 seconds after turning the ignition switch off and disconnecting the cable from the negative (-) battery terminal, the SRS may deploy.

      When the cable is disconnected from the negative (-) battery terminal, clock and audio system memory is erased. Before starting work, make a note of the settings of each memory system. When work is finished, reset the clock and audio system as before.

      CAUTION: Never use a back-up power source (battery or other) to avoid erasing system memory. The back-up power source may inadvertently power the SRS and cause it to deploy.
   3. In minor collisions where the SRS does not deploy, the steering pad, front passenger airbag assembly, front seat side airbag assembly, curtain shield airbag assembly and front seat outer belt assembly should be inspected before further use of the vehicle.

      (See DISPOSAL for steering pad)

      (See DISPOSAL for front passenger airbag assembly)

      (See FRONT SEAT SIDE AIRBAG ASSEMBLY for front seat side airbag assembly)

      (See FRONT SEAT SIDE AIRBAG ASSEMBLY for curtain shield airbag assembly)

      (See DISPOSAL for front seat outer belt assembly)

   4. Never use SRS parts from another vehicle. When replacing parts, use new parts.
   5. Before repairs, remove the airbag sensor assemblies if impacts are likely to be applied to the sensor during repairs.
   6. Never disassemble and attempt to repair all airbag sensor assemblies and all airbag assemblies.
      1. Steering pad
      2. Front passenger airbag assembly
      3. Front seat side airbag assembly
      4. Curtain shield airbag assembly
      5. Front seat outer belt assembly
   7. Replace the airbag sensor assemblies and the airbag assemblies if: 1) damage has occurred from being dropped, or 2) cracks, dents or other defects in the case, bracket or connector are present.
   8. Do not directly expose the airbag sensor assembly or airbag assembly to hot air or flames.
   9. Use a voltmeter/ohmmeter with high impedance (minimum= 10 kΩ) for troubleshooting electrical circuits.
   10. Information labels are attached to the SRS components. Follow the instructions on the labels.
   11. After work on the SRS is completed, check the SRS warning light.
2. SPIRAL CABLE
   1. The steering wheel must be fitted correctly to the steering column with the spiral cable at the neutral position, as cable disconnection and other problems may occur. Refer to the information about correct installation of the steering wheel (See REMOVAL ).
   Fig 11: Identifying Spiral Cable

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. STEERING PAD

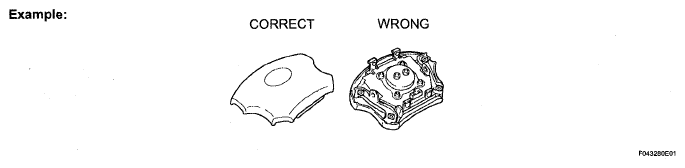

   1. Always place a removed or new steering pad surface upward. Placing the horn button with the pad surface facing down could cause a serious accident if the airbag inflates. Also, do not place anything on top of the horn button.
      Fig 12: Identifying Precaution For - Placing Removed Or Steering Pad

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

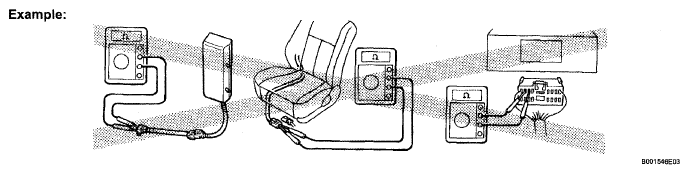

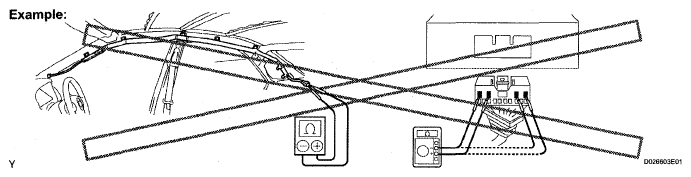

   2. Never measure the resistance of the airbag squib. This may cause the airbag to inflate, which could cause serious injury.
      Fig 13: Identifying Precaution For - Never Measuring Resistance Of Airbag Squib

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Grease or detergents of any kind should not be applied to the horn button.
   4. Store the horn button assembly in an area where the ambient temperature is below 93°C (200°F), the humidity is not high and there is no electrical noise.
   5. When using electric welding anywhere on the vehicle, disconnect the airbag ECU connectors (4 pins). These connectors contain shorting springs. This feature reduces the possibility of the airbag deploying due to current entering the squib wiring.
   6. When disposing of the vehicle or the horn button assembly by itself, the airbag should be deployed using SST before disposal (See DISPOSAL ). Activate the airbag in a safe place away from electrical noise.
4. FRONT PASSENGER AIRBAG ASSEMBLY

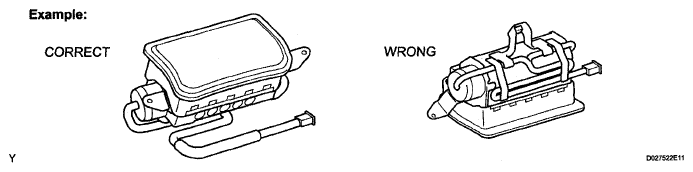

   1. Always place a removed or new front passenger airbag assembly with the pad surface facing upward. Placing the airbag assembly with the airbag inflation direction facing down could cause a serious accident if the airbag inflates.
      Fig 14: Identifying Precaution For - Placing Removed Or Front Passenger Airbag Assembly

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Never measure the resistance of the airbag squib. This may cause the airbag to inflate, which could cause serious injury.
      Fig 15: Identifying Precaution For - Never Measuring Resistance Of Airbag Squib

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Grease or detergents of any kind should not be applied to the front passenger airbag assembly.
   4. Store the airbag assembly in an area where the ambient temperature is below 93°C (200°F), the humidity is not high and there is no electrical noise.
   5. When using electric welding anywhere on the vehicle, disconnect the airbag ECU connectors (4 pins). These connectors contain shorting springs. This feature reduces the possibility of the airbag deploying due to current entering the squib wiring.
   6. When disposing of the vehicle or the airbag assembly unit by itself, the airbag should be deployed using SST before disposal (See DISPOSAL ). Activate in a safe place, away from electrical noise.
5. FRONT SEAT SIDE AIRBAG ASSEMBLY

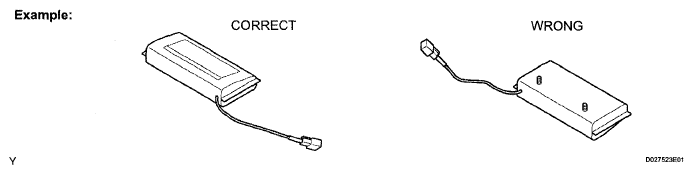

   1. Always place a removed or new front seat side airbag assembly with the airbag inflation direction facing up.
      Fig 16: Identifying Precaution For - Placing Removed Or Front Seat Side Airbag Assembly

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Never measure the resistance of the airbag squib. This may cause the airbag to inflate, which could cause serious injury.
      Fig 17: Identifying Precaution For - Never Measuring Resistance Of Airbag Squib

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Grease or detergents of any kind should not be applied to the front seat side airbag assembly.
   4. Store the airbag assembly in an area where the ambient temperature is below 93°C (200°F), the humidity is not high and there is no electrical noise.
   5. When using electric welding anywhere on the vehicle, disconnect the airbag ECU connectors (2 pins). These connectors contain shorting springs. This feature reduces the possibility of the airbag deploying due to current entering the squib wiring.
   6. When disposing of a vehicle or the airbag assembly unit by itself, the airbag should be deployed using SST before disposal (See FRONT SEAT SIDE AIRBAG ASSEMBLY ). Activate in a safe place away from electrical noise.
6. CURTAIN SHIELD AIRBAG ASSEMBLY

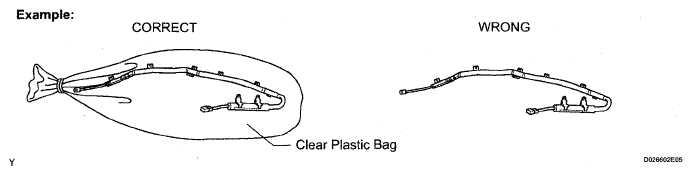

   1. Always place a removed or new curtain shield airbag assembly in a clear plastic bag, and keep it in a safe place.
      Fig 18: Identifying Precaution For - Placing Removed Or New Curtain Shield Airbag Assembly

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      CAUTION: The plastic bag is not reusable.
      NOTE: Never disassemble the curtain shield airbag assembly.
   2. Never measure the resistance of the airbag squib. This may cause the airbag to inflate, which could cause serious injury.
      Fig 19: Identifying Precaution For - Never Measuring Resistance Of Airbag Squib

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Grease or detergents of any kind should not be applied to the curtain shield airbag assembly.
   4. Store the airbag assembly in an area where the ambient temperature is below 93°C (200°F), the humidity is not high and there is no electrical noise.
   5. When using electric welding anywhere on the vehicle, disconnect the airbag ECU connectors (4 pins). These connectors contain shorting springs. This feature reduces the possibility of the airbag deploying due to current entering the squib wiring.
   6. When disposing of a vehicle or the airbag assembly unit by itself, the airbag should be deployed using SST before disposal (See DISPOSAL ). Activate in a safe place away from electrical noise.
7. FRONT SEAT OUTER BELT ASSEMBLY AND REAR SEAT OUTER BELT ASSEMBLY (SEAT BELT PRETENSIONER)
   1. Never measure the resistance of the seat outer belt. This may cause the pretensioner of the seat belt to activate, which could cause serious injury.
      Fig 20: Identifying Precaution For - Never Measuring Resistance Of Seat Outer Belt

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Never disassemble the seat outer belt.
   3. Never install the seat outer belt on another vehicle.
   4. Store the seat outer belt in an area where the ambient temperature is below 80°C (176°F), the humidity is not high and there is no electrical noise.
   5. When using electric welding anywhere on the vehicle, disconnect the airbag ECU connectors (2 pins). These connectors contain shorting springs. This feature reduces the possibility of the airbag deploying due to current entering the squib wiring.
   6. When disposing of a vehicle or the seat outer belt unit by itself, the seat outer belt should be activated before disposal (See DISPOSAL ). Activate in a safe place away from electrical noise.
   7. As the seat outer belt is hot after being activated, allow some time for it to cool down sufficiently before disposal. Never apply water to cool down the seat outer belt.
   8. Grease, detergents, oil or water should not be applied to the front seat outer belt.
8. AIRBAG SENSOR ASSEMBLY
   1. Never reuse an airbag sensor assembly that has been involved in a collision where the SRS has deployed.
   2. The connectors to the airbag sensor assembly should be connected or disconnected with the sensor placed on the floor. If the connectors are connected or disconnected while the airbag sensor assembly is not placed on the floor, the SRS may activate.
   3. Work must be started at least 90 seconds after the ignition switch is turned off and the cable is disconnected from the negative (-) battery terminal, even if only loosening the set bolts of the airbag sensor assembly.
9. WIRE HARNESS AND CONNECTOR
   1. The SRS wire harness is integrated with the instrument panel wire harness assembly. All the connectors in the system are a standard yellow color. If the SRS wire harness becomes disconnected or the connector becomes broken, repair or replace it.

1. REMOVAL AND INSTALLATION OF BATTERY TERMINAL
   NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
   1. Before performing electronic work, disconnect the cable from the negative (-) battery terminal to prevent component and wire damage caused by accidental short circuits.
      Fig 21: Disconnecting Battery Negative Terminal

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. When disconnecting the cable, turn the ignition switch and headlight dimmer switch off and loosen the cable nut completely. Perform these operations without twisting or prying the cable. Then disconnect the cable.
   3. Clock settings, radio settings, audio system memory, DTCs and other data are erased when the cable is disconnected from the negative (-) battery terminal. Write down any necessary data before disconnecting the cable.
2. HANDLING OF ELECTRONIC PARTS
   1. Do not open the cover or case of the ECU unless absolutely necessary. If the IC terminals are touched, the IC may be rendered inoperative by static electricity.
   2. Do not pull the wires when disconnecting electronic connectors. Pull the connector itself.
   3. Do not drop electronic components, such as sensors or relays. If they are dropped on a hard surface, they should be replaced.
   4. When cleaning the engine with steam, protect the electronic components, air filter and emission-related components from water.
   5. Never use an impact wrench to remove or install temperature switches or temperature sensors.
      Fig 22: Identifying Precaution - Handling Of Electronic Parts

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   6. When measuring the resistance between terminals of a wire connector, insert the tester probe carefully to prevent terminals from bending.

1. PLACE FOR REMOVING AND INSTALLING FUEL SYSTEM PARTS
   1. Work in a location with good air ventilation that does not have welders, grinders, drills, electric motors, stoves, or any other ignition sources.
   2. Never work in a pit or near a pit as vaporized fuel will collect in those places.
2. REMOVING AND INSTALLING FUEL SYSTEM PARTS
   1. Prepare a fire extinguisher before starting the operation.
   2. To prevent static electricity, install a ground wire to the fuel changer, vehicle and fuel tank, do not spray the surrounding area with water. Be careful when performing work in this area, as the work surface will become slippery. Do not clean up gasoline spills with water, as this may cause the gasoline to spread, and possibly create a fire hazard.
   3. Avoid using electric motors, working lights and other electric equipments that can cause sparks or high temperatures.
   4. Avoid using iron hammers as they may create sparks.
   5. Dispose of fuel-contaminated cloth separately using a fire resistant container.

1. If any metal particles enter inlet system parts, this may damage the engine.
2. When removing and installing inlet system parts, cover the openings of the removed parts and engine openings. Use gummed tape or other suitable materials.
3. When installing inlet system parts, check that no metal particles have entered the engine or the installed parts.

Fig 23: Identifying Precaution - Removing & Installing Inlet System Parts

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Before removing the hose, check the clamp position so that it can be reinstalled in the same position.
2. Replace any deformed or dented clamps with new ones.
3. When reusing a hose, attach the clamp on the clamp track portion of the hose.
4. For a spring type clamp, you may want to spread the tabs slightly after installation by pushing in the direction of the arrows.

Fig 24: Identifying Spring Type Clamp

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the antenna far away from the ECU and sensors of the vehicle electronic systems as possible.
2. Install an antenna feeder at least 20 cm (7.87 in.) away from the ECU and sensors of the vehicle electronic systems. For details about ECU and sensors locations, refer to the section on the applicable components.
   Fig 25: Identifying Antenna Feeder

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Keep the antenna and feeder separate from other wirings as much as possible. This will prevent signals sent from the communication equipment from affecting vehicle equipment and vice-versa.
4. Check that the antenna and feeder are correctly adjusted.
5. Do not install any high-powered mobile communication system.

1. NOTICES WHEN USING DRUM TESTER
   Fig 26: Identifying TS & CG Of DLC3 Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Before beginning testing, disable the VSC. To disable the VSC, turn the engine switch off and connect SST to terminals TS and CG of the DLC3.

      SST 09843-18040

      NOTE:

      • Confirm that the VSC warning light blinks.
      • VSC system will be reset when the engine is started.
      • For safety, secure the vehicle with restraint chains while using a wheel dynamometer.
2. NOTICES OF RELATED OPERATIONS TO VSC
   1. Do not carry out unnecessary installation and removal as it might affect the adjustment of VSC related parts.
   2. Be sure to follow the instructions for work preparation and final confirmation of proper operation of the VSC system.

1. The Full-time 4WD LEXUS GX 470 is equipped with the mechanical lock type center differential system.
   Fig 27: Identifying Center Differential Lock Indicator Light

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. During tests that require the use of a brake tester or chassis dynamometer, such as braking force tests or speedometer tests, if only the front or rear wheels are to be rotated, it is necessary to set the position of the center differential to FREE or LOCK depending on the type of the test being performed.

Center differential FREE condition

Center differential LOCK condition

Fig 28: Identifying Indicator Light

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Refer to HINT below.

   HINT:

   Center differential LOCK ↔ FREE selecting procedures:

   Move the vehicle forward or backward slightly if the indicator light does not operate correctly when the center differential lock switch is turned ON or OFF.

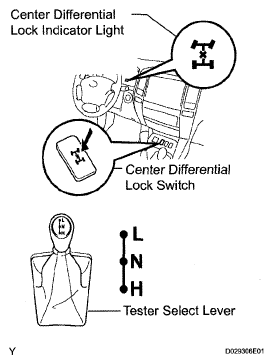

Fig 29: Identifying Transfer Lever Positions

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. When carrying out any kind of servicing or testing on a Full-time 4WD with Active Traction Control System & Vehicle Stability Control (VSC) System in which the front or rear wheels are to be rotated (braking test, speedometer test), be sure to observe the precautions listed below.

   Incorrect preparations or test procedures may cause damage as well as unsuccessful test results.

   Fig 30: Identifying Center Differential Lock Indicator Light

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Before starting any such servicing or test, be sure to check the following items:
   • Center differential mode position (FREE or LOCK)
   • Vehicle Stability Control (VSC) system: Center differential switch and VSC OFF indicator light
     Fig 31: Identifying VSC OFF Indicator Light

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   • Whether wheels should be touching the ground or jacked up
   • Transmission gear position (N position)
   • Transfer gear position (H or L position)
   • Maximum testing vehicle speed
   • Maximum testing time
3. Using Braking Tester:

   Test by low-speed type brake tester (Vehicle Speed: Below 0.5 km/h or 0.3 mph) and observe the following instructions before the test.

   1. Position the wheels to be tested (front or rear) on the tester.
      Fig 32: Positioning Wheels To Be Tested (Front Or Rear) On Tester

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Put the center differential in FREE position.
   3. Deactivate the Vehicle Stability Control (VSC) system.
   4. Shift the transmission shift lever to N position.

      HINT:

      Do not forget to change the Vehicle Stability Control (VSC) & Traction Control (TRAC) system to operational condition after the test. Check that the VSC/TRAC warning indicator light goes off when restarting the engine.

4. Using Speedometer Tester:

   Observe the following instructions and then test with the rear wheels.

   1. Position the rear wheels on the tester roller.
      Fig 33: Positioning Rear Wheels On Tester Roller

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Position the front wheels on the free roller or jack them up.
   3. Put the center differential in FREE position.
   4. Deactivate the Vehicle Stability Control (VSC) & Traction Control (TRAC) system.
   5. Ensure that the vehicle does not move using chains.
      NOTE: The maximum speed should be less than 60 km/h (37 mph) and maximum driving time should be 1 minute.

      HINT:

      • Do not suddenly shift gears, brake, accelerate or decelerate.
      • Do not forget to reactivate the Vehicle Stability Control (VSC) & Traction Control (TRAC) system. Check that the VSC warning light goes off when restarting the engine.
5. Using Chassis Dynamometer:

   Observe the following instructions and then test with the rear wheels.

   1. Remove the front propeller shaft.
      Fig 34: Identifying Front Propeller Shaft

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Put the center differential in LOCK position.
   3. Deactivate the Vehicle Stability Control (VSC) & Traction Control (TRAC) system.
   4. Make sure that the vehicle is securely fixed.

      HINT:

      • Do not suddenly shift gears, brakes, accelerate or decelerate.
      • Do not forget to reactivate the Vehicle Stability Control (VSC) & Traction Control (TRAC) system. Check that the VSC warning indicator light goes off when restarting the engine.
Fig 35: Checking On-Vehicle Wheel Balancing
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. On-Vehicle Wheel Balancing:

   When doing on-vehicle wheel balancing on a full-time 4WD vehicle, to prevent each wheel from being rotated at different speed in different directions (which could damage the center differential), always be sure to observe the following precautions.

   1. All 4 wheels should be jacked up, so they do not touch the ground at all.
   2. Put the center differential in LOCK position.
   3. Deactivate the Vehicle Stability Control (VSC) & Traction Control (TRAC) system.
   4. Fully release the parking brake lever.
   5. None of the brakes should be applied.
   6. Drive the wheels on the wheel balancer with the engine running.
   7. Carry out the wheel balancing with the transmission position in D position.

      HINT:

      • When balancing, pay attention to the other wheels rotating at the same time.
      • Do not suddenly shift gears, brake, accelerate or decelerate.
      • Do not forget to reactivate the Vehicle Stability Control (VSC) & Traction Control (TRAC) system to operational condition after the test. Check that the VSC warning indicator light goes off when restarting the engine.

1. Use only unleaded gasoline.
2. Avoid prolonged idling.

   Avoid idling the engine for more than 20 minutes.

3. Avoid a spark jump test.
   1. Perform a spark jump test only when absolutely necessary. Perform this test as rapidly as possible.
   2. While testing, never race the engine.
4. Avoid a prolonged engine compression measurement.

   Engine compression measurements must be performed as rapidly as possible.

5. Do not run the engine when the fuel tank is nearly empty. This may cause the engine to misfire and create an extra load on the converter.

Fig 36: Identifying Vehicle Towing Position

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

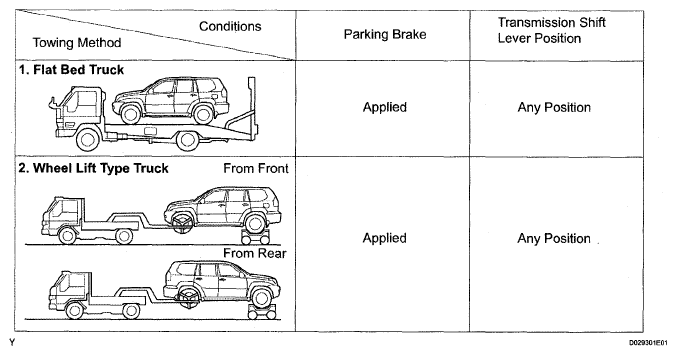

• Use one of the methods shown below to tow the vehicle.
• If the vehicle has trouble with the chassis or drive train, use method 1 (flat bed truck).

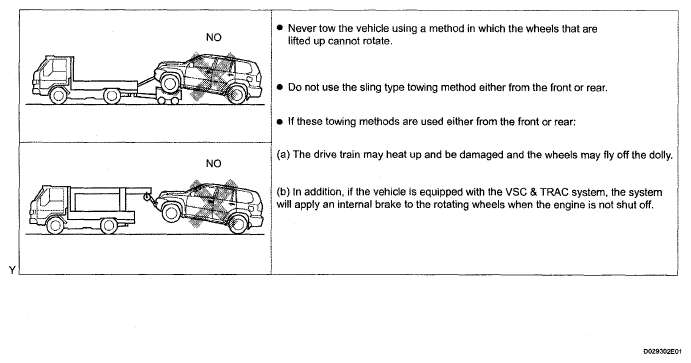

Fig 37: Identifying Precaution For - Vehicle Towing Position

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

• The towing methods shown below are dangerous and can damage the vehicle, so do not use them.

1. Use only unleaded gasoline.
2. Avoid idling the engine for more than 20 minutes.
3. Avoid performing unnecessary spark jump tests.
   1. Perform a spark jump test only when absolutely necessary. Perform this test as rapidly as possible.
   2. While testing, never race the engine.
4. Avoid a prolonged engine compression measurement. Engine compression measurements must be performed as rapidly as possible.
5. Do not run the engine when the fuel tank is nearly empty. This may cause the engine to misfire and create an extra load on the converter.
