Power Steering Link: Components

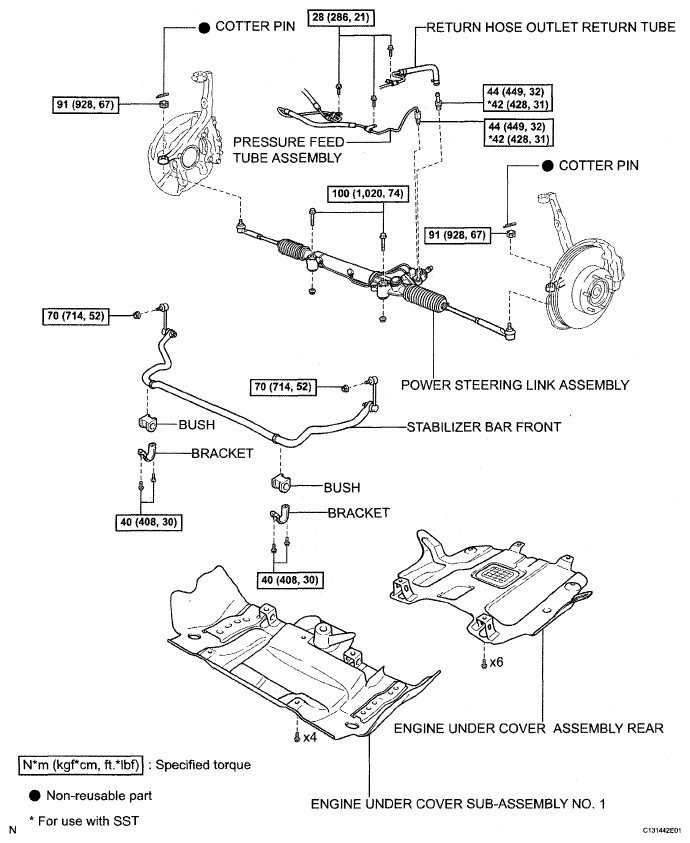

Fig 1: Power Steering Link Replacement Components With Torque Specifications (1 Of 5)
G05263078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

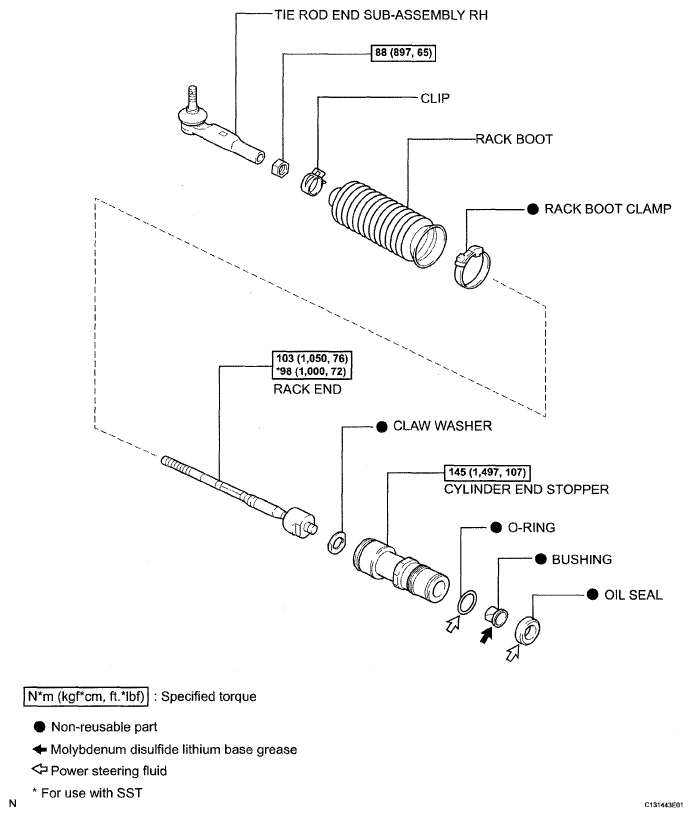

Fig 2: Power Steering Link Replacement Components With Torque Specifications (2 Of 5)
G05263079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

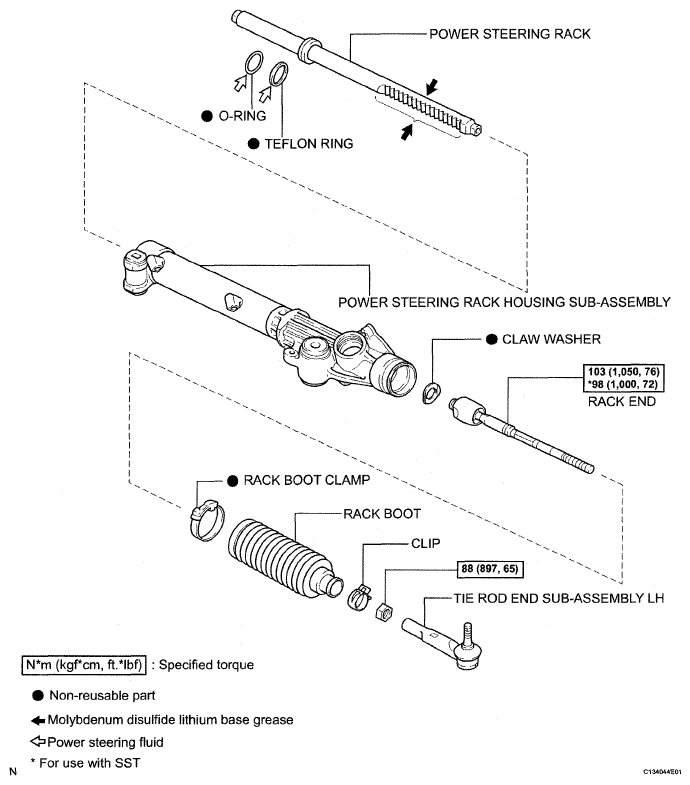

Fig 3: Power Steering Link Replacement Components With Torque Specifications (3 Of 5)
G05263080Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

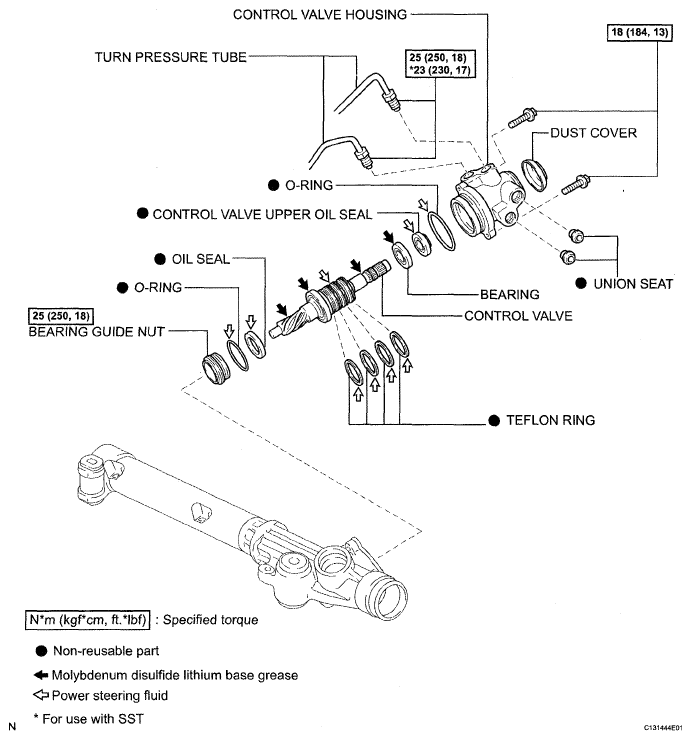

Fig 4: Power Steering Link Replacement Components With Torque Specifications (4 Of 5)
G05263081Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

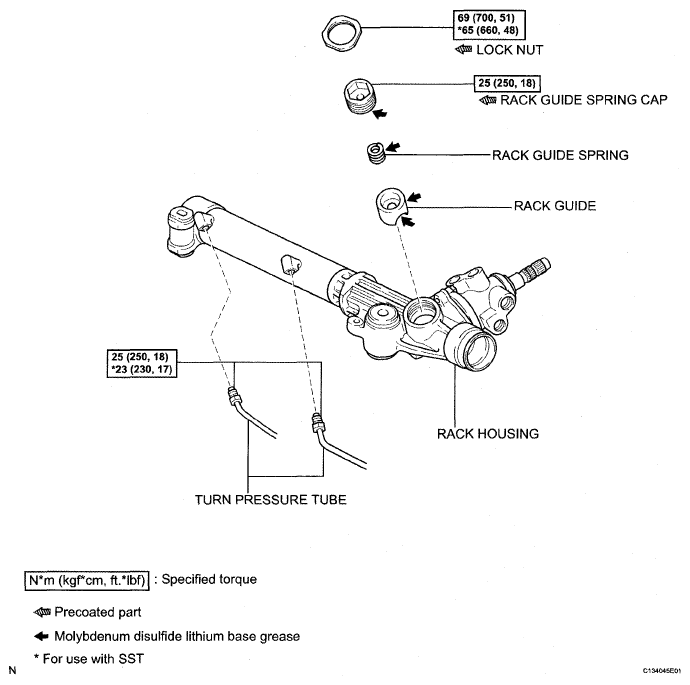

Fig 5: Power Steering Link Replacement Components With Torque Specifications (5 Of 5)
G05263082Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
