Automatic Transmission Assembly: Components

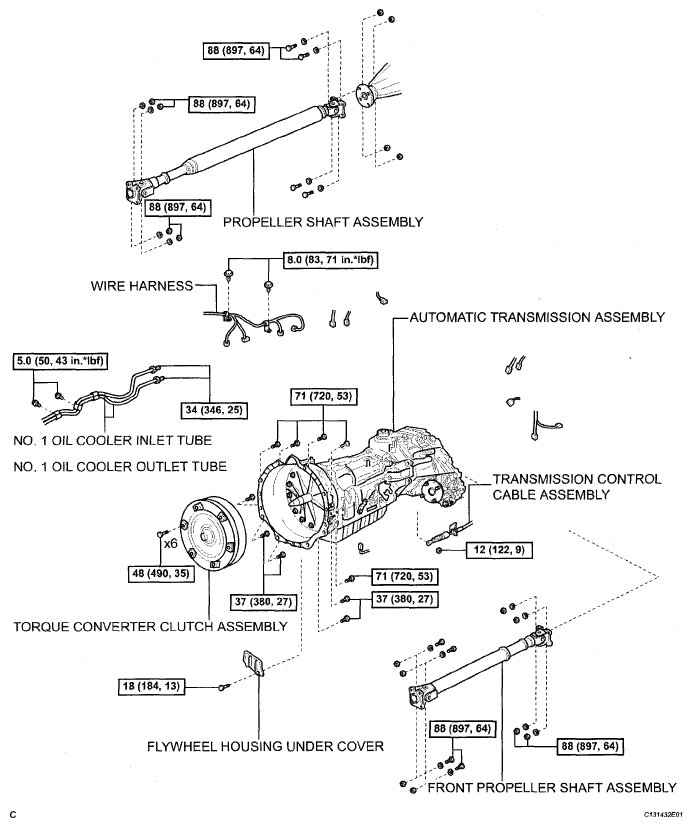

Fig 1: Identifying Automatic Transmission Assembly Replacement Components With Torque Specifications (1 Of 2)
G05261364Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Automatic Transmission Assembly Replacement Components With Torque Specifications (2 Of 2)
G05261365Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
